UNI-T

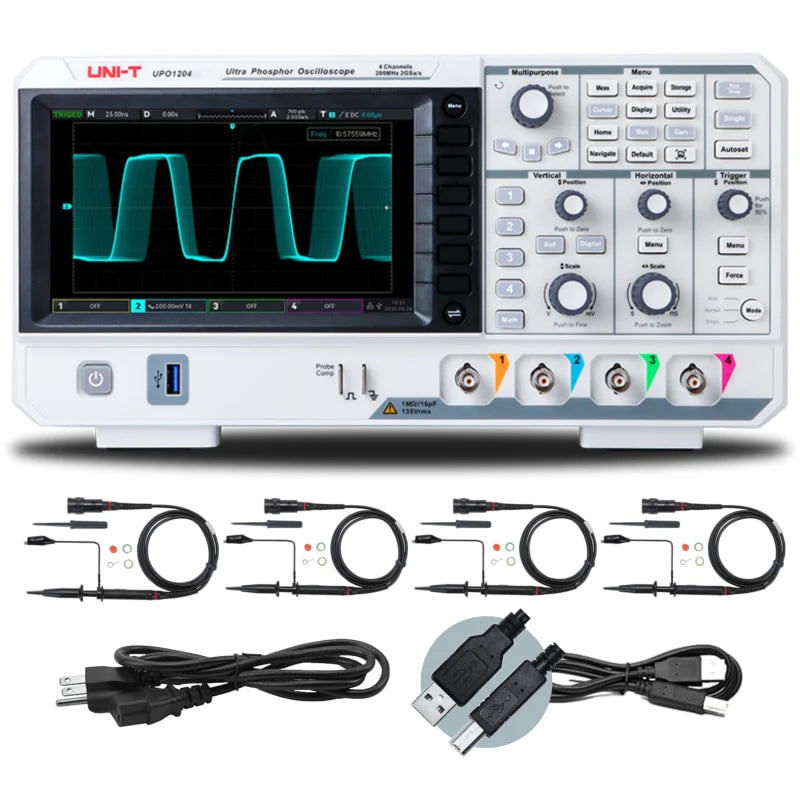

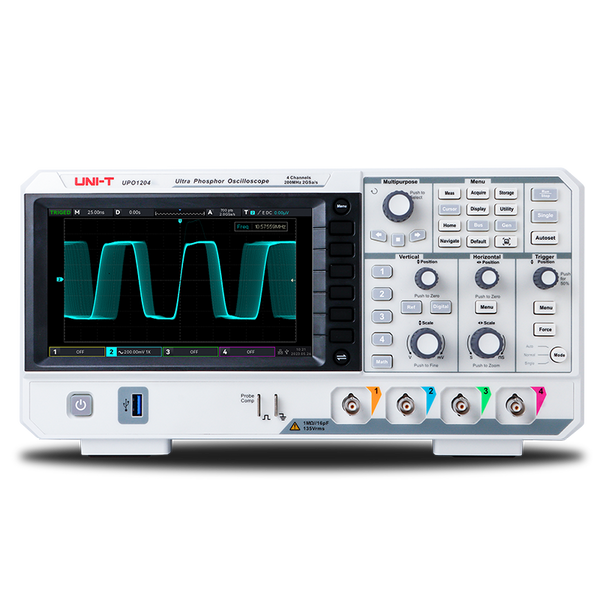

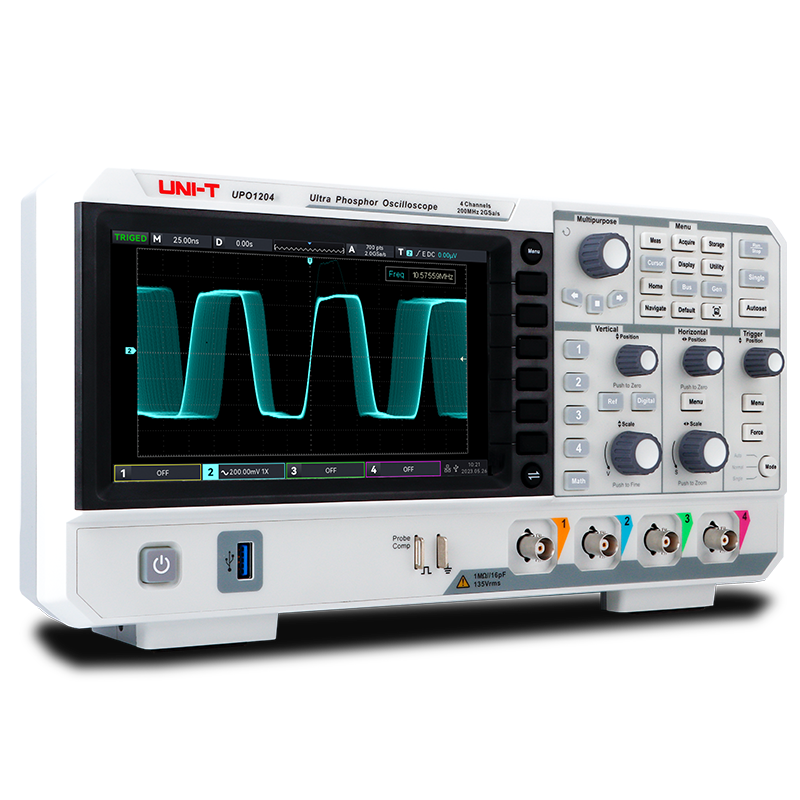

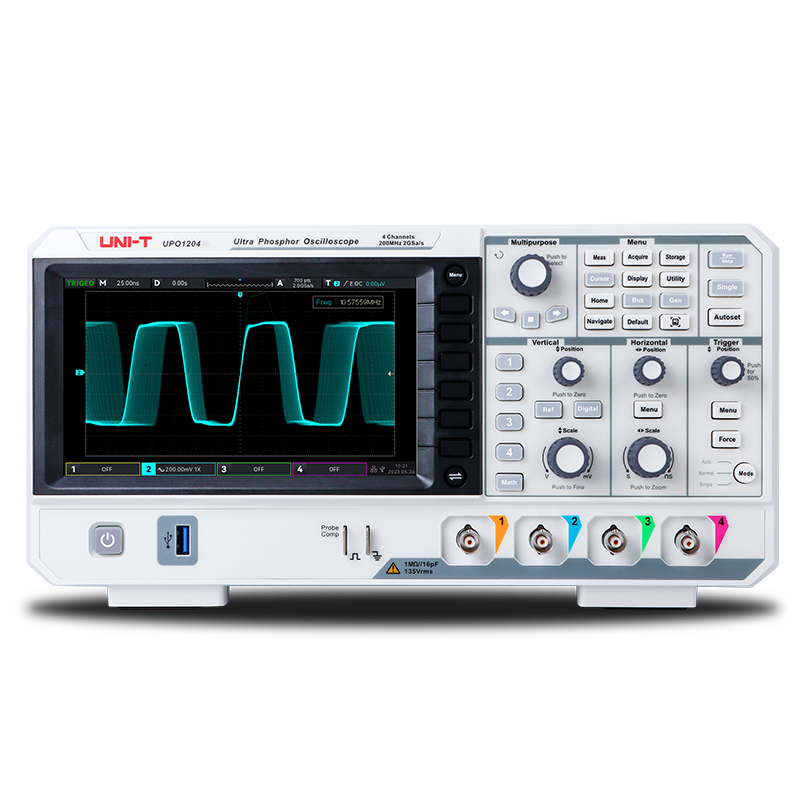

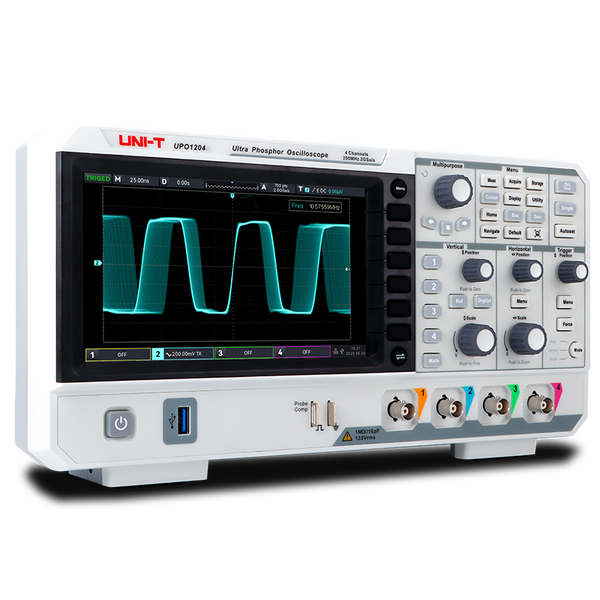

UPO1204 Digital Oscilloscope
- Bandwidth: 200MHz
- Channels: 4 Analog
- REAL-TIME SAMPLE RATE : 2GSa/s
- Rise time: ≤1.8ns
- Memory depth: 56Mpts
- Waveform capture rate: 500,000wfms/s
- Excl. VAT
- Excl. VAT €659,00
- Excl. VAT
- Excl. VAT €599,00
Share
UNI-T
UPO1204 Digital Oscilloscope
Specification
| Feature | Specification |
|---|---|
| Model Number | UPO1204 |
| Bandwidth | 200MHz |
| Channels | 4 Analog |
| Real-Time Sample Rate | 2GSa/S |
| Rise Time | ≤1.8ns |
| Memory Depth | 56Mpts |
| Waveform capture rate | 500,000wfms/s |
| Input impedance | (1MΩ± 2%）||（16 pF± 2 pF） |
| Waveform Generator | No |
| Display | 7-inch TFT LCD |
| Touchscreen | No |
| Warranty | 3 years |
| Shipping Dimensions (L x W x H) | 306mm×138mm×107mm |
| Shipping Weight | 2.5 kg |
| Documents | English download guide, multi-language safety manual, calibration report (COC) |
| Included Accessories | Power cord, USB2.0 printing cable, Passive probe 200MHz * 4(UT-P05) |
| For additional product specifications, please refer to the attached PDF. |
|
Features
max storage depth is 56Mpt
Innovative hardware decoding enables real-time decoding
1M sampling point enhanced FFT
The cursor function can measure the time and voltage of CH1, CH2, CH3, CH4, MATH, REF at the same time.
When "Cursor" is turned on, the parameters of the waveform in the cursor area can be measured
Navigation function
Comparison
Related Document
User Manual
UPO1000 Series Digital Oscilloscope-User's Guide
Datasheet
UPO1000 Series Digital Oscilloscopes - Data Sheet -EN
Programming Manual
UPO1000 Series Digital Oscilloscopes - Programming Manual
Quick Guide
UPO1000 Series Digital Oscilloscopes(Deutsch)
UPO1000 Series Digital Oscilloscopes(English)
Software
Device Manager
Firmware
UPO1000 Firmware
UPO1000 Firmware
Customer Reviews
Comprehensive EDU Bundel
Customers also bought
-
UPO1054 Digital Oscilloscope
Excl. VAT €299,00Excl. VAT €339,00Incl. 19% VAT €355,81
The UPO1054 digital oscilloscope is equipped with cutting-edge digital 3D tech known as Ultra Phosphor 2.0.
50MHz, 2 GSa/s, 4 CH, Memory Depth: 56 Mpts, 500,000 wfm/s, 7in display
Download -
UPO1104 Digital Oscilloscope
Excl. VAT €420,00Excl. VAT €489,00Incl. 19% VAT €499,80
The UPO1104 digital oscilloscope is equipped with cutting-edge digital 3D tech known as Ultra 2.0.
100MHz, 2 GSa/s, 4 CH, Memory Depth: 56 Mpts, 500,000 wfm/s, 7in display
Download -

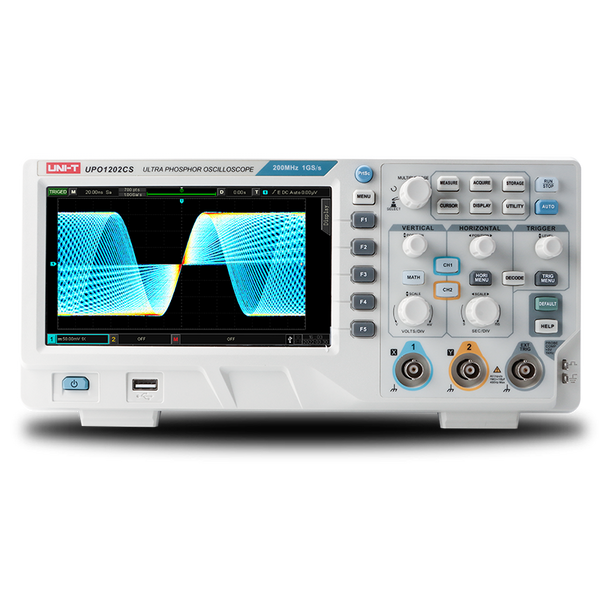

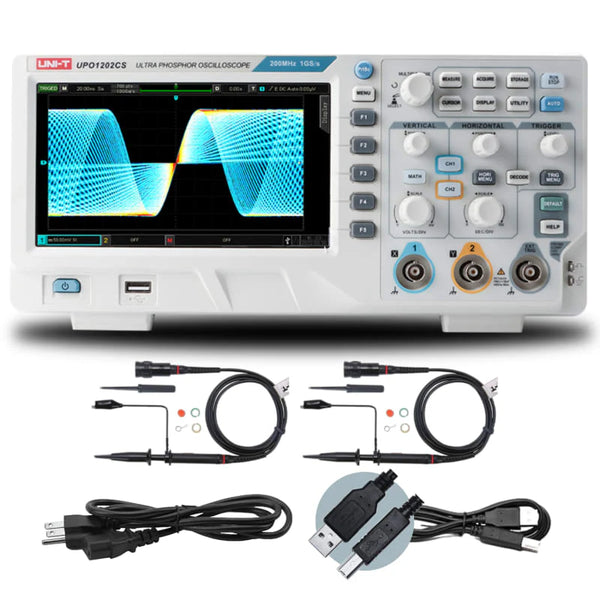

UPO1202CS Digital Oscilloscope
