UPO1104 Digital Oscilloscope
- Bandwidth: 100MHz
- Channels: 4 Analog
- REAL-TIME SAMPLE RATE : 2GSa/s
- Rise time: ≤3.5ns
- Memory depth: 56Mpts
- Waveform capture rate: 500,000wfms/s
- Excl. VAT
- Excl. VAT €489,00
- Excl. VAT
- Excl. VAT €420,00
€499,80
Incl. 19% VAT
Couldn't load pickup availability
Share
UPO1104 Digital Oscilloscope
-
secure checkout
-
3 Year Warranty
-
30 Day return Policy
Specification
Feature | Specification |
---|---|
Model Number | UPO1104 |
Bandwidth | 100MHz |
Channels | 4 Analog |
Real-Time Sample Rate | 2GSa/S |
Rise Time | ≤3.5ns |
Memory Depth | 56Mpts |
Waveform capture rate | 500,000wfms/s |
Input impedance | (1MΩ± 2%)||(16 pF± 2 pF) |
Waveform Generator | No |
Display | 7-inch TFT LCD |
Touchscreen | No |
Warranty | 3 years |
Shipping Dimensions (L x W x H) | 306mm×138mm×107mm |
Shipping Weight | 2.5 kg |
Documents | English download guide, multi-language safety manual, calibration report (COC) |

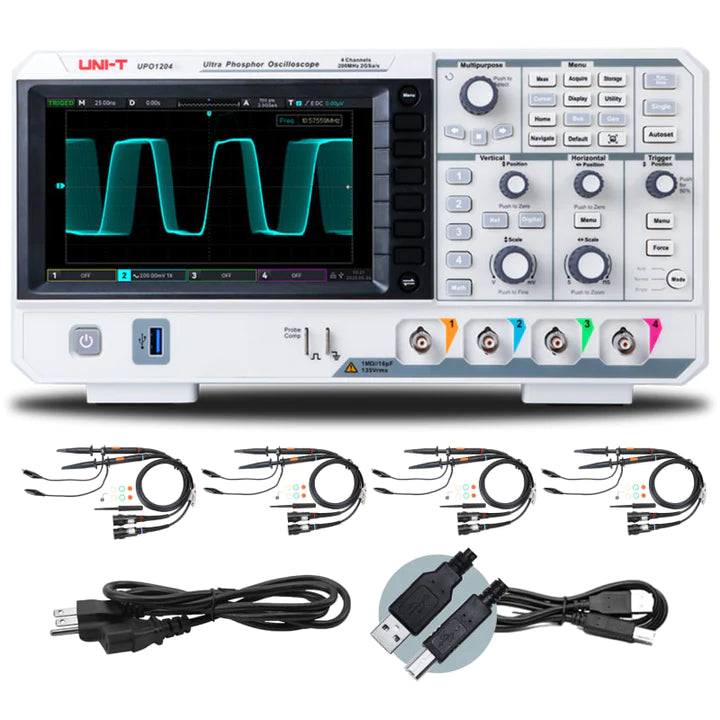

Included Accessories | Power cord, USB2.0 printing cable, Passive probe 100MHz * 4(UT-P04) |
For additional product specifications, please refer to the attached PDF. |
|
