Digital Oscilloscopes
| Series | bandwidth | Analog Channel | Sample Rate | Memory Depth | Waveform Capture Rate | Digital Channels | Display |
|---|---|---|---|---|---|---|---|
MSO7000X
|
1GHz–2GHz | 4 | 10GSa/s | 1Gpts | 2,000,000 wfms/s | 16 | 15.6 inch Touch Screen |
MSO3000X
|
350MHz–500MHz | 4 | 5GSa/s | 500Mpts | 2,000,000 wfms/s | 16 | 10.1 inch Touch Screen |

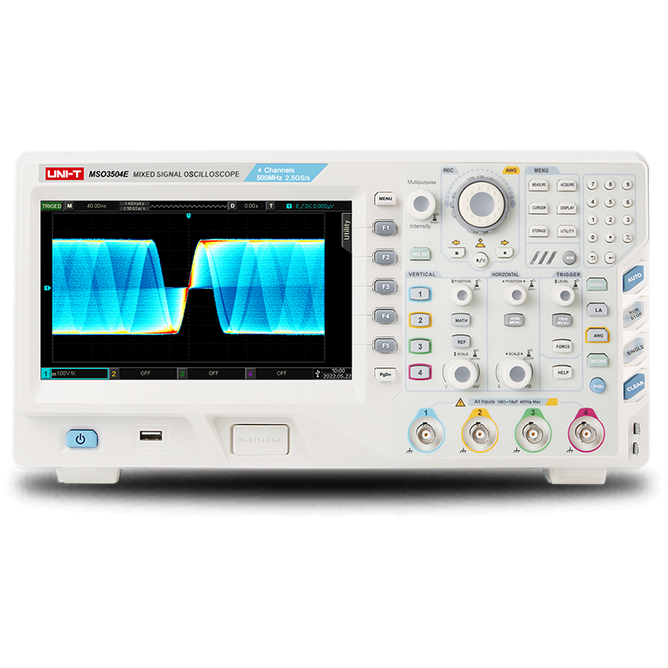

MSO/UPO3000E
|
350MHz–500MHz | 2/4 | 2.5GSa/s | 250Mpts | 1,000,000 wfms/s | 16 | 8 inch Touch Screen |
MSO2000X
|
100MHz–300MHz | 4 | 5GSa/s | 500Mpts | 2,000,000 wfms/s | 16 | 10.1 inch Touch Screen |

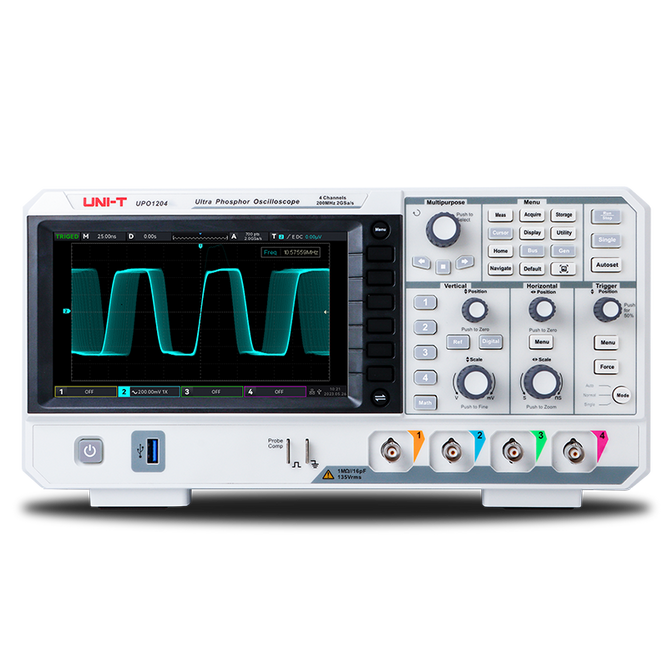

MSO/UPO2000
|
100MHz–200MHz | 2/4 | 2GSa/s | 56Mpts | 1,000,000 wfms/s | 16 | 8 inch Touch Screen |
UPO1002
|
100MHz–200MHz | 2 | 1GSa/s | 56Mpts | 500,000 wfms/s | N/A | 7 inch |
UPO1000
|
50MHz–200MHz | 2 | 2GSa/s | 56Mpts | 500,000 wfms/s | N/A | 7 inch |
UPO1000CS
|
100MHz–200MHz | 2 | 1GSa/s | 56Mpts | 500,000 wfms/s | N/A | 7 inch |
UTD2000CEX+
|
50MHz–200MHz | 2 | 1GSa/s | 64kpts | 5,000 wfms/s | N/A | 7 inch |
UTD2000CL/CL+
|
50MHz–150MHz | 2 | 500MSa/s | 64kpts | 5,000 wfms/s | N/A | 7 inch |
