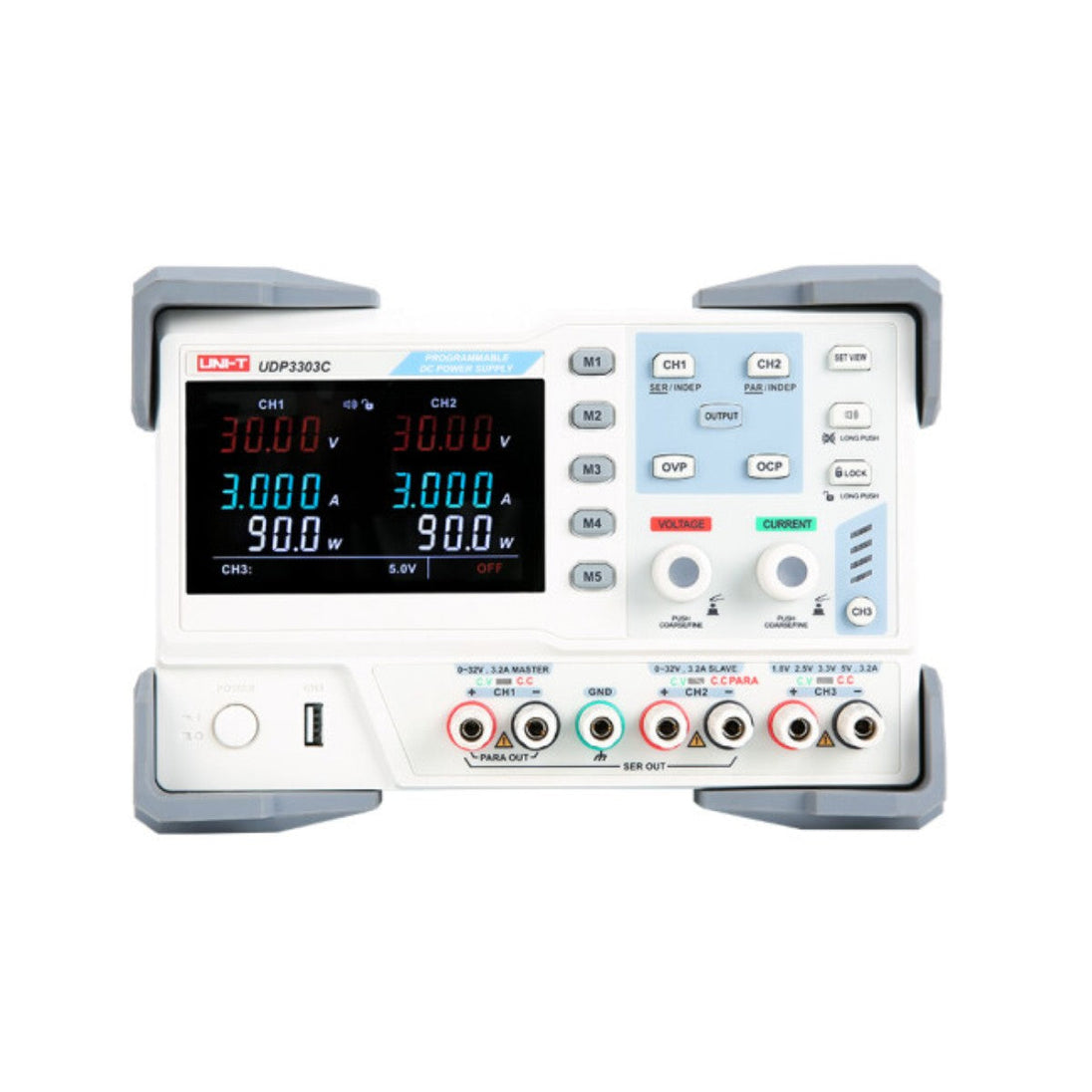

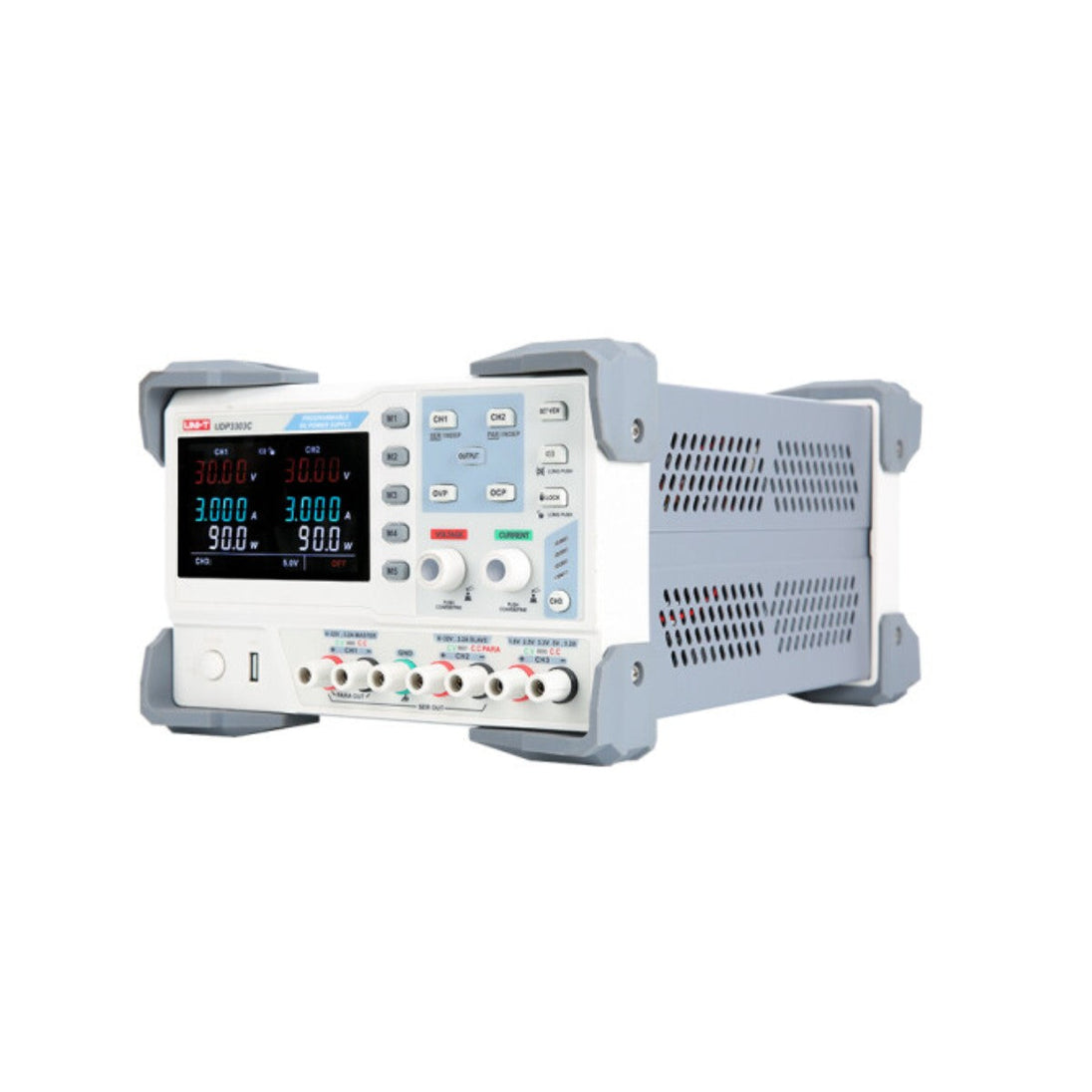

UDP3303C DC Power Supply
- Channels: 3
- TOTAL POWER : 195W
- OUTPUT VOLTAGE: 30V
- OUTPUT CURRENT: 3A
- RESOLUTION: 10mV/1mA
- SETTING ACCURACY: Voltage:＜0.01%＋3mV,Current:≤0.2%+3mA
- Connectivity: USB，RS-232
- Excl. VAT
- Excl. VAT €299,00
€355,81
Incl. 19% VAT
Share
UDP3303C DC Power Supply
Specification
| Feature | Specification |
|---|---|
| Model Number | UDP3305C |
| Channels | 3Ch |
| Output Voltage | 30V |
| Output Current | 3A |
| Total Power | 315W |
| Max V Resolution | 10mV |
| Max A Resolution | 1mA |
| Connectivity | RS-232, USB |
| Setting Accuracy |
Voltage:＜0.01%＋3mV,Current:≤0.2%+3mA
|
| Warranty | 3 years |
| Shipping Dimensions (W×H×D) | 445×365×300(mm) |
| Shipping Weight | 10.2Kg |
| Documents | English download guide, multi-language safety manual, calibration report (COC) |
| Included Accessories | Power cord, USB2.0 printing cable, Aligator Clip Test Line, RS232 Communication lines |
| For additional product specifications, please refer to the attached PDF. |
|
Features

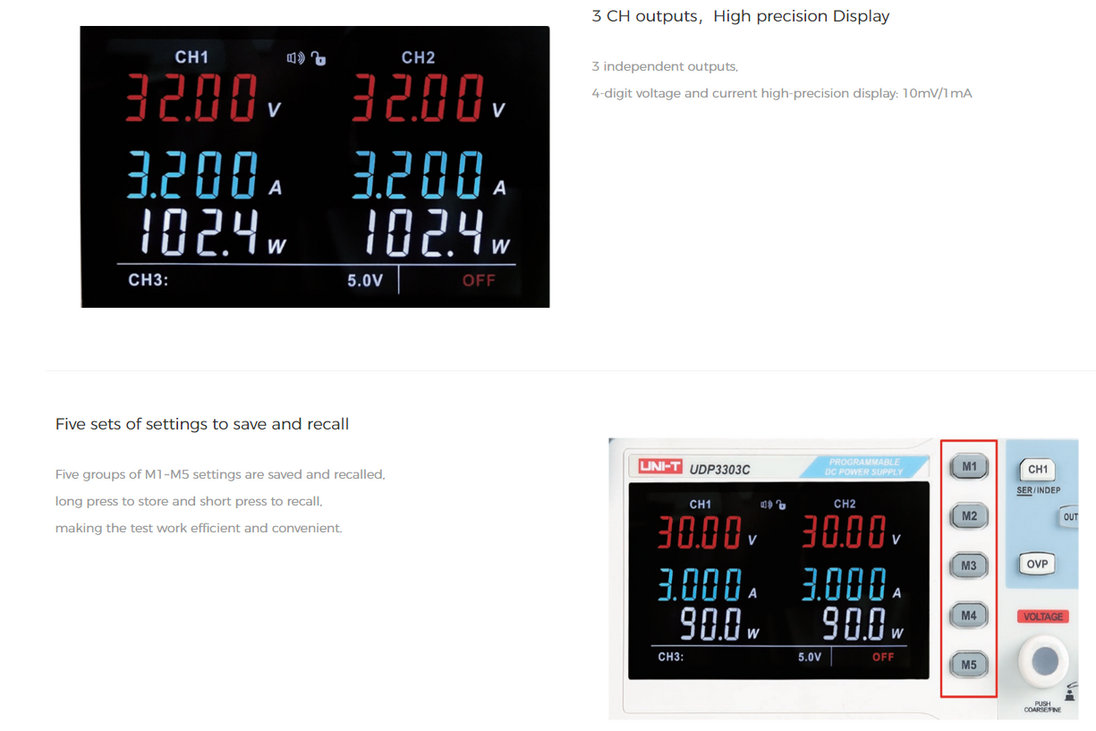

3 CH outputs，High precision Display
Five sets of settings to save and recall

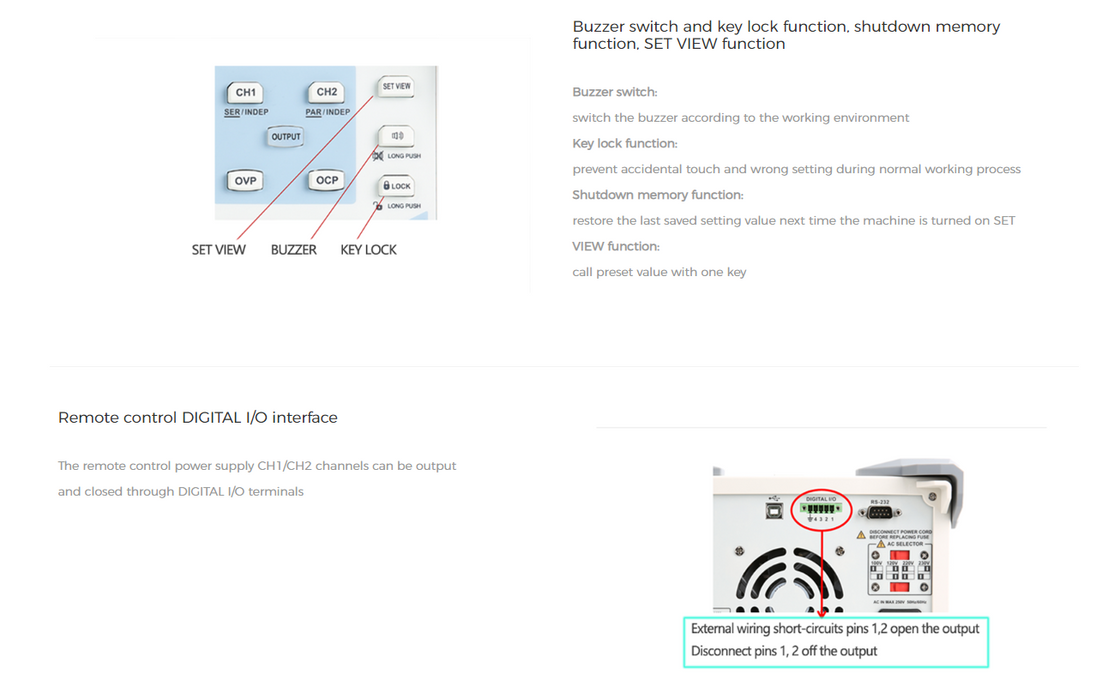

Buzzer switch and key lock function, shutdown memory function, SET VIEW function

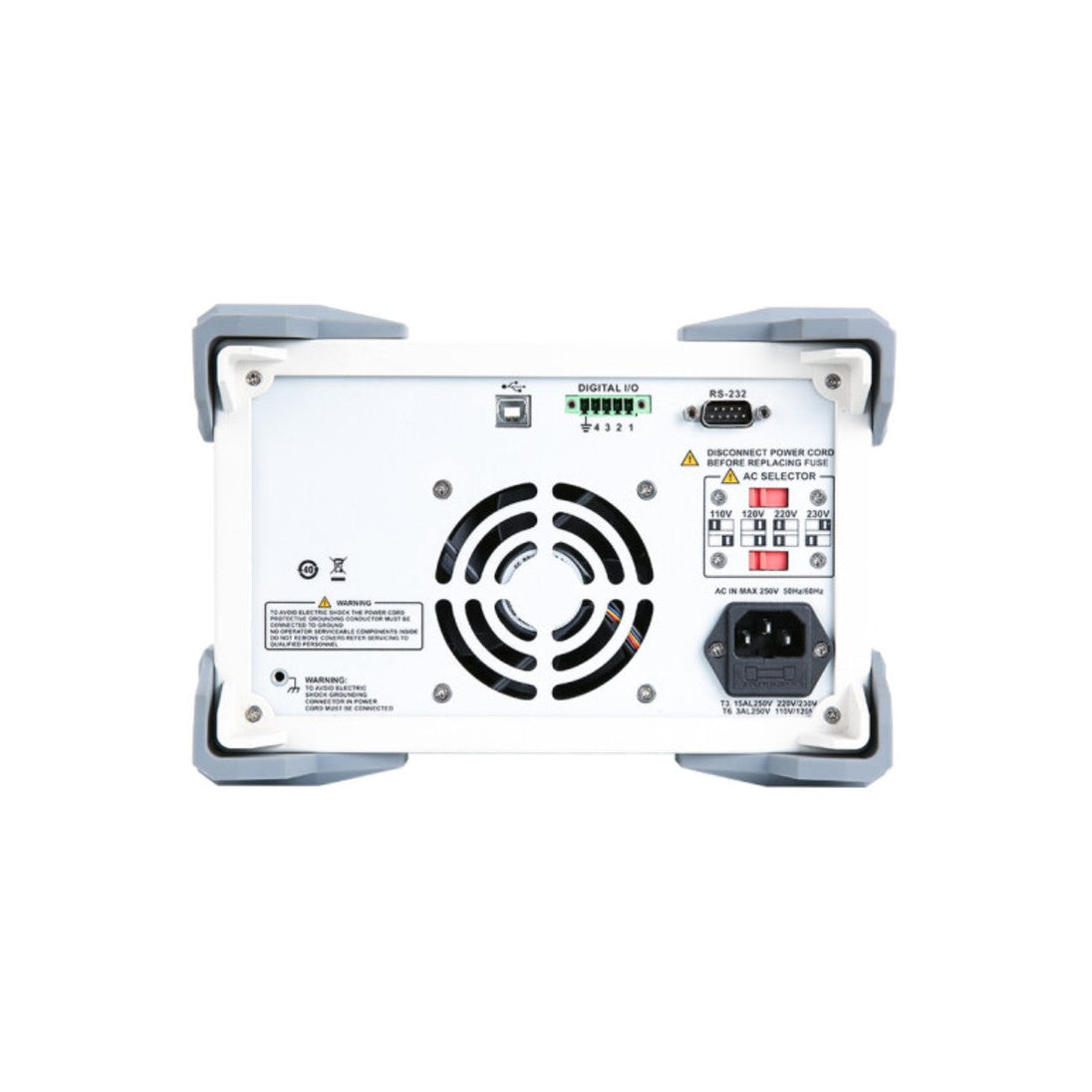

Remote control DIGITAL I/O interface
Video

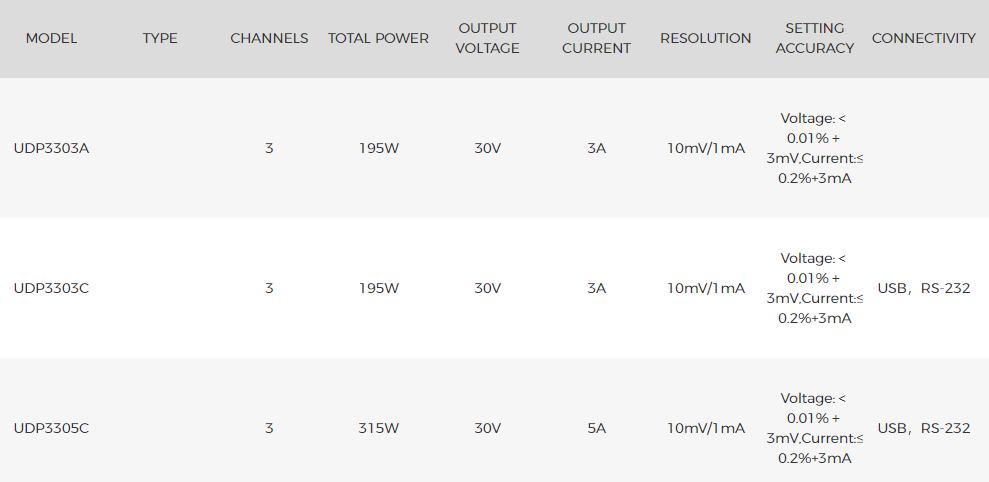

Comparison
| Feature | Specification |
|---|---|
| Model Number | UDP3303C |
| Channels | 3Ch |
| Output Voltage | 30V |
| Output Current | 3A |
| Total Power | 195W |
| Max V Resolution | 10mV |
| Max A Resolution | 1mA |
| Connectivity | RS-232, USB |
| Setting Accuracy |
Voltage:＜0.01%＋3mV,Current:≤0.2%+3mA
|
| Warranty | 3 years |
| Shipping Dimensions (W×H×D) | 445×365×300(mm) |
| Shipping Weight | 10.2Kg |
| Documents | English download guide, multi-language safety manual, calibration report (COC) |
| Included Accessories | Power cord, USB2.0 printing cable, Aligator Clip Test Line, RS232 Communication lines |
| For additional product specifications, please refer to the attached PDF. |
|
Related Document
User Manual
UDP3303C Programmable DC power supply User's Guide
UDP3303A Programmable DC power supply User's Guide
UDP3305C Programmable DC power supply User's Guide
Datasheet
UDP3000 Series Programmable DC power supply Datasheet
Programming Manual
UDP3000 Series Programmable DC power supply Programming Manual
Software
UDP3303C Software
UDP3305C Software
