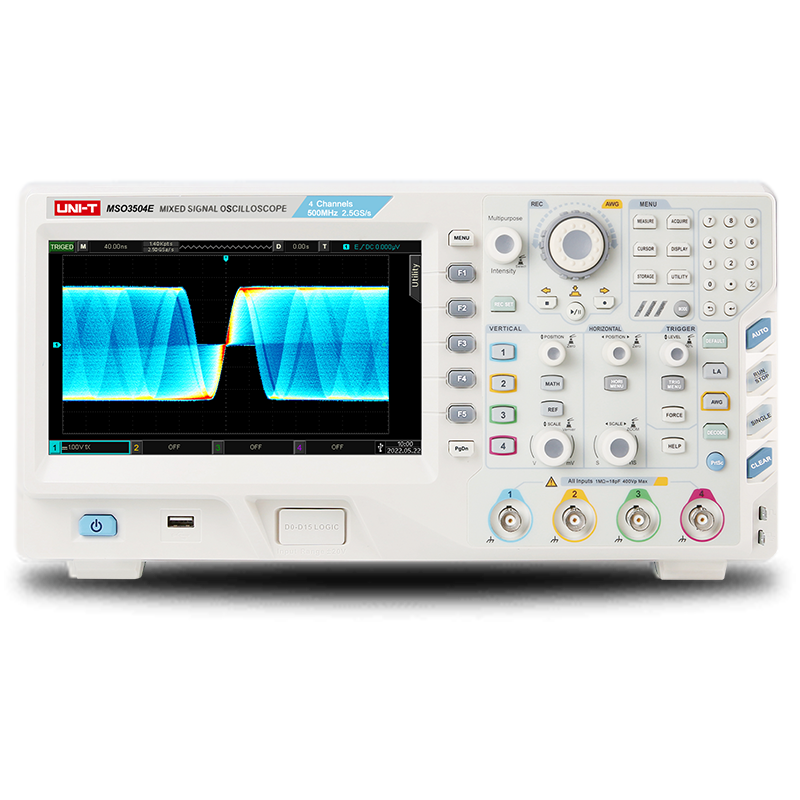

MSO3354E-S Digital Oscilloscope

  • Bandwidth: 350MHz
  • Channels: 4 Analog + 16 Digital
  • REAL-TIME SAMPLE RATE : 2.5GSa/s
  • Rise time: ≤1ns
  • Memory depth: 250Mpts
  • Waveform capture rate: 1.000,000wfms/s

5 Years Warranty Included*

Click here for details

Excl. VAT €2.570,00
Excl. VAT         €2.141,67
€2.548,59 Incl. 19% VAT

UNI-T

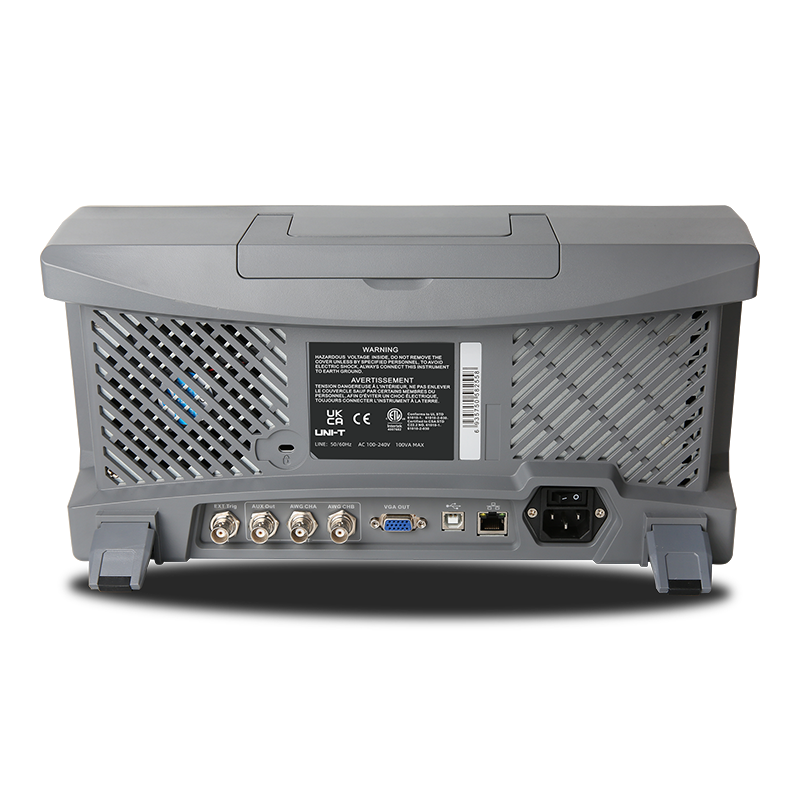

MSO3354E-S Digital Oscilloscope

MSO3354E-S Digital Oscilloscope

Specification

Feature Specification
Model Number MSO3354E-S
Bandwidth 350MHz
Channels 4 Analog + 16 Digital
Real-Time Sample Rate 2.5GSa/s
Rise Time ≤1ns
Memory Depth 250Mpts
Waveform capture rate 1,000,000wfms/s
Input impedance(analog channel) （1MΩ± 2%）||（18 pF± 3 pF）
Input impedance(Digital Channel) （101 kΩ±1%）||（9 pF ± 1 pF）
Waveform Generator Yes
Display 8-inch 800x480 capacitive touch display
Warranty 3 years
Shipping Dimensions (L x W x H)  370mm×185mm×115mm
Shipping Weight 4.5 kg
Documents English download guide, multi-language safety manual, calibration report (COC)

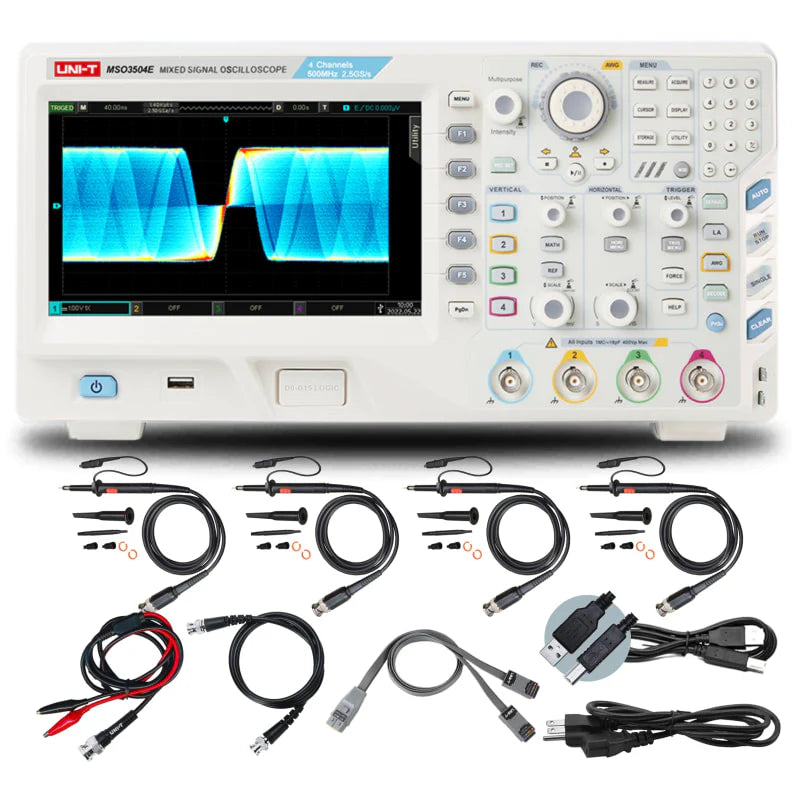

Included Accessories Power cord, USB2.0 printing cable, Passive probe 500MHz * 2(UT-P07) or 350MHz * 4 (UT-P08), Logic analyzer probe (UT-M15), BNC straight-through cable, BNC to alligator clip cable
For additional product specifications, please refer to the attached PDF.





Application

Model UPO3504E UPO3502E UPO3354E UPO3352E
Bandwidth 100MHz 350MHz
Channels Analog 4  Analog 2 Analog 4 Analog 2
Real Time Sample  2.5GSa/s
Max. Memory Depth 250Mpts
Waveform Capture Rate 1.000,000wfms/s
Waveform Generator No
Price - - - -
Model MSO3352E MSO3354E MSO3502E MSO3504E
Bandwidth 350MHz 500MHz
Channels Analog 2 Analog 4 Analog 2 Analog 4
Real Time Sample  2.5GSa/s
Max. Memory Depth 250Mpts
Waveform Capture Rate 1.000,000wfms/s
Waveform Generator No
Price - - - -
Model MSO3354E-S MSO3504E-S
Bandwidth 350MHz 500MHz
Channels Analog 4 +Digital 16
Real Time Sample  2.5GSa/s
Max. Memory Depth 250Mpts
Waveform Capture Rate 1.000,000wfms/s
Waveform Generatore Yes
Price - -

Related Documet

User Manual

MSO/UPO3000E User's Guide
  • Language: English
  • Version: V1.0
  • Release Date: 2024.08.06

    • Datasheet

    MSO/UPO3000E Series Datasheet-EN
  • Language: English
  • Version: V1.1
  • Release Date: 2024.08.06

    • Programming Manual

    MSO/UPO3000E Programming Manual
  • Language: English
  • Version: V1.0
  • Release Date: 2024.08.06

    • Quick Guide

    MSO/UPO3000E Quick Start guide
  • Language: English
  • Version: V1.0
  • Release Date: 2024.08.06

    • Software

    Device Manager
  • Version V2.6
  • Release Date: 2024/08/08

    • Firmware

    MSO/UPO300E Firmware
  • Version V2.10.0111
  • Release Date: 2024/05/22

    • MSO/UPO3000E Firmware
  • Version V2.05.0087
  • Release Date: 2023/07/21

    • MSO/UPO3000E Firmware
  • Version V2.07.0093
  • Release Date: 2023/09/05

    Option for MSO/UPO 3000E Series

    • MSO/UPO3000CS/E-BND
      Excl. VAT €715,00

      Incl. 19% VAT €850,85



      Function and application bundle option for MSO/UPO3000E series, including MSO/UPO-EMBD bundle and MSO/UPO-AUTO bundle
      Download

    • MSO/UPO3000CS/E-SPI
      Excl. VAT €236,99

      Incl. 19% VAT €282,02



      Embedded serial bus trigger and analysis-SPI for MSO/UPO3000E series
      Download

    • MSO/UPO3000CS/E-LIN
      Excl. VAT €236,99

      Incl. 19% VAT €282,02



      Auto serial bus trigger and analysis-LIN for MSO/UPO3000E series
      Download

    • MSO/UPO3000CS/E-I2C
      Excl. VAT €236,99

      Incl. 19% VAT €282,02



      Embedded serial bus trigger and analysis-I2C for MSO/UPO3000E series
      Download

    • MSO/UPO3000CS/E-FlexRay
      Excl. VAT €236,00

      Incl. 19% VAT €280,84



      FlexRay serial bus trigger and analysis for MSO/UPO3000E series
      Download

    • MSO/UPO3000CS/E-EMBD
      Excl. VAT €475,00

      Incl. 19% VAT €565,25



      Function and application bundle option, for MSO/UPO3000E series，including MSO/UPO-COM, MSO/UPO-I2C, MSO/UPO-SPI
      Download

    • MSO/UPO3000CS/E-COM
      Excl. VAT €236,00

      Incl. 19% VAT €280,84



      PC serial bus trigger and analysis- UART, for MSO/UPO3000E series
      Download

    • MSO/UPO3000CS/E-CAN_FD
      Excl. VAT €236,00

      Incl. 19% VAT €280,84



      Auto serial bus trigger and analysis-CAN-FD for MSO/UPO3000E series
      Download

    • MSO/UPO3000CS/E-CAN
      Excl. VAT €236,00

      Incl. 19% VAT €280,84



      Auto serial bus trigger and analysis-CAN for MSO/UPO3000E series
      Download

    • MSO/UPO3000CS/E-AUTO
      Excl. VAT €475,00

      Incl. 19% VAT €565,25



      Function and application bundle option, for MSO/UPO3000E series， including MSO/UPO-CAN, MSO/UPO-CAN FD, MSO/UPO-LIN, MSO/UPO-FlexRay
      Download

    • MSO3000CS/E-S-BODE
      Excl. VAT €299,00

      Incl. 19% VAT €355,81



      Bode plot loop test analysis (software)
      Download

    • UPO3000CS/E-LA16
      Excl. VAT €345,00

      Incl. 19% VAT €410,55



      16-channel upgrade option (software),for UPO3000CS models only
      Download
    View all

    Accessories for MSO/UPO 3000E Series

    • UT-P06 Passive Probe
      Excl. VAT €36,00

      Incl. 19% VAT €42,84



      Probe factor:(10:1) Bandwidth: 300MHz.voltage:600Vpp
      Download

    • UT-P07 Passive Probe
      Excl. VAT €150,00

      Incl. 19% VAT €178,50



      Probe factor:(10:1) Bandwidth: 500MHz.voltage:600Vpp
      Download

    • UT-P21 Passive High voltage probe
      Excl. VAT €410,00

      Incl. 19% VAT €487,90



      Passive high voltage probe: (1000:1) Bandwidth: 50MHz voltage: DC 15kVrms/AC 10kV(sine wave )
      Download

    • UT-P30 Differential probe
      Excl. VAT €379,00

      Incl. 19% VAT €451,01



      Differential probe:(10:1/100:1) Bandwidth: 100MHz differential voltage: ±800Vpp
      Download

    • UT-P31 High voltage differential probe
      Excl. VAT €666,00

      Incl. 19% VAT €792,54



      High voltage differential probe: (10:1/100:1) Bandwidth: 100MHz differential voltage: ±1500Vpp
      Download

    • UT-P32 High voltage differential probe
      Excl. VAT €820,00

      Incl. 19% VAT €975,80



      High voltage differential probe: (10:1/100:1) Bandwidth: 100MHz differential voltage: ±1500Vpp
      Download

    • UT-P40 Current probe:DC~100kHz,60A
      Excl. VAT €430,00

      Incl. 19% VAT €511,70



      Conversion ratio:50mV/A, 5mV/A, Current range : 0.4A~60A,Frequency: DC~100kHz voltage: 600Vrms
      Download

    • UT-P41 Current probe:DC~100kHz,100A
      Excl. VAT €567,00

      Incl. 19% VAT €674,73



      Conversion ratio:100mV/A, 10mV/A, Current range: 50A~100A Frequency: DC~100kHz, voltage: 600Vrms
      Download

    • UT-P43 Current probe
      Excl. VAT €910,00

      Incl. 19% VAT €1.082,90



      Current probe Range :20A AC/DC, Frequency: DC~25MHz,Conversion ratio:100mV/A
      Download

    • UT-V23 High voltage probe
      Excl. VAT €24,00

      Incl. 19% VAT €28,56



      High voltage probe:(100:1)Bandwidth: 100MHz
      voltage: 2000Vpp
      Download
    View all
