Specification

FeatureSpecification
Model Number MSO3352E
Scope Type MSO
Bandwidth 350MHz
Channels 2 Analog + 16 Digital
Scope Sample Rate 2.5GSa/s
Memory Depth 250Mpts
Refresh Rate 200,000wfms/s
Vertical Scale @1MΩ 1mV/div to 10V/div
# Automatic Measurements 36
Included Bus Protocols None
Optional Bus Protocols RS232  UART  I2C  SPI  CAN  CAN-FD  LIN  FlexRay
Logic Pod Included Included
Signal Generator Function Not Available
Display Size (in) 8in
Touchscreen
Warranty 3 years*
Product Dimmensions (L x W x H) 15 in x 5 in x 7 in
Shipping Weight 4.5 kg
Documents English download guide, multi-language safety manual, calibration report (COC)

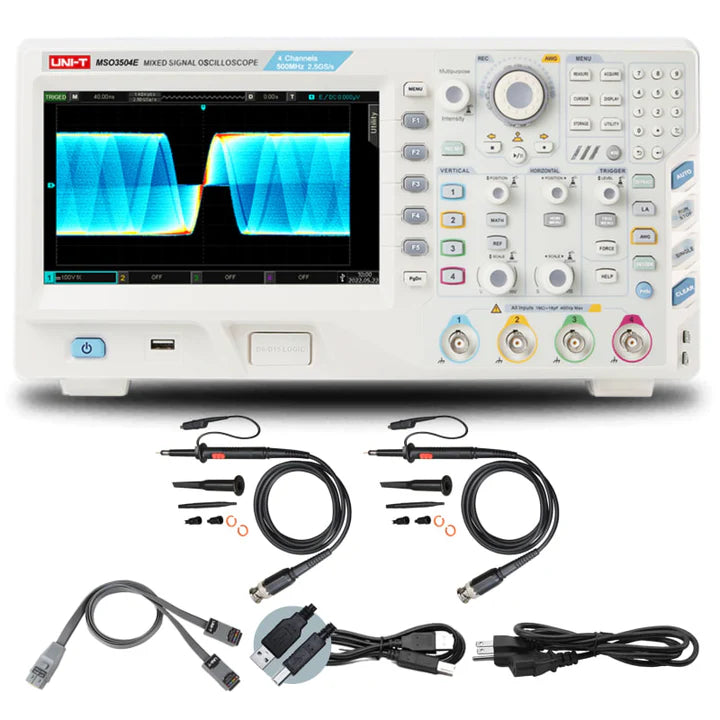

Included Accessories Power cord, USB2.0 printing cable, Passive probe 500MHz * 2(UT-P07) or 350MHz * 4 (UT-P08), Logic analyzer probe (UT-M15)
For additional product specifications, please refer to the attached PDF.



Application

Model UPO3504E UPO3502E UPO3354E UPO3352E
Bandwidth 100MHz 350MHz
Channels Analog 4  Analog 2 Analog 4 Analog 2
Real Time Sample  2.5GSa/s
Max. Memory Depth 250Mpts
Waveform Capture Rate 1.000,000wfms/s
Waveform Generator No
Price - - - -
Model MSO3352E MSO3354E MSO3502E MSO3504E
Bandwidth 350MHz 500MHz
Channels Analog 2 Analog 4 Analog 2 Analog 4
Real Time Sample  2.5GSa/s
Max. Memory Depth 250Mpts
Waveform Capture Rate 1.000,000wfms/s
Waveform Generator No
Price - - - -
Model MSO3354E-S MSO3504E-S
Bandwidth 350MHz 500MHz
Channels Analog 4 +Digital 16
Real Time Sample  2.5GSa/s
Max. Memory Depth 250Mpts
Waveform Capture Rate 1.000,000wfms/s
Waveform Generatore Yes
Price - -

Related Documet

User Manual

MSO/UPO3000E User's Guide
  • Language: English
  • Version: V1.0
  • Release Date: 2024.08.06

  • Datasheet

    MSO/UPO3000E Series Datasheet-EN
  • Language: English
  • Version: V1.1
  • Release Date: 2024.08.06

  • Programming Manual

    MSO/UPO3000E Programming Manual
  • Language: English
  • Version: V1.0
  • Release Date: 2024.08.06

  • Quick Guide

    MSO/UPO3000E Quick Start guide
  • Language: English
  • Version: V1.0
  • Release Date: 2024.08.06

  • Software

    Device Manager
  • Version V2.6
  • Release Date: 2024/08/08

  • Firmware

    MSO/UPO300E Firmware
  • Version V2.10.0111
  • Release Date: 2024/05/22

  • MSO/UPO3000E Firmware
  • Version V2.05.0087
  • Release Date: 2023/07/21

  • MSO/UPO3000E Firmware
  • Version V2.07.0093
  • Release Date: 2023/09/05
