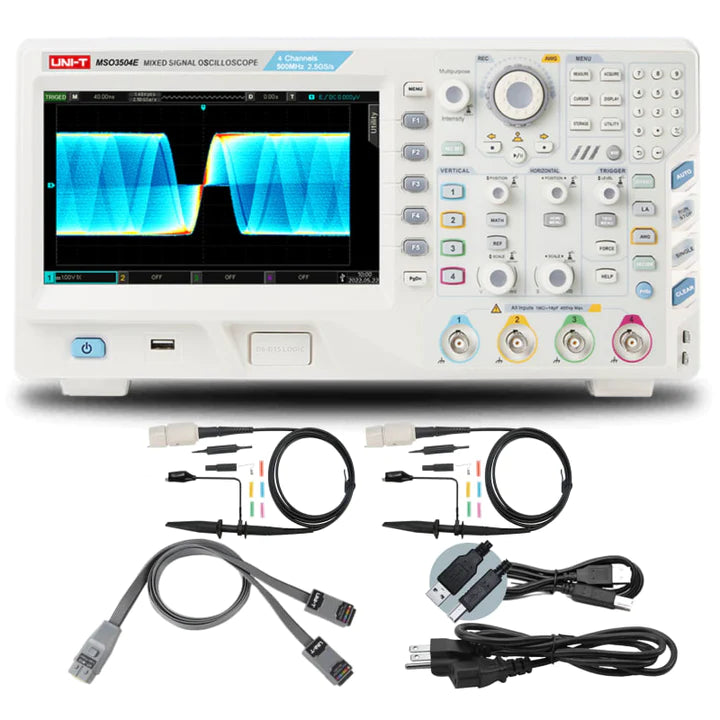

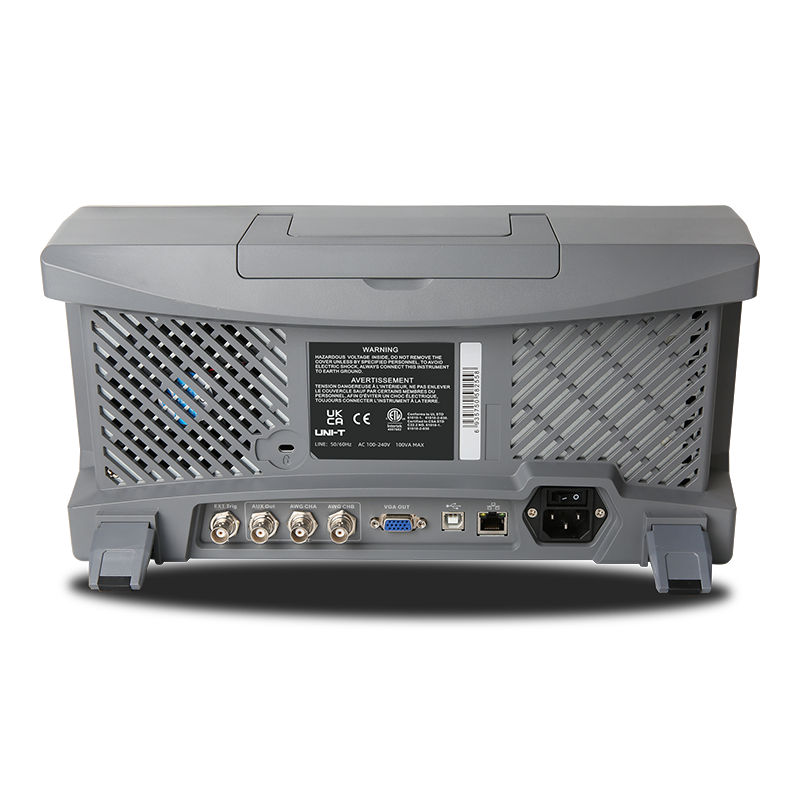

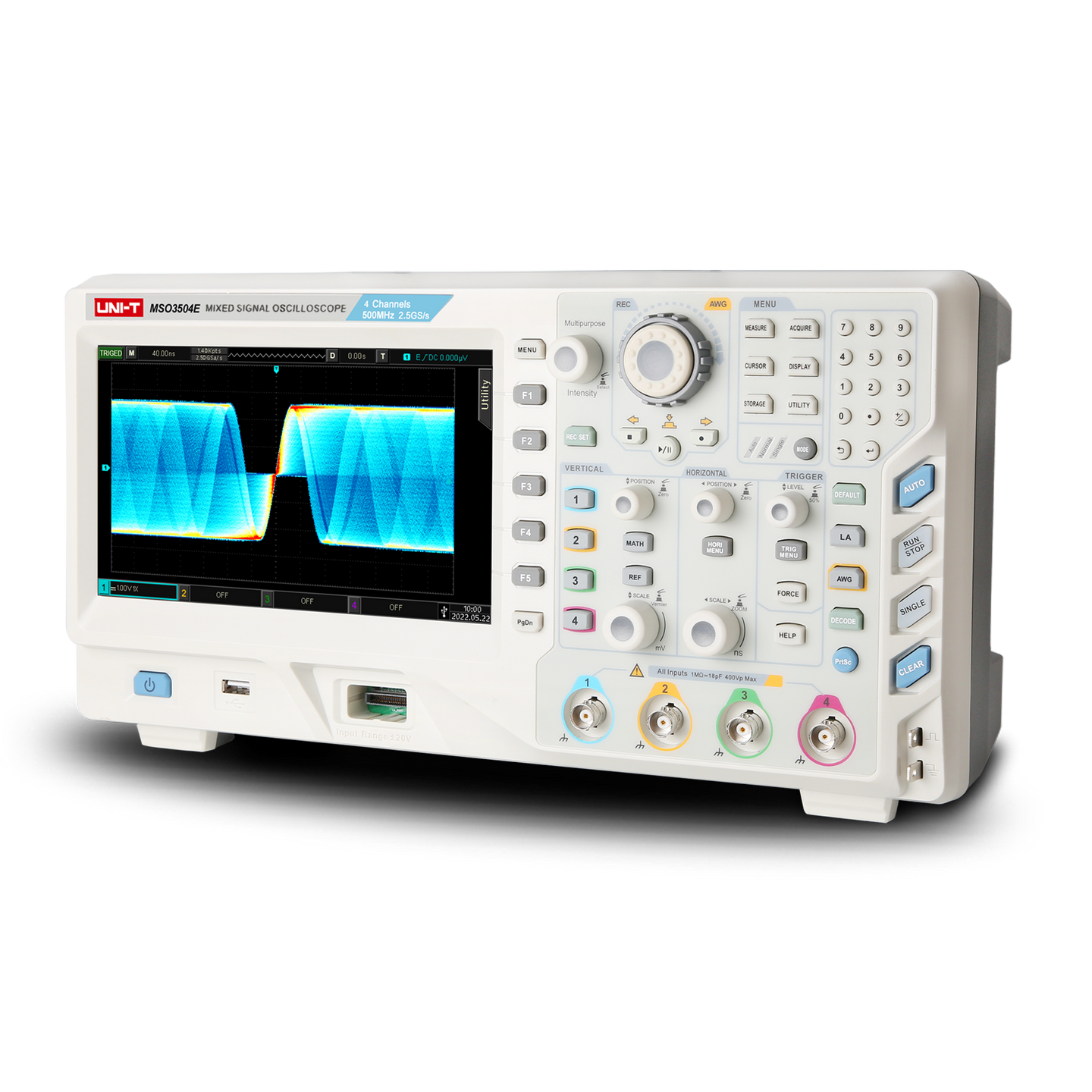

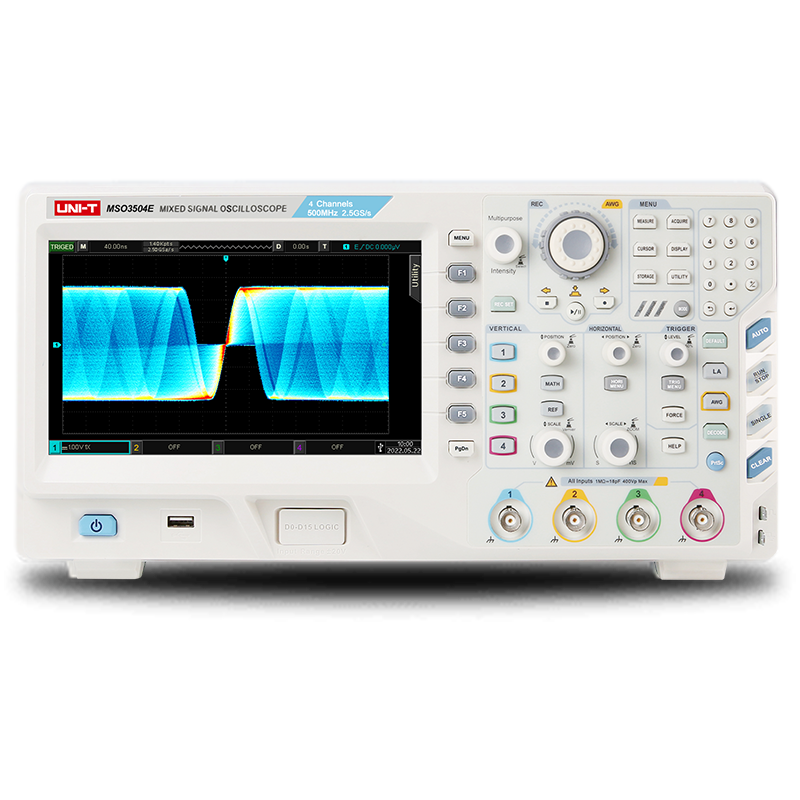

MSO3502E Mixed-signal Oscilloscope

  • Bandwidth: 500MHz
  • Channels: 2 Analog + 16 Digital
  • REAL-TIME SAMPLE RATE : 2.5GSa/s
  • Rise time: ≤750ps
  • Memory depth: 250Mpts
  • Waveform capture rate: 1.000,000wfms/s

5 Years Warranty Included*

Click here for details

Excl. VAT         €2.399,00
€2.854,81 Incl. 19% VAT

MSO3502E Mixed-signal Oscilloscope

MSO3502E Mixed-signal Oscilloscope

Specification

Feature Specification
Model Number MSO3502E
Bandwidth 500MHz
Channels 2 Analog + 16 Digital
Real-Time Sample Rate 2.5GSa/s
Rise Time ≤750ps
Memory Depth 250Mpts
Waveform capture rate 1,000,000wfms/s
Input impedance(analog channel) （1MΩ± 2%）||（18 pF± 3 pF）
Input impedance(Digital Channel) （101 kΩ±1%）||（9 pF ± 1 pF）
Waveform Generator No
Display 8-inch 800x480 capacitive touch display
Warranty 3 years
Shipping Dimensions (L x W x H)  370mm×185mm×115mm
Shipping Weight 4.5 kg
Documents English download guide, multi-language safety manual, calibration report (COC)
Included Accessories Power cord, USB2.0 printing cable, Passive probe 500MHz * 2(UT-P07) or 350MHz * 4 (UT-P08), Logic analyzer probe (UT-M15)
For additional product specifications, please refer to the attached PDF.





Application

Model UPO3504E UPO3502E UPO3354E UPO3352E
Bandwidth 100MHz 350MHz
Channels Analog 4  Analog 2 Analog 4 Analog 2
Real Time Sample  2.5GSa/s
Max. Memory Depth 250Mpts
Waveform Capture Rate 1.000,000wfms/s
Waveform Generator No
Price - - - -
Model MSO3352E MSO3354E MSO3502E MSO3504E
Bandwidth 350MHz 500MHz
Channels Analog 2 Analog 4 Analog 2 Analog 4
Real Time Sample  2.5GSa/s
Max. Memory Depth 250Mpts
Waveform Capture Rate 1.000,000wfms/s
Waveform Generator No
Price - - - -
Model MSO3354E-S MSO3504E-S
Bandwidth 350MHz 500MHz
Channels Analog 4 +Digital 16
Real Time Sample  2.5GSa/s
Max. Memory Depth 250Mpts
Waveform Capture Rate 1.000,000wfms/s
Waveform Generatore Yes
Price - -

Related Documet

User Manual
Datasheet
Quick Start Guide
Programming Manual
Software and Firmware Download

Option for MSO/UPO 3000E Series

  • MSO/UPO3000CS/E-BND
    Excl. VAT €715,00

    Incl. 19% VAT €850,85



    Function and application bundle option for MSO/UPO3000E series, including MSO/UPO-EMBD bundle and MSO/UPO-AUTO bundle
    Download

  • MSO/UPO3000CS/E-SPI
    Excl. VAT €236,99

    Incl. 19% VAT €282,02



    Embedded serial bus trigger and analysis-SPI for MSO/UPO3000E series
    Download

  • MSO/UPO3000CS/E-LIN
    Excl. VAT €236,99

    Incl. 19% VAT €282,02



    Auto serial bus trigger and analysis-LIN for MSO/UPO3000E series
    Download

  • MSO/UPO3000CS/E-I2C
    Excl. VAT €236,99

    Incl. 19% VAT €282,02



    Embedded serial bus trigger and analysis-I2C for MSO/UPO3000E series
    Download

  • MSO/UPO3000CS/E-FlexRay
    Excl. VAT €236,00

    Incl. 19% VAT €280,84



    FlexRay serial bus trigger and analysis for MSO/UPO3000E series
    Download

  • MSO/UPO3000CS/E-EMBD
    Excl. VAT €475,00

    Incl. 19% VAT €565,25



    Function and application bundle option, for MSO/UPO3000E series，including MSO/UPO-COM, MSO/UPO-I2C, MSO/UPO-SPI
    Download

  • MSO/UPO3000CS/E-COM
    Excl. VAT €236,00

    Incl. 19% VAT €280,84



    PC serial bus trigger and analysis- UART, for MSO/UPO3000E series
    Download

  • MSO/UPO3000CS/E-CAN_FD
    Excl. VAT €236,00

    Incl. 19% VAT €280,84



    Auto serial bus trigger and analysis-CAN-FD for MSO/UPO3000E series
    Download

  • MSO/UPO3000CS/E-CAN
    Excl. VAT €236,00

    Incl. 19% VAT €280,84



    Auto serial bus trigger and analysis-CAN for MSO/UPO3000E series
    Download

  • MSO/UPO3000CS/E-AUTO
    Excl. VAT €475,00

    Incl. 19% VAT €565,25



    Function and application bundle option, for MSO/UPO3000E series， including MSO/UPO-CAN, MSO/UPO-CAN FD, MSO/UPO-LIN, MSO/UPO-FlexRay
    Download

  • MSO3000CS/E-S-BODE
    Excl. VAT €299,00

    Incl. 19% VAT €355,81



    Bode plot loop test analysis (software)
    Download

  • UPO3000CS/E-LA16
    Excl. VAT €345,00

    Incl. 19% VAT €410,55



    16-channel upgrade option (software),for UPO3000CS models only
    Download
View all

Accessories for MSO/UPO 3000E Series

  • UT-P06 Passive Probe
    Excl. VAT €36,00

    Incl. 19% VAT €42,84



    Probe factor:(10:1) Bandwidth: 300MHz.voltage:600Vpp
    Download

  • UT-P07 Passive Probe
    Excl. VAT €150,00

    Incl. 19% VAT €178,50



    Probe factor:(10:1) Bandwidth: 500MHz.voltage:600Vpp
    Download

  • UT-P21 Passive High voltage probe
    Excl. VAT €410,00

    Incl. 19% VAT €487,90



    Passive high voltage probe: (1000:1) Bandwidth: 50MHz voltage: DC 15kVrms/AC 10kV(sine wave )
    Download

  • UT-P30 Differential probe
    Excl. VAT €379,00

    Incl. 19% VAT €451,01



    Differential probe:(10:1/100:1) Bandwidth: 100MHz differential voltage: ±800Vpp
    Download

  • UT-P31 High voltage differential probe
    Excl. VAT €666,00

    Incl. 19% VAT €792,54



    High voltage differential probe: (10:1/100:1) Bandwidth: 100MHz differential voltage: ±1500Vpp
    Download

  • UT-P32 High voltage differential probe
    Excl. VAT €820,00

    Incl. 19% VAT €975,80



    High voltage differential probe: (10:1/100:1) Bandwidth: 100MHz differential voltage: ±1500Vpp
    Download

  • UT-P40 Current probe:DC~100kHz,60A
    Excl. VAT €430,00

    Incl. 19% VAT €511,70



    Conversion ratio:50mV/A, 5mV/A, Current range : 0.4A~60A,Frequency: DC~100kHz voltage: 600Vrms
    Download

  • UT-P41 Current probe:DC~100kHz,100A
    Excl. VAT €567,00

    Incl. 19% VAT €674,73



    Conversion ratio:100mV/A, 10mV/A, Current range: 50A~100A Frequency: DC~100kHz, voltage: 600Vrms
    Download

  • UT-P43 Current probe
    Excl. VAT €910,00

    Incl. 19% VAT €1.082,90



    Current probe Range :20A AC/DC, Frequency: DC~25MHz,Conversion ratio:100mV/A
    Download

  • UT-V23 High voltage probe
    Excl. VAT €24,00

    Incl. 19% VAT €28,56



    High voltage probe:(100:1)Bandwidth: 100MHz
    voltage: 2000Vpp
    Download
View all

Customer Reviews

Customers also bought

  • UPO3504E Mixed-signal Oscilloscope
    Excl. VAT €2.309,00

    Incl. 19% VAT €2.747,71



    Download

  • UPO3502E Mixed-signal Oscilloscope
    Excl. VAT €1.899,00

    Incl. 19% VAT €2.259,81



    Download

  • MSO3504E-S Mixed-signal Oscilloscope
    Excl. VAT €2.879,00

    Incl. 19% VAT €3.426,01



    Download

  • MSO3502E Mixed-signal Oscilloscope
    Excl. VAT €2.399,00

    Incl. 19% VAT €2.854,81



    Download

  • MSO3354E-S Mixed-signal Oscilloscope
    Excl. VAT €2.570,00

    Incl. 19% VAT €3.058,30



    Download
