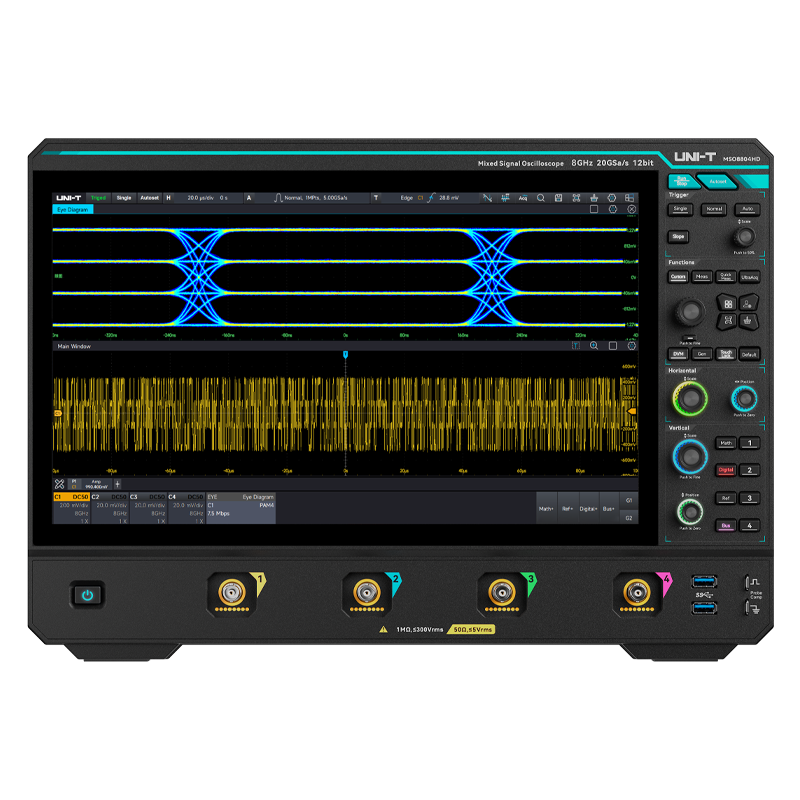

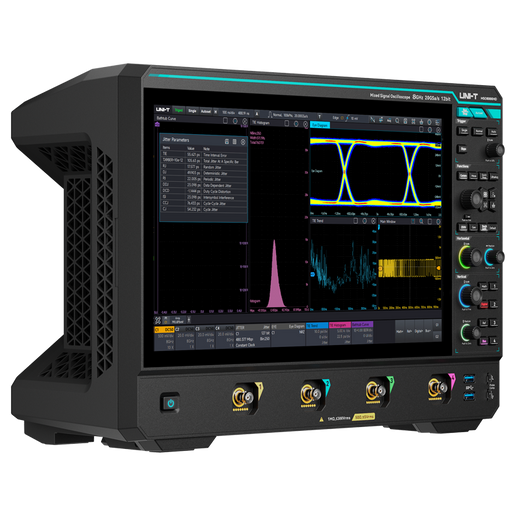

MSO8000HD Series: Advancing High-Resolution Oscilloscope Performance
Setting a New Benchmark in High-Resolution Test and Measurement
In the field of high-end test and measurement in professional contexts, capturing every signal detail with precision is a constant requirement for engineers. UNI-T’s newly launched MSO8000HD Series High-Resolution Oscilloscope is designed to meet this very need. As UNI-T’s flagship product for 2025, this series delivers 8 GHz bandwidth, a 12-bit ADC (up to 16-bit in high-resolution mode) for high precision, and a 20 GSa/s sample rate.
By integrating independently developed analog front-end chips with a seventh-generation oscilloscope platform, it achieves comprehensive improvements in performance, functionality, and user experience. Objective data comparisons demonstrate clear advantages over competing models, offering a versatile solution for demanding applications such as high-speed digital signal integrity verification, semiconductor performance analysis, 5G communication testing, and new energy platform monitoring.
Product Overview
See the overview of MSO8000HD
Key Performance: From Capturing Signals to Analyzing Signal Integrity
MSO8000HD series stands out due to its refined performance in three key areas: high bandwidth, high resolution, and low noise.

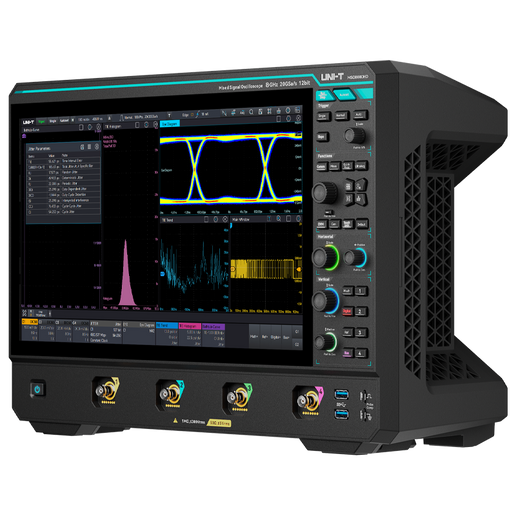

MSO8804HD Display
Bandwidth and Sample Rate: Meeting High-Speed Signal Demands
Combines compact size with capable performance:
- Bandwidth options: 8 GHz (half-channel), 4 GHz (full-channel).
- 20 GSa/s sample rate: (10 GSa/s full-channel) with 1 Gpts standard memory (upgradable to 2 Gpts).
12-bit ADC, Unleashing up to 16-bit Resolution
MSO8000HD is built on a true 12-bit ADC architecture, which with 4,096 quantization levels delivers 16 times the vertical resolution of traditional 8-bit scopes. High-resolution mode further enhances this to 16 bits, capturing subtle signal details with exceptional accuracy across the full bandwidth.
Side-by-side comparison between 8-bit and 12-bit ADC
Side-by-side comparison at 25x vertical gain: the 8-bit system (left) shows significant distortion, while the 12-bit system (right) clearly resolves fine details.
Ultra-Low Noise and High Dynamic Range: Ensuring Signal Clarity
With UNI-T's proprietary low-noise conditioning chips, MSO8000HD offers:
- Noise floor: As low as 800 μV
- ENOB: >7 bits (at full bandwidth, 50 Ω, 50 mV/div, -3 dBFS)
- SFDR: ≥50 dBc (typical), clearly distinguishing main signals from spurious components
- Intrinsic jitter: ≤150 fs RMS, providing a reliable reference for high-speed clock jitter measurement.
All-in-One High-Performance Instrument: Versatile Measurement Capabilities
MSO8000HD combines several instruments in one, reducing equipment costs and streamlining workflows. Optional features can be activated as needed, offering both current utility and future expandability.
Serial Protocol Analysis
The sequence mode, for example, splits the 2 Gpts memory into up to 520,000 segments with dead time <1 μs, efficiently capturing intermittent anomalies (e.g., occasional glitches). Competing models often exceed 10 μs dead time under similar conditions, risking missed events.
Explore the full range of integrated functions (Oscilloscope, Generator, Spectrum Analyzer, Voltmeter, Counter, Logic Analyzer) in Datasheet.
Key Features: Solving Professional Testing Challenges
To tackle your most demanding test scenarios, MSO8000HD offers a suite of optional software packages that turn complex challenges into routine operations.
| Features | Key Function | Benefit / Application |
|---|---|---|
| Jitter & Eye Diagram Analysis | Comprehensive jitter separation (TIE, RJ, DJ) and eye diagram testing. | Validate signal integrity for high-speed serial links (e.g., USB 2.0). |
| PAM-N Analysis | Supports PAM-3 to PAM-16 with automated clock recovery. | Test emerging standards used in automotive and communications. |
| Protocol Compliance Test | Automated test suites for USB 2.0 and Gigabit Ethernet. | Ensure design meets industry standards with pass/fail reports. |
| MATLAB Integration | Run custom MATLAB scripts directly on the oscilloscope. | Perform proprietary signal processing and analysis. |
Jitter Analysis and Eye Diagram
PAM-N Analysis
Protocol Compliance Test
MATLAB Embedded Programming
User Experience: Professional Tools Made Intuitive
MSO8000HD series combines powerful capabilities with an interface designed for efficiency.
15.6-inch FHD Capacitive Touchscreen
A large, high-resolution (1920x1080) display supports multi-touch gestures for intuitive navigation, allowing multiple waveforms and parameters to be viewed on customizable layouts.
Serial Protocol Analysis
Sequence Mode and Search Navigation
Capture up to 520,000 events with < 1 μs dead time. Quickly locate and navigate between specific events by searching for pulse width, edge type, or protocol content.
Remote Operation
The built-in Web Server enables full remote control, data saving, and unmanned monitoring via a standard web browser, ideal for multi-station setups.
Available Models
UPO2000HD Models
- MSO8804HD: 8 GHz • 4 CH • 20 GSa/s • 20 Gpts(opt.) • 1,000,000 wfms/s
📌 Conclusion: Why Choose MSO8000HD?
- Up to 8 GHz bandwidth (half-channel) / 4 GHz (full-channel), up to 20 GSa/s, and 1 Gpts memory (2 Gpts optional)
- True 12-bit ADC with up to 16-bit High-Resolution mode for superior detail and accuracy
- Ultra-low noise performance with ENOB > 7 bits, ≤ 150 fs RMS jitter, and ≥ 50 dBc SFDR (typ.)
- Sequence mode up to 520,000 segments with < 1 µs dead time for rare-event capture
- Advanced options: Jitter & Eye, PAM-N, USB 2.0 & GE compliance, MATLAB integration; plus built-in web server for remote control
For high-speed signal integrity, semiconductor validation, 5G communications, and new-energy platforms, the MSO8000HD Series delivers the precision, speed, and workflow efficiency demanded by professionals.
