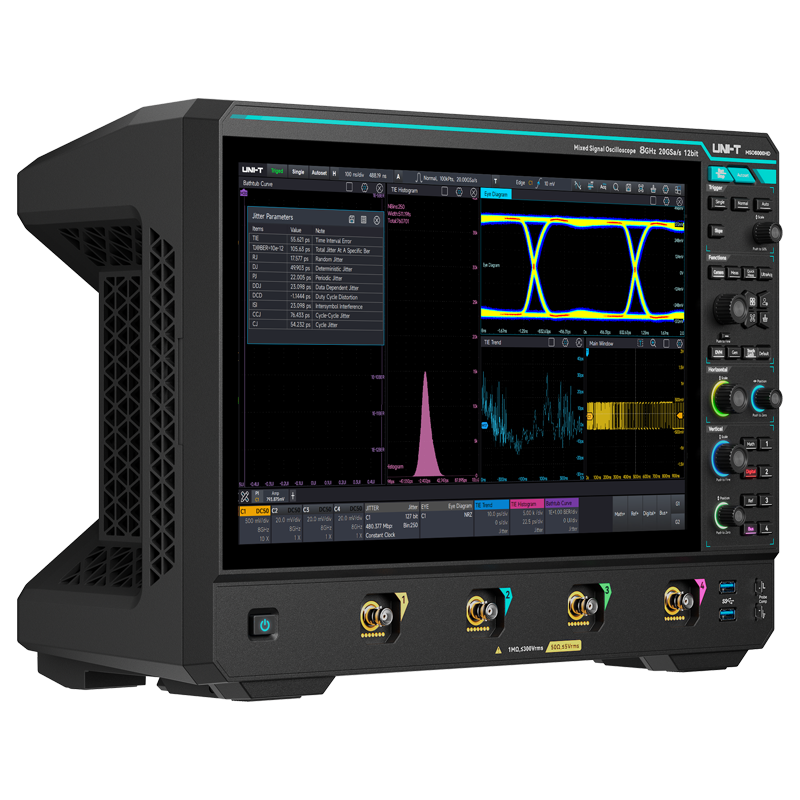

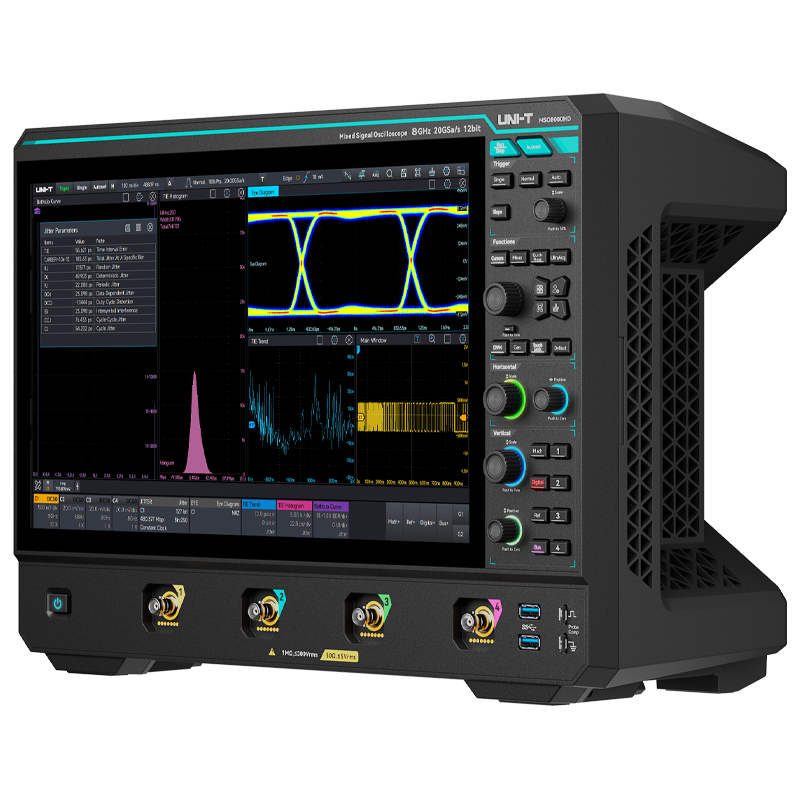

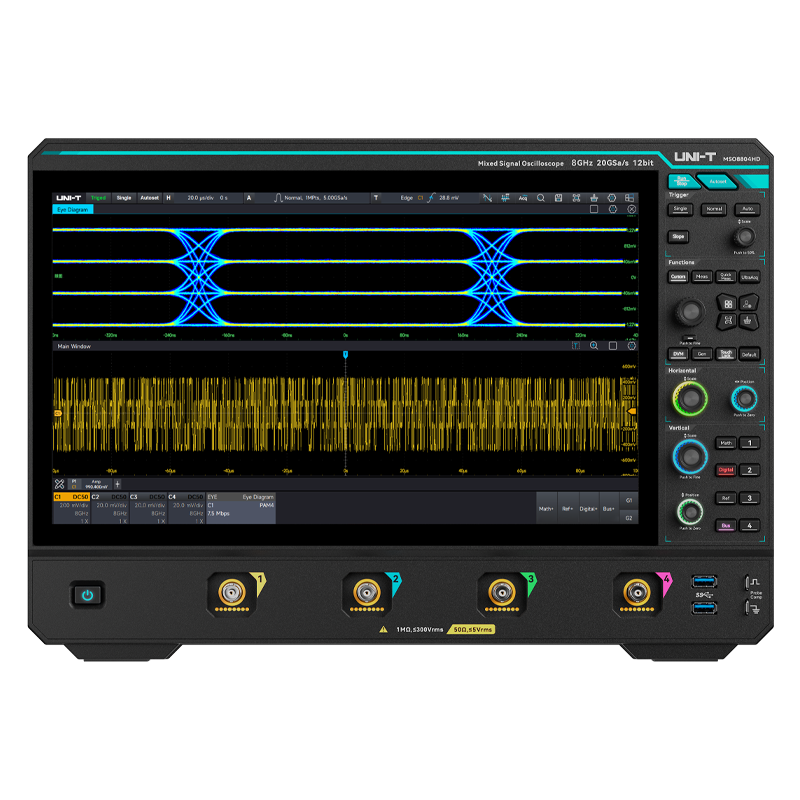

MSO8804HD high-resolution oscilloscope

Variants

Excl. VAT: Excl. VAT €63.899,00

Bandwidth: 8 GHz
Channels: 4 Analog
Real-Time Sample Rate: 20 GSa/s
Memory Depth: 2 Gpts (optional)
Waveform Capture Rate: 1,000,000 wfms/s
High Vertical Resolution: 12-bit ADC
Optional 16 Digital Channels (MSO functionality)
UltraAcq® Mode for fast signal acquisition
Advanced Jitter, Eye, and Protocol Analysis (optional)
Multiple Interfaces: USB, LAN, HDMI, and PCIe

MSO8804HD high-resolution oscilloscope

If there's something you'd like to discuss, don't hesitate to contact us.
secure checkout
30 Day return Policy

Specification

Analog Bandwidth: Up to 8 GHz for ultra-high-speed signal acquisition
Channels: 4 analog channels + 16 digital channels (logic analyzer, optional)
Real-Time Sample Rate: Up to 20 GSa/s for precise timing and fast signal transitions
Memory Depth: 2 Gpts standard (per channel) for long waveform captures and deep analysis
Waveform Capture Rate: ≥300,000 wfms/s in UltraAcq® mode; up to 1,000,000 wfms/s in Sequence mode
Vertical Resolution: 12-bit ADC with optional enhanced resolution up to +3 bits
Multi-Instrument Integration:
- High-Bandwidth Digital Oscilloscope
- Logic Analyzer (16-ch optional, 1.25 GSa/s, 125 Mpts)
- Spectrum Analyzer with peak search
- Function/Arbitrary Waveform Generator (2 channels, 60 MHz)
- Digital Voltmeter (DVM)
- Frequency Counter
- Protocol Analyzer
Serial Protocol Analysis (11 types): RS232/422/485/UART, I²C, SPI, CAN, CAN-FD, LIN, FlexRay, SENT, MIL-STD-1553, ARINC 429, AudioBus (I2S/LJ/RJ/TDM)
Trigger Types: Edge, pulse width, slope, video, code pattern, timeout, runt, setup & hold, delay, duration, Nth edge, zone trigger
Parameter Measurements: 52 parameters with histogram, trace, and tendency chart visualizations
Advanced Analysis (Optional): Power analysis, jitter and eye diagram, mask/template test, consistency analysis, histogram navigation and search tools
Touch Display: 15.6-inch Full HD capacitive touchscreen with Windows 10 OS and gesture support (click, slide, zoom, drag)
Built-in WebServer: Dual-style remote access for PC and smartphone via browser — full control and visualization across platforms
SCPI Support: Fully programmable using SCPI command set for automated test systems

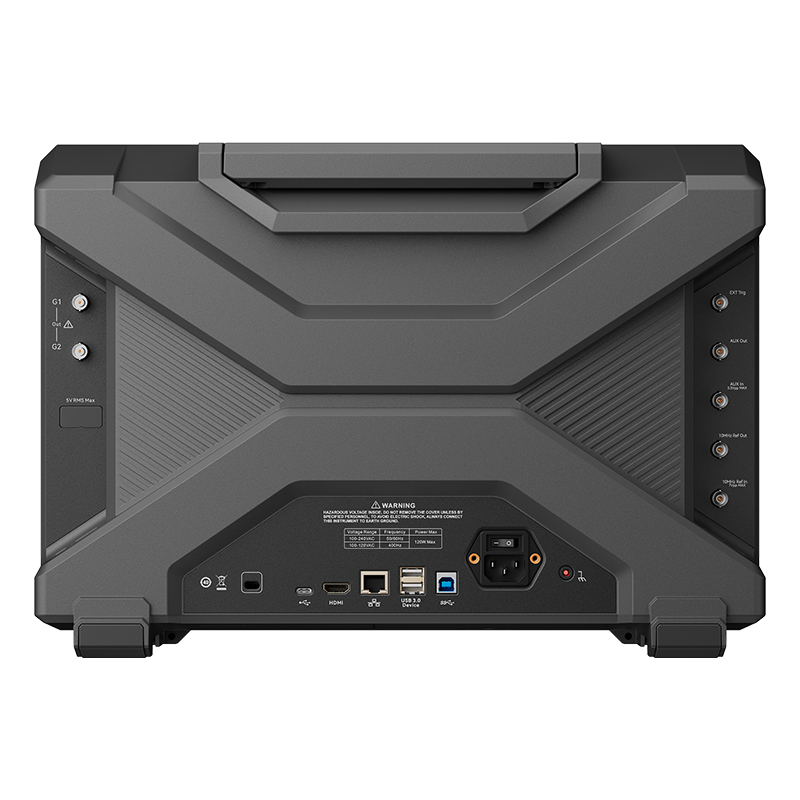

Interfaces: USB Host & Device, LAN, HDMI, AUX In/Out, 10 MHz Ref In/Out
Math & Signal Processing: 8-channel waveform operation, spectrum analysis with peak search, MATLAB embedded scripting and data visualization support

Features

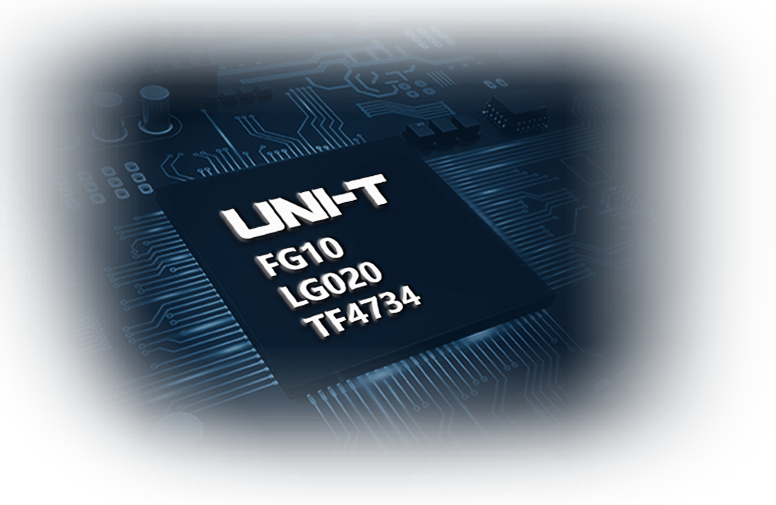

Lower Noise and Enhanced ENOB
- Noise floor: 50mV/div, as low as 800μV at full bandwidth (Typ.)
- ENOB: >7 bits (at full system bandwidth, 50Ω, 50 mV/div, -3dBFS).
- SFDR: ≥ 50dBc (Typ.)
- Low intrinsic jitter: ≤150fs RMS
- High bandwidth precision BNC connector: ＞10GHz.

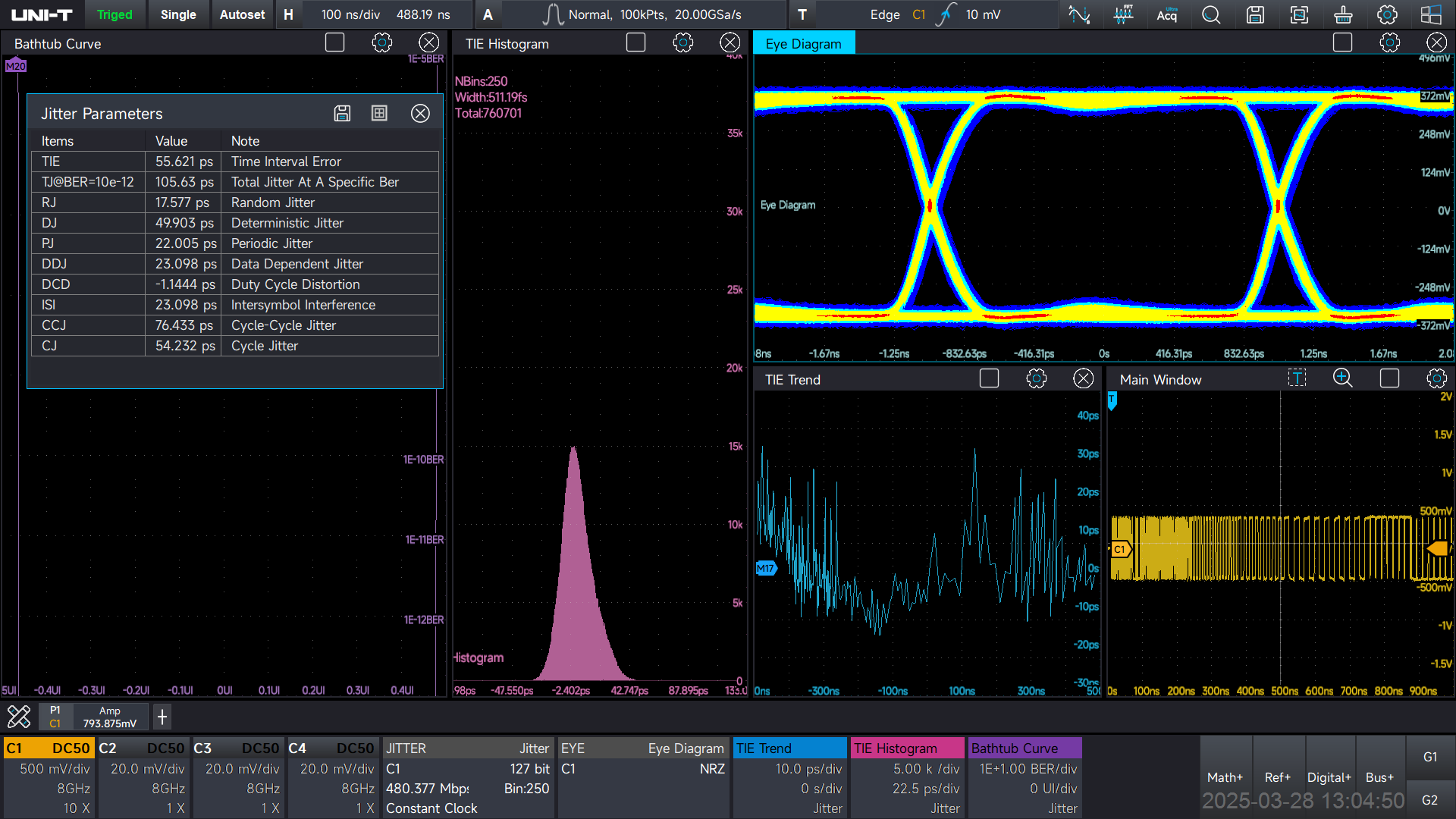

Jitter Analysis and Eye Diagram
- Jitter Analysis View: Eye Diagram, Trend Chart, Histogram, TIE spectrum, Bath Curve
- Jitter Measurement: TIE, Cycle-Cycle Jitter, Period Jitter, PJ, TJ@BER, RJ, DJ, DDJ, DCD, ISI

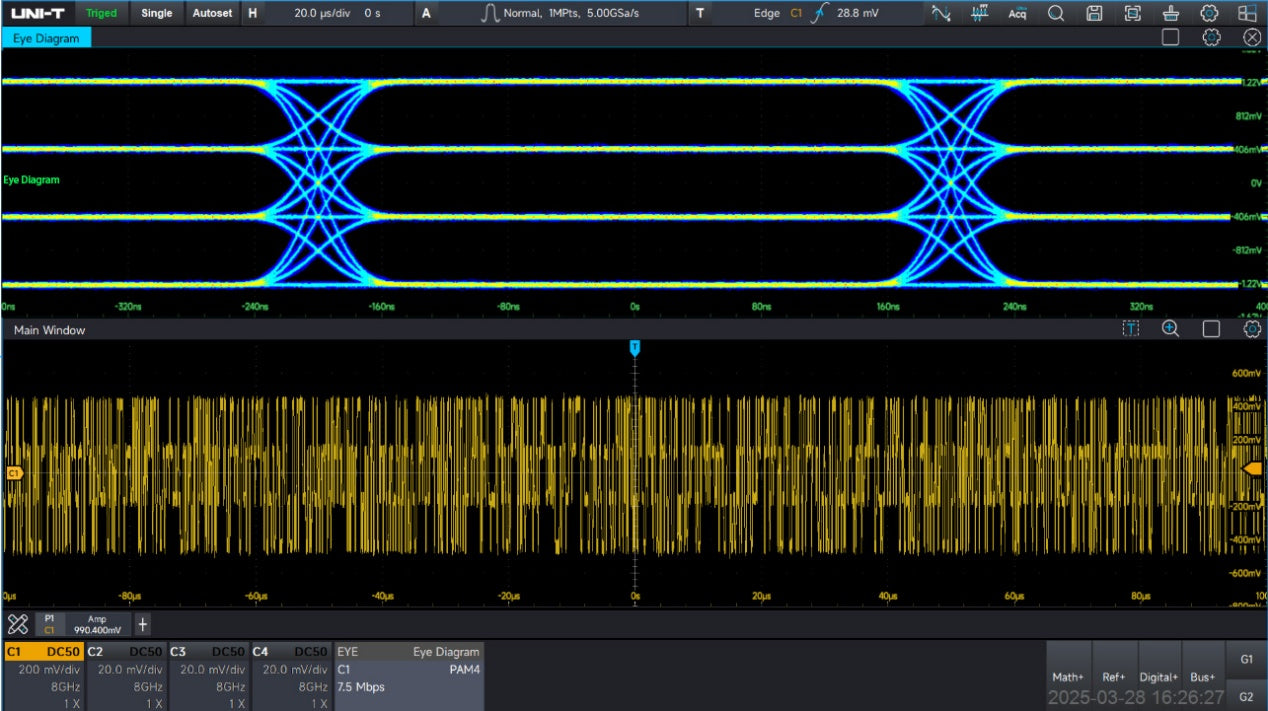

PAM-N Analysis
Supports to PAM-3 to PAM-16 signal analysis. Equipped with a 12-bit ADC and delivering over 7 bits of Effective Number of Bits (ENOB) at full bandwidth, it can recover clocks from PAM-N signals with small amplitude differences and perform real-time eye diagram measurements

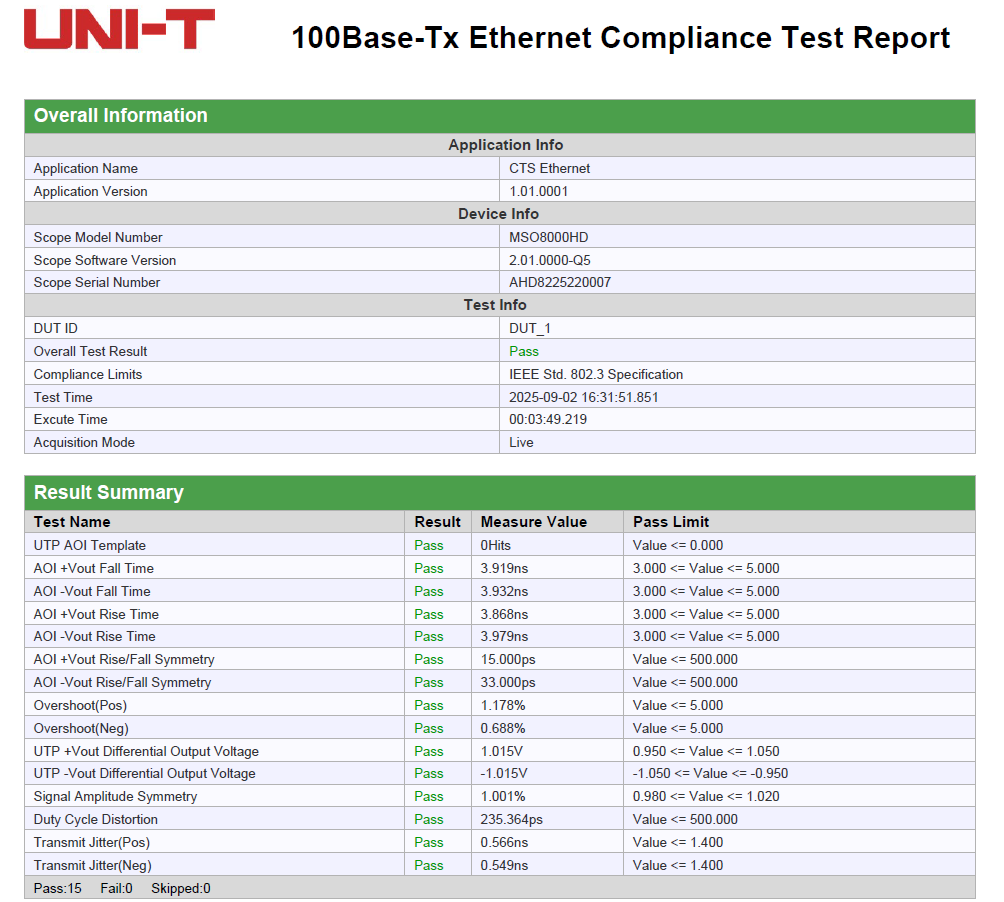

Protocol Compliance Test
- Supports USB 2.0 and 100/1000 Mbps Ethernet protocol compliance testing.
- Mainstream protocols such as automotive Ethernet, MIPI, and PCIe are being added gradually.

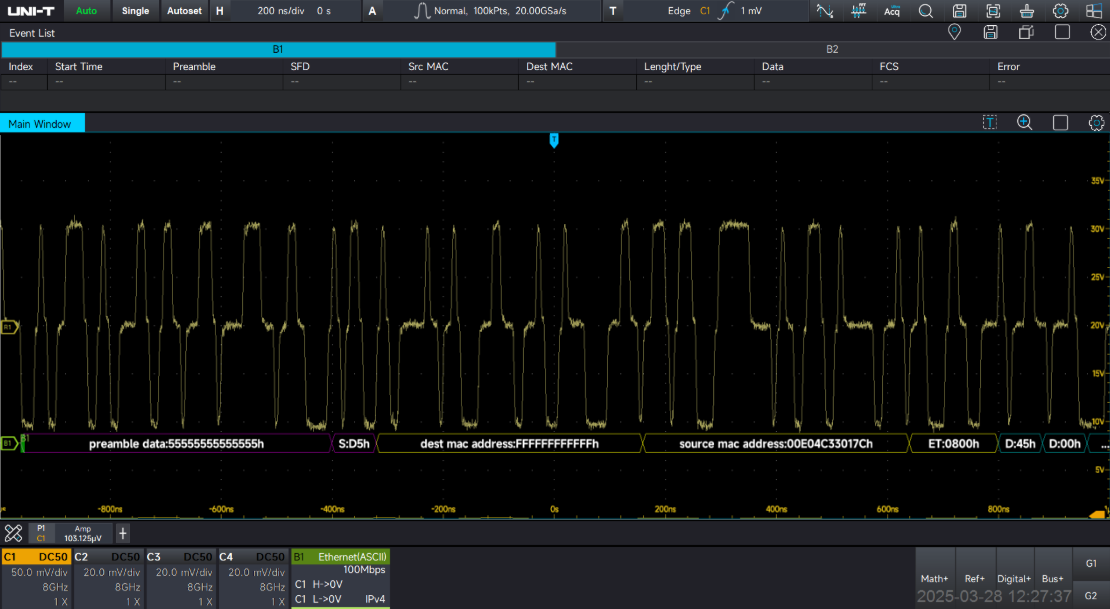

Serial Protocol Analysis
Supports more than 21 protocols
- Embedded serial bus: RS-232/422/485/UART, I2C, SPI, SMBUS, SPMI, AudioBus (I2S, LJ, RJ, TDM)
- Automotive serial bus: CAN, LIN, CAN-FD, SENT, FlexRay, I3C, PSI5
- Computers & Communications: USB2.0, PCIe2.0, Ethernet, NRZ, Manchester, 8b/10b
- Aerospace serial bus: MIL-STD-1553，ARINC 429

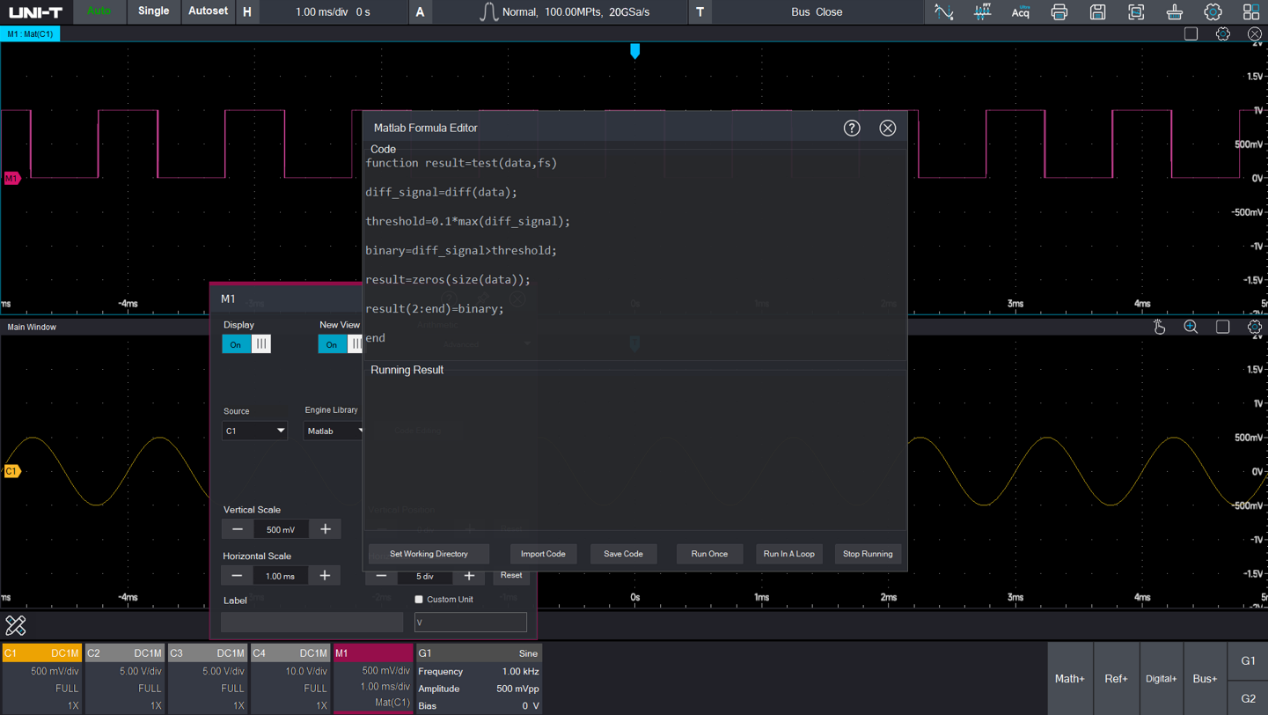

MATLAB Embedded Programming
Support MATLAB embedded programming，
Operational results are rendered directly to the oscilloscope window.

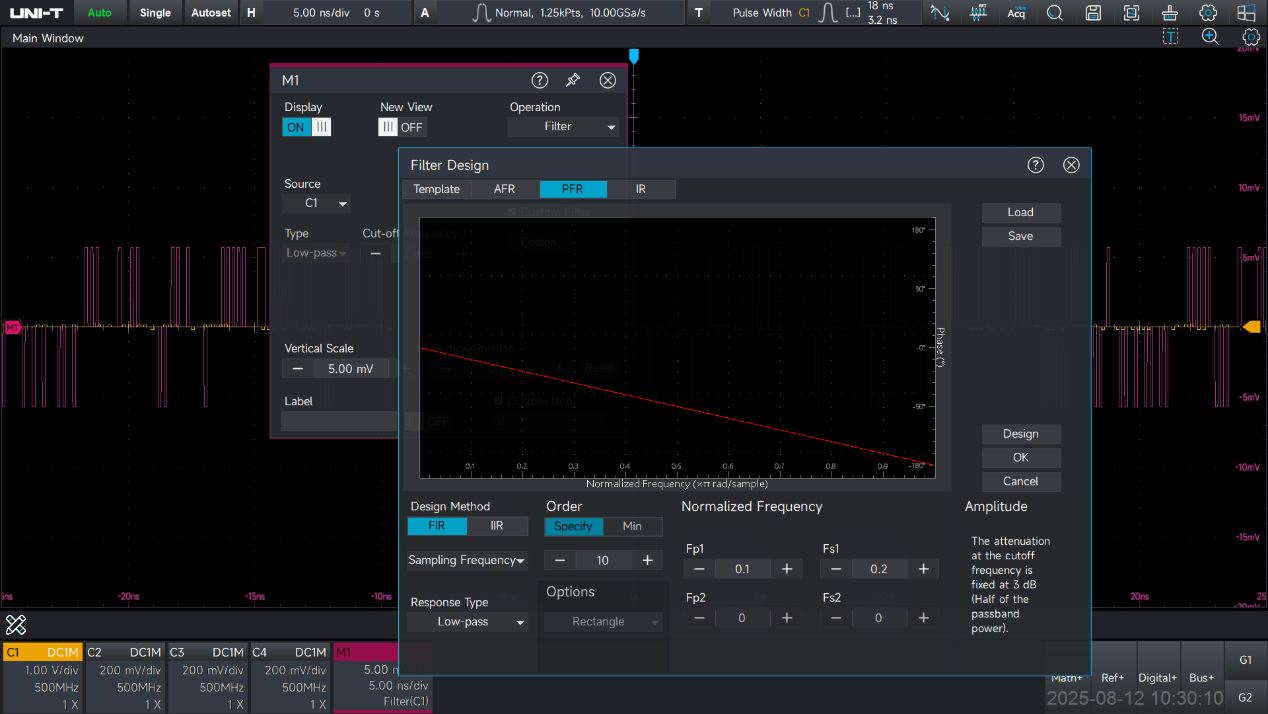

Advanced Filter Designer
Supports filter types:
- Butterworth
- Chebyshev Type I
- Chebyshev Type II
- Elliptic
- Sampling method
- Remez
- Window function

Accessories For MSO8804HD high-resolution oscilloscope

UT-P20 Passive High voltage probe

Excl. VAT €54,00

Incl. 19% VAT €64,26

Passive probe: (100:1) Bandwidth: 250MHz. voltage: 1500V

Download

Delivery Content

UT-M15 Logic Pod

Excl. VAT €315,00

Incl. 19% VAT €374,85

Logic analyzer probe:16CH

Download

Delivery Content

UT-ISOT

Excl. VAT €295,00

Incl. 19% VAT €351,05

Isolation transfomer for Bode plot application (Hardware)

Download

Delivery Content

UT-P30 Differential probe

Excl. VAT €379,00

Incl. 19% VAT €451,01

Differential probe:(10:1/100:1) Bandwidth: 100MHz differential voltage: ±800Vpp

Download

Delivery Content

UT-P42 Current probe:DC~150kHz,200A

Excl. VAT €437,00

Incl. 19% VAT €520,03

Current probe,DC-150kHz，0.4A-200A

Download

Delivery Content

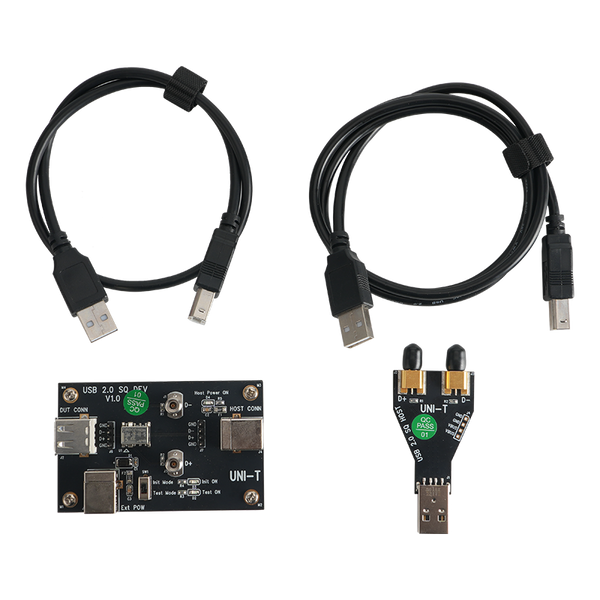

UT-USB20-SQ-HD
