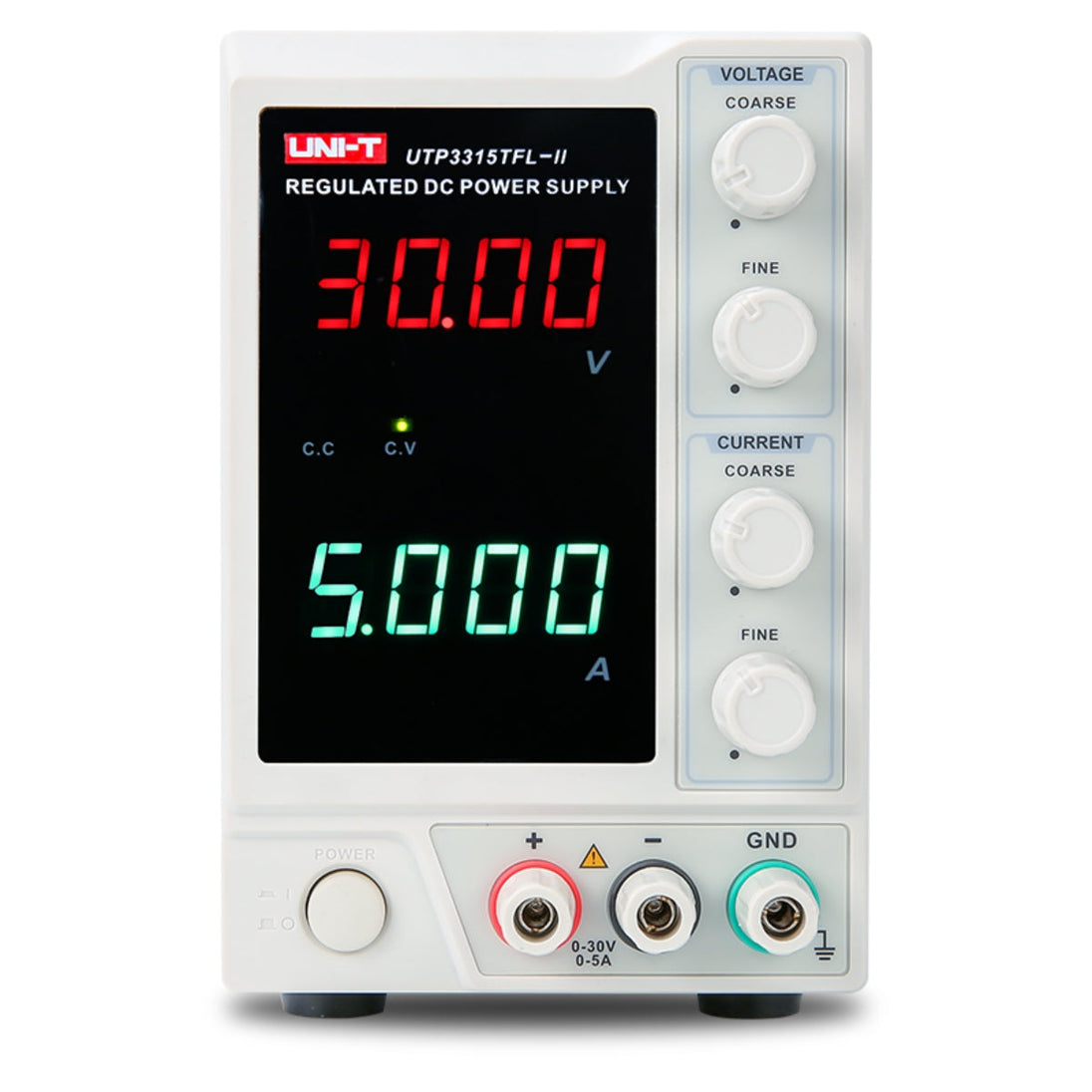

UTP3315TFL-II DC Power Supply

Quantity

Specification

Technical Index

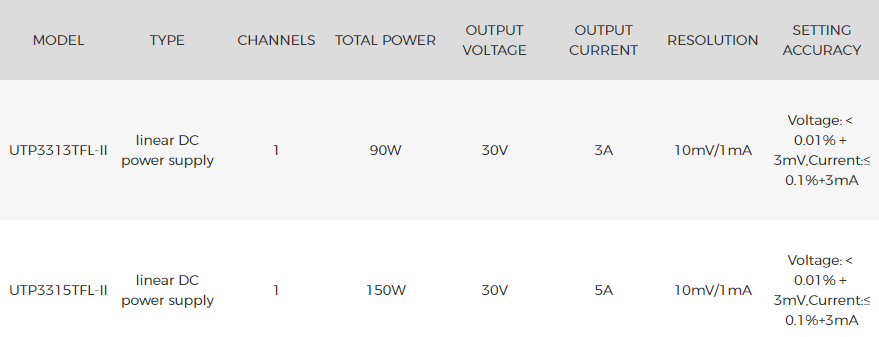

Model		UTP3313TFL-II	UTP3315TFL-II
Output voltage		0-30V	0-30V
Output current		0-3A	0- 5A
Output power		90W	150W
Load regulation		CVs0.01%+3mV, CCs 0.1%+5mA	CVs0.01%+5mV, CCs 0.1%+ 10mA
Programming accuracy	Voltage	< 0.5%+ 20mV	< 0.5%+20mV
	Current	< 0.5%+5mA	< 0.5%+10mA
Ripple and noise		1mVrms	2mVrms
Output regulate resolution		CV: 10mV (typical), CC: 1mA (typical)
Reliability		*MTBF(e): 2000hrs**
Display mode		LED voltage and current dual display
General Characteristic

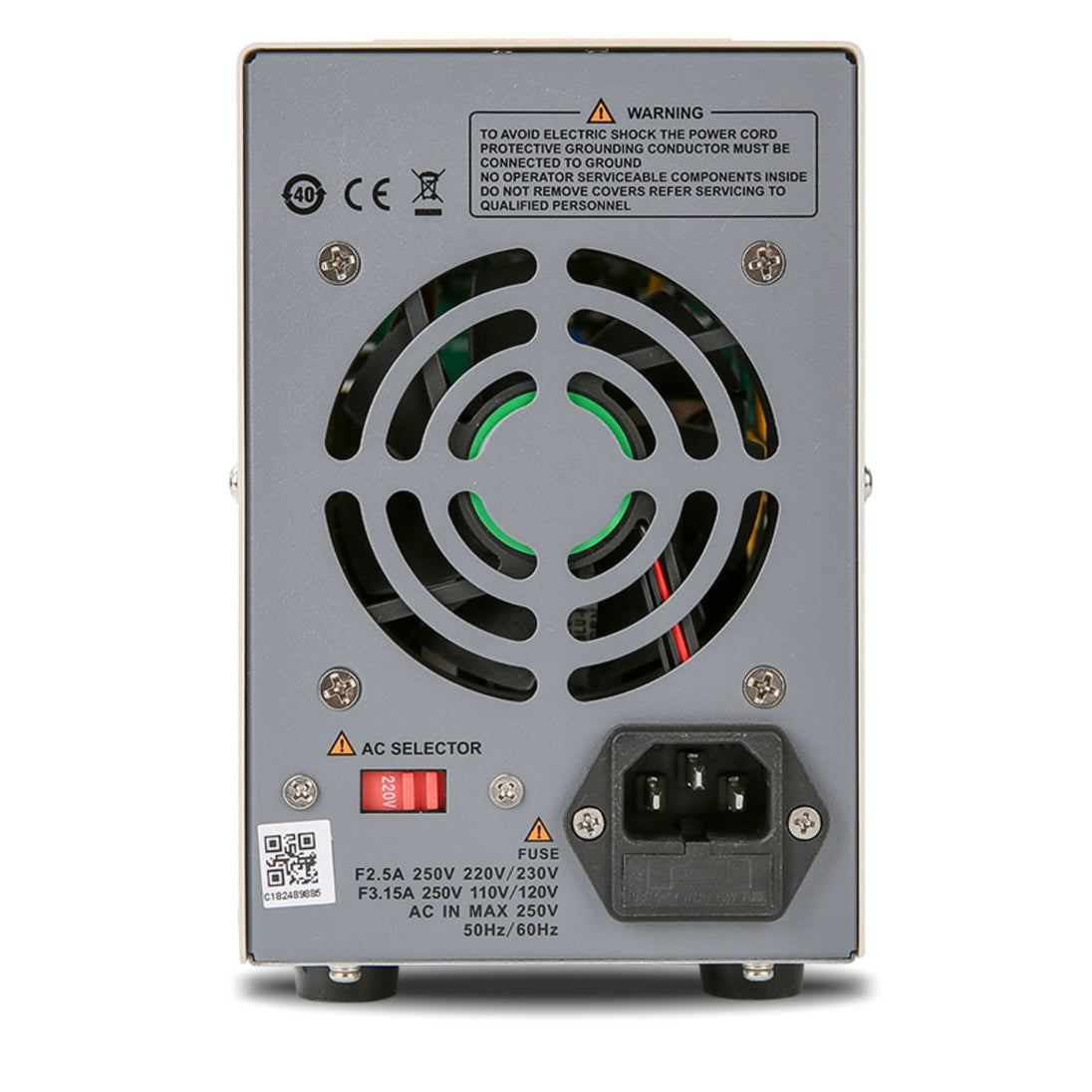

Power		Input voltage: 110V/220V+ 5% AC, Frequency: 50Hz/60Hz
Product net weight Product		3Kg	4Kg
size (Wx H x D)		105mm x 165mm x 249mm
Standard quantity per carton		4pcs
Standard carton size Standard		330mm x 285mm x 460mm
carton gross weight		14Kg	17Kg
Ordering Information
Standard Accessories		International standard power cord
		Test output line

For additional product specifications, please refer to the attached PDF.
