UNI-T

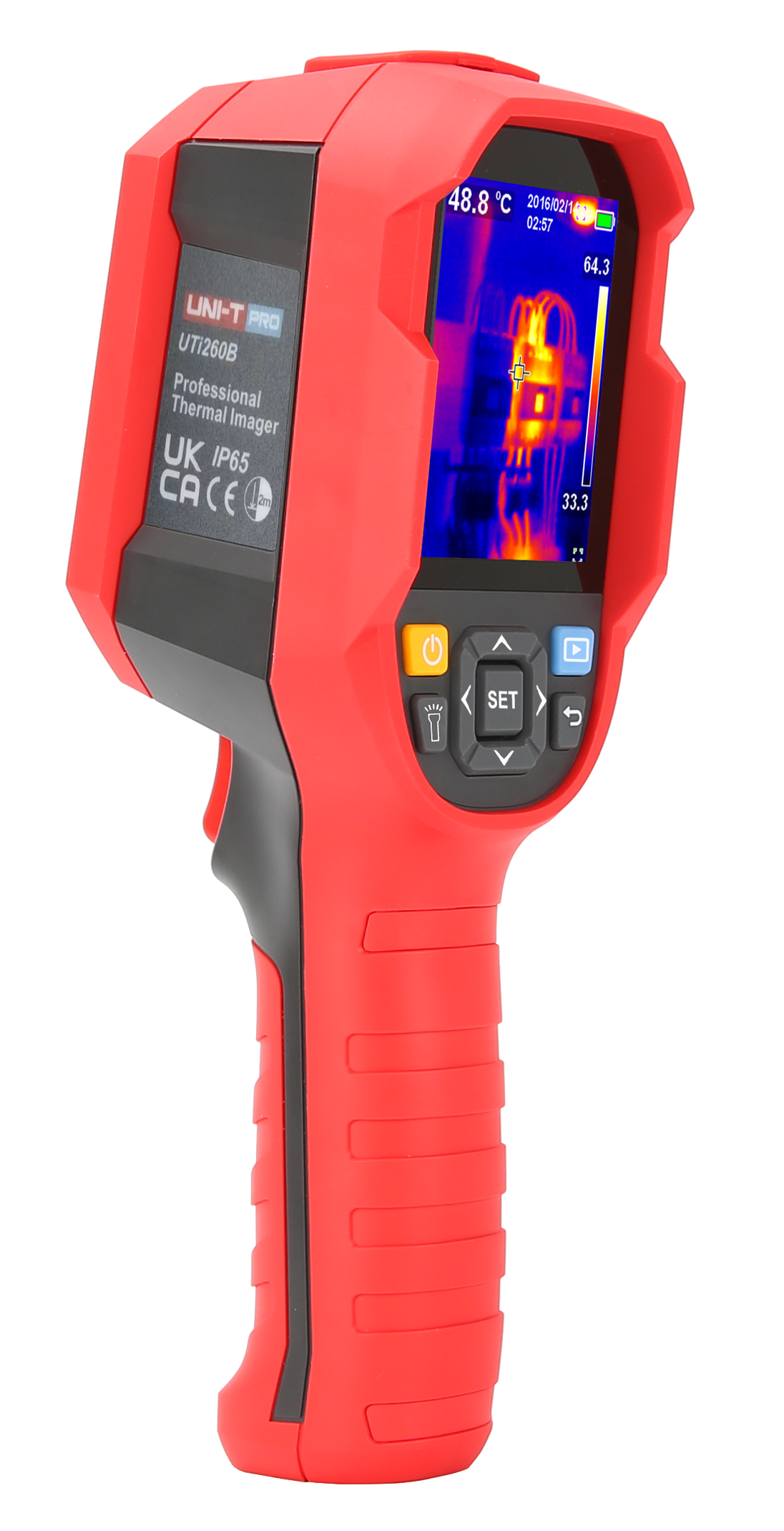

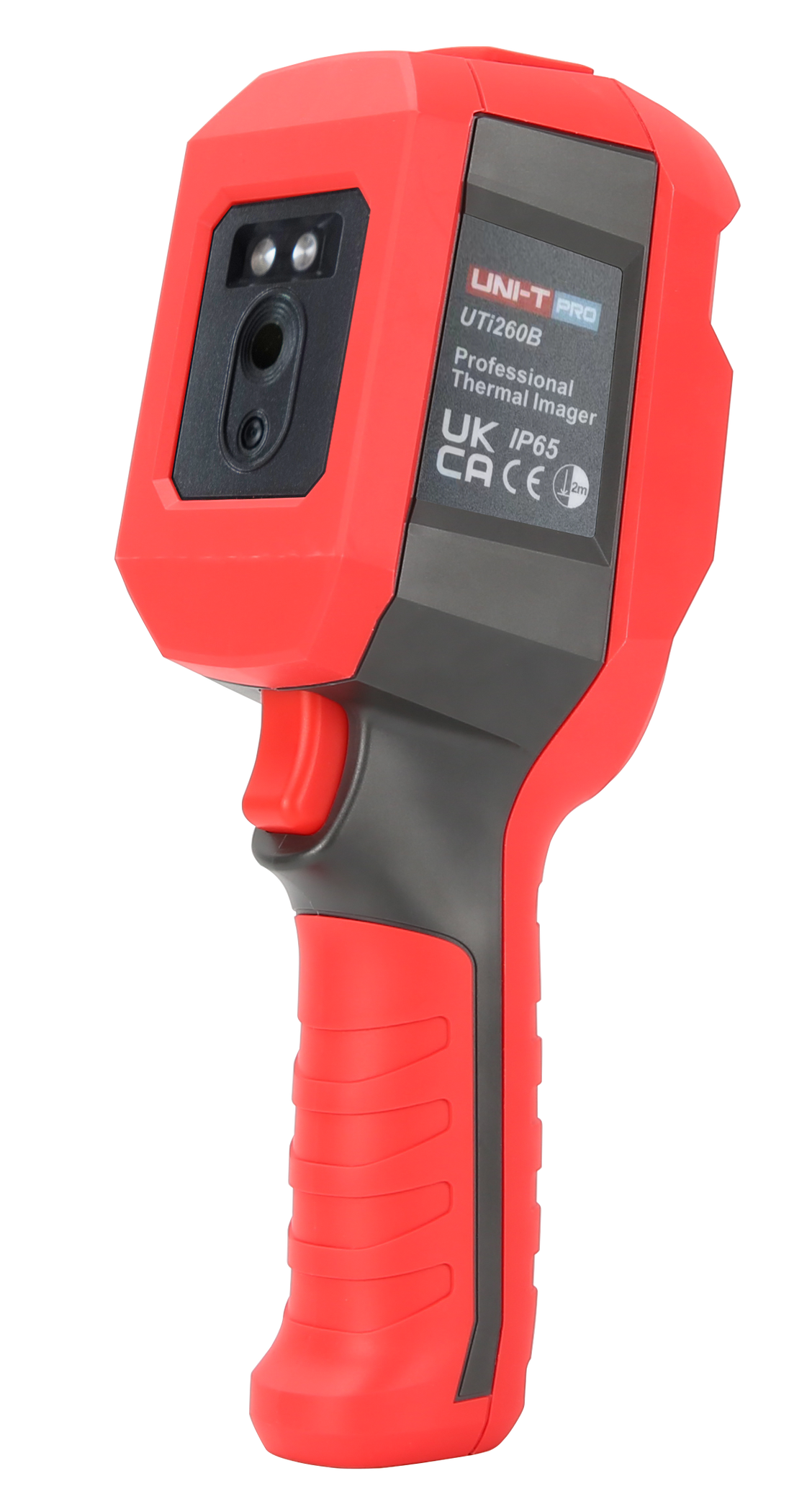

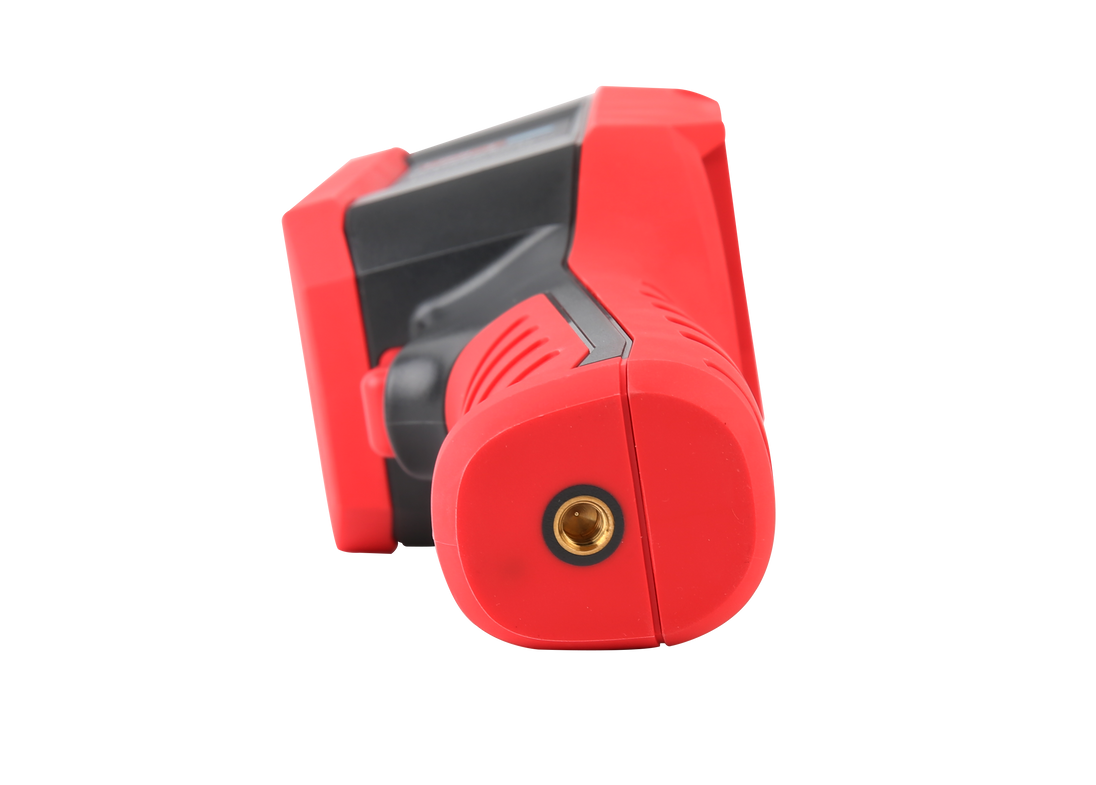

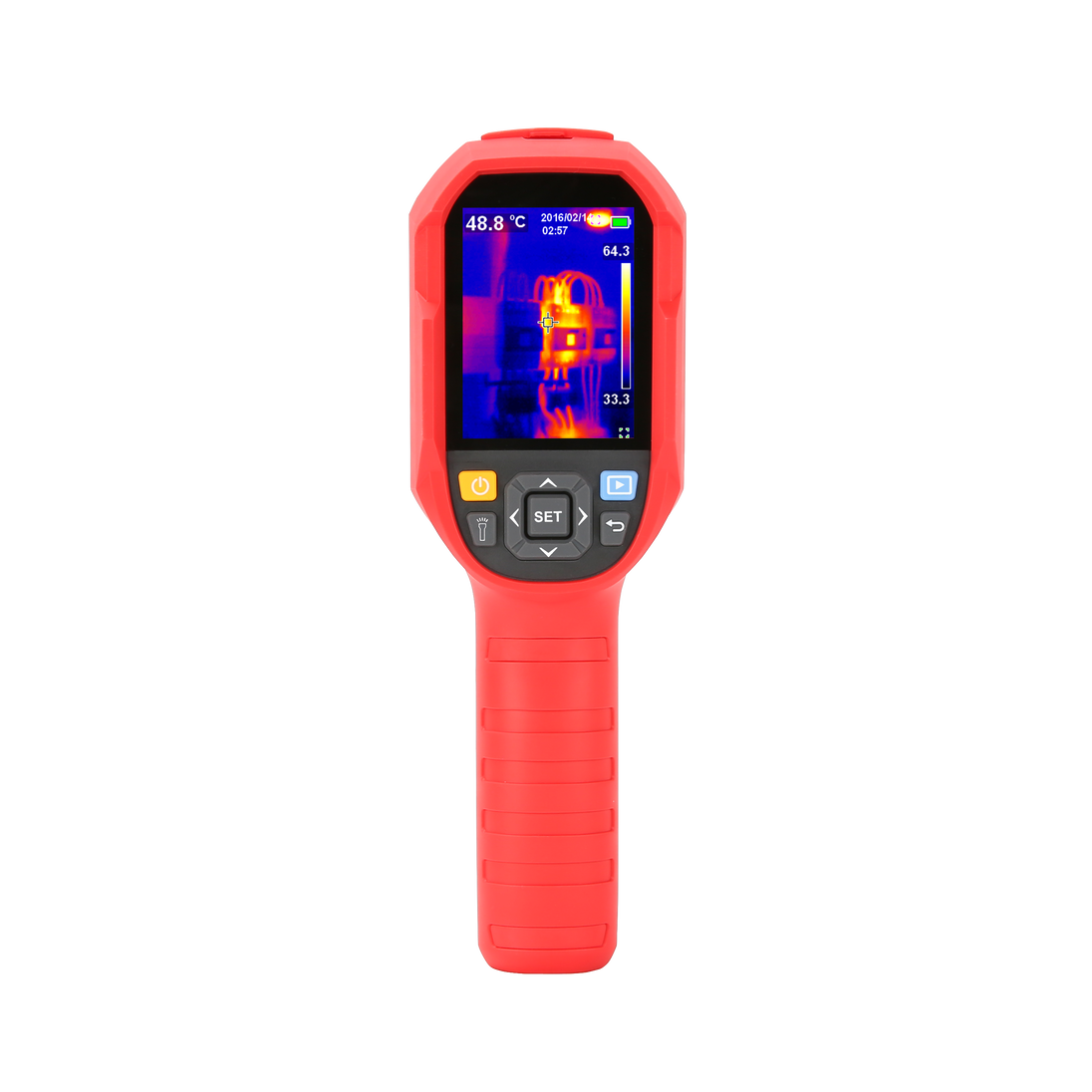

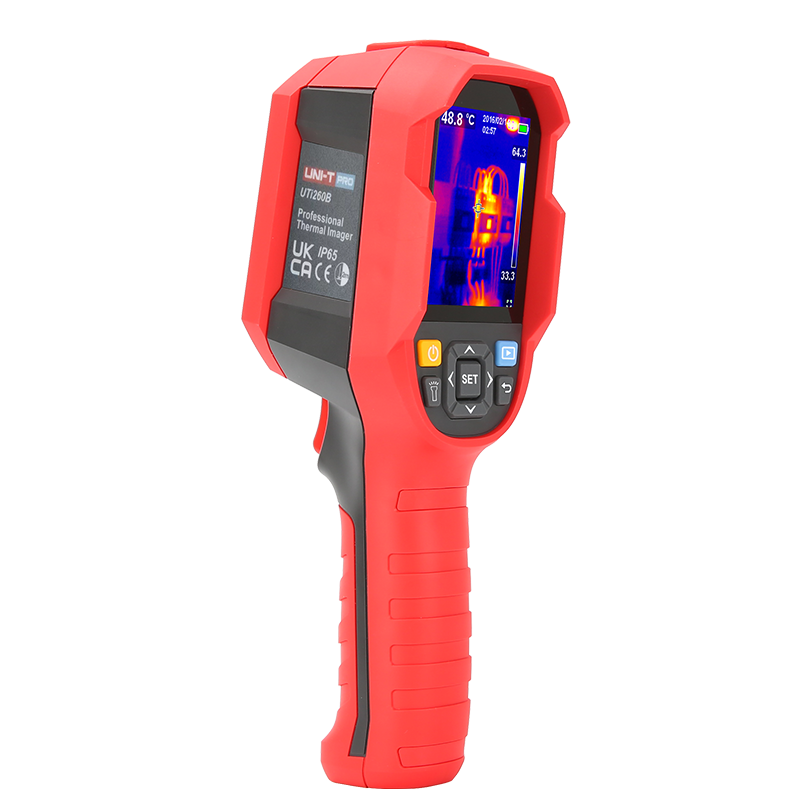

UTi260B Heavy Duty Thermal Camera

price before tax
€336,00
UTi260B Heavy Duty Thermal Camera

Specification

Technical Data
IR resolution (Pixels) 256×192
Display 2.8” TFT LCD (320×240)
Field of view(FOV) 56°×42°
Thermal sensitivity(NETD) ≤60mK
Spatial resolution(IFOV) 3.8mrad
Frame rate ≤25Hz
Spectral range 8~14µm
Focus Focus Free
Temperature measurement range -20℃~550℃
Accuracy ±2℃ or ±2% whichever is greater
Emissivity 0.01~1.00 adjustable (0.95 default)

Video

Applications of UTi260B

Electricity facilities inspection, mechanical equipment inspection, heating equipment inspection, building&HVAC inspection, iron forging, glassware & porcelain production, petrochemical, metallurgy etc.





Pipeline Inpsection





HVAC inspection



Related Document

Technial Document

UTi260B User Manual



UTi260B Product Flyer


Software

UTi260B PC Software (.exe)



UTi260B PC Software (.zip)
