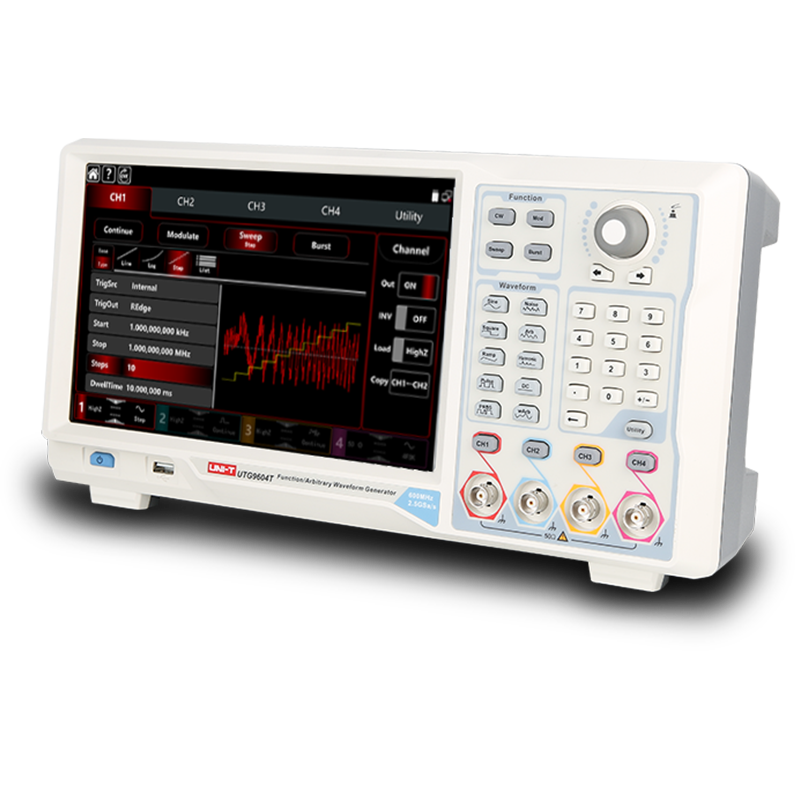

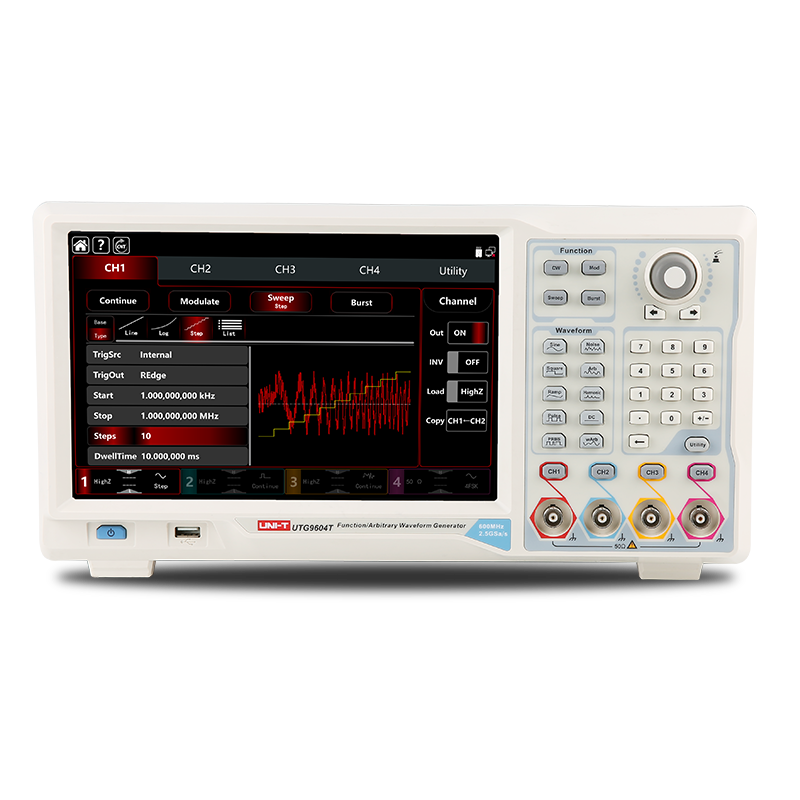

UTG9604T Waveform Generator
- MAX. OUTPUT FREQUENCY: 600MHz
- Channels: 4 Analog
- SAMPLE RATE : 2.5 GSa/s
- VERTICAL RESOLUTION: 16-bit
- ARBITRARY WAVE LENGTH: 64 Mpts
- DISPLAY: 10.1 inch (Touch)
5 Years Warranty Included*
Click here for details
- Excl. VAT
- Excl. VAT €5.470,00
€6.509,30
Incl. 19% VAT
Share
UTG9604T Waveform Generator
Specification
| Feature | Specification |
|---|---|
| Model Number | UTG9604T |
| Max Output Frequency | 600MHz |
| Channels | 4 channel |
| Sample Rate | 2.5 GSa/s |
| Arbitrary Wave Length | 64 Mpts |
| Vertical Resolution | 16-bit/14-bit |
| Display | 10.1 inch (Touch) |
| Warranty | 3 years |
| Shipping Dimensions (L x W x H) | 51.5 cm x 22 cm x 35 cm |
| Shipping Weight | 5 Kg |
| Documents | English download guide, multi-language safety manual, calibration report (COC) |
| Included Accessories | Power cord, USB2.0 printing cable, BNC-BNC(UT-L45) x4 |
| For additional product specifications, please refer to the attached PDF. |
|
Features
10.1 inch touchscreen

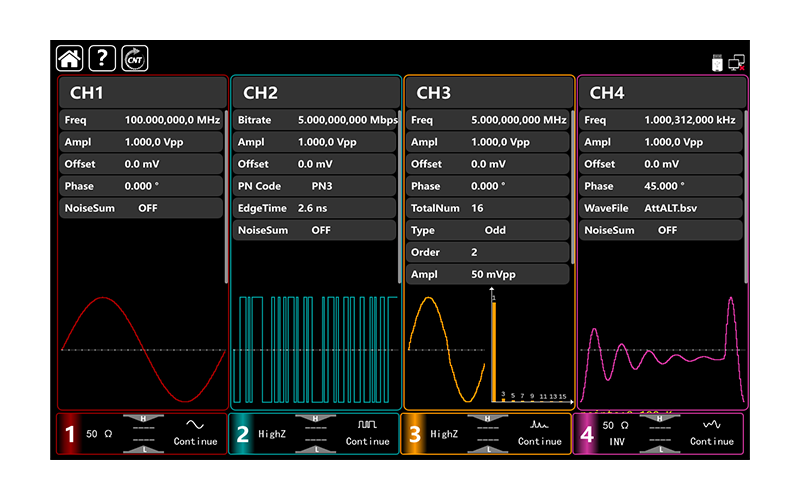

4 channel output, 4 sweep modes

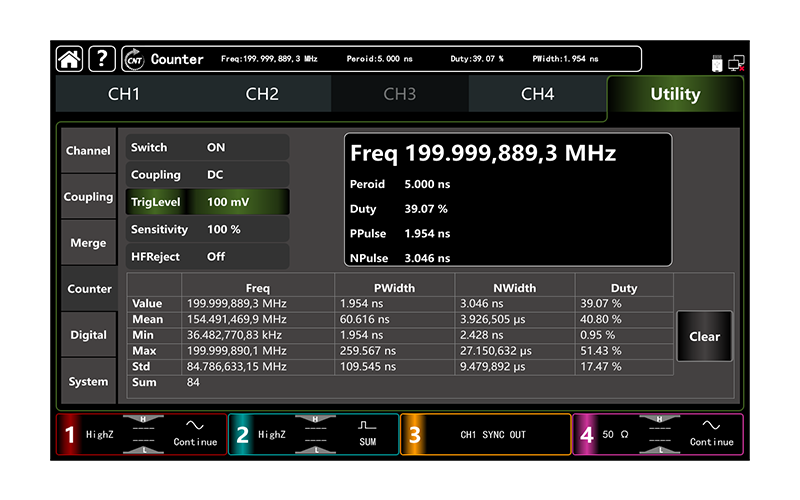

8-digit frequecy counter

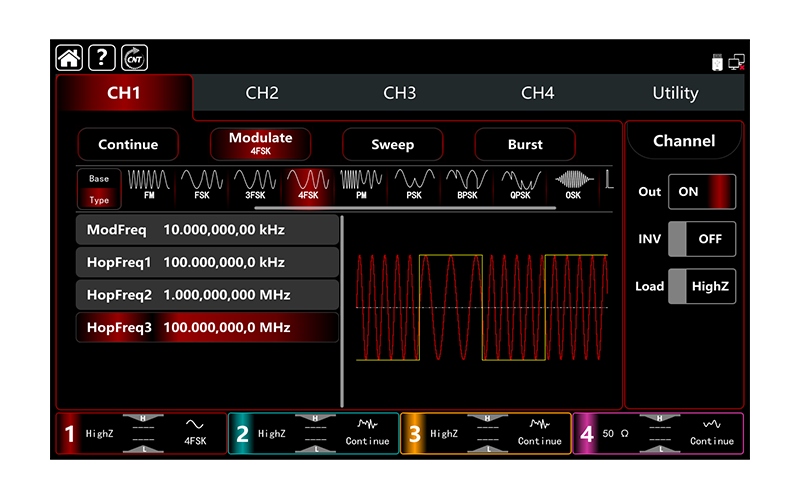

Multiple modulation modes and multiple arbitrary waveforms
Protocol output
PRBS and SNR function
Video
Step sweep

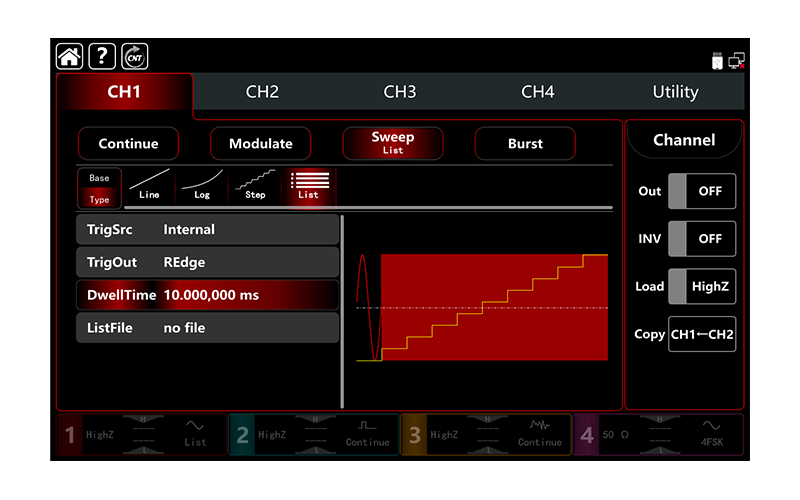

List sweep

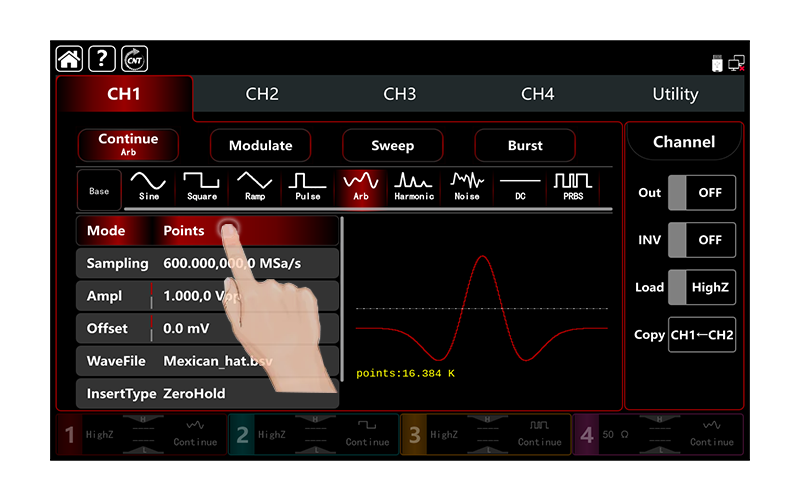

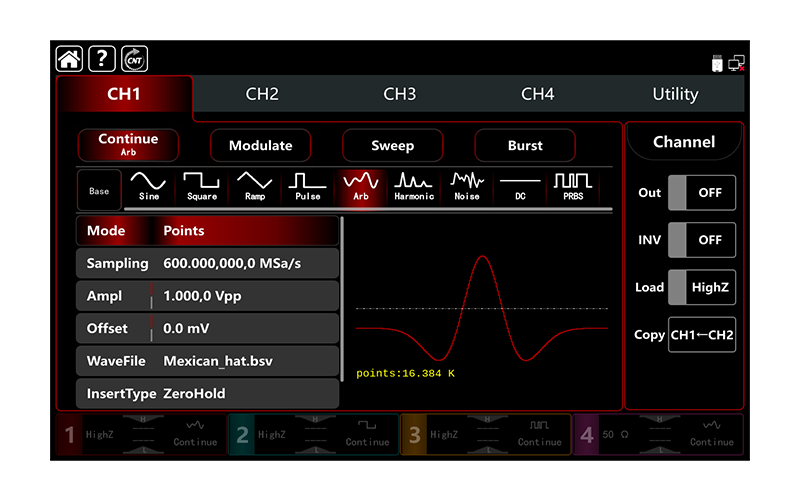

Arbitrary Wave Output Point by Point

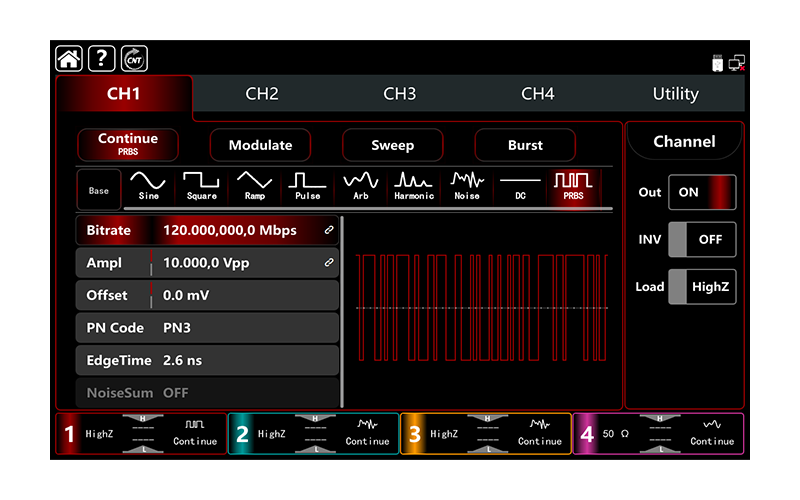

Support PRBS Code

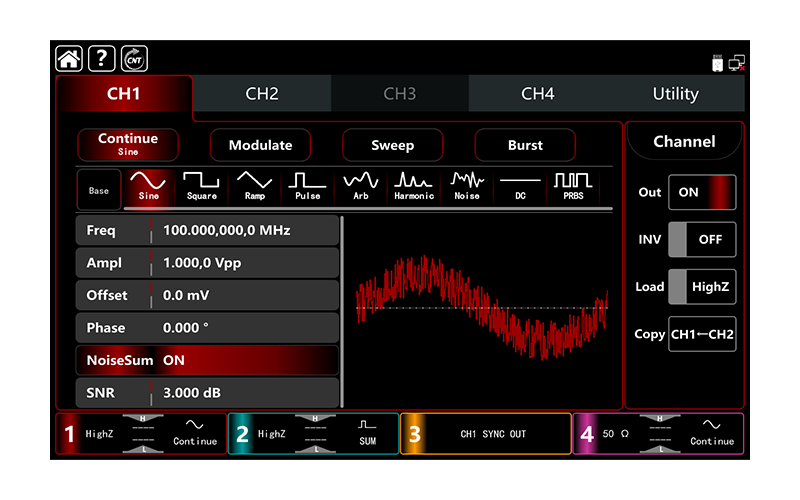

One-key SNR (Signal to noise ratio)
Output Pulse String

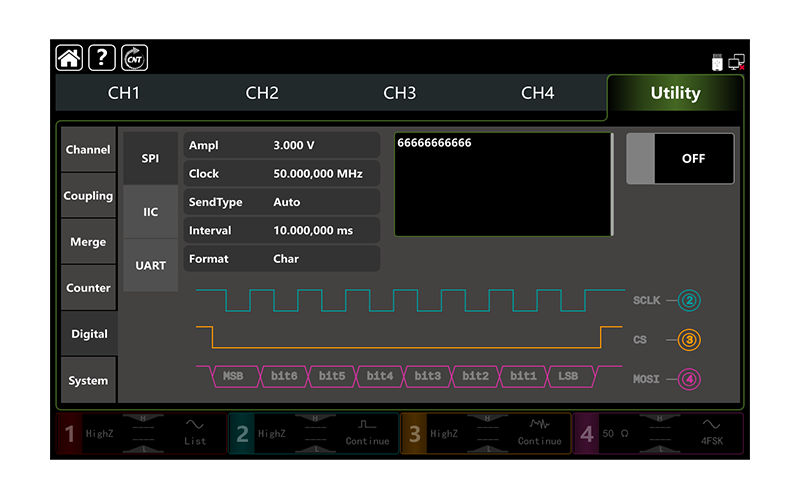

Digital Protocol Output
Comparison
