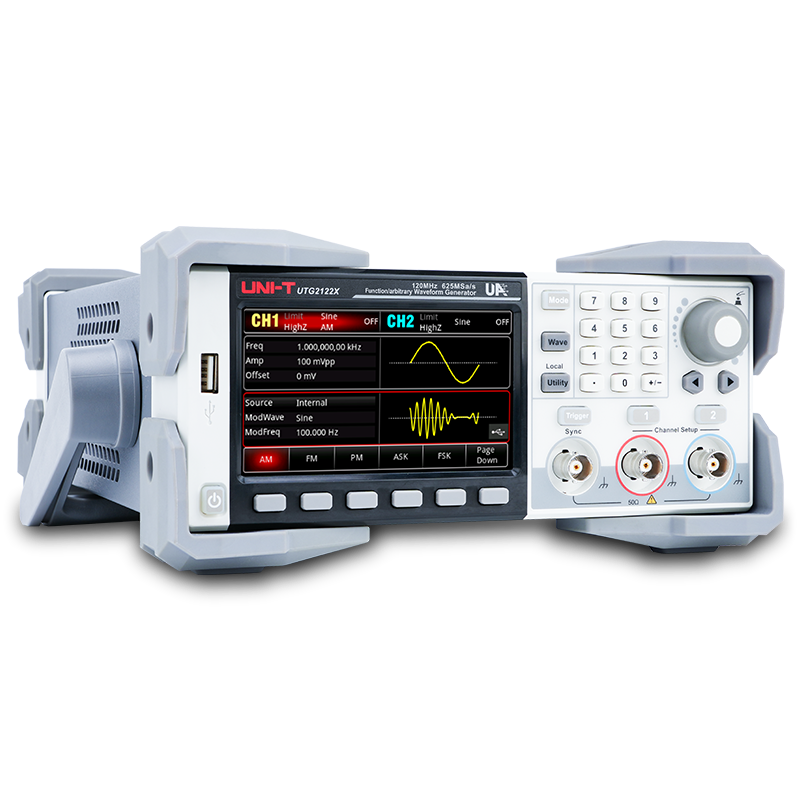

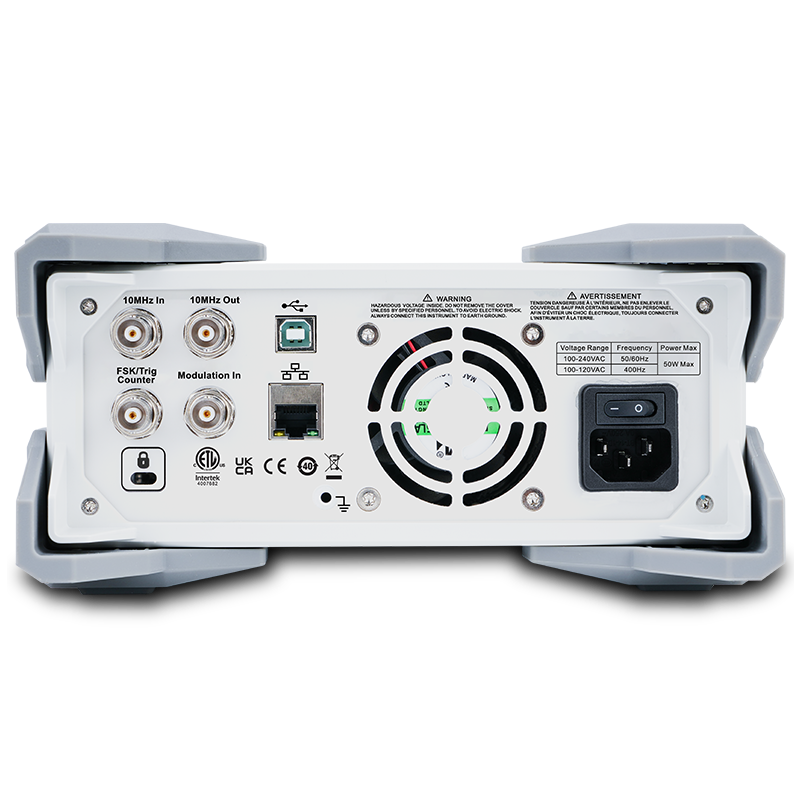

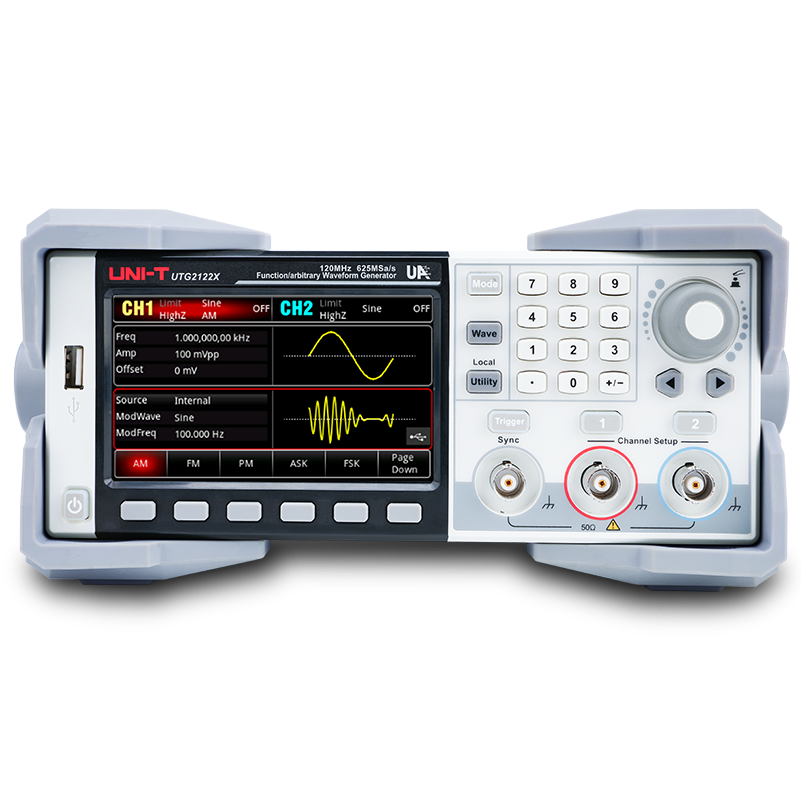

UTG2082X Waveform Generator
- MAX. OUTPUT FREQUENCY: 80 MHz
- Channels: 2
- SAMPLE RATE : 625 MSa/s
- VERTICAL RESOLUTION: 16-bit
- ARBITRARY WAVE LENGTH: 64 Mpts
- DISPLAY: 4.3 inch TFT LCD(Touch)
5 Years Warranty Included*
Click here for details
- Excl. VAT
- Excl. VAT €589,00
€700,91
Incl. 19% VAT
Share
UTG2082X Waveform Generator
Specification
| Feature | Specification |
|---|---|
| Model Number | UTG2082X |
| Max Output Frequency | 80MHz |
| Channels | Dual channel |
| Sample Rate | 625MSa/s |
| Arbitrary Wave Length | 64Mpts |
| Vertical Resolution | 16 Bits |
| Display | 4.3inch TFT LCD(touch) |
| Warranty | 3 years |
| Shipping Dimensions (L x W x H) | 42 cm x 19 cm x 33 cm |
| Shipping Weight | 3 Kg |
| Documents | English download guide, multi-language safety manual, calibration report (COC) |
| Included Accessories | Power cord, USB2.0 printing cable, BNC-BNC(UT-L45) x 1, BNC--red and black alligator clip cable(UT-L02A) x1 |
| For additional product specifications, please refer to the attached PDF. |
|
Features
4.3inch touch display
Equal performance dual channel
Low distortion output
Low jitter
Fast Edge
High SNR
Channel Merge
Channel Follow
Arbitrary Wave Editor
Comparison
| Max. Output Frequancy | 120MHz | 80MHz | 60MHz |
| Sample Rate | 625 MSa/s |
| Vertical Resolution | 16bit |
| Channels | 2 |
| Arbitrary Wave Length | 64Mpts |
| Display | 4.3 inch TFT LCD (touch screen) |
Related Document
User Manual
UTG2000X User's Guide
Datasheet
UTG2000X Series Datasheet-EN
Programming Manual
UTG2000X Programming Manual
Quick Guide
UTG2000X Quick Guide
Software
Device Manager
