UTG2062B Waveform Generator
- MAX. OUTPUT FREQUENCY: 80MHz
- Channels: 2 Analog
- SAMPLE RATE : 1.28GSa/s
- VERTICAL RESOLUTION: 16-bit
- ARBITRARY WAVE LENGTH: 16Mpts
- DISPLAY: 4.3 inch TFT LCD
- Excl. VAT
- Excl. VAT €480,00
- Excl. VAT
- Excl. VAT €436,36
€519,27
Incl. 19% VAT
Share

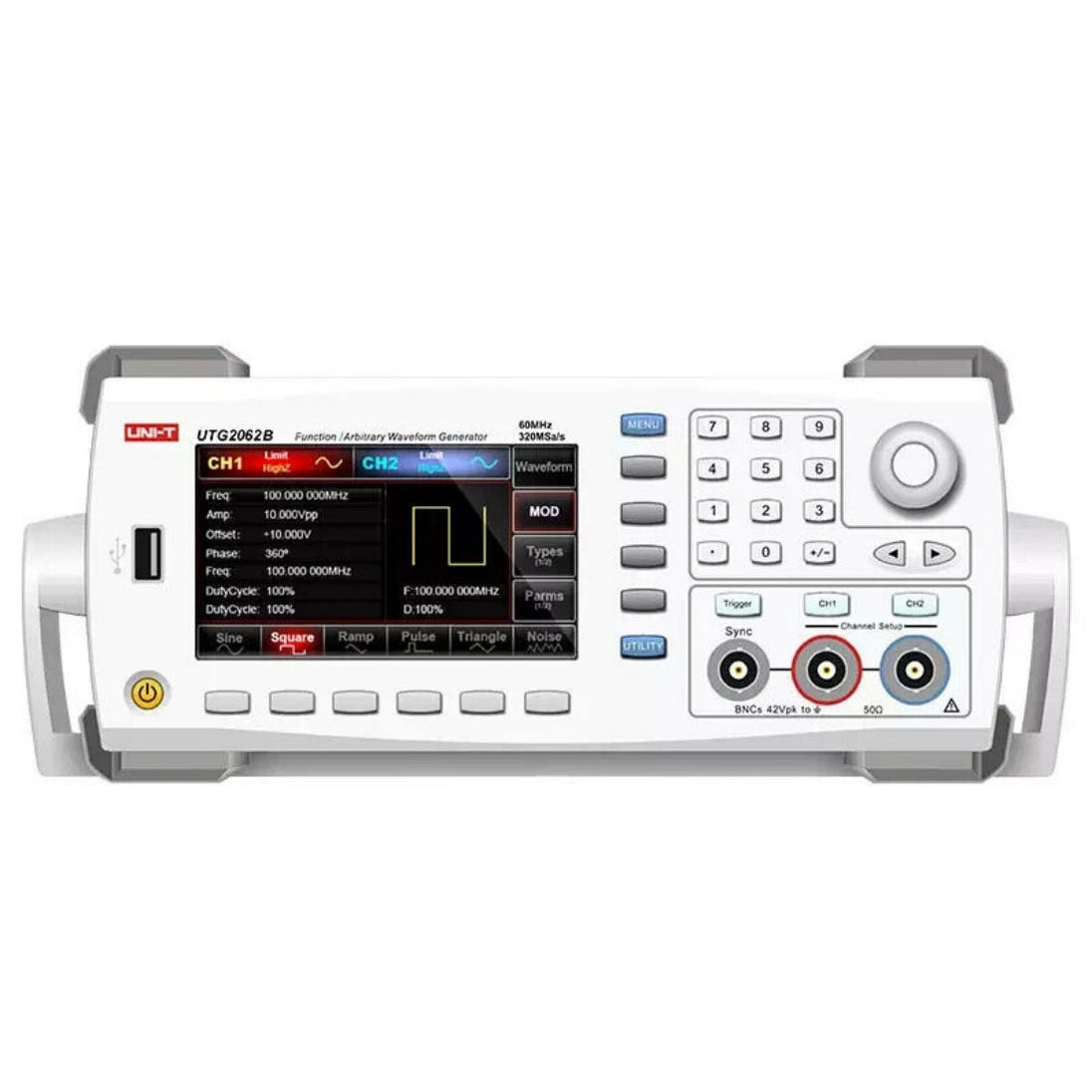

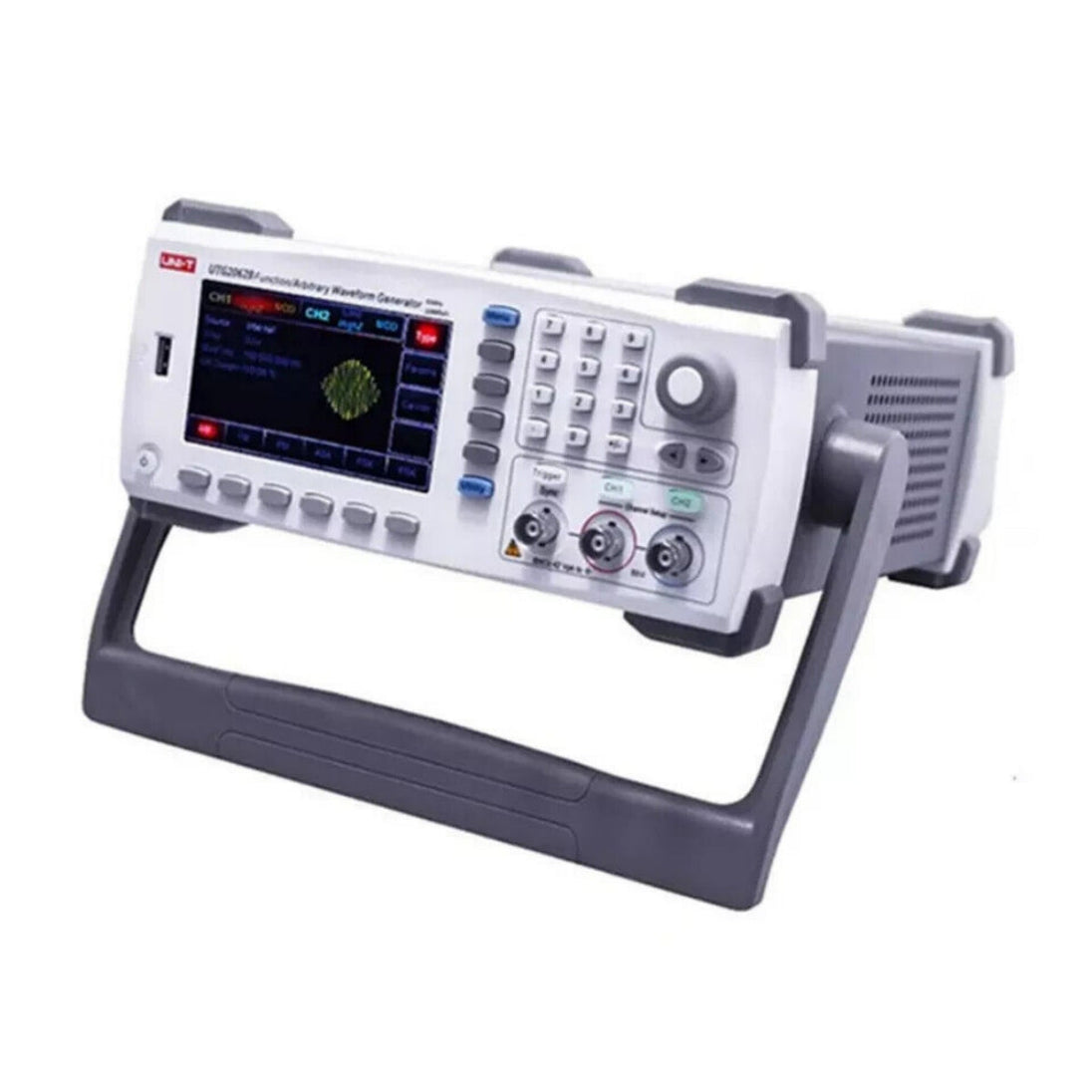

UTG2062B Waveform Generator
Specification
| Feature | Specification |
|---|---|
| Model Number | UTG2062B |
| Max Output Frequency | 60MHz |
| Channels | Dual channel |
| Sample Rate | 320MSa/s |
| Arbitrary Wave Length | 16Mpts |
| Vertical Resolution | 16 Bits |
| Display | 4.3-inch TFT LCD |
| Warranty | 3 years |

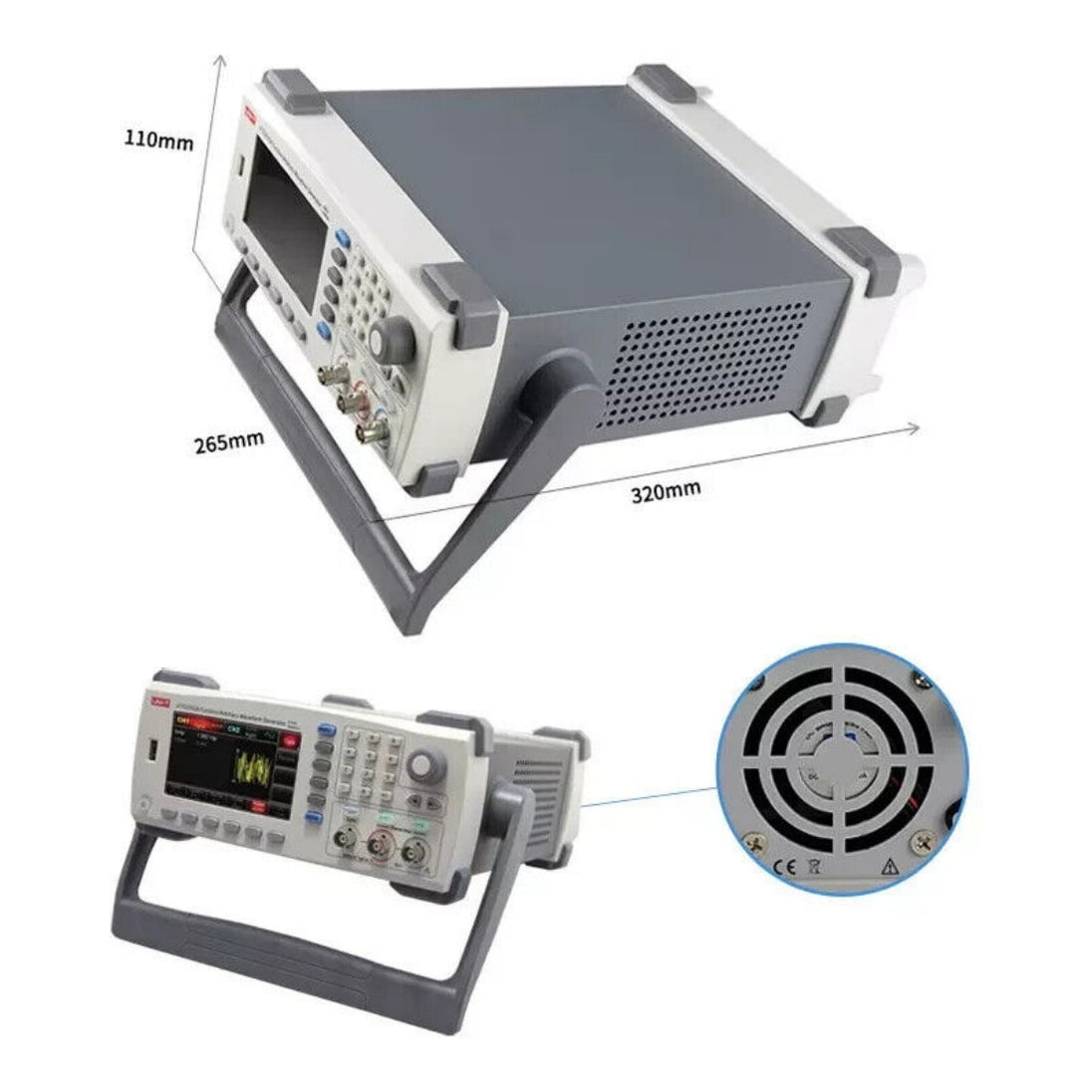

| Shipping Dimensions (W x H x D) | 305mmx230mmx93mm |
| Shipping Weight | 3.10Kg |
| Documents | English download guide, multi-language safety manual, calibration report (COC) |

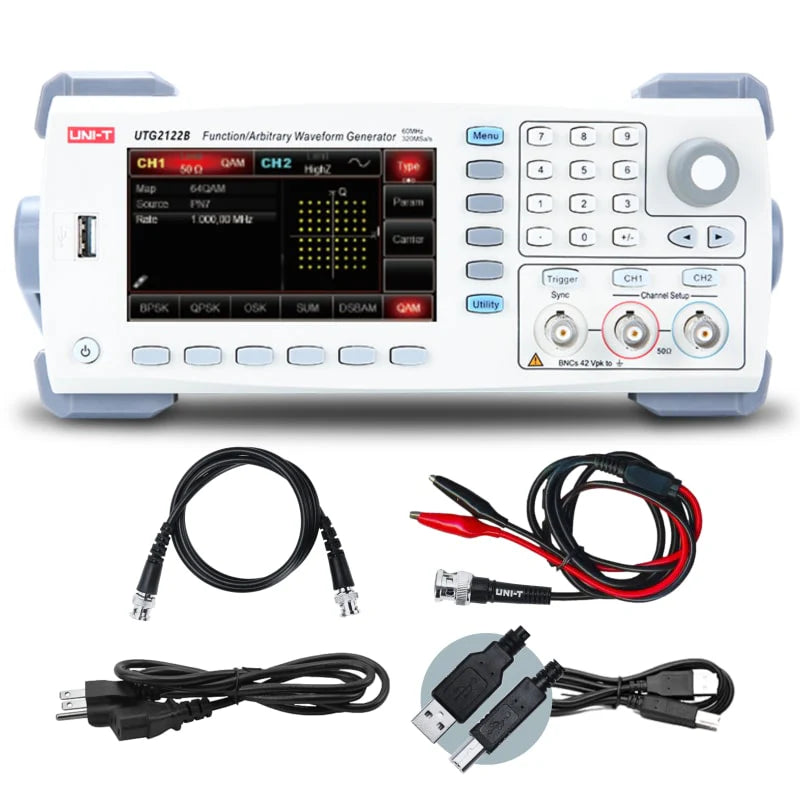

| Included Accessories | Power cord, USB2.0 printing cable, BNC straight-through cable, BNC to alligator clip cable |
| For additional product specifications, please refer to the attached PDF. |
|
Features
Up to120MHz frequency output, multiple basic output waveforms
Expression output
Multiple modulation modes
Over 160 built-in arbitrary waveforms
Channel combination/channel coupling function
Sweep function/harmonic output

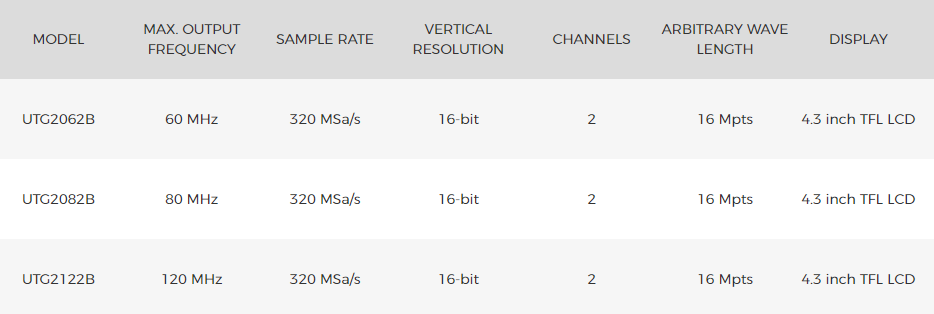

Comparison
Related Document
User Manual
UTG2000B Series Waveform Generators - User Manual
Datasheet
UTG2000B Series Waveform Generators - Data Sheet
Programming Manual
SDK Programming protocol package
UTG2000B Series Waveform Generators - Programming Guide(UCI Commands)
UTG2000B Series Waveform Generators - Programming Guide(SCPI Commands)
Software
UTG2000B Software
Firmware
UTG2000B Firmware
