Feature Specification
Model Number UTD2072CL
Bandwidth 70MHz
Channels 2 Analog
Real-Time Sample Rate 500MS/S
Rise Time ≤5ns
Memory Depth 64kpts
Waveform capture rate 5,000wfms/s
Time-base scale 2ns/div-50s/div
Waveform Generator No
Display 7-inch TFT LCD,WVGA
Touchscreen  No
Warranty 3 years
Shipping Dimensions (W x H x L) 306mmx 138mmx 124mm
Shipping Weight 2.5 kg
Documents English download guide, multi-language safety manual, calibration report (COC)

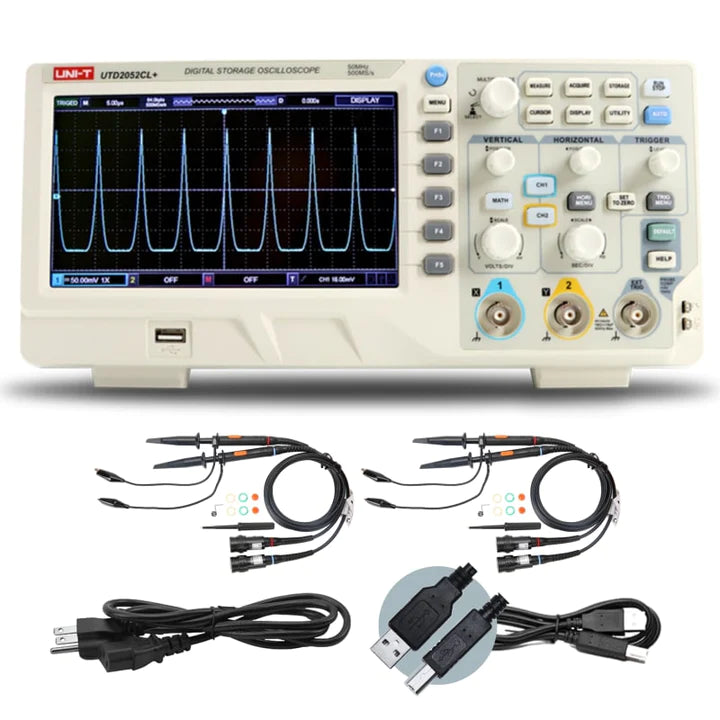

Included Accessories Power cord, USB2.0 printing cable, UT-P04 Passive probe x 2(lx,10x switchable,100MHz)
For additional product specifications, please refer to the attached PDF.




Model UTD2152CL UTD2072CL UTD2025CL
Bandwidth 150MHz 70MHz 25MHz
Channels Analog 2
Real Time Sample 500MSa/s
Max. Memory Depth 64 kpts
Waveform Capture Rate 5000 wfms/s
Price €249.00 €219.00 €185.00

Related Document


UTD2025 Datsheet
  • Language: English
  • Version: V1.0
  • Release Date: 2014.05.17

    UTD2072CL/152CL Datesheet
  • Language: English
  • Version: V1.0
  • Release Date: 2021.02.05

  • Programming manual

    UTD2072CL and UTD2152CL Programming Manual
  • Language: English
  • Version: V1.0
  • Release Date: 2022.05.26

    SDK Programming protocol package
  • Language: English
  • Version: V1.0
  • Release Date: 2015.05.17

  • Software

    UTD2025CL Software
  • Version V1.0
  • Release Date: 2014/06/17

    UTD2000CL+ (UTD2072CL 2152CL)Software
  • Version V1.1
  • Release Date: 2022/05/09
