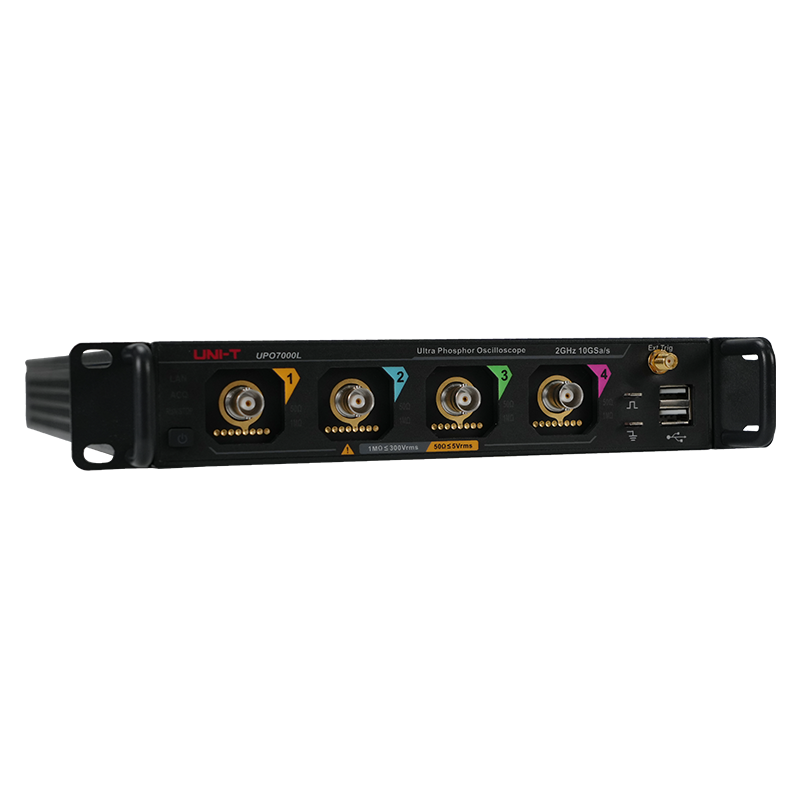

UPO7204L Rackmountable Digitial Oscilloscope

Variants

  • Bandwidth: 2 GHz
  • Channels: 4 Analog
  • Real-Time Sample Rate: 10 GSa/s
  • Memory Depth: 1 Gpts
  • Waveform Capture Rate: 2,000,000 wfms/s

5 Years Warranty Included*

Click here for details

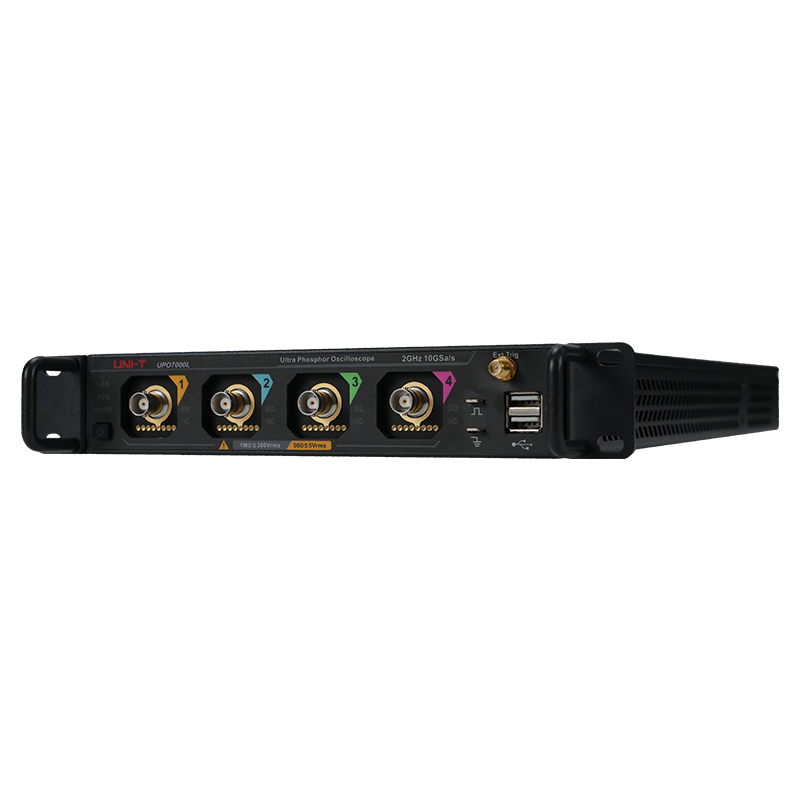

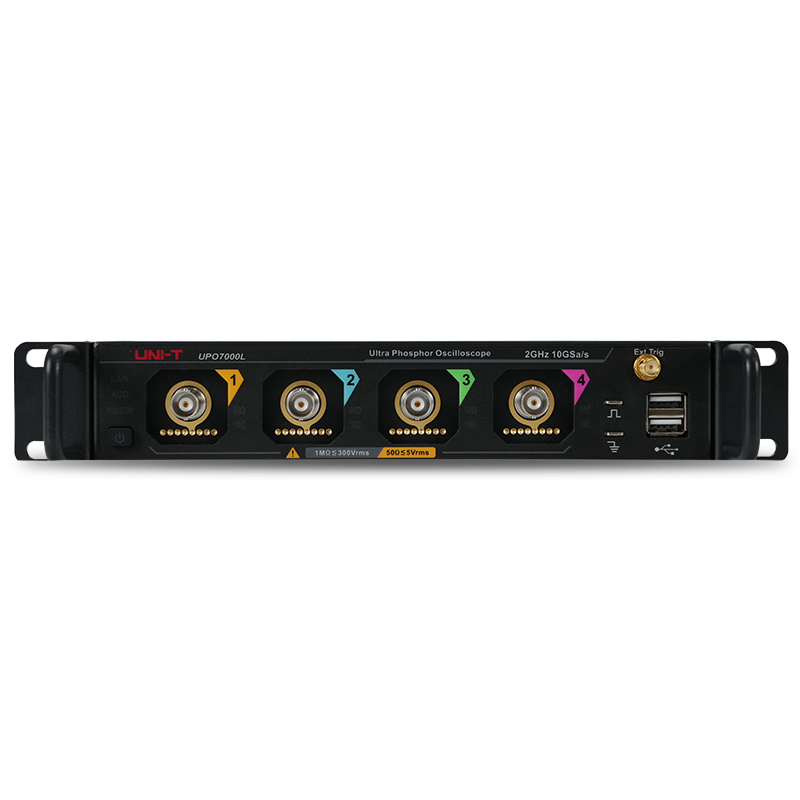

UPO7204L Rackmountable Digitial Oscilloscope

UPO7204L Rackmountable Digitial Oscilloscope

Specification

  • Analog Bandwidth: 2 GHz (model-dependent), ideal for high-speed digital, RF, and advanced embedded system debugging
  • Maximum Real-Time Sampling Rate: 10 GSa/s for precise capture of fast-edge and high-frequency signals
  • Maximum Memory Depth: Up to 1 Gpts (optional) for long-duration waveform recording and deep analysis
  • Waveform Capture Rate: ≥600,000 wfms/s in UltraAcq® mode and up to 2,000,000 wfms/s in Sequence mode
  • Triggering Types: Edge, pulse width, slope, video, code pattern, timeout, runt, setup & hold, delay, duration, and Nth edge
  • Serial Protocol Analysis (11 types): RS232/422/485/UART, I²C, SPI, CAN, CAN FD, LIN, FlexRay, SENT, MIL-STD-1553, ARINC 429, AudioBus (I2S/LJ/RJ/TDM)
  • 6-in-1 Instrument Integration:
    • High-performance Digital Oscilloscope
    • Spectrum Analyzer
    • Function/Arbitrary Waveform Generator
    • Digital Voltmeter (DVM)
    • Frequency Meter
    • Protocol Analyzer
  • 48 Measurement Parameters: Supports histogram, trend (tendency) charts, and trace analysis
  • Advanced Analysis Functions: Power analysis (option), jitter & eye diagram (option), template testing, histogram tools, and intelligent search navigation
  • Embedded WebServer: Remote control and waveform viewing directly from PC or smartphone with dual-layout interface
  • SCPI Commands: Supports automated testing, remote control, and integration into lab/production systems

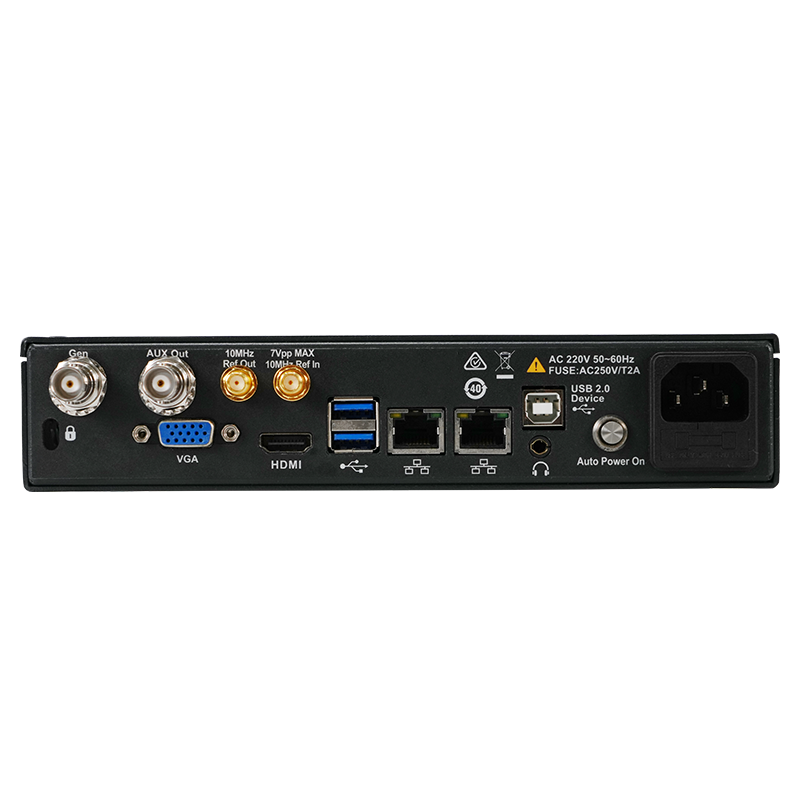

  • Interfaces: USB Host & Device, LAN, HDMI, AUX Out, 10 MHz Reference In/Out, and Audio I/O
  • Multi-Channel Analysis: Up to 8-channel waveform operations with built-in FFT spectrum tools and peak search function
  • MATLAB Support: Built-in MATLAB embedded programming and data visualization compatibility
  • Enhanced Resolution: Supports up to +3-bit enhancement for more precise low-noise measurement
  • Built-In AWG: Integrated 60 MHz function/arbitrary waveform generator
  • Compact 1U Design: Slim, lightweight, rack-mountable structure optimized for lab, production, and automated test systems
  • SDK / Secondary Development Package: Provides full API support for custom software development
  • Multi-Machine Synchronization: Expandable up to 128 oscilloscopes working in parallel for large-scale, synchronized data acquisition

Features

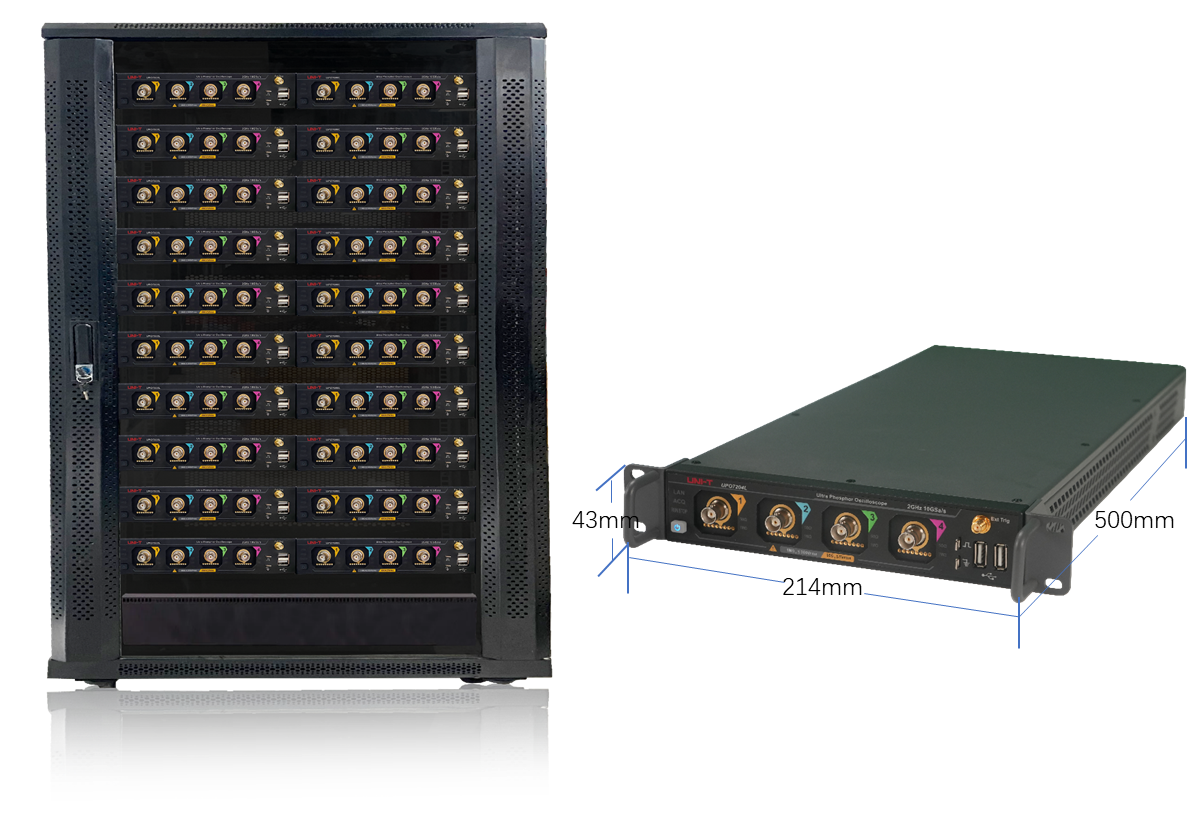

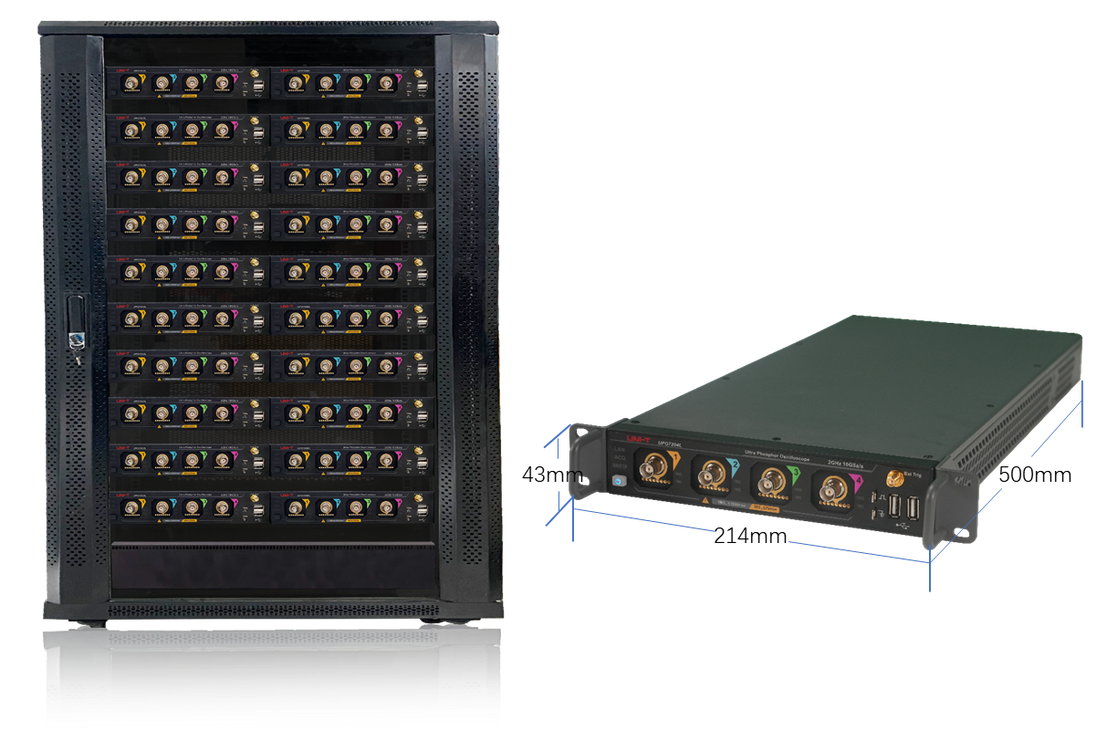

  • Compact Rack-Mounted Design

    Compact Rack-Mounted Design for High-Density Integration: 214 mm (half-rack width) × 43 mm (1U height) × 500 mm (depth)

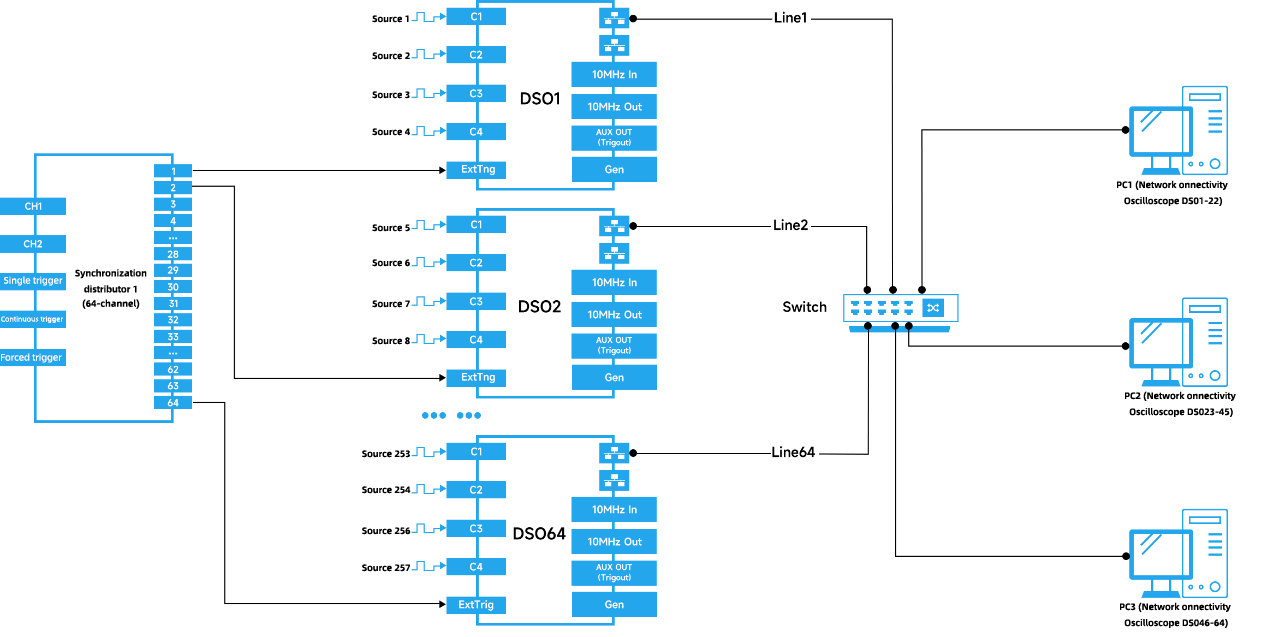

  • Multi-Machine Synchronization Scheme
    • Supports clock synchronization
    • Supports expansion to 512 channels
    • Provide a synchronization machine
    • Gigabit Ethernet communication interface
    • External trigger jitter ≤200ps rms

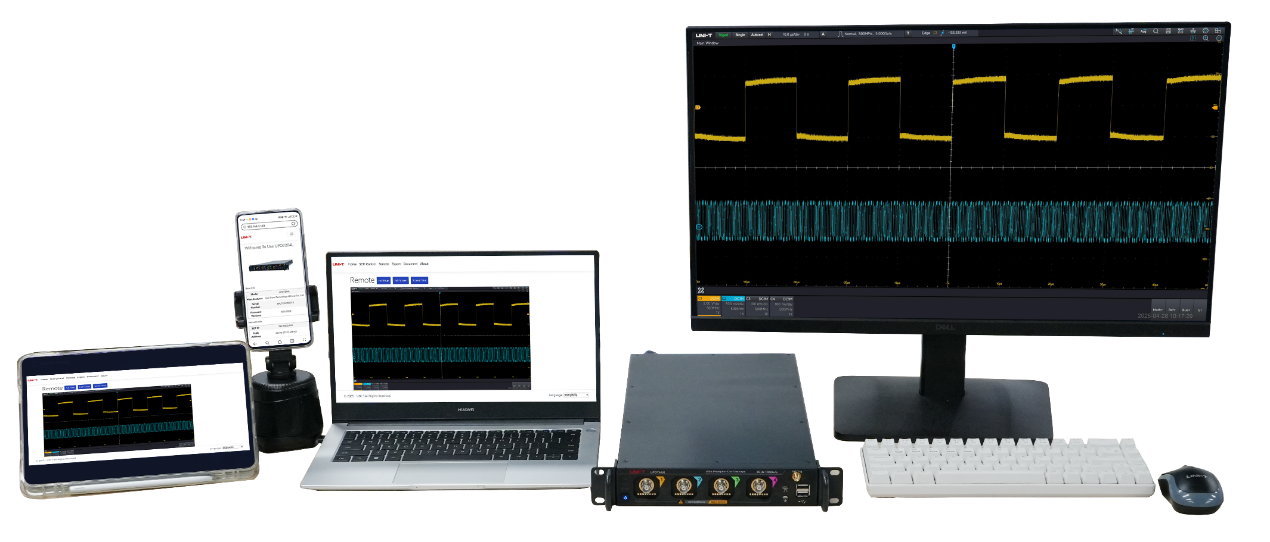

  • Flexible Near-end/Far-end Platform
    • Supports connection to external displays and control devices.
    • WebServer remote control: Enables oscilloscope access and control via mobile devices or PCs.

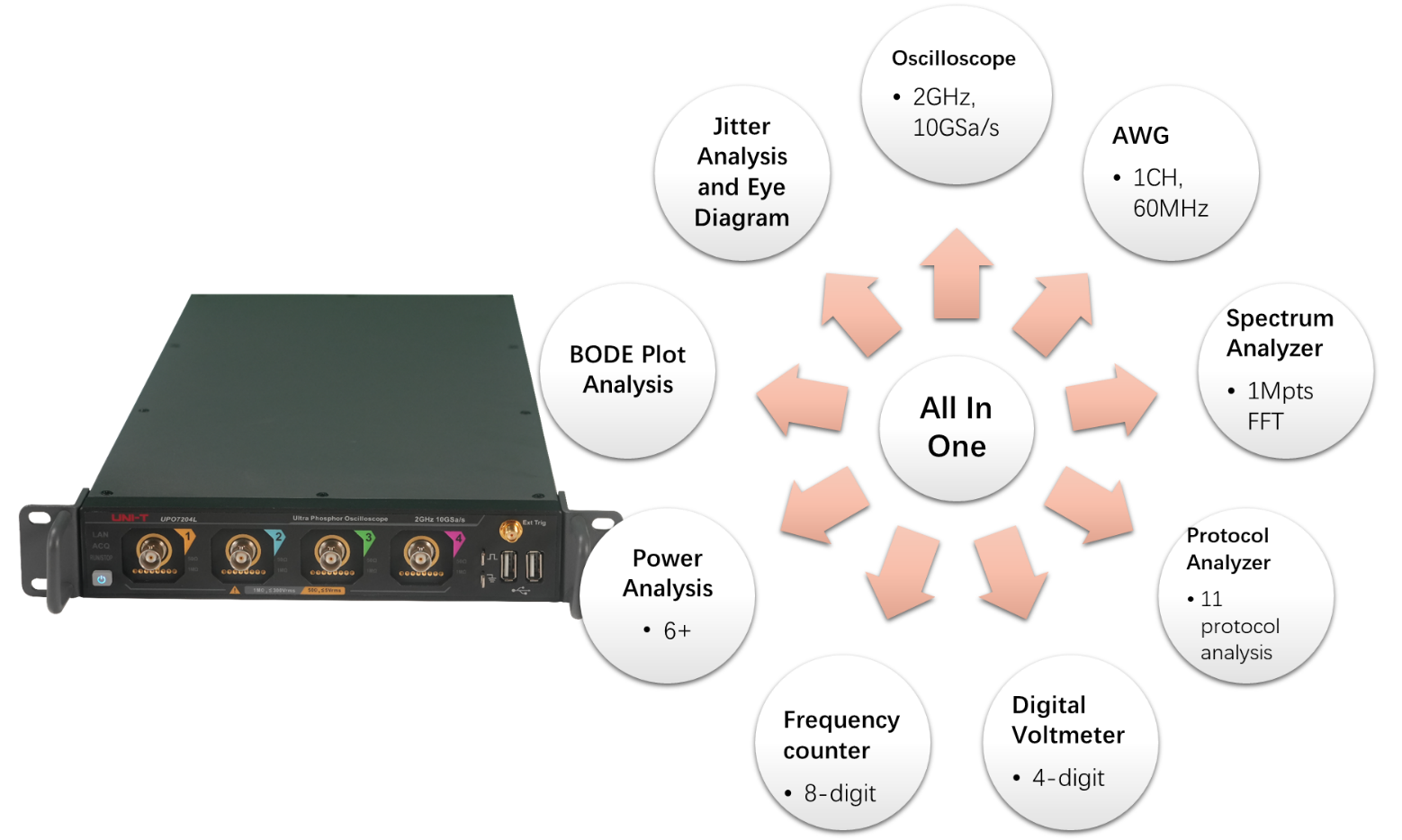

  • All-in-one Comprehensive Signal Measurement Instrument

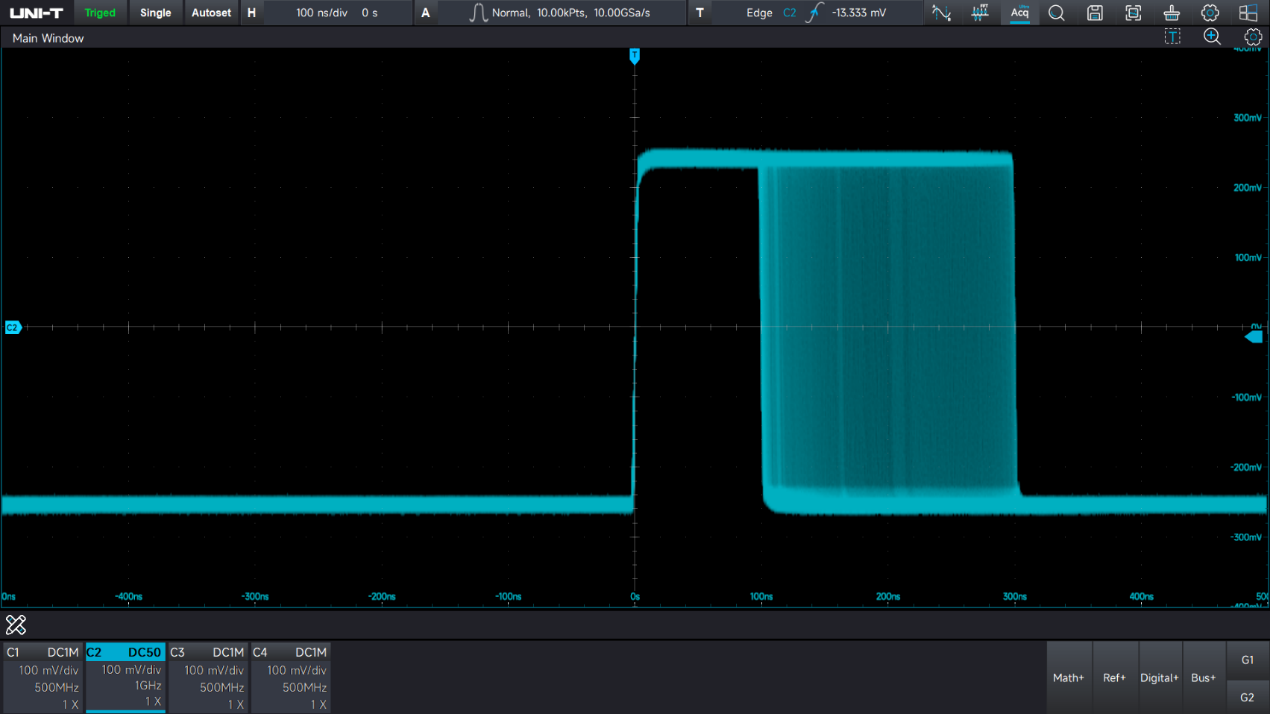

  • UltraAcq® Technology
    • Upgrade real-time waveform capture rate to over 600,000 wfms/s
    • 2,000,000wfms/s in sequence mode

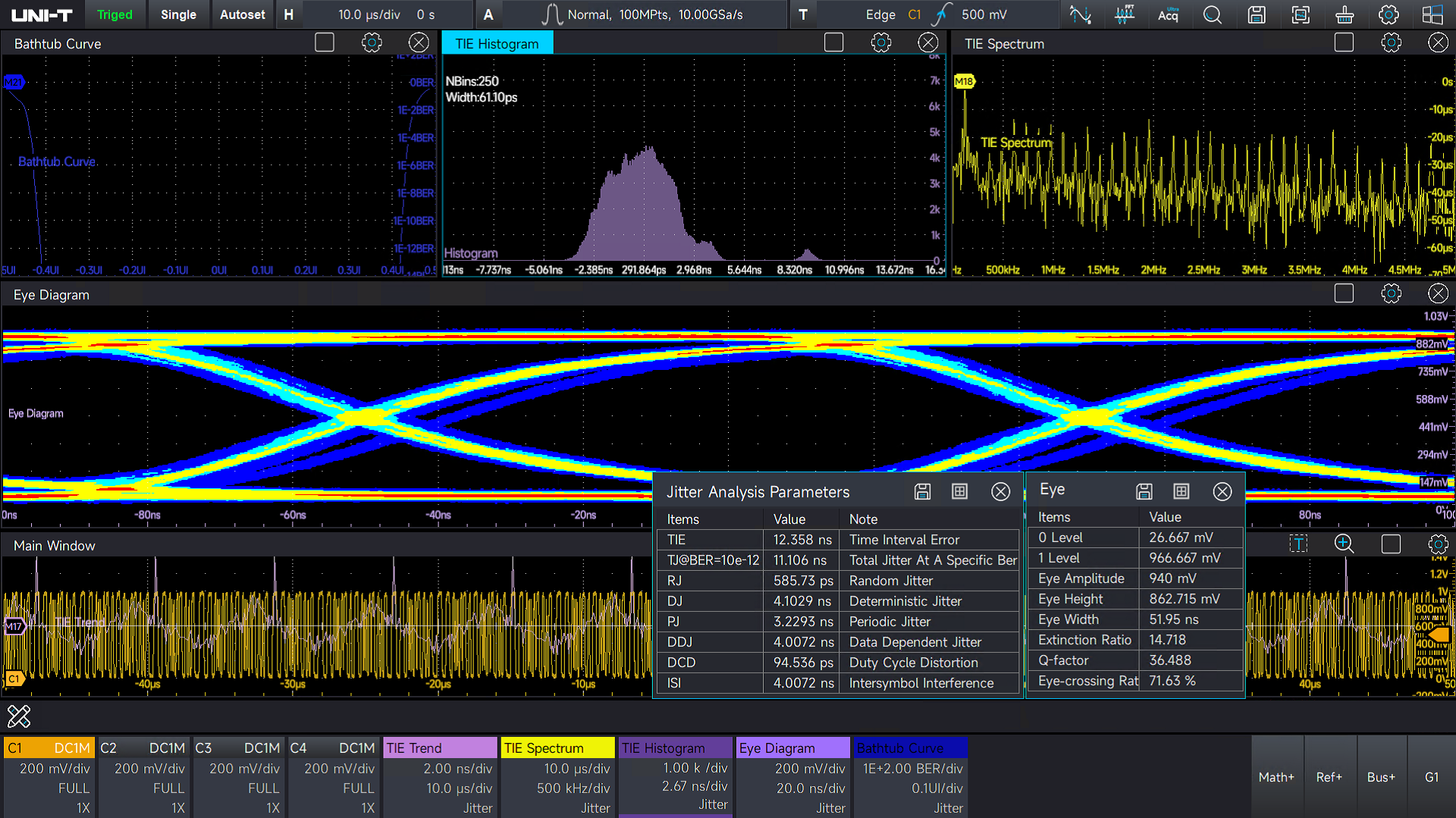

  • Jitter and Eye Diagram Analysis

    Efficient measurement of clock and serial bus

    • TIE, TJ, DJ, RJ, PJ, DDJ, DCD
    • TIE Trend Chart, TIE Spectrogram
    • TIE Histogram
    • Bath Curve

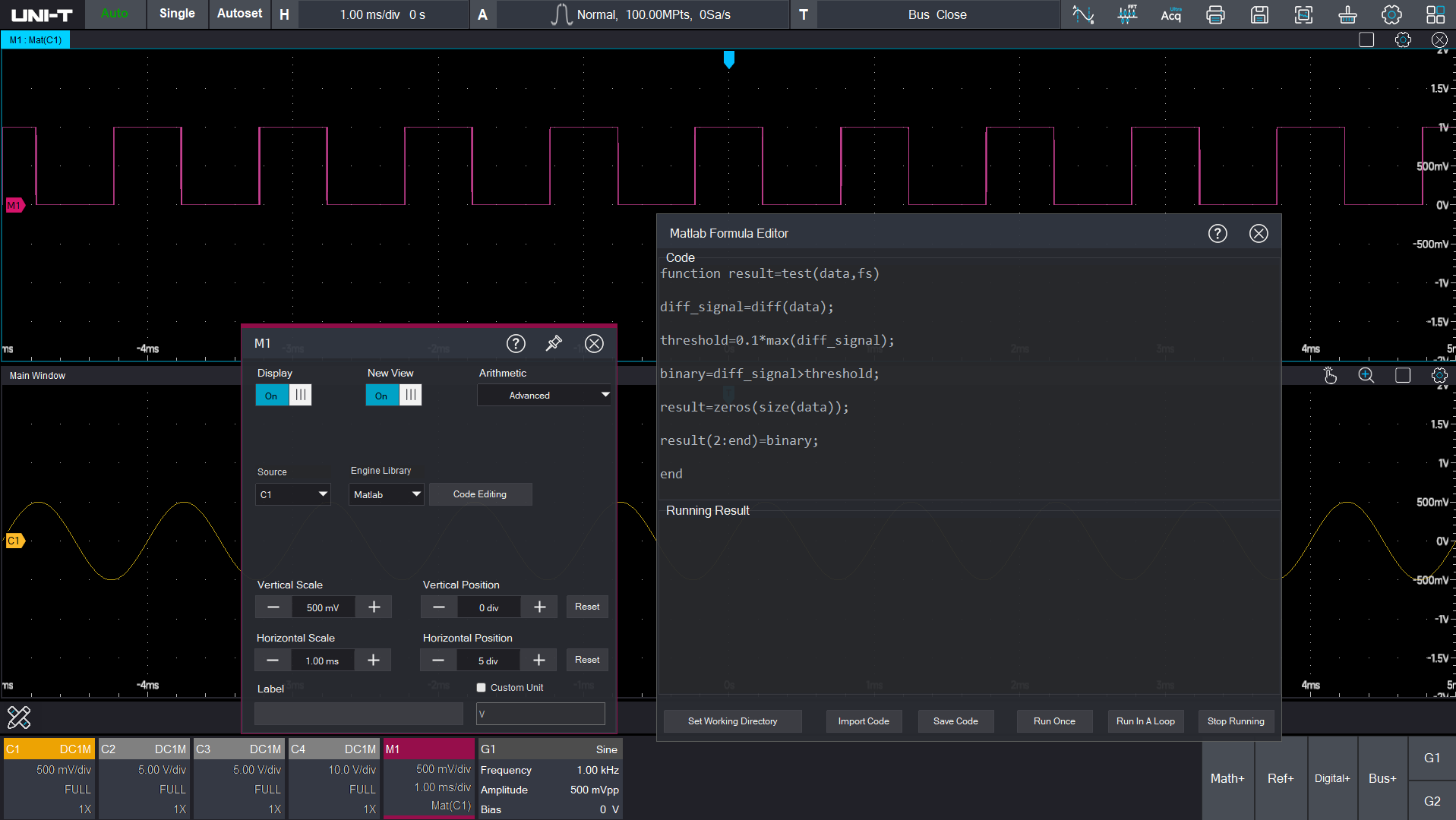

  • MATLAB Embedded Programming

    Support MATLAB embedded programming ，
    Operational results are rendered directly to the oscilloscope window

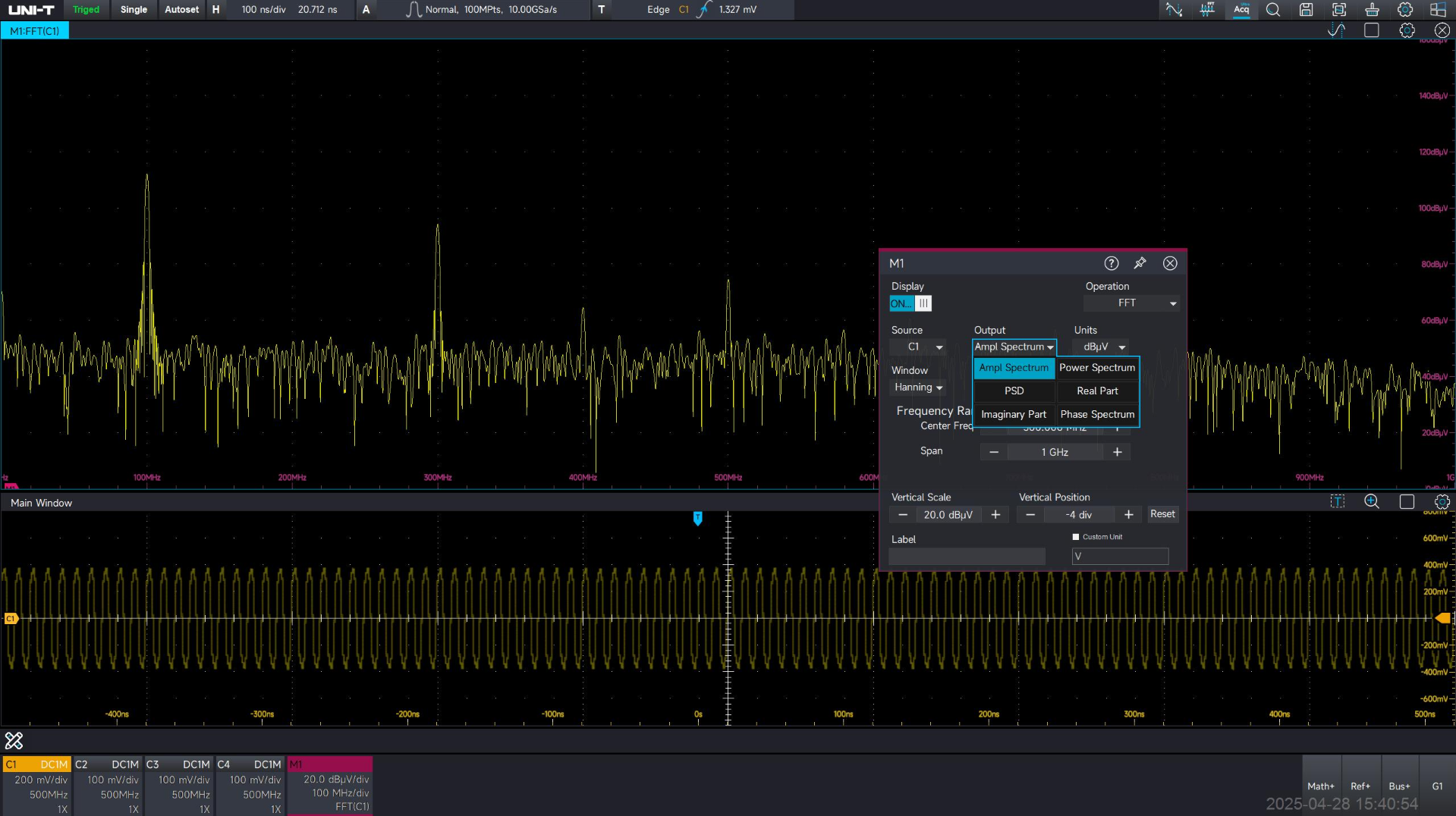

  • Mathematical Operation
    • Enhanced FFT: Provides the spectrum view of time-domain, frequency-domain, and modulation-domain
    • Filter: High pass, low pass, band pass, and band limit
    • Enhanced resolution mode: maximum resolution enhancement of 3-bit.
    • User-defined function operation
    • Embedded MATLAB

Comparison

Model UPO7204L UPO7104L
Bandwidth 2 GHz 1 GHz
Channels 4 Analog
Sample Rate 10 GSa/s
Memory Depth 1 Gpts
Waveform Capture Rate 2,000,000 wfms/s

Related Document

User Manual
Datasheet
Quick Start Guide
Programming Manual
Software and Firmware Download

Accessories For UPO7204L Rackmountable Digitial Oscilloscope

  • UT-P20 Passive High voltage probe
    Excl. VAT €54,00

    Incl. 19% VAT €64,26



    Passive probe: (100:1) Bandwidth: 250MHz. voltage: 1500V
    Download
    Delivery Content

  • UT-ISOT
    Excl. VAT €295,00

    Incl. 19% VAT €351,05



    Isolation transfomer for Bode plot application (Hardware)

    Download
    Delivery Content

  • UT-P30 Differential probe
    Excl. VAT €379,00

    Incl. 19% VAT €451,01



    Differential probe:(10:1/100:1) Bandwidth: 100MHz differential voltage: ±800Vpp
    Download
    Delivery Content

  • UT-V23 High voltage probe
    Excl. VAT €24,00

    Incl. 19% VAT €28,56



    High voltage probe:(100:1)Bandwidth: 100MHz
    voltage: 2000Vpp
    Download
    Delivery Content

  • UT-P42 Current probe:DC~150kHz,200A
    Excl. VAT €437,00

    Incl. 19% VAT €520,03



    Current probe,DC-150kHz，0.4A-200A
    Download
    Delivery Content

  • UT-P41 Current probe:DC~100kHz,100A
    Excl. VAT €567,00

    Incl. 19% VAT €674,73



    Conversion ratio:100mV/A, 10mV/A, Current range: 50A~100A Frequency: DC~100kHz, voltage: 600Vrms
    Download
    Delivery Content

  • UT-P40 Current probe:DC~100kHz,60A
    Excl. VAT €430,00

    Incl. 19% VAT €511,70



    Conversion ratio:50mV/A, 5mV/A, Current range : 0.4A~60A,Frequency: DC~100kHz voltage: 600Vrms
    Download
    Delivery Content

  • UT-P33 High voltage differential probe
    Excl. VAT €1.396,00

    Incl. 19% VAT €1.661,24



    Differential probe:(1000:1/100:1) Bandwidth: 70/50 MHz Differential voltage: 14 KVpp

    Download
    Delivery Content

  • UT-P32 High voltage differential probe
    Excl. VAT €820,00

    Incl. 19% VAT €975,80



    High voltage differential probe: (10:1/100:1) Bandwidth: 50MHz differential voltage: ±1500Vpp

    Download
    Delivery Content

  • UT-P31 High voltage differential probe
    Excl. VAT €666,00

    Incl. 19% VAT €792,54



    High voltage differential probe: (10:1/100:1) Bandwidth: 100MHz differential voltage: ±1500Vpp
    Download
    Delivery Content

  • UT-P21 Passive High voltage probe
    Excl. VAT €410,00

    Incl. 19% VAT €487,90



    Passive high voltage probe: (1000:1) Bandwidth: 50MHz voltage: DC 15kVrms/AC 10kV(sine wave )
    Download
    Delivery Content

  • UT-P07 Passive Probe
    Excl. VAT €150,00

    Incl. 19% VAT €178,50



    Probe factor:(10:1) Bandwidth: 500MHz.voltage:600Vpp
    Download
    Delivery Content
View all

Option for UPO7204L Rackmountable Digitial Oscilloscope

  • UPO7000L-BW-10T20
    Excl. VAT €929,00

    Incl. 19% VAT €1.105,51



    Upgrade bandwidth from 1GHz to 2GHz
    Download
    Delivery Content

  • UPO7000L-CANFD
    Excl. VAT €929,00

    Incl. 19% VAT €1.105,51



    Automotive serial bus triggering and analysis option for UPO7000L Series (CAN-FD)
    Download
    Delivery Content

  • UPO7000L-FLEX
    Excl. VAT €929,00

    Incl. 19% VAT €1.105,51



    Automotive serial bus triggering and analysis option for UPO7000L Series (FlexRay)
    Download
    Delivery Content

  • UPO7000L-SENT
    Excl. VAT €929,00

    Incl. 19% VAT €1.105,51



    Automotive sensor bus triggering and analysis option for UPO7000L Series
    Download
    Delivery Content

  • UPO7000L-AUDIO
    Excl. VAT €929,00

    Incl. 19% VAT €1.105,51



    Aerospace serial bus triggering and analysis option for UPO7000L Series (MIL-STD-1553， ARINC 429)
    Download
    Delivery Content

  • UPO7000L-AERO
    Excl. VAT €929,00

    Incl. 19% VAT €1.105,51



    Aerospace serial bus triggering and analysis option for UPO7000L Series (MIL-STD-1553， ARINC 429)
    Download
    Delivery Content

  • UPO7000L-AWG
    Excl. VAT €454,00

    Incl. 19% VAT €540,26



    Single-channel 60MHz arbitrary wave generator option for UPO7000L Series.
    Download
    Delivery Content

  • UPO7000L-PWR
    Excl. VAT €929,00

    Incl. 19% VAT €1.105,51



    Advanced power analysis option for UPO7000L Series
    Download
    Delivery Content

  • UPO7000L-JITTER
    Excl. VAT €929,00

    Incl. 19% VAT €1.105,51



    Jitter Analysis and Eye diagram option for UPO7000L Series
    Download
    Delivery Content

  • UPO7000L-BND
    Excl. VAT €2.199,00

    Incl. 19% VAT €2.616,81



    Upgrade Kit for UPO7000L Series (JITTER, PWR, CANFD, FLEX, SENT, AUDIO, AERO)
    Download
    Delivery Content
View all
