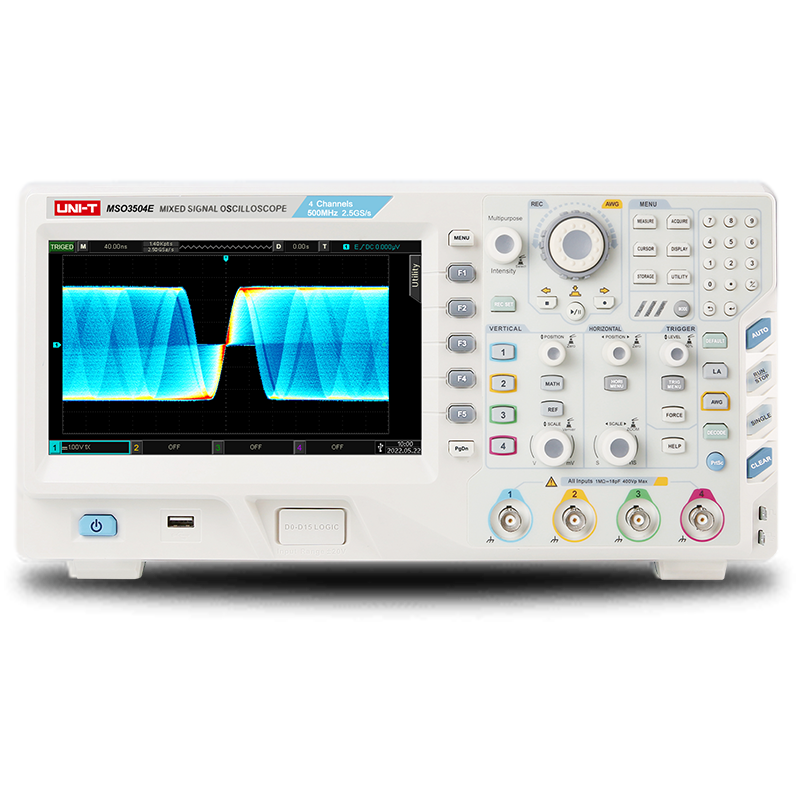

MSO3504E Digital Oscilloscope

  • Bandwidth: 500MHz
  • Channels: 4 Analog + 16 Digital
  • REAL-TIME SAMPLE RATE : 2.5GSa/s
  • Rise time: ≤750ps
  • Memory depth: 250Mpts
  • Waveform capture rate: 1.000,000wfms/s

Price on Request: Contact Us for Exclusive Offers

UNI-T

MSO3504E Digital Oscilloscope

MSO3504E Digital Oscilloscope

Specification

Feature Specification
Model Number MSO3504E
Bandwidth 500MHz
Channels 4 Analog + 16 Digital
Real-Time Sample Rate 2.5GSa/s
Rise Time ≤750ps
Memory Depth 250Mpts
Waveform capture rate 1,000,000wfms/s
Input impedance(analog channel) （1MΩ± 2%）||（18 pF± 3 pF）
Input impedance(Digital Channel) （101 kΩ±1%）||（9 pF ± 1 pF）
Waveform Generator No
Display 8-inch 800x480 capacitive touch display
Warranty 3 years
Shipping Dimensions (L x W x H)  370mm×185mm×115mm
Shipping Weight 4.5 kg
Documents English download guide, multi-language safety manual, calibration report (COC)
Included Accessories Power cord, USB2.0 printing cable, Passive probe 500MHz * 2(UT-P07) or 350MHz * 4 (UT-P08), Logic analyzer probe (UT-M15)
For additional product specifications, please refer to the attached PDF.





Application

Model UPO3504E UPO3502E UPO3354E UPO3352E
Bandwidth 100MHz 350MHz
Channels Analog 4  Analog 2 Analog 4 Analog 2
Real Time Sample  2.5GSa/s
Max. Memory Depth 250Mpts
Waveform Capture Rate 1.000,000wfms/s
Waveform Generator No
Price - - - -
Model MSO3352E MSO3354E MSO3502E MSO3504E
Bandwidth 350MHz 500MHz
Channels Analog 2 Analog 4 Analog 2 Analog 4
Real Time Sample  2.5GSa/s
Max. Memory Depth 250Mpts
Waveform Capture Rate 1.000,000wfms/s
Waveform Generator No
Price - - - -
Model MSO3354E-S MSO3504E-S
Bandwidth 350MHz 500MHz
Channels Analog 4 +Digital 16
Real Time Sample  2.5GSa/s
Max. Memory Depth 250Mpts
Waveform Capture Rate 1.000,000wfms/s
Waveform Generatore Yes
Price - -
