Specification

  • Analog channel bandwidth: 500 MHz
  • Real-time sampling rate: Up to 5 GSa/s for analog channels, 1.25 GSa/s for digital channels

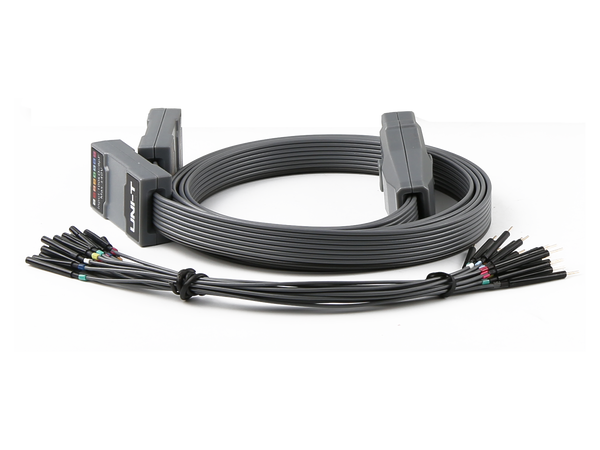

  • Channels: 4 analog, 16 digital, with 500 Mpts maximum memory depth
  • Waveform capture rate: 800,000 wfms/s (2,000,000 wfms/s in sequence mode)
  • 9-in-1 Instrument: Digital Oscilloscope, Logic Analyzer, Waveform Generator, Spectrum Analyzer, Digital Voltmeter, Frequency Counter, Protocol Analyzer, Bode Plot Analyzer, Power Analyzer

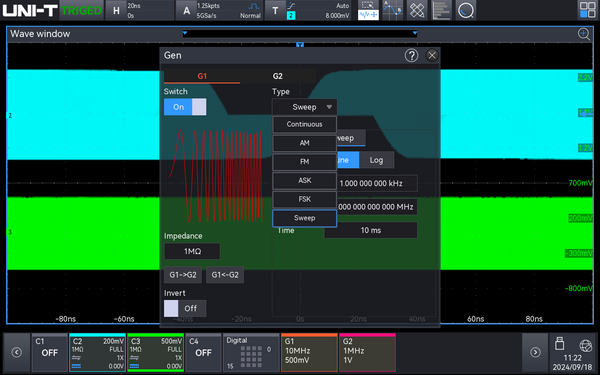

  • Waveform Generator: Built-in 50 MHz dual-channel function/arbitrary waveform generator, real-time output
  • Bode Plot: Analyze system stability with loop test
  • Waveform Recording: Capture up to 250,000 frames with USB export capability
  • Enhanced FFT: Up to 4Mpts, supporting spectrum analyzer features like frequency setting, waterfall curve, and markers
  • Parameter Measurements: 54 kinds, with histogram and line graph display options
  • Multi-windows Display: Drag and drop channels for easy comparison
  • Frequency Counter: 7-digit hardware counter with adjustable refresh rate
  • Digital Voltmeter (DVM): DC, AC RMS, and DC+AC RMS
  • Advanced Triggers: Edge, pulse width, runt, over-amplitude, delay, timeout, and more

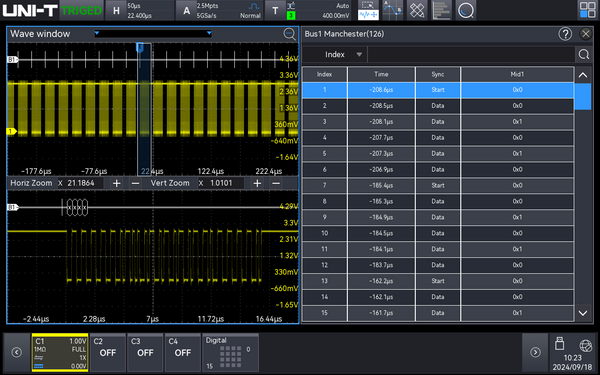

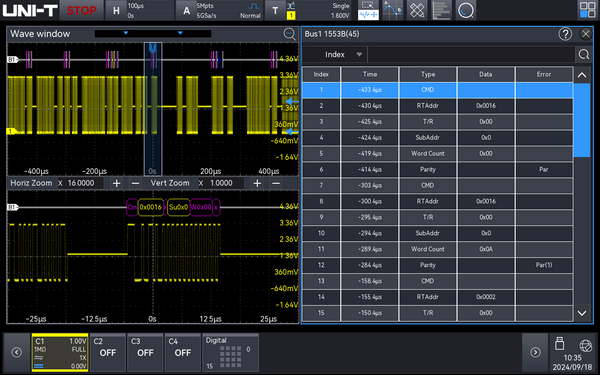

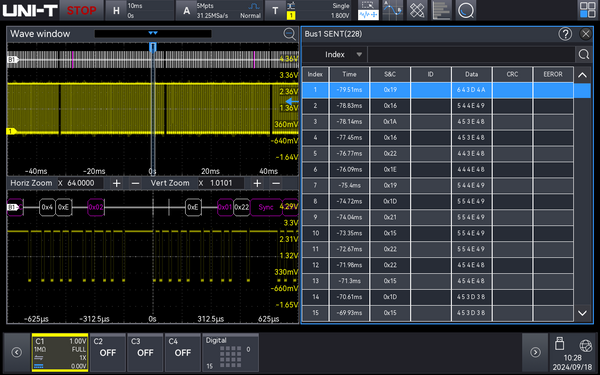

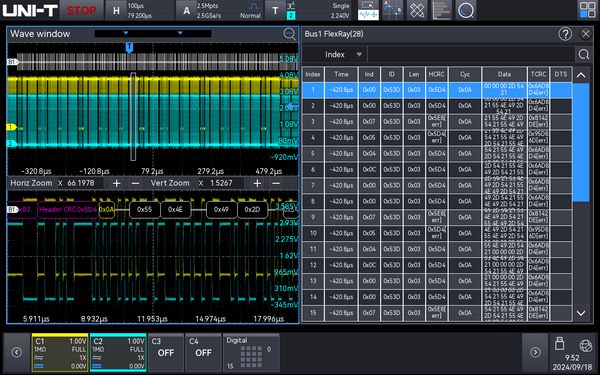

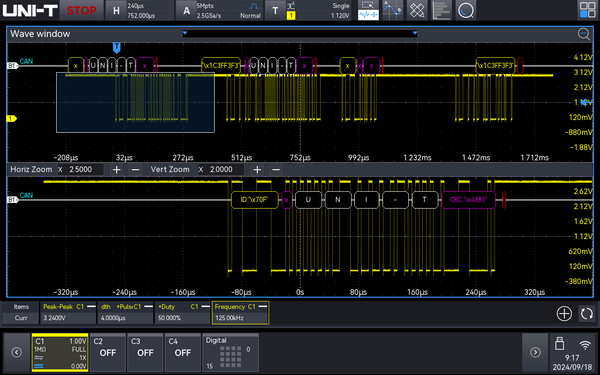

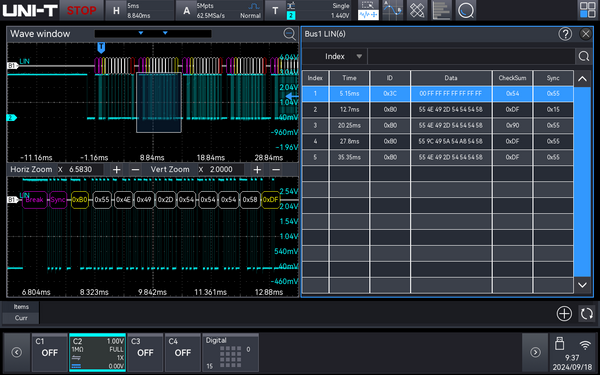

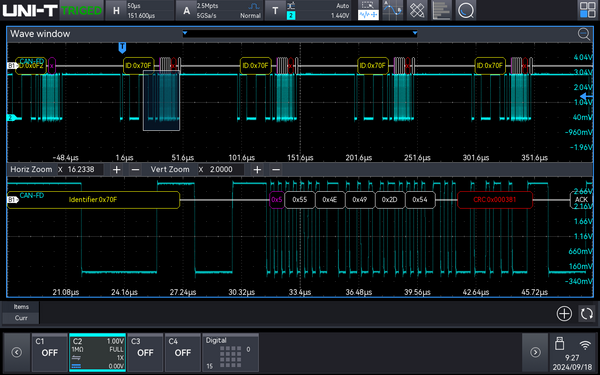

  • Protocol Decoding: RS232/UART, I2C, SPI, CAN, CAN-FD, LIN, FlexRay, AUDIO, MIL-STD-1553B, ARINC429, and more
  • Zone Triggering: Capture complex and accidental signals with precision
  • Display: Ultra Phosphor 3.0 with 256 levels of grey for crisp signal rendering
  • Touchscreen: 10.1-inch HD multi-touch screen (1280x800), supports gestures like zoom, drag, and edit

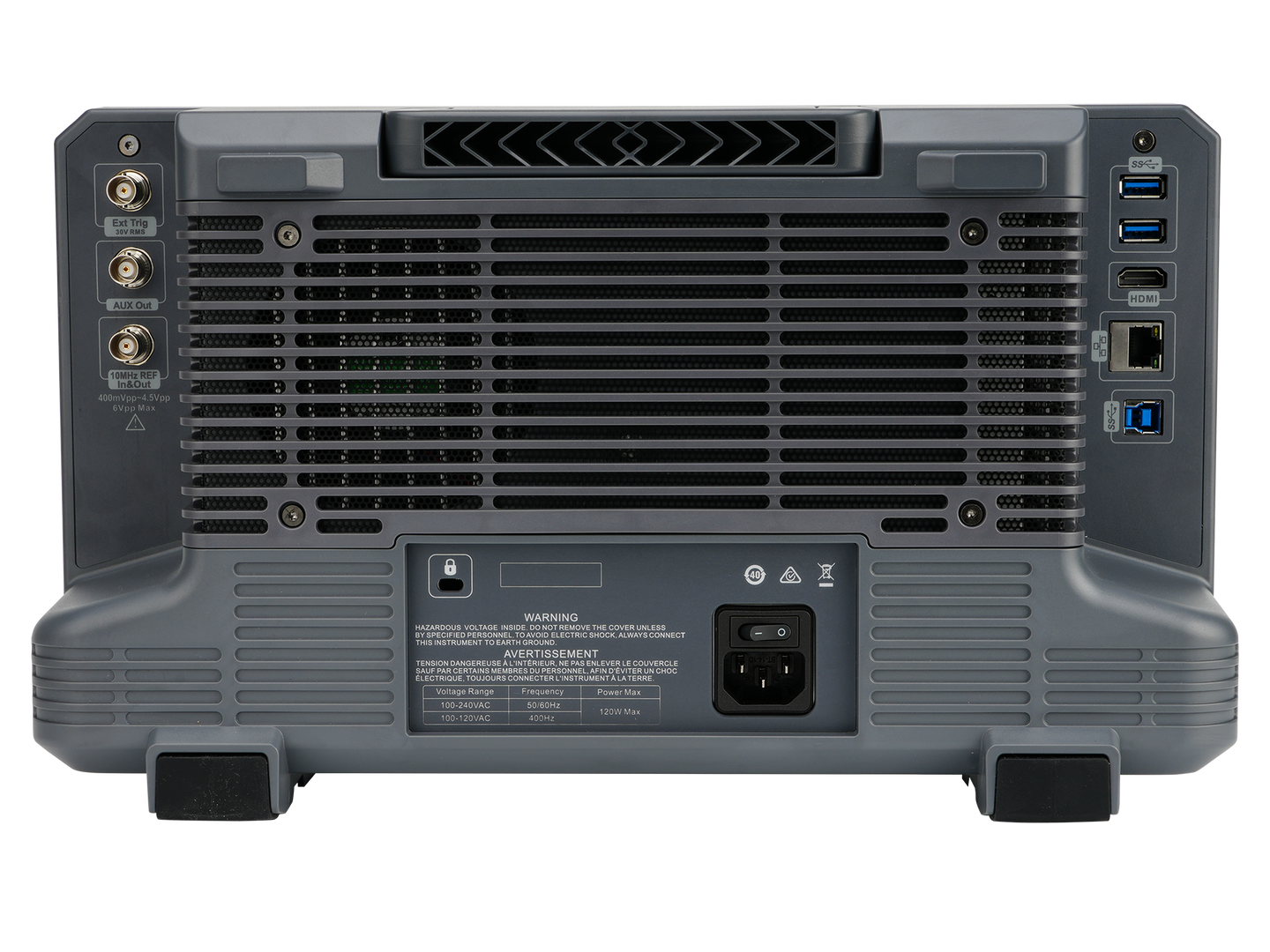

  • Peripheral Interfaces: USB Host/Device, LAN, EXT Trig, AUX Out, Gen Out, HDMI
  • SCPI Support: Standard command set for programmable instruments
  • Built-in Web Server: Access and control via browser, compatible with PC and mobile devices
  • For more Details please check data sheet Here

    Features

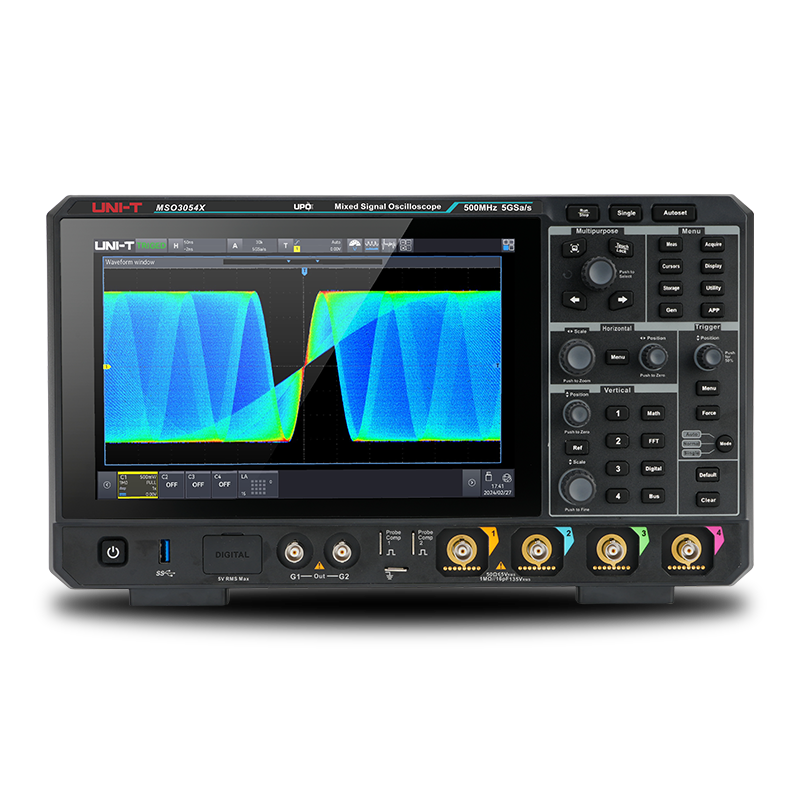

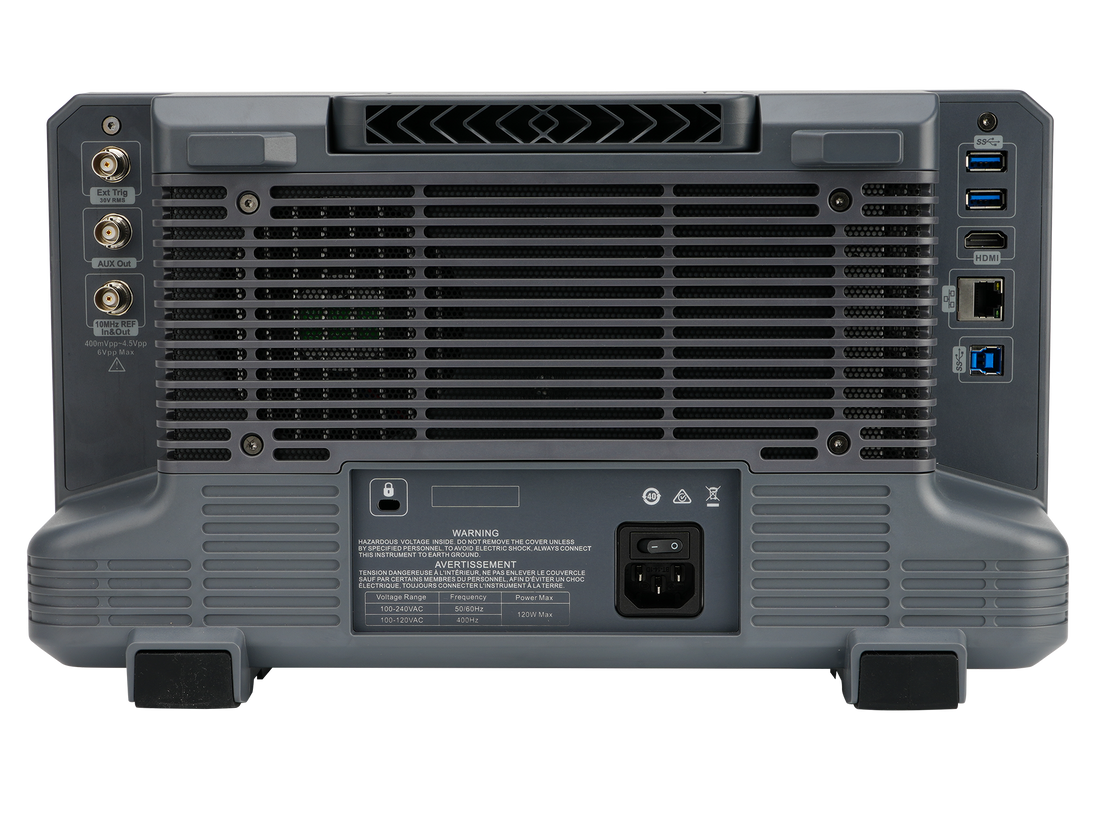

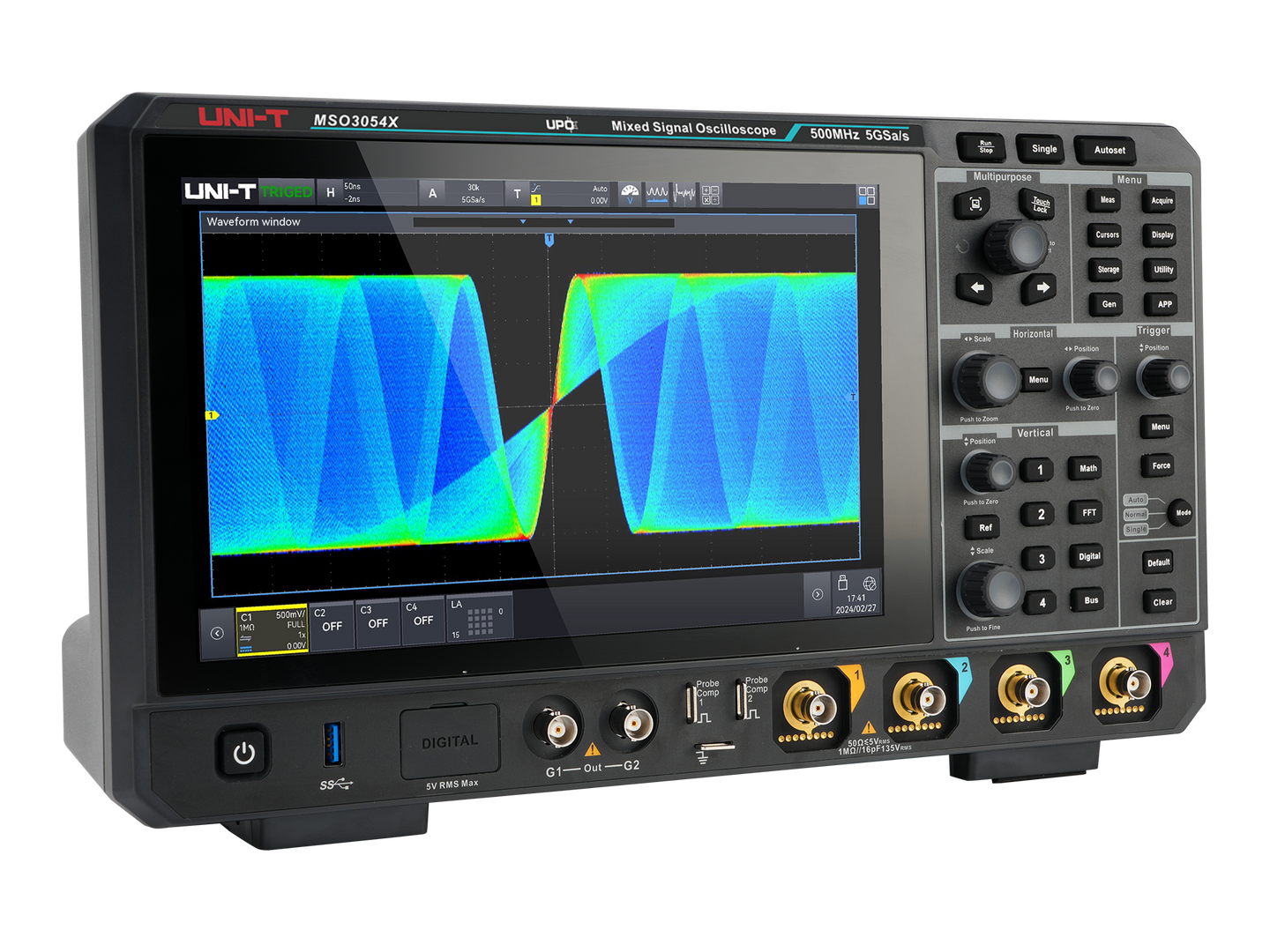

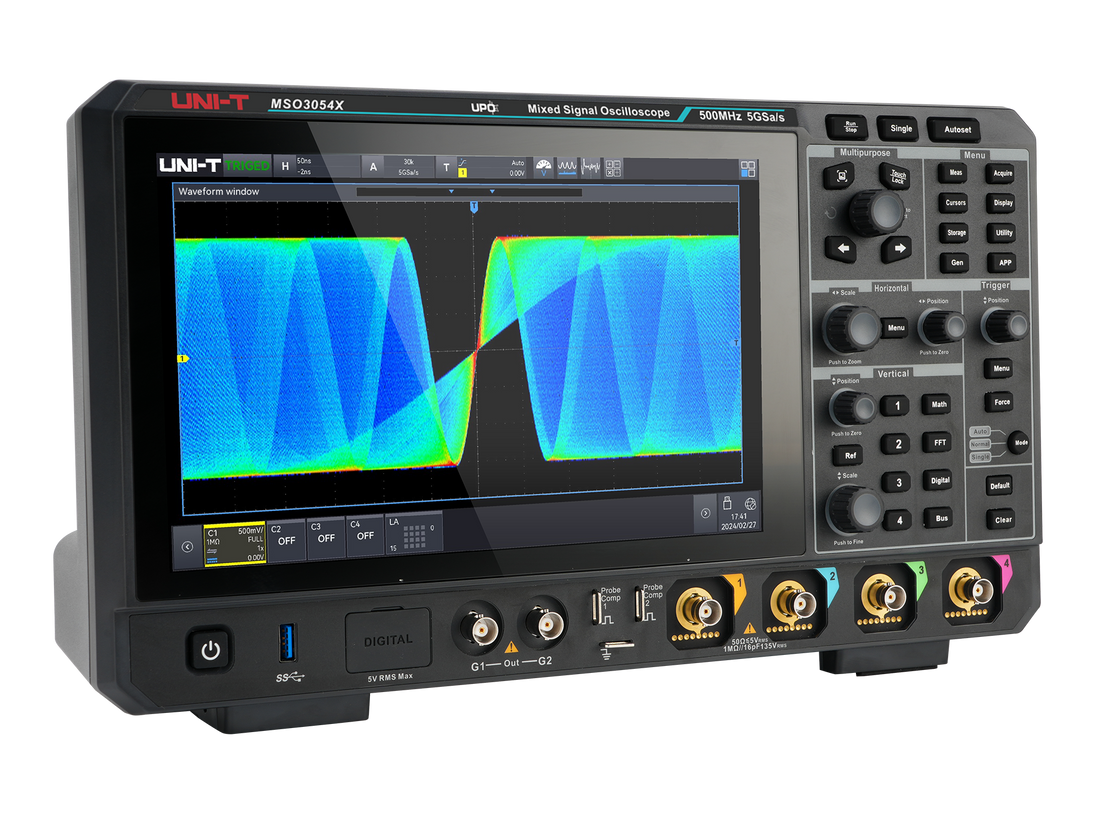

    Photo Gallery

    Comparison

    Model MSO3054X MSO3034X
    Bandwidth 500MHz 350MHz
    Channels  4 Analog + 16 Digital Channels
    Real Time Sample  5 GSa/s
    Max. Memory Depth 500Mpts
    Waveform Capture Rate 2.000,000wfms/s
    Waveform Generatore
    50MHz Dual Channels(optional)

    Related Document

    Data Sheet

    MSO3000X Series Digital Oscilloscopes - Data Sheet
  • Language: English
  • Version: V1.0
  • Release Date: 2024.09.14

  • Quickstart Guide

    MSO3000X & MSO2000X Series Digital Oscilloscopes - QuickStart Guide
  • Language: English
  • Version: V1.1
  • Release Date: 2024.08.06

  • User Manual

    MSO2000X & MSO3000X Series Digital Oscilloscopes - User Manual
  • Language: English
  • Version: V1.0
  • Release Date: 2024.08.06

  • Programming Manual

    MSO3000X & MSO2000X Series Digital Oscilloscopes - Programming Guide
  • Language: English
  • Version: V1.0
  • Release Date: 2024.08.09

  • Software

    Device Manager
  • Version V2.6
  • Release Date: 2024.08.08
