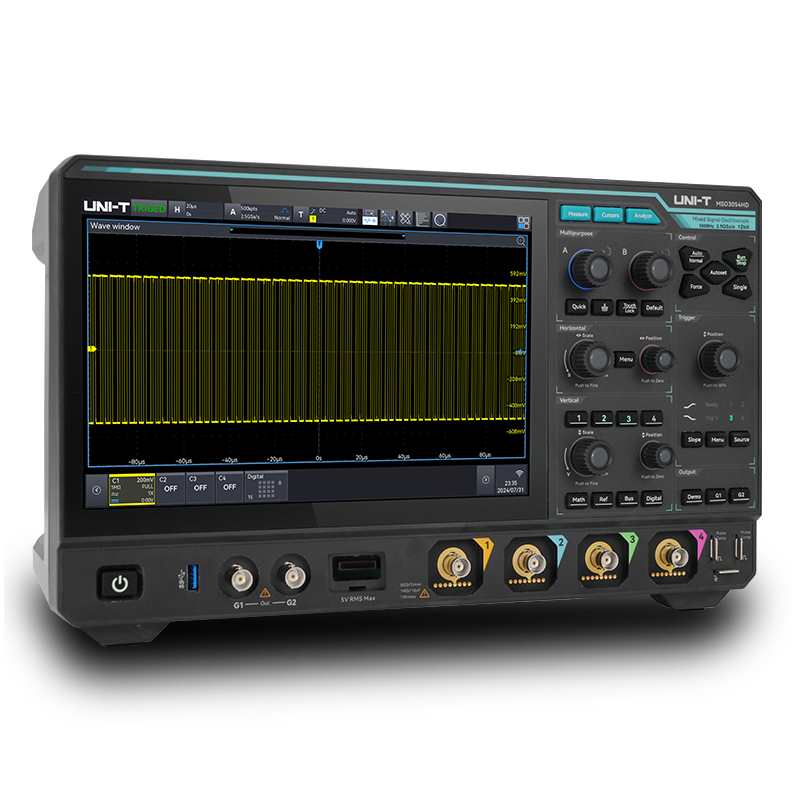

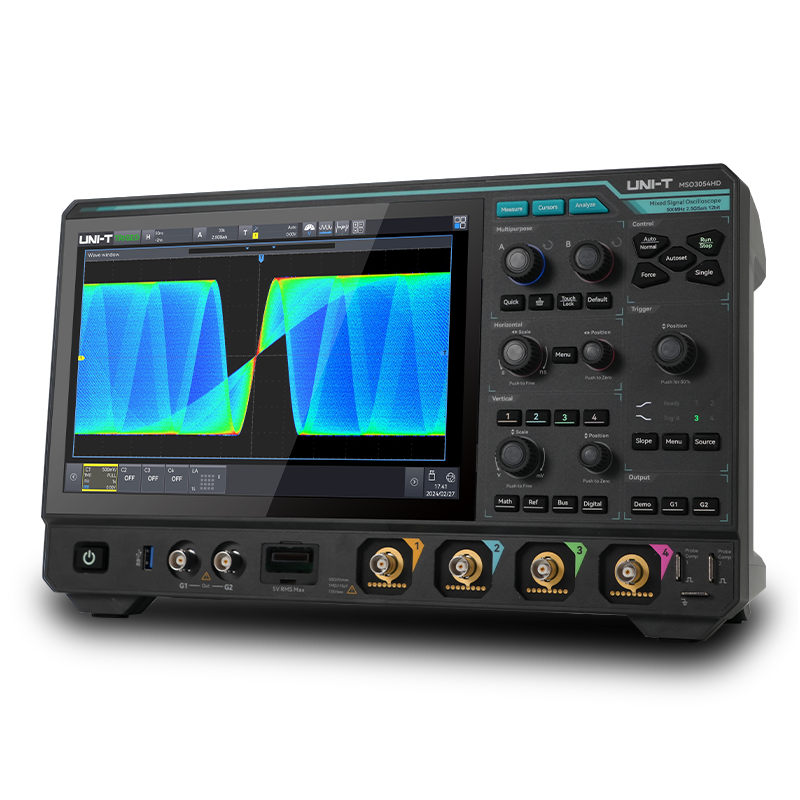

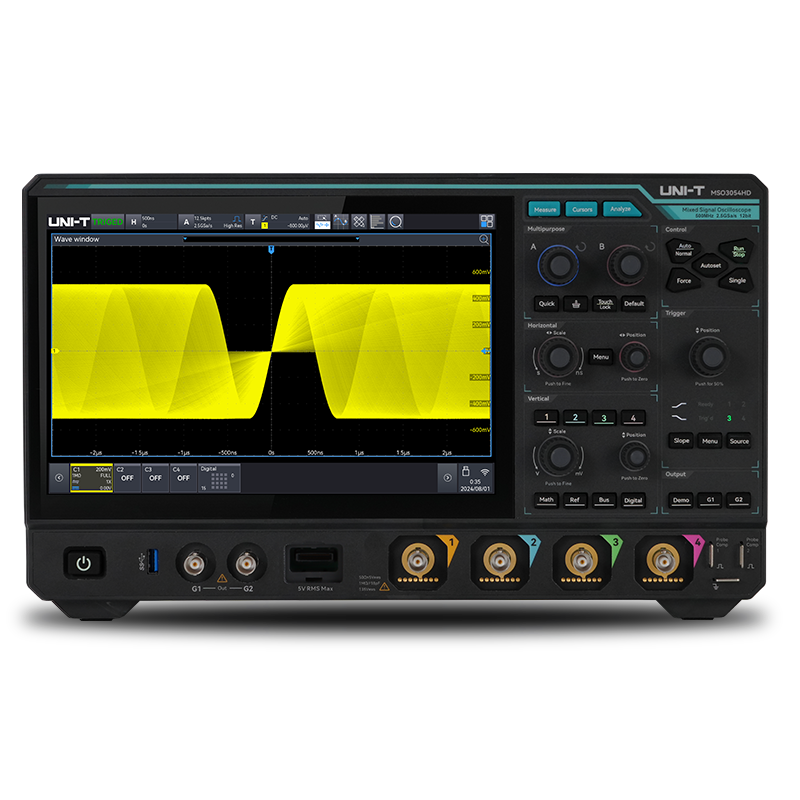

MSO3034HD high-resolution oscilloscope

Bandwidth: 350MHz
Channels: 4 Analog + 16 Digital Channel
Equipped with R12™ 12-bit resolution ADC, it can enhance resolution to 16-bit through ERES (enhanced resolution)
Real-Time Sample Rate: 2.5 GSa/s
Rise Time: ≤1.00 ns
Memory Depth: 500Mpts
Waveform Capture Rate: 1,500,000 wfms/s

Excl. VAT: Excl. VAT €2.699,00

Quantity

MSO3034HD high-resolution oscilloscope

If there's something you'd like to discuss, don't hesitate to contact us.
secure checkout
30 Day return Policy

Specification

Model: MSO3034HD
Analog Channel Bandwidth: 350 MHz
Real-Time Sampling Rate: Up to 2.5 GSa/s (Analog), 1.25 GSa/s (Digital)
Vertical Resolution: 12-bit with up to 4096 points, ensuring detailed waveform clarity
Channels: 4 Analog + 16 Digital
Memory Depth: Up to 500 Mpts
Maximum Waveform Capture Rate: 500,000 wfms/s (Sequence mode: 1,500,000 wfms/s)
9-in-1 Instrument Functions:
- Digital Oscilloscope
- Logic Analyzer
- Function/Arbitrary Waveform Generator
- Spectrum Analyzer
- Digital Voltmeter
- Frequency Meter
- Protocol Analyzer
- Bode Plot Analyzer
- Power Analyzer

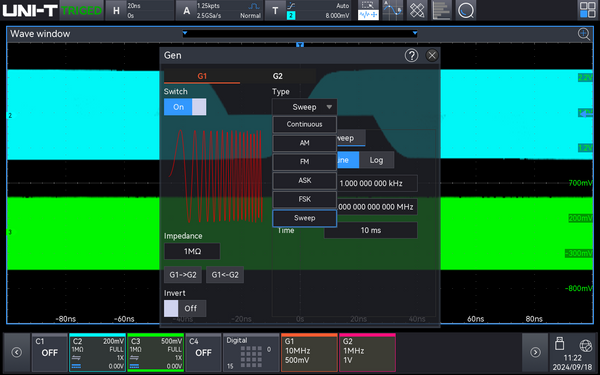

Built-in Waveform Generator: 50 MHz dual-channel function/arbitrary waveform generator with real-time waveform output
Bode Plot Analysis: Designed for system stability analysis
Advanced Waveform Processing: Histogram and line graph display for parameter measurements
Real-Time Waveform Recording: Up to 125,000 frames, with USB memory export support
Enhanced FFT: Up to 4M points, supporting frequency setting, waterfall curve, detection setting, and marker
ERES (Enhanced Resolution): Up to 4-bit resolution improvement
Parameter Measurements: 54 types of measurements
Multi-Windows Display: Supports multiple simultaneous views
Multi-Channel 7-Digit Frequency Meter: Adjustable frequency refresh time and effective digit settings
DVM Multi-Channel RMS Measurement: DC, AC RMS, and DC+AC RMS
Trigger Types:
- Edge, Pulse Width, Video, Ramp, Over-Amplitude Pulse, Delay, Timeout, Duration, Setup & Hold, Nth Edge, Code Pattern
Protocol Triggering & Decoding:

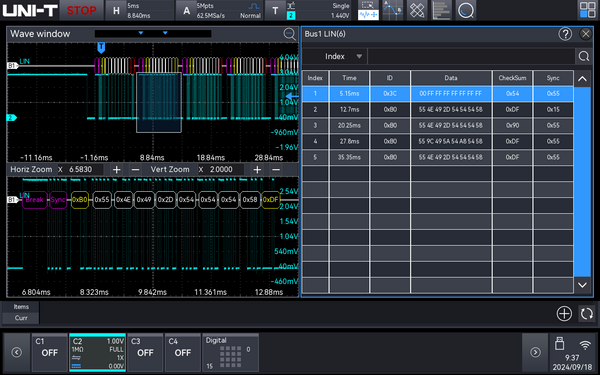

- RS232/UART, I2C, SPI, CAN / CAN-FD, LIN, FlexRay, AUDIO, MIL-STD-1553B, Manchester, SENT, ARINC429
Zone Trigger: Capture sporadic signals and analyze complex waveforms
Ultra Phosphor 3.0 Display: Super fluorescent display effect with 256 levels of grayscale
Display: 10.1-inch 1280x800 HD capacitive multi-touch screen with gesture support (click, slide, zoom, edit, drag)
Peripheral Interfaces: USB Host, USB Device, LAN, EXT Trig, AUX Out (Trig Out, Pass/Fail, DVM), Gen Out, HDMI
SCPI Support: Standard Command for Programmable Instrument control
Built-in Web Server: Enables remote access and control via browser from PC or mobile devices
Online Update Support: Ensures the latest firmware and feature improvements

Features

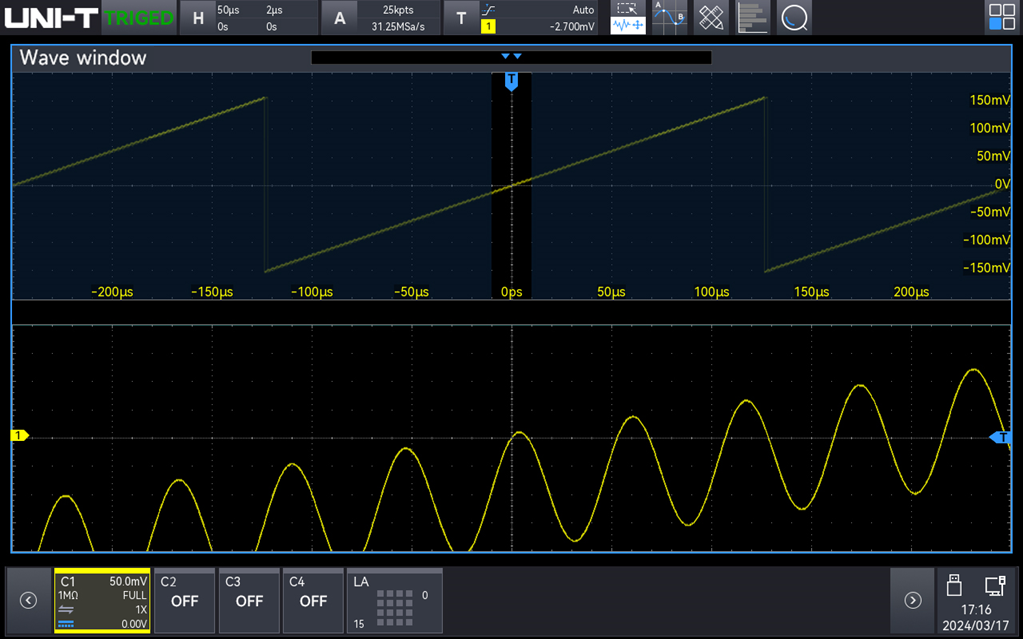

Enhanced resolution of 16-bit
- Higher precision, lower noise floor
- In 16-bit high-resolution mode, a 12-bit ADC combined with 4-bit ERES enhances measurement accuracy, revealing fine waveform details. This reduces out-of-band and oscilloscope noise, ensuring precise signal analysis with increased sampling bits.

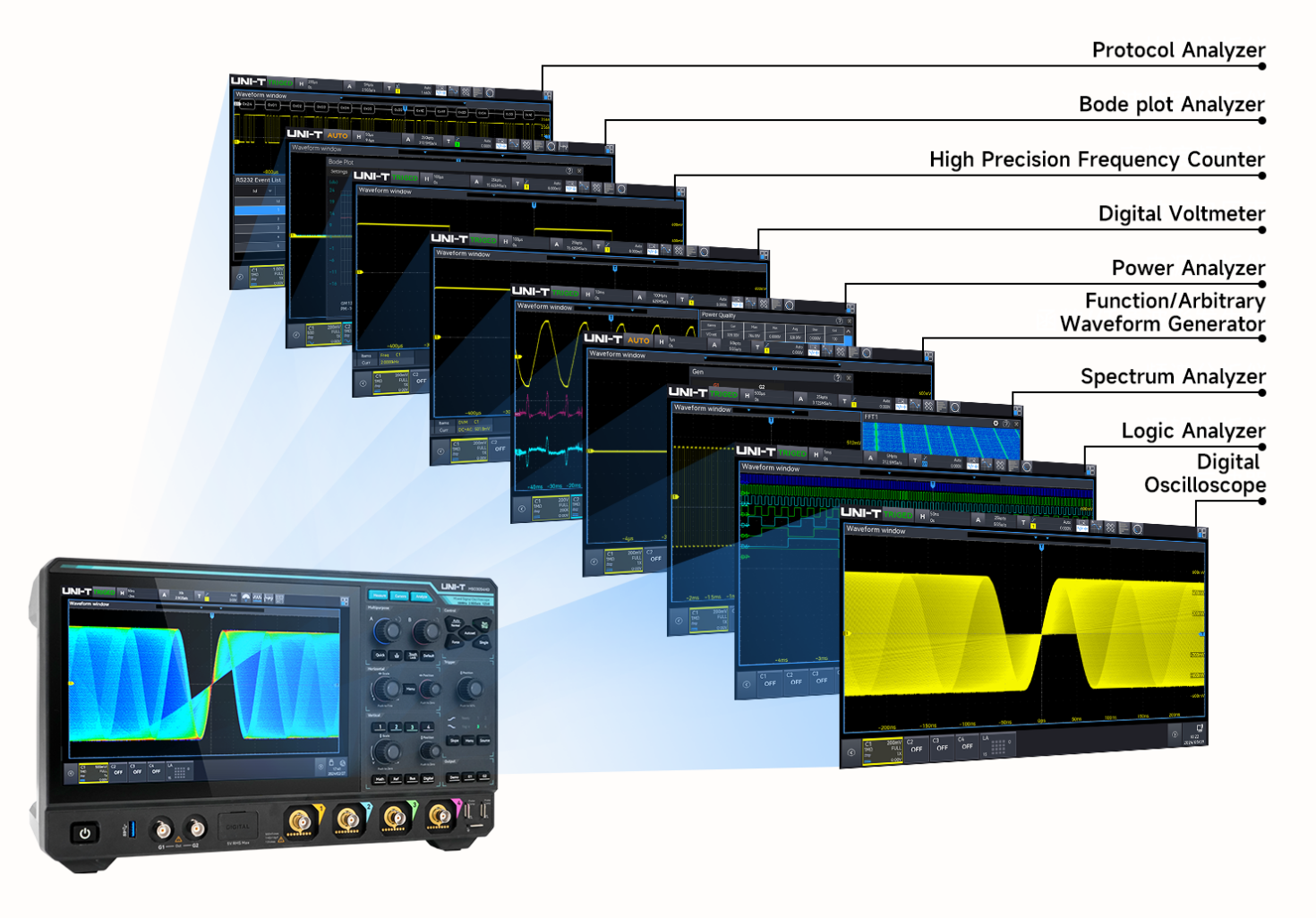

Versatile Testing Equipment
-Oscilloscopes
-Logic Analyzer
-Function/Arbitrary Waveform Generator
-Spectrum Analyzer
-Protocol Analyzer
-Power Analyzer
-Bode plot Analyzer
-High Precision Frequency Counter
-Digital Voltmeter
Ultra Phosphor 3.0
- Ultra Phosphor 3.0, with its advanced software and hardware architecture, supports 8-channel parallel graphic mapping, achieving a processing rate of up to 20 Gbps and a waveform capture rate of up to 500,000 wfms/s, reaching 1,500,000 wfms/s in sequence mode, with a minimum dead time of less than 1 μs. This makes sporadic signals and rare anomalies detectable.
54 Types: Measurement, Statistics, Trend Graphs
- Supports 54 precise automatic measurements across voltage, frequency, phase, and power, with advanced statistics and trend analysis for comprehensive signal insights and efficient data interpretation.

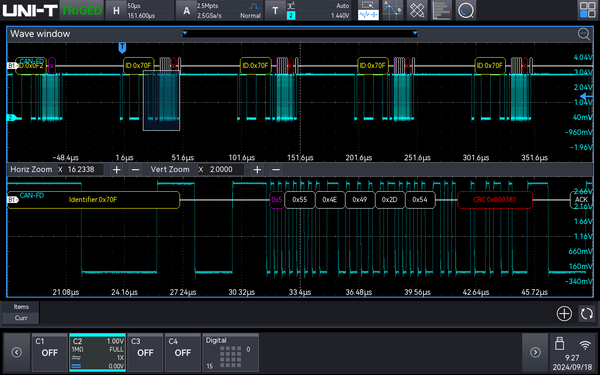

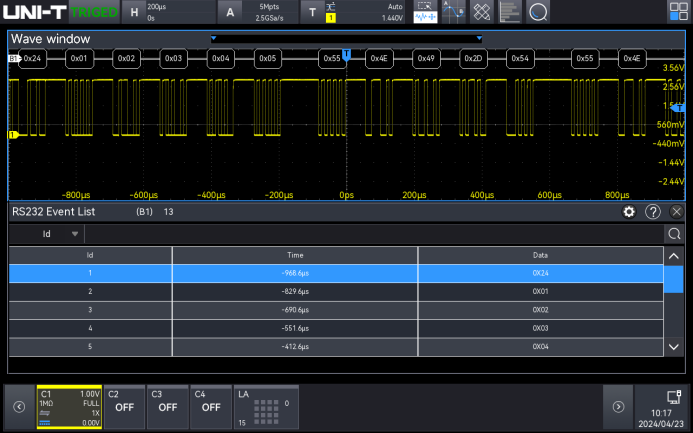

Protocol decoding and triggering
- Supports 12 types of mainstream protocols, including
-Embedded: UART, I2C, SPI

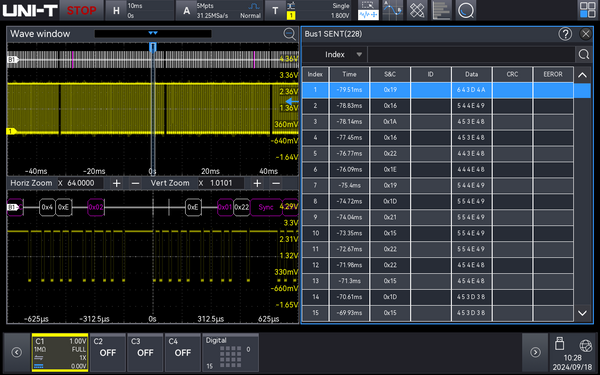

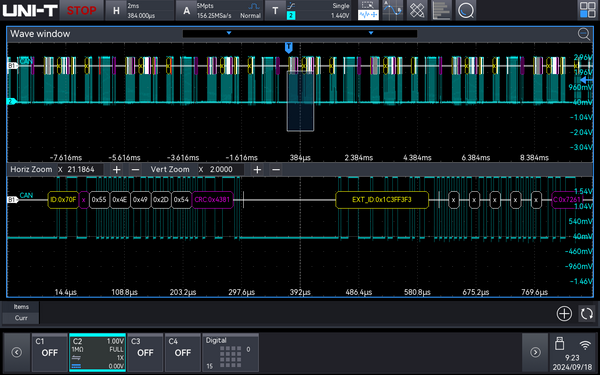

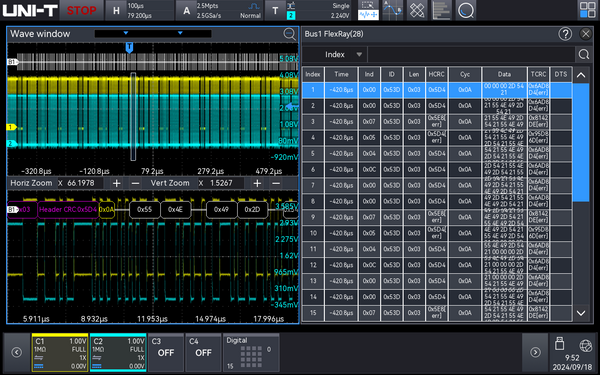

-Automobile: CAN, CAN-FD, LIN, FlexRay, SENT

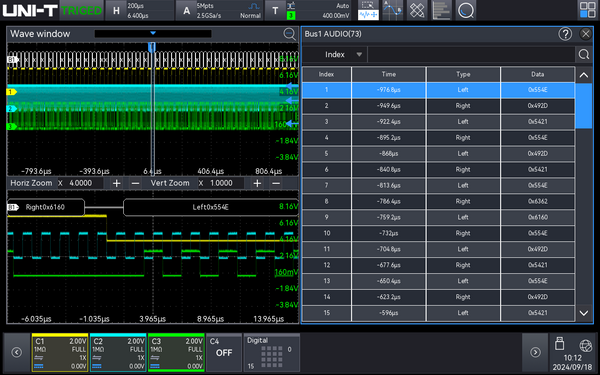

-Audio: I2S (Audio-I2S, Audio-LJ, Audio-RJ)

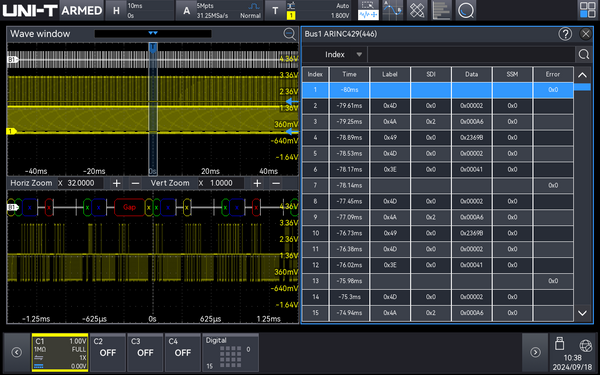

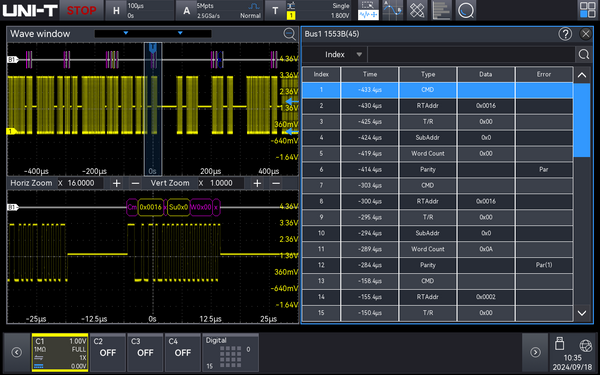

-Aerospace：MIL STD 1553、ARINC 429

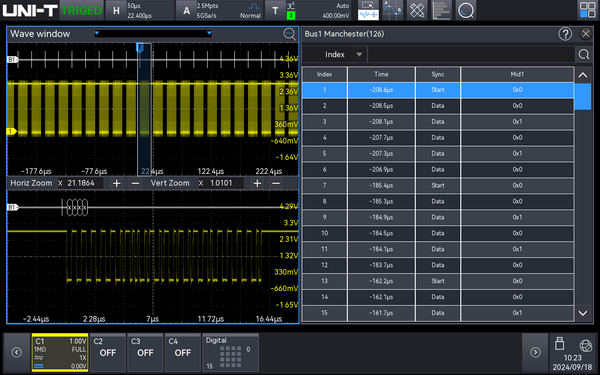

-Wireless communication：Manchester
Spectrum Analyzer
- With full hardware acceleration, it supports up to 4M-point FFT, waterfall curve, auto marker measurement, and 4 simultaneous FFT traces. Peak search and frequency domain markers enable precise signal analysis, enhancing circuit testing efficiency and accuracy.

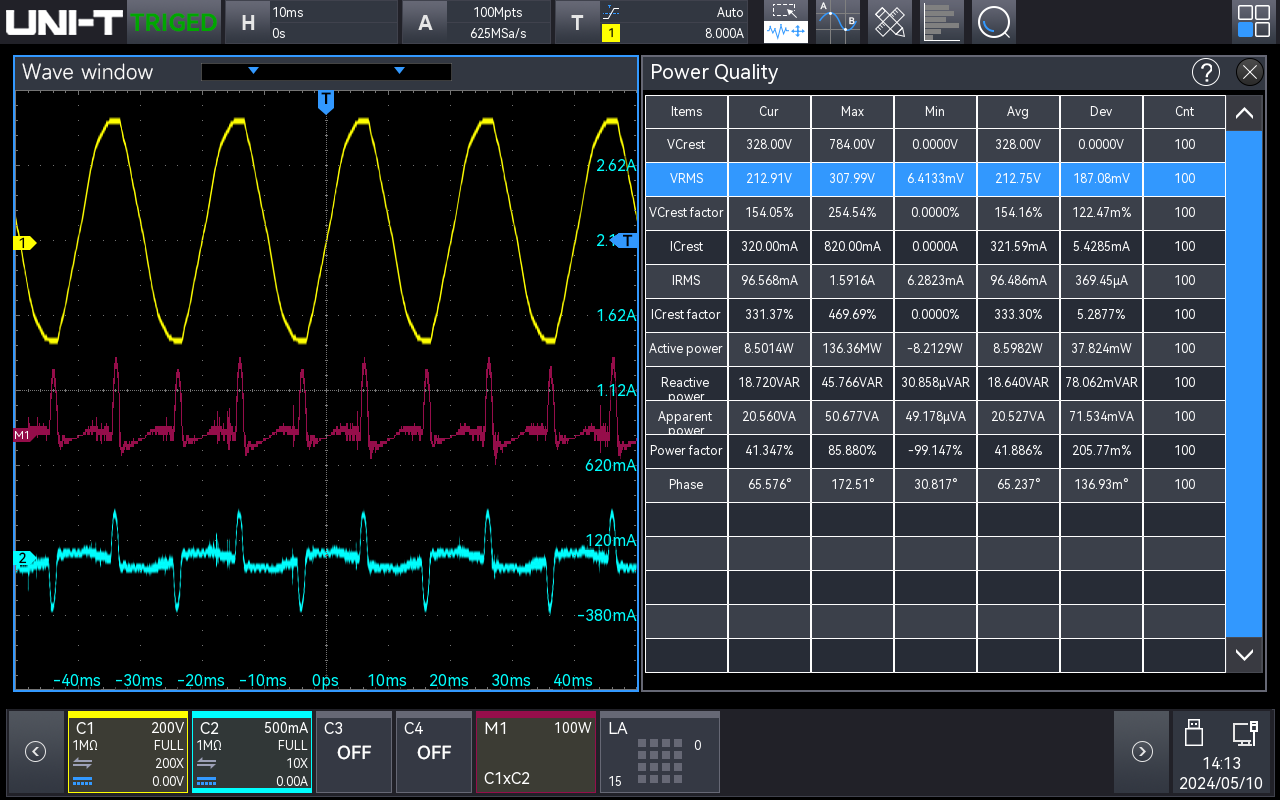

Power Analysis 6+
Supports 12 power tests in 2024, including PSRR, closed-loop response, power quality, harmonic detection, and surge analysis, ensuring comprehensive evaluation, stability optimization, and energy efficiency improvement.
Hardware-accelerated mask testing: 6σ standard < 1s
The 6σ standard ensures no more than 3.4 defects per million samples. With ultra-high capture rates, hardware-accelerated template testing in Ultra Phosphor 3.0 completes waveform tests in 1 second, drastically reducing analysis time.

Comparison

Model	MSO3054HD	MSO3034HD	MSO3024HD
Bandwidth	500MHz	350MHz	200MHz
Channels	4 Analog + 16 Digital Channels
Real Time Sample	2.5 GSa/s
Max. Memory Depth	500Mpts
Waveform Capture Rate	1.500,000wfms/s
resolution	R12™ 12-bit resolution ADC, it can enhance resolution to 16-bit through ERES (enhanced resolution)

Accesories For MSO3034HD high-resolution oscilloscope

UT-P20 Passive High voltage probe

Excl. VAT €54,00

Incl. 19% VAT €64,26

Passive probe: (100:1) Bandwidth: 250MHz. voltage: 1500V
Download

UT-V23 High voltage probe

Excl. VAT €24,00

Incl. 19% VAT €28,56

High voltage probe:(100:1)Bandwidth: 100MHz
voltage: 2000Vpp
Download

UT-P05 Passive Probe

Excl. VAT €13,00

Incl. 19% VAT €15,47

Probe factor:(10:1) Bandwidth: 200MHz.voltage:600Vpp
Download

UT-P43 Current probe

Excl. VAT €910,00

Incl. 19% VAT €1.082,90

Current probe Range :20A AC/DC, Frequency: DC~25MHz,Conversion ratio:100mV/A
Download

UT-P41 Current probe:DC~100kHz,100A

Excl. VAT €567,00

Incl. 19% VAT €674,73

Conversion ratio:100mV/A, 10mV/A, Current range: 50A~100A Frequency: DC~100kHz, voltage: 600Vrms
Download

UT-P40 Current probe:DC~100kHz,60A

Excl. VAT €430,00

Incl. 19% VAT €511,70

Conversion ratio:50mV/A, 5mV/A, Current range : 0.4A~60A,Frequency: DC~100kHz voltage: 600Vrms
Download

UT-P32 High voltage differential probe

Excl. VAT €820,00

Incl. 19% VAT €975,80

High voltage differential probe: (10:1/100:1) Bandwidth: 100MHz differential voltage: ±1500Vpp
Download

UT-P31 High voltage differential probe

Excl. VAT €666,00

Incl. 19% VAT €792,54

High voltage differential probe: (10:1/100:1) Bandwidth: 100MHz differential voltage: ±1500Vpp
Download

UT-P30 Differential probe

Excl. VAT €379,00

Incl. 19% VAT €451,01

Differential probe:(10:1/100:1) Bandwidth: 100MHz differential voltage: ±800Vpp
Download

UT-P21 Passive High voltage probe

Excl. VAT €410,00

Incl. 19% VAT €487,90

Passive high voltage probe: (1000:1) Bandwidth: 50MHz voltage: DC 15kVrms/AC 10kV(sine wave )
Download

UT-P07 Passive Probe

Excl. VAT €150,00

Incl. 19% VAT €178,50

Probe factor:(10:1) Bandwidth: 500MHz.voltage:600Vpp
Download

UT-P06 Passive Probe

Excl. VAT €36,00

Incl. 19% VAT €42,84

Probe factor:(10:1) Bandwidth: 300MHz.voltage:600Vpp
Download

View all

Option for MSO3034HD high-resolution oscilloscope

MSO3000HD-BND

Excl. VAT €999,00

Incl. 19% VAT €1.188,81

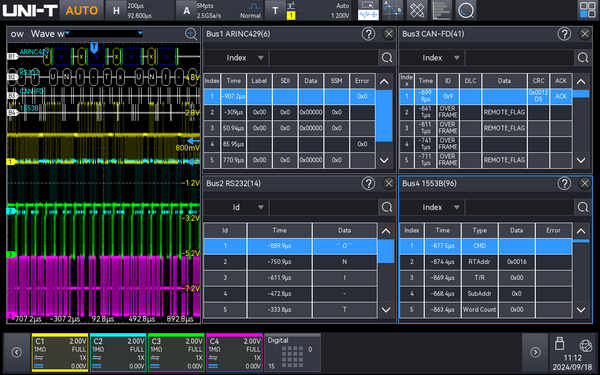

All Serial Bus Trigger and Decode Options （including AUTO, Audio, MIL-STD, ARINC, Manchester）

Download

MSO3000HD-AUTO

Excl. VAT €629,00

Incl. 19% VAT €748,51

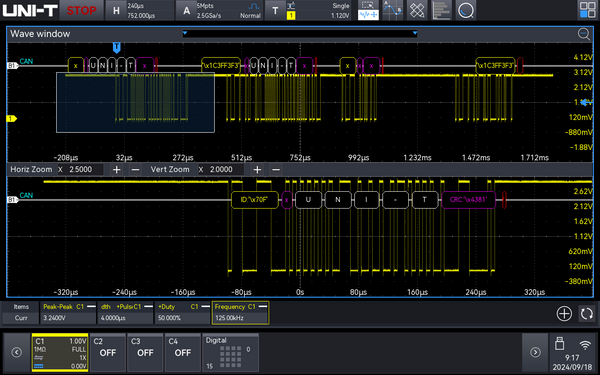

Automotive Serial Bus Trigger and Decode Option （CAN, CAN-FD, LIN, FlexRay, SENT）

Download
