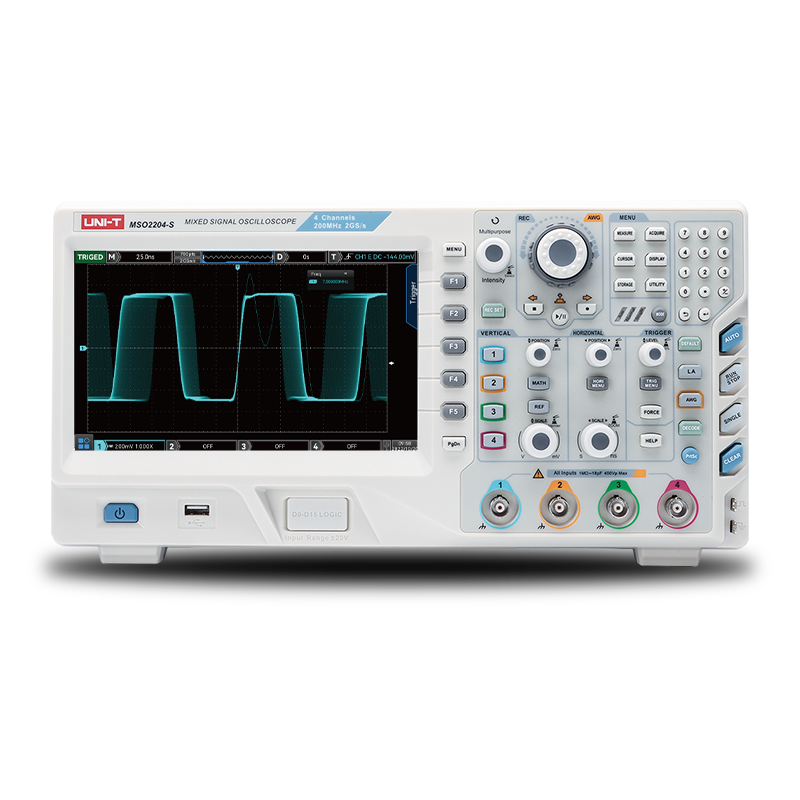

MSO2104-S Digital Oscilloscope

  • Bandwidth: 100MHz
  • Channels: 4 Analog + 16 Digital
  • Real-Time Sample Rate: 2GSa/s
  • Rise Time: ≤3.5ns
  • Memory Depth: 56Mpts
  • Waveform Capture Rate: 1,000,000 wfms/s
  • Waveform Generator: 50MHz Dual Channels

5 Years Warranty Included*

Click here for details

Excl. VAT €1.485,00
Excl. VAT         €949,00
€1.129,31 Incl. 19% VAT

MSO2104-S Digital Oscilloscope

MSO2104-S Digital Oscilloscope

Specification

Feature Specification
Model Number MSO2104-S
Scope Type MSO
Bandwidth 100MHz
Channels 4 Analog + 16 Digital
Real-Time Sample Rate 2GSa/S
Rise Time ≤3.5ns
Memory Depth 56Mpts
Waveform capture rate 1,00,000wfms/s
Input impedance(analog channel) （101 kΩ±1%）||（16 pF ± 1 pF）
Input impedance(Digital Channel) （101 kΩ±1%）||（9 pF ± 1 pF）
Waveform Generator YES(50MHz Dual Channels)
Display 8-inch TFT LCD
Touchscreen  YES
Warranty 3 years
Shipping Dimensions (L x W x H) 19 in x 8 in x 12 in
Shipping Weight 4.5 kg
Documents English download guide, multi-language safety manual, calibration report (COC)
Included Accessories Power cord, USB2.0 printing cable, Passive probe 200MHz * 2(UT-P05) or 100MHz * 4 (UT-P04), Logic analyzer probe (UT-M15), BNC straight-through cable, BNC to alligator clip cable
For additional product specifications, please refer to the attached PDF.





Features

Photo 1



Brand new interactive experience

Photo 1



Rich measurement functions

Photo 1



XY mode



Photo 1



Ultra high capture rate

Photo 1



256-level grayscale display

Photo 1



Channel split screen function



Photo 1



Memory depth 56Mpts per channel

Photo 1



Rich trigger function

Photo 1



Full memory hardware decoding



Photo 1



Area trigger

Photo 1



AWG Function Arbitrary Waveform Generator

Photo 1



Bode plot



Photo 1



LA Logic Analyzer

Photo 1



Web Control

Video

Video Gallery

8 inch touch screen

Thirty-six waveform parameters

DVM

FFT spectrum

Multi-Scopes technology

Web remote control

XY cursor

XY cursor application

Save function

Bode plot function

Waveform recording

56Mpts deep storage per channel

Zone trigger function

Full memory hardware decoding

Arbitrary Wave One-click output

Dual channel signal

Comparison

Model MSO2204-S MSO2104-S MSO2202-S MSO2102-S
Bandwidth 200MHz 100MHz 200MHz 100MHz
Channels Analog 4 +Digital 16 Analog 2 +Digital 16
Real Time Sample  2GSa/s
Max. Memory Depth 56Mpts
Waveform Capture Rate 1.000,000wfms/s
Waveform Generator 50MHz Dual Channels
Price € 999.00 € 949.00 € 899.00 € 849.00
Model MSO2104 MSO2102 MSO2202 MSO2204
Bandwidth 100MHz 200MHz
Channels Analog 4 Analog 2 Analog 4
Real Time Sample  2GSa/s
Max. Memory Depth 56Mpts
Waveform Capture Rate 1.000,000wfms/s
Price € 849.00 € 749.00 € 799.00 € 899.00
Model UPO2204 UPO2104 UPO2202 UPO2102
Bandwidth 200MHz 100MHz 200MHz 100MHz
Channels Analog 4   Analog 2
Real Time Sample  2GSa/s
Max. Memory Depth 56Mpts
Waveform Capture Rate 1.000,000wfms/s
Price € 799.00 € 749.00 € 699.00 € 649.00
