High Resolution Oscilloscopes

  • Whether you are a hobbyist, an educator, a developer, or are debugging, performing compliance tests, you need proven measurement technology to be successful. From basic measurements to deep-analysis, UNI-T digital oscilloscopes are built on the same, proven UNI-T technology with product range from MSO oscilloscopes to portable form. You are sure to find the right oscilloscope with an unprecedented price.

    View All

High Resolution Oscilloscopes



MSO8000HD SeriesNew
Model Analog Channel bandwidth Sampling Rate logic analyzer AWG Power analysis Jitter analysis Eye diagram
MSO8804HD 4 8GHz 20GSa/s ○ ○ ○ ○ ○
○ indicates option

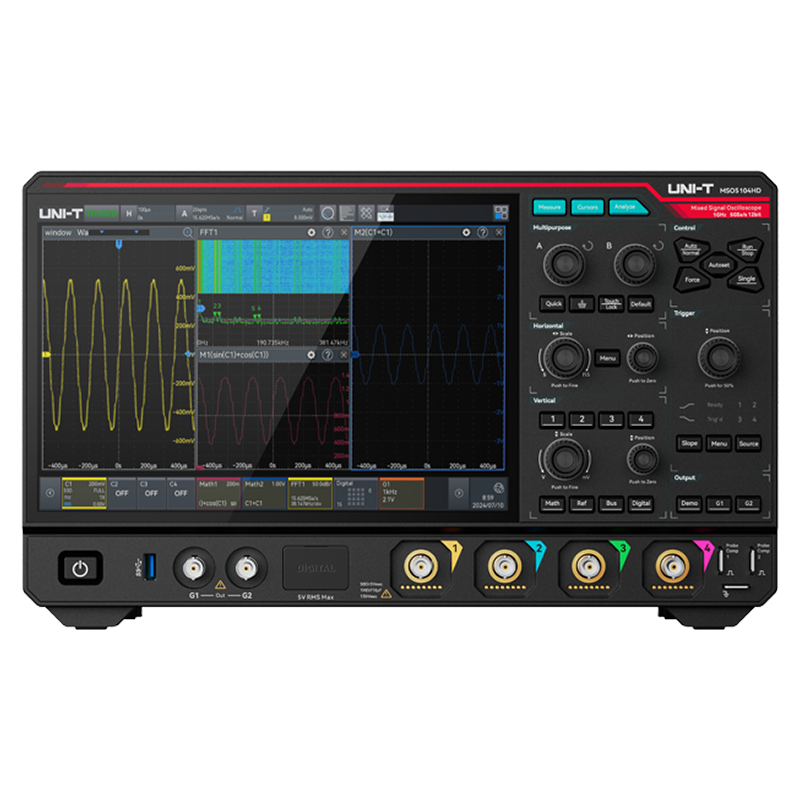

MSO5000HD seriesNew
Model Analog Channel bandwidth Sampling Rate Digital Gen
MSO5104HD 4 1 GHz 5GSa/s ● ○
MSO5054HD 4 500MHz 5GSa/s ● ○
MSO5034HD 4 350MHz 5GSa/s ● ○
●: Standard    ○: Optional    ×: Not support
MSO3000HD seriesNew
Model Analog Channel bandwidth Sampling Rate Digital Gen
MSO3054HD 4 500MHz 2.5GSa/s ● ○
MSO3034HD 4 350MHz 2.5GSa/s ● ○
MSO3024HD 4 200MHz 2.5GSa/s ● ○
●: Standard    ○: Optional    ×: Not support
MSO1000HD seriesNew
Model Analog Channel bandwidth Sampling Rate Digital Gen
MSO1154HD-S 4 150MHz 2.5GSa/s ● ○
MSO1154HD 4 150MHz 2.5GSa/s ● ×
MSO1254HD-S 4 250MHz 2.5GSa/s ● ○
MSO1254HD 4 250MHz 2.5GSa/s ● ×
●: Standard    ○: Optional    ×: Not support
UPO2000HD seriesNew
Model Analog Channel bandwidth Sampling Rate Max.Memory Depth Waveform Capture Rate Power Analysis
UPO2204HD 4 200MHz 2.5GSa/s 100Mpts 1,000,000 wfms/s ○
UPO2202HD 2 200MHz 2.5GSa/s 100Mpts 1,000,000 wfms/s ○
UPO2104HD 4 250MHz 2.5GSa/s 100Mpts 1,000,000 wfms/s ○
UPO2102HD 2 250MHz 2.5GSa/s 100Mpts 1,000,000 wfms/s ○
UPO2074HD 4 250MHz 2.5GSa/s 100Mpts 1,000,000 wfms/s ○
UPO2072HD 2 250MHz 2.5GSa/s 100Mpts 1,000,000 wfms/s ○
●: Standard    ○: Optional    ×: Not support
