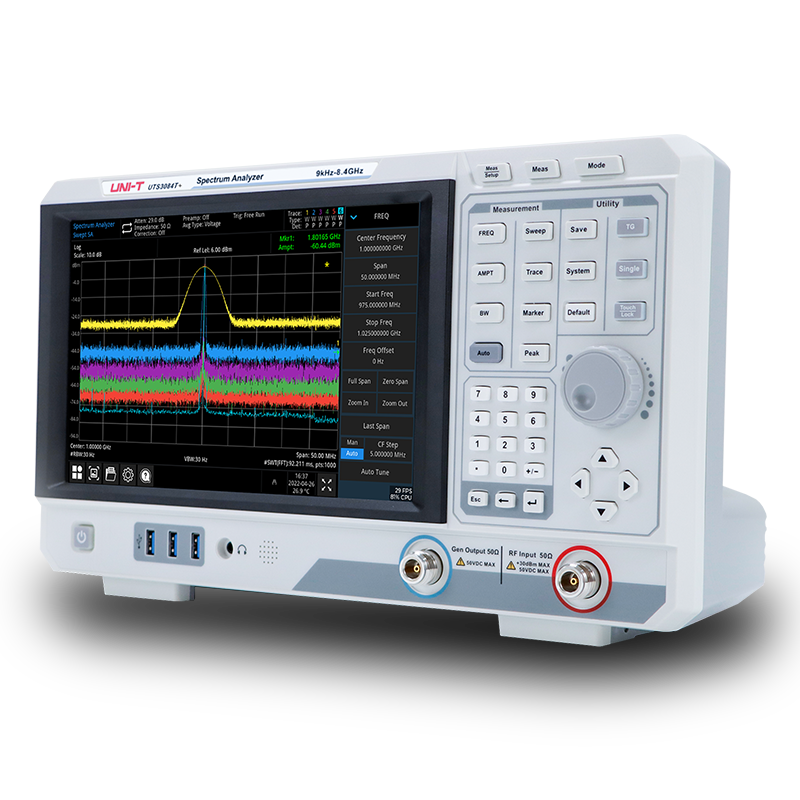

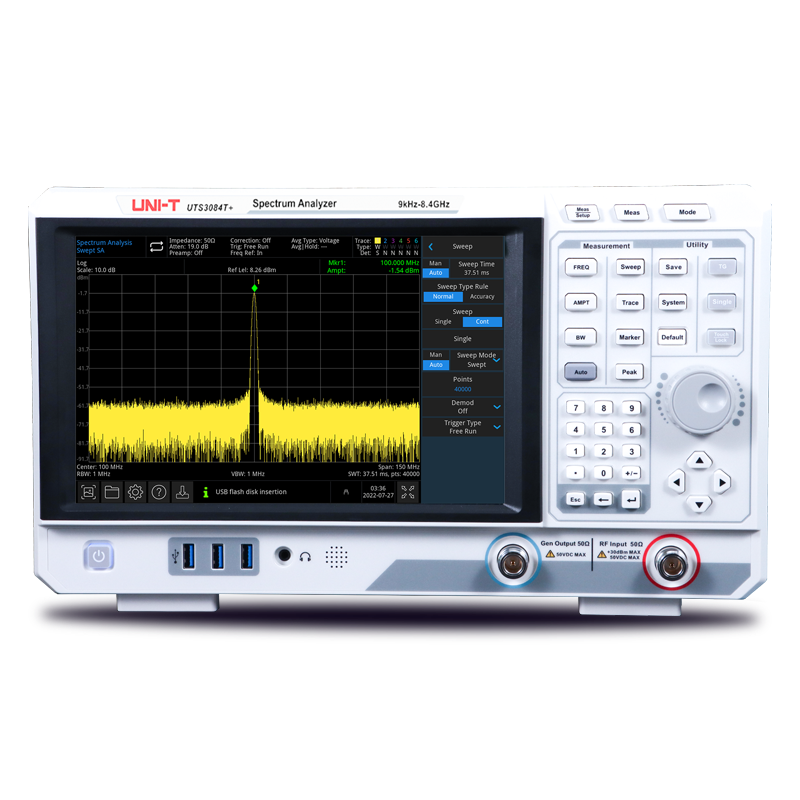

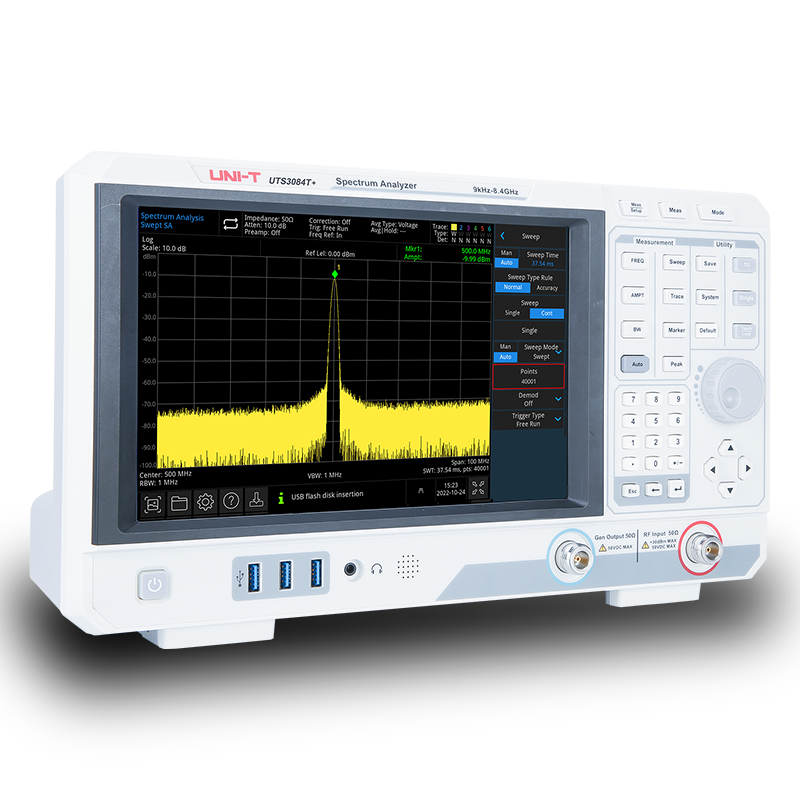

UTS3015T+ Spectrum Analyzer
- FREQUENCY RANGE: 9kHz~1.5GHz
- RBW: 1Hz~1MHz
- PHASE NOISE: -98dBc/Hz @10kHz
- DANL: -161dBm
- TRACE SOURCE: Yes
- DISPLAY: 10.1 inch TFT LCD (1280x800) touch
5 Years Warranty Included*
Click here for details
- Excl. VAT
- Excl. VAT €1.159,00
Share
UTS3015T+ Spectrum Analyzer
Specification
- Frequency Measurement Range:9 kHz to 1.5 GHz
- Displayed Average Noise Level (DANL): As low as -161 dBm (Typical)
- Phase Noise: < -98 dBc/Hz (Offset 10 kHz, Typical)
- Full Amplitude Accuracy: < 0.7 dB
- Sweep Points: Up to 10,001
- Minimum Resolution Bandwidth (RBW): 1 Hz
- Advanced Function: One key measurement support (Optional)
- EMI Pre-compliance Analysis Function: Supported (Optional)
- Analog Demodulation Analysis: Supported (Optional)
- Tracking Source Output: Supported
- Display: 10.1-inch 1280 × 800 HD Capacitive Touchscreen
- SCPI Support: Standard commands for programmable instruments, USB/LAN interface
- For more Details please check data sheet Here
Features

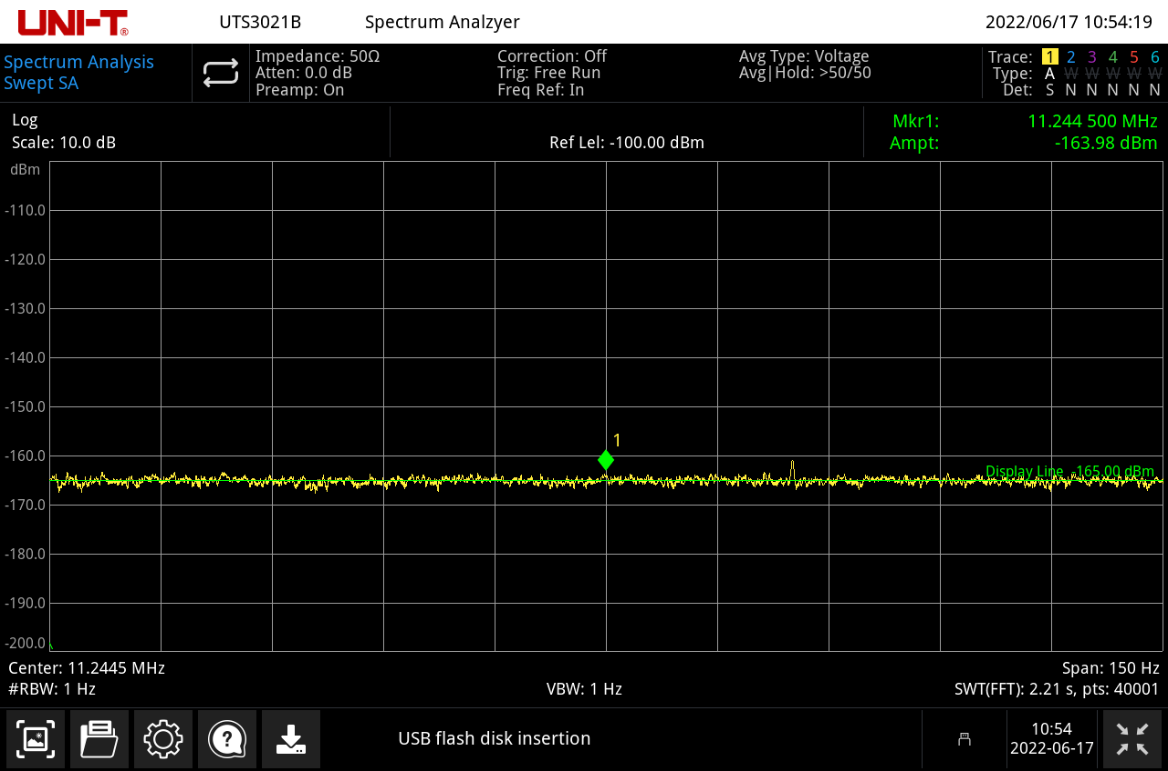

DANL <-161dBm

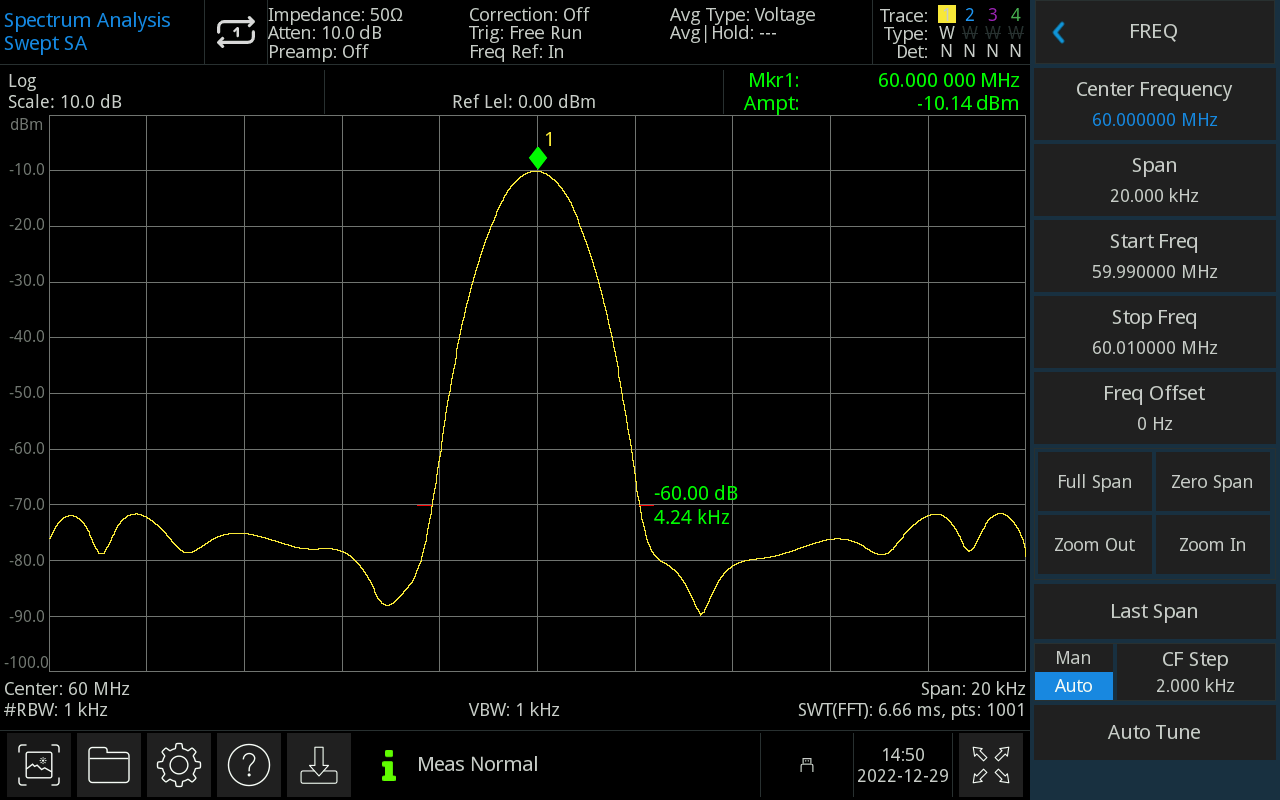

Excellent selectivity

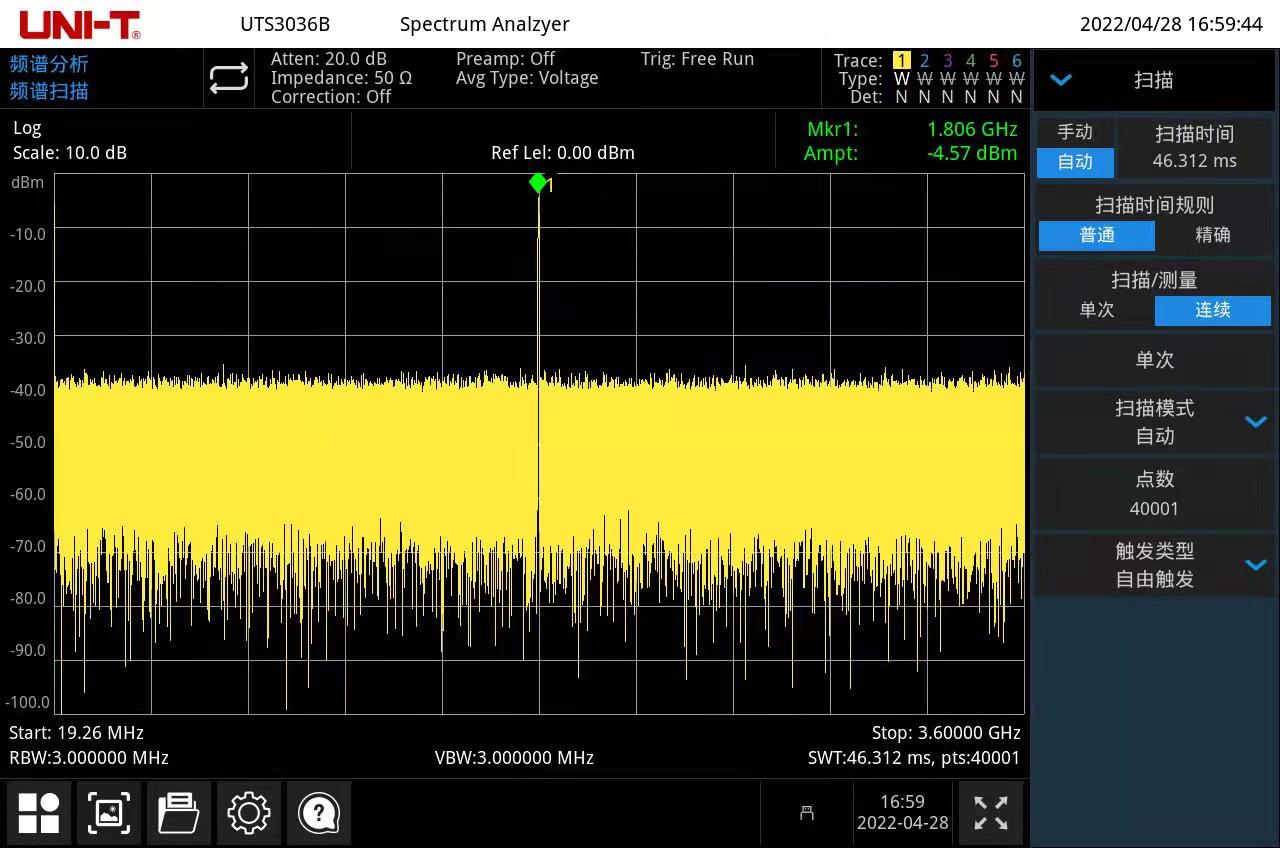

10001 scan points
6 traces
Removable dust mesh
10.1 inch HD capacitive touch screen

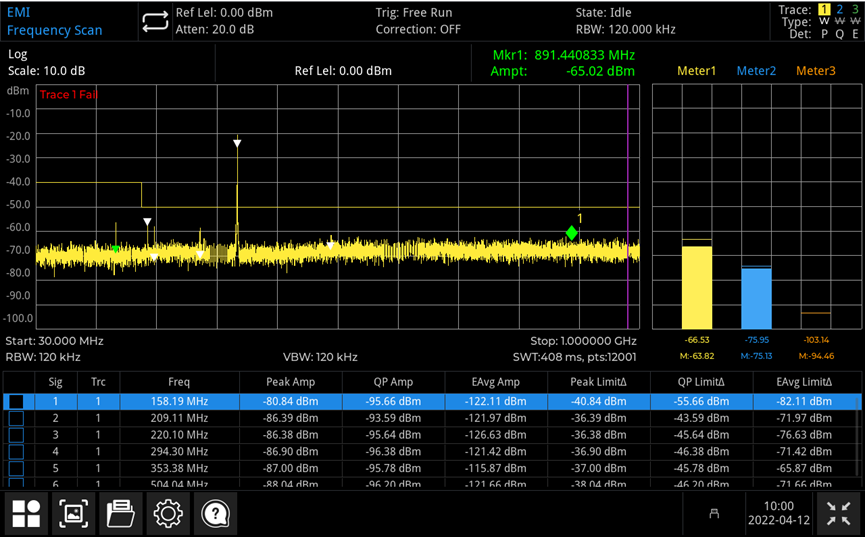

EMI Pre-compliance analysis

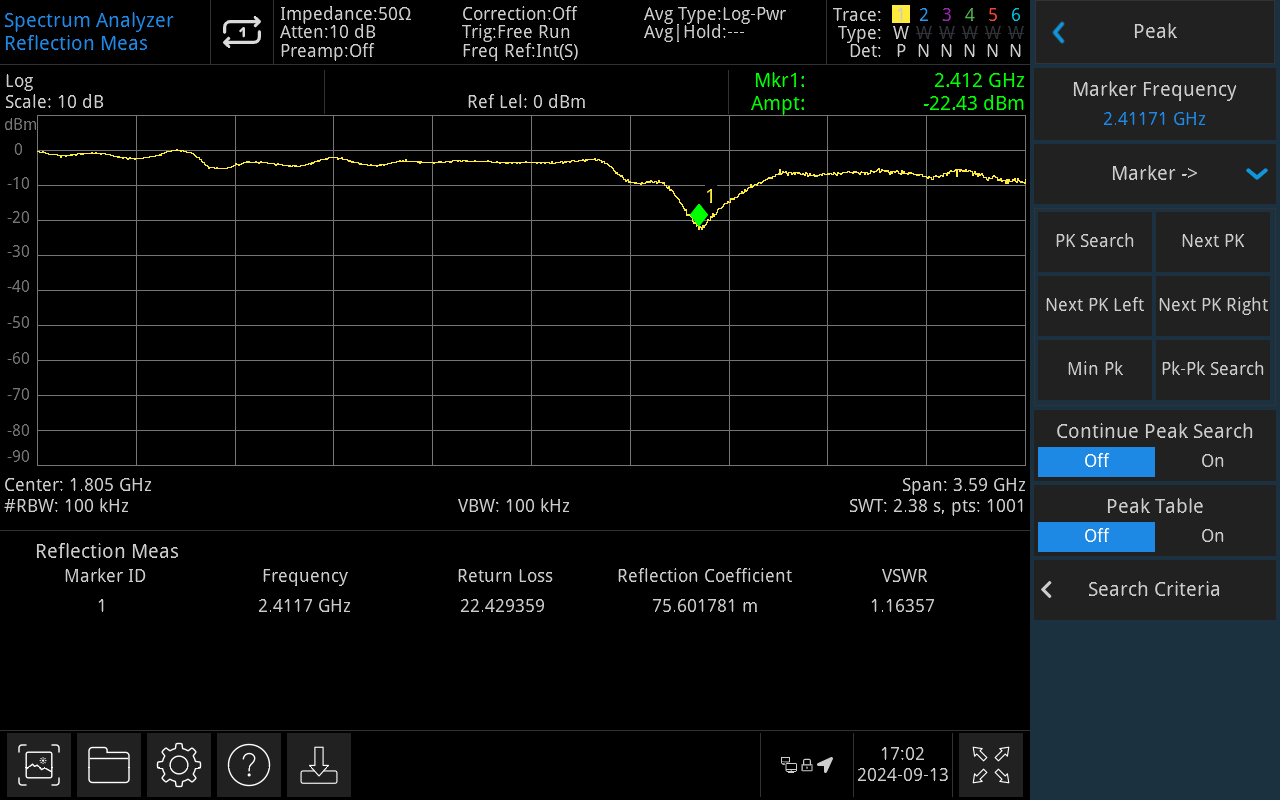

Reflection Measurement

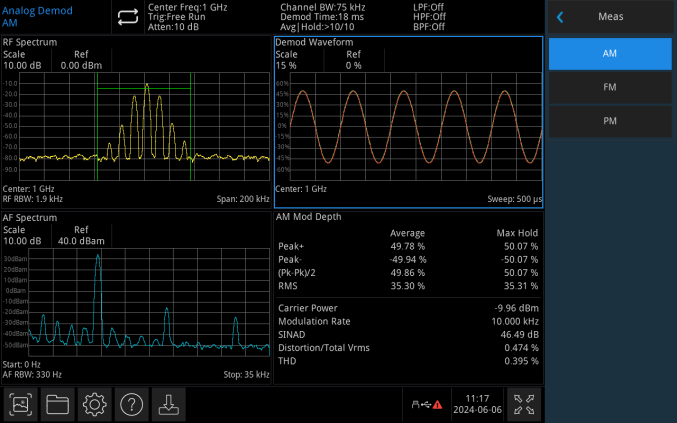

Analog Demodulation Analysis
Comparison
| Model | UTS3036T+ | UTS3084T+ | UTS3032T+ | UTS3015T+ |
| Frequency Range | 9kHz~3.6GHz | 9kHz~8.4GHz | 9kHz~3.2GHz | 9kHz~1.5GHz |
| RBW | 1Hz~3MHz | 1Hz~1MHz | ||
| Phase Noise | -98dBc/Hz @10kHz | |||
| DANL | -161dBm | |||
| Trace Source | Yes | |||
| Display | 10.1 inch TFT LCD(1280X800)Touch | |||
Related Document
Option For UTS3015T+ Spectrum Analyzer
-
-
UTS3000-AMA
Excl. VAT €319,00Incl. 19% VAT €379,61
Analog demodulation measurement Option for UTS3000B Series
Download -
-
-
-
Accessories for UTS3015T+ Spectrum Analyzer
-

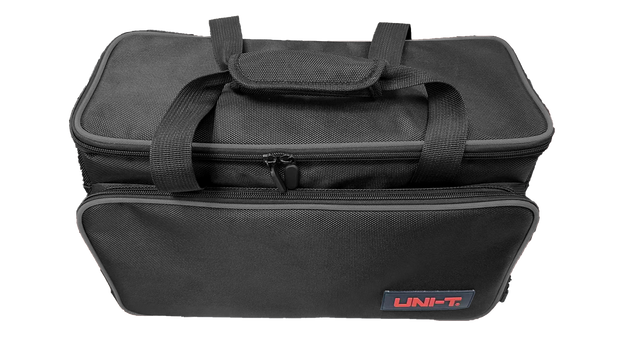

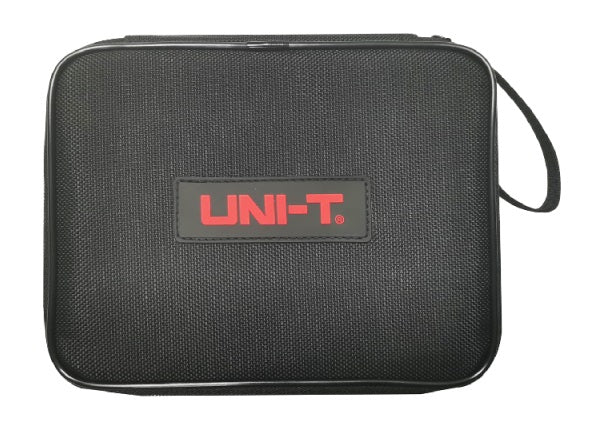

BAG-B3
Excl. VAT €65,00Incl. 19% VAT €77,35
Soft carrying bag for UTS1000B and UTS3000B Series Spectrum Analyzers
Download -

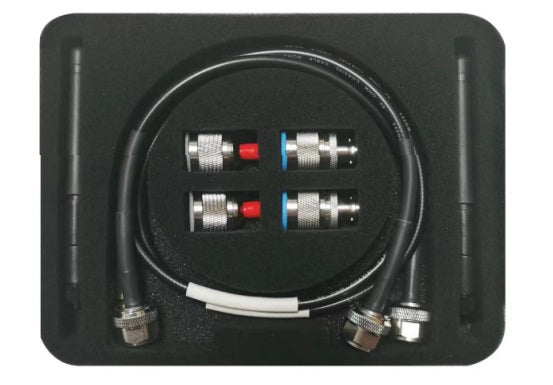

UT-CKO1 Test Kit
Excl. VAT €249,00Incl. 19% VAT €296,31

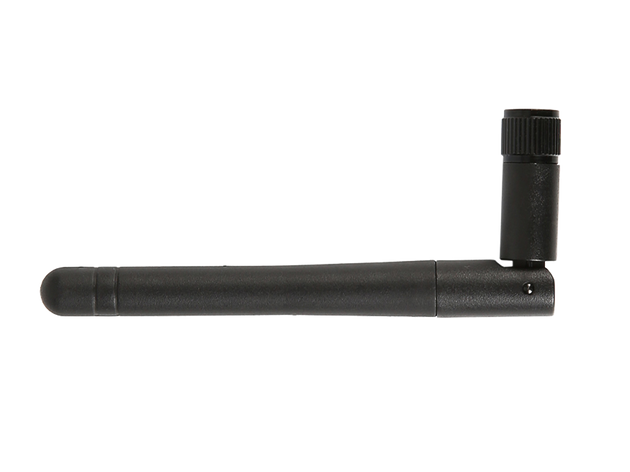

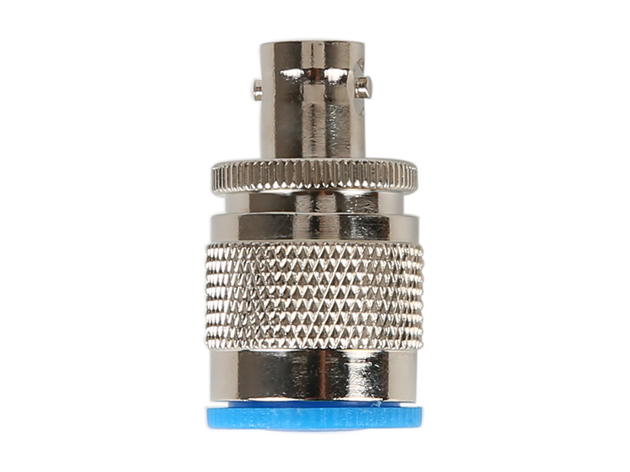

Spectrum Utility Kit: include NSMAJ-NJ-0.7M DC-6G Cable x1, NJ-NJ-0.7M DC-6G Cable x1, SMA-N-KJ-T DC-6GHz Adapter x2,N-BNC-JK DC-4GHz Adapter x2, 2400MHz-2500MHz Antenna x2, 824-960MHz/1710-1990MHz x2
Download -

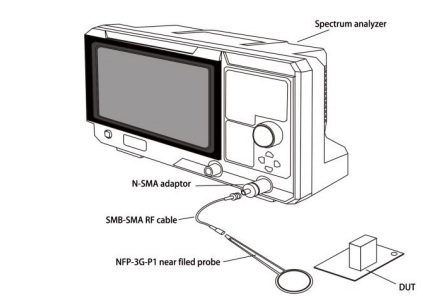

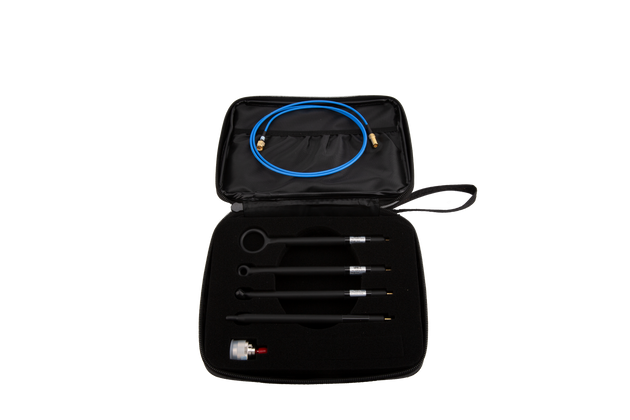

UTS-EMI01
Excl. VAT €429,00Incl. 19% VAT €510,51
Frequency range: 30MHz ~ 3GHz； include 3 Pcs magnetic field near-field probes and 1 Pcs electric field near field probe; 1 Pcs N-SMA cable, 1 Pcs N-BNC
Download
