UNI-T
UT8806E Bench multimeter
- Resolution: 6½
- FASTEST TEST RATE: 10k rdgs/s
- frequancy Response: 300kHz
Share
UNI-T
UT8806E Bench multimeter
Specification
| Feature | Specification |
|---|---|
| Model Number | UT8806E |
| Fastest Test Rate | 10k rdgs/s |
| Frequency Response | 300kHz |
| Resolution | 6½ |
| Connectivity |
USB(Device & Host), LAN, RS-232C, GPIB (option)
|
| Digits | 6.5 |
| Count | 2,000,000 |
| Ranging | True |
| TRMS | True |
| Accuracy | 0.0035% |
| Warranty | 3 years |
| Shipping Dimensions (L x W x H) | 15 in x 13 in x 13 in |
| Shipping Weight | 4 kg |
| For additional product specifications, please refer to the attached PDF. |
|
Features
2,000,000 counts

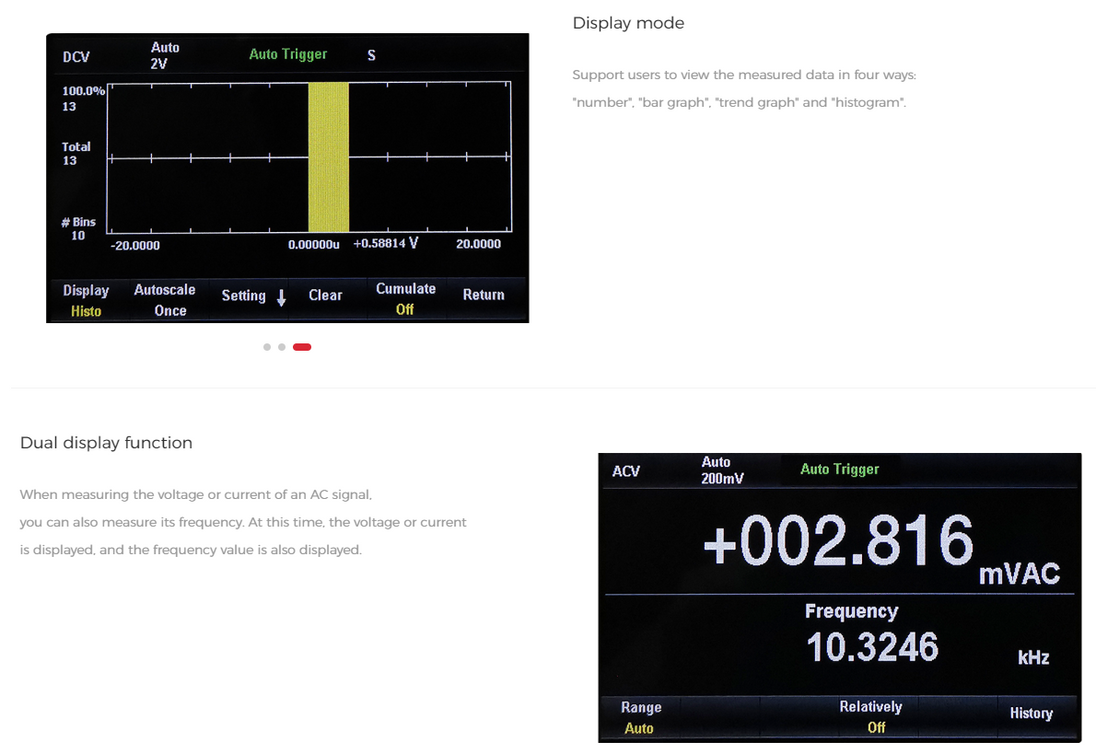

Multiple display styles

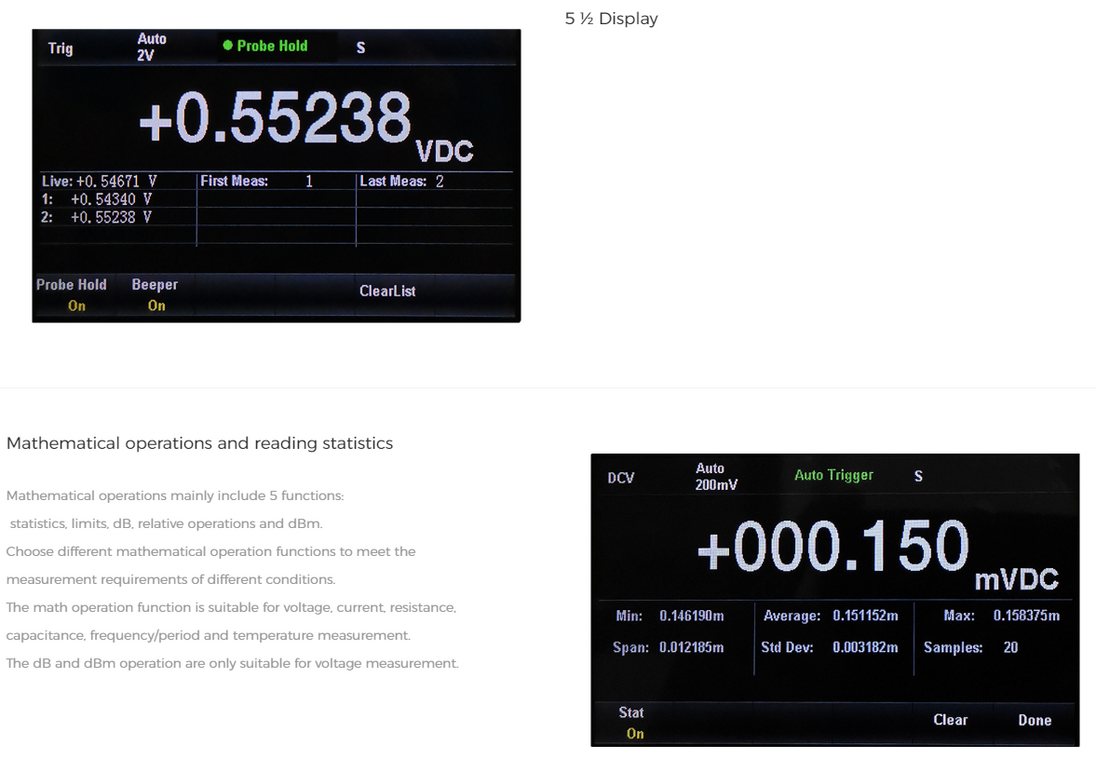

Various mathematical operation
Dual display
Powerful help system
Mass storage
Comparison
| Model | UT8802E | UT8803E | UT8804E | UT8805E | UT8806E |
| Readind Resolution | 4½ | 3⅚ | 4⅚ | 5½ | 6½ |
| Fastest Test Ratae | 3 rdgs/s | 5k rdgs/s |
10k rdgs/s |
||
| frequency Response | 1kHz | 100kHz |
300kHz | ||
| Accuracy | 0.1% | 0.3% | 0.025% | 0.015% | 0.0035% |
| Connectivity | USB Device | USB Device, USBHost,LAN,RS-232 | USB(Device & Host), LAN, RS-232C, GPIB (option) | ||
| Price | €119,00 | €159,00 | €249,00 | €455,00 | - |
Related Document
User Manual
UT8806E User's Manual
Datasheet
UT8806E DataSheet-EN
Programming Manual
UT8806E Programming Manual
Quick Manual
UT8806 Quick Guide
