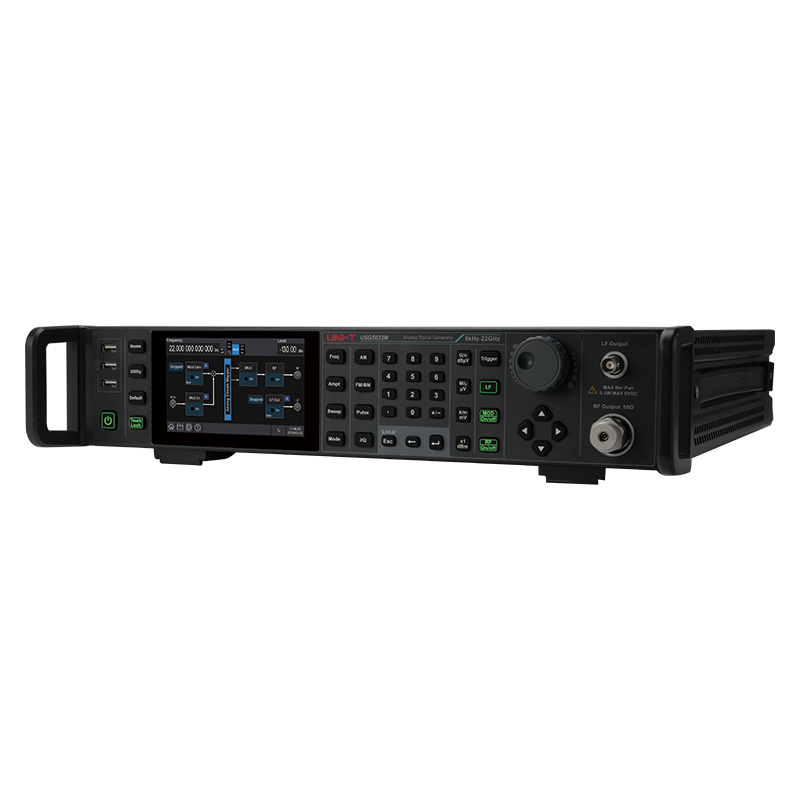

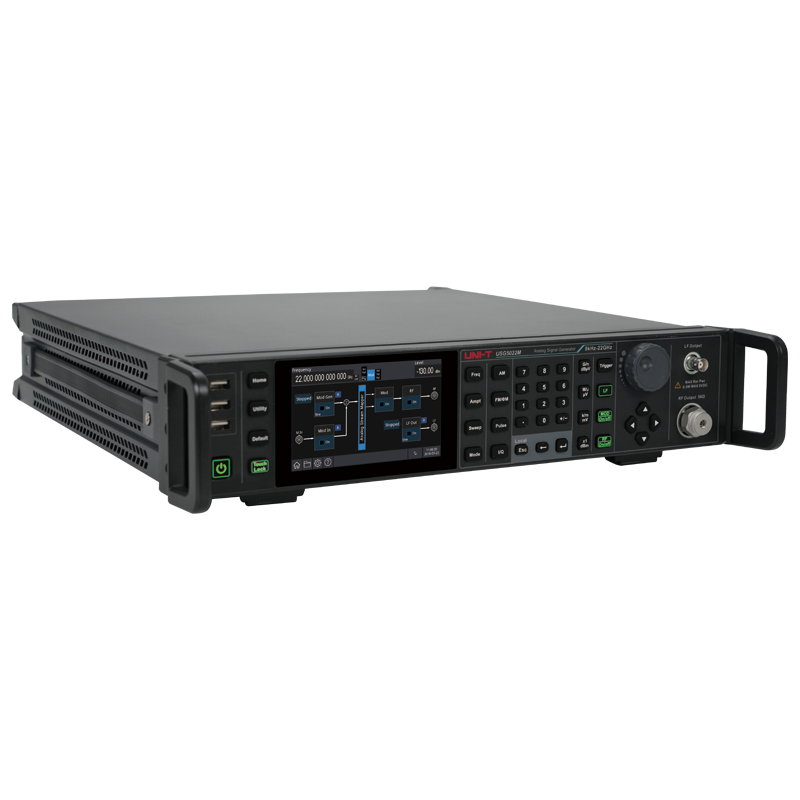

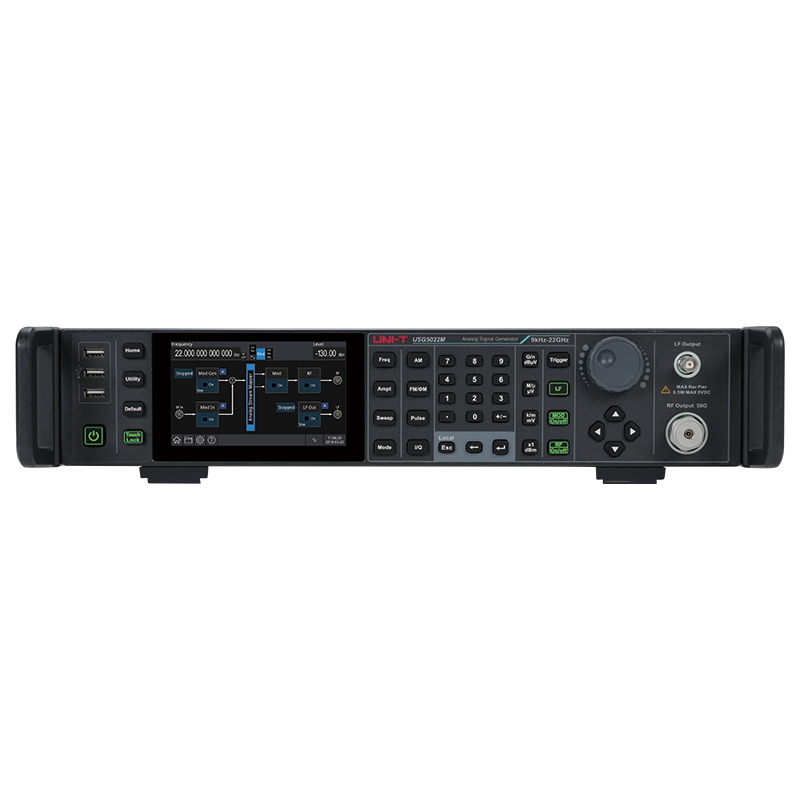

USG5022M-P RF Signal Generator

FREQUENCY RANGE: 9 kHz - 22 GHz
FREQUENCY RESOLUTION: 0.001 Hz
LEVEL RANGE: -135 dBm - +25 dBm
PHASE NOISE: ＜-122 dBc/Hz(1GHz@20kHz)
MECHANICAL ATTENUATOR: Yes
DISPLAY: 5 inch TFT LCD (touch screen)

Excl. VAT: Excl. VAT €22.999,00

Quantity

USG5022M-P RF Signal Generator

If there's something you'd like to discuss, don't hesitate to contact us.
secure checkout
30 Day return Policy

Specification

Model: USG5022M-P
Frequency Range: 9 kHz - 22 GHz
Frequency Resolution: 0.001 Hz
Output Power Range: -135 dBm to +25 dBm
Low Phase Noise Performance: Achieves phase noise as low as -122 dBc/Hz at 1 GHz with a 20 kHz offset, ensuring high signal purity.
Analog Modulation Capabilities: Supports AM, FM, and ΦM modulation types, with options for internal, external, and combined modulation sources.
Modulation Modes: Internal, external, and internal + external
Highly Stable Clock Source: Yes
Built-in Waveform Generator: 50 MHz function/arbitrary waveform generator
Pulse Modulation and Generation: Offers pulse modulation with an on-off ratio up to 80 dB and customizable pulse trains.
Narrow Pulse Modulation: Minimum pulse width of 20 ns with 10 ns resolution (Optional)
Sweep Functionality: Includes frequency and amplitude sweep capabilities, supporting step and list sweeps with customizable sweep lists.
Power Meter Kit (Optional): Connects via the front panel USB port to enable power measurement, output control, and line loss calibration.
User-Friendly Interface: Equipped with a 5-inch TFT LCD touch screen, providing an intuitive graphical display for easy operation.

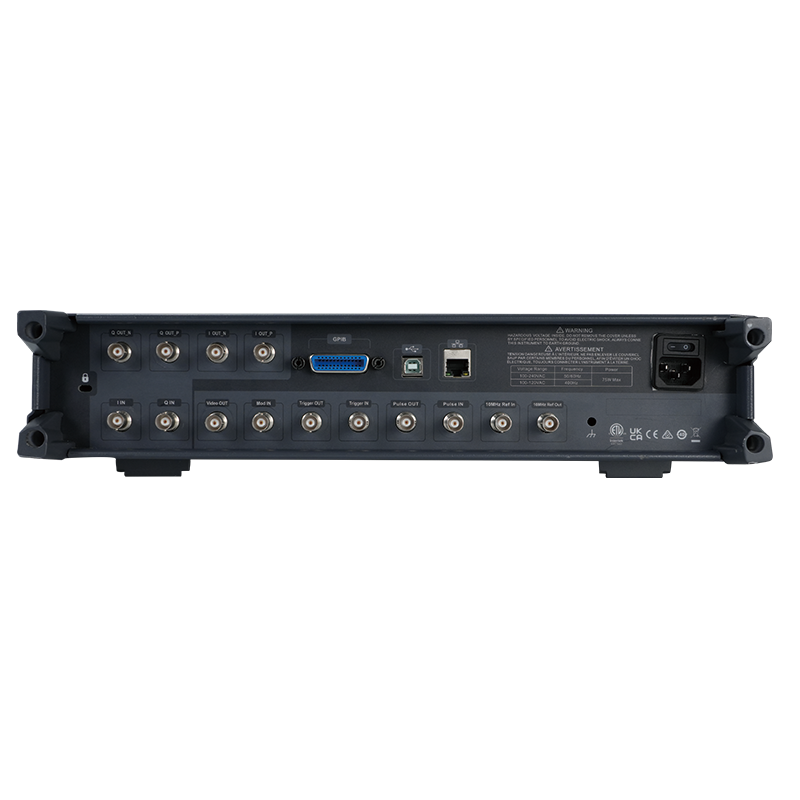

Multi-Interface Connectivity: Supports LAN, USB, and optional GPIB ports for remote control and automation via SCPI commands.
Web Control: Allows remote access via a web browser by entering the instrument’s IP address, supporting both PC and mobile devices.
Device Management Software: Compatible with UNI-T’s Device Manager (V2.5.0 and higher), enabling control via LAN, USB-TMC, or GPIB.

Features

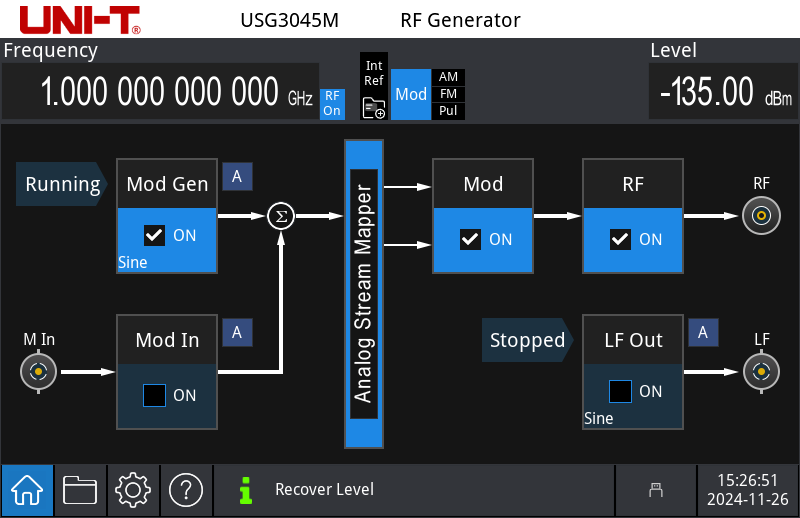

Flat display interface
With flat design, the human-machine interface is simple and easy to use. Waveforms can be visualized and switched between time domain and frequency domain waveforms on demand

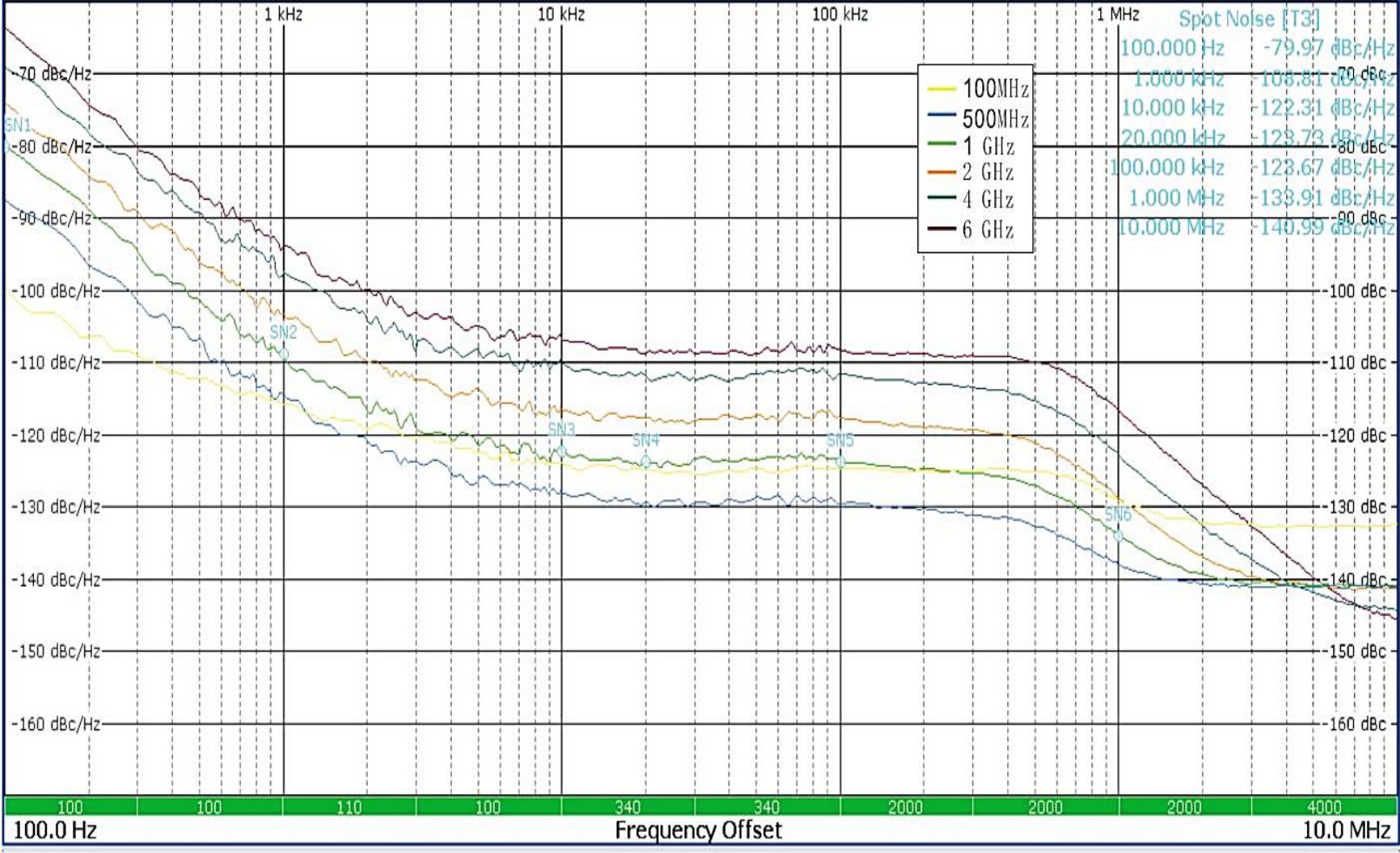

Low phase noise performance
Phase noise as low as -122 dBc/Hz (1 GHz, 20 kHz offset, Typ.)

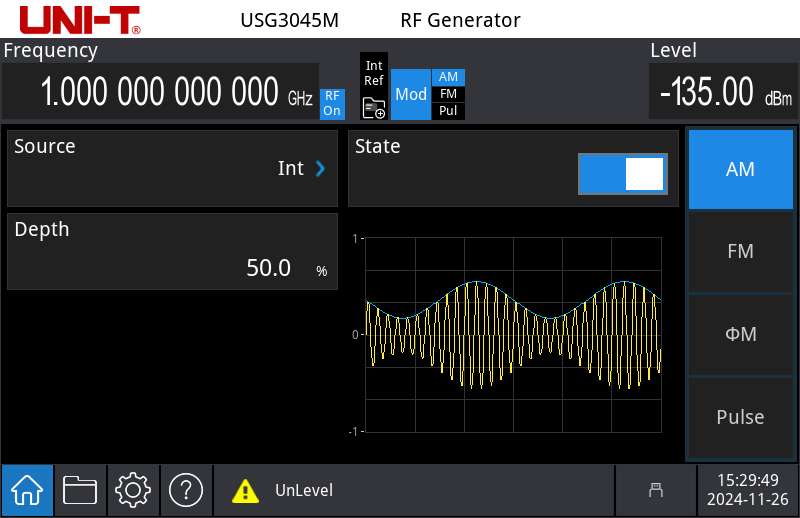

Analog Modulation
- AM，FM，ΦM and Pulse modulation
- Supports pulse trains triggering and user-defined pulse trains

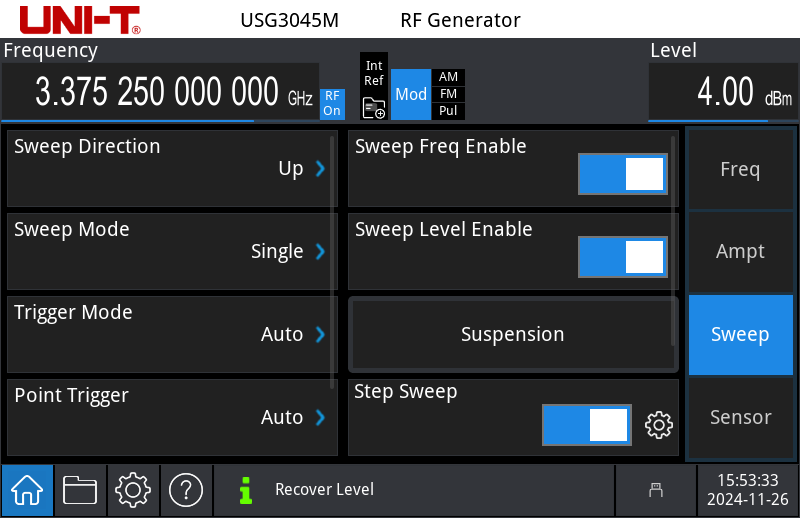

Sweep
- Support frequency and amplitude sweep;
- Support step sweep, list sweep, user can customize the sweep list

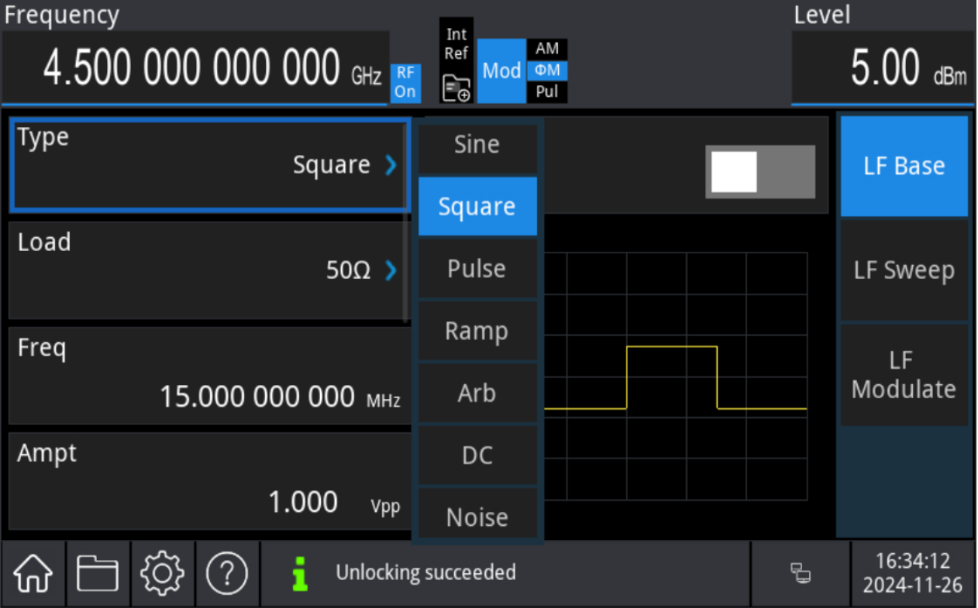

Function/ Arbitrary Waveform Generator
- Max. output frequency 50 MHz
- Supports standard waves, sweep and modulation

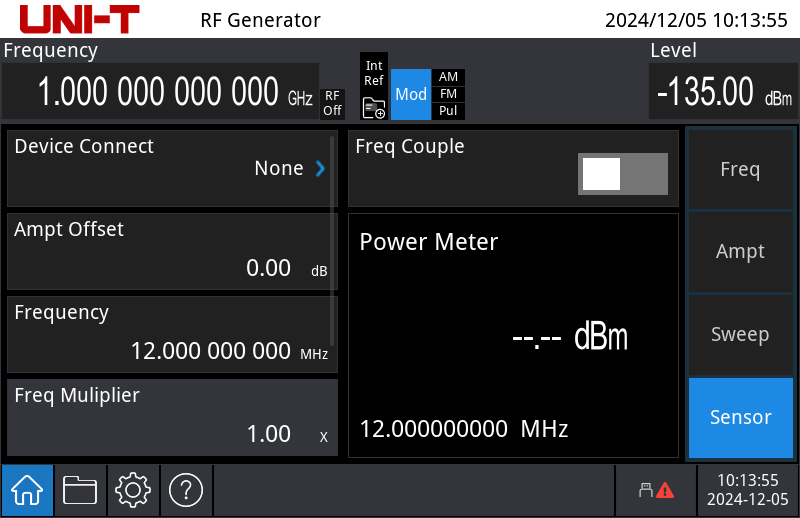

Power Meter Kit
The power meter kit connects to the instrument via the front panel USB port, enabling power measurement, power output control, and line loss calibration.

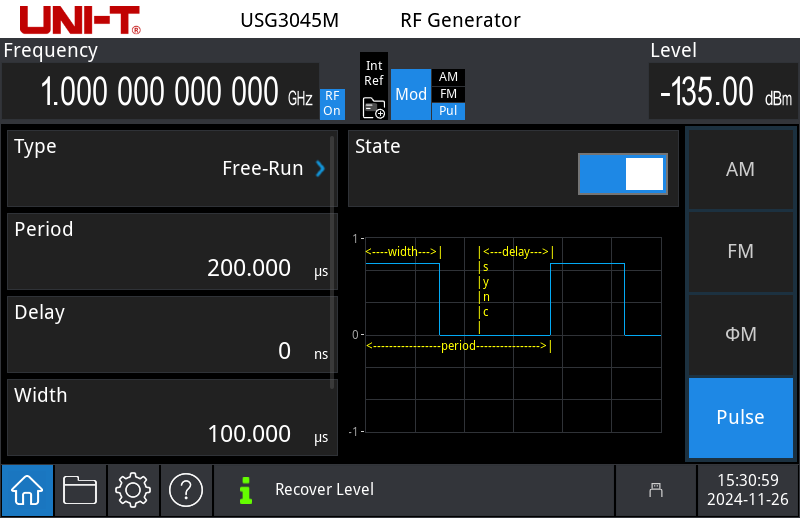

High-precision Pulse Generator
Features a stable clock source, optional pulse modulation and a narrow pulse generator. It has a minimum pulse width of up to 20 ns and a resolution of 10 ns

Comparison

Model	USG5022M-P	USG5014M-P	USG5014M
Frequency Range	9 kHz - 22 GHz	9 kHz - 14 GHz
Frequency Resolution	0.001 Hz
Level Range	-135 dBm - +25 dBm
Phase Noise	<-122 dBc/Hz (1GHz @ 20kHz)
Mechanical Attenuator	YES	YES	NO
Display	5-inch TFT LCD (touch screen)

Accesories For USG5022M-P RF Signal Generator

UTS-EMI01

Excl. VAT €429,00

Incl. 19% VAT €510,51

Frequency range: 30MHz ~ 3GHz； include 3 Pcs magnetic field near-field probes and 1 Pcs electric field near field probe; 1 Pcs N-SMA cable, 1 Pcs N-BNC

Download

Delivery Content

UT-CKO1 Test Kit

Excl. VAT €249,00

Incl. 19% VAT €296,31

Spectrum Utility Kit: include NSMAJ-NJ-0.7M DC-6G Cable x1, NJ-NJ-0.7M DC-6G Cable x1, SMA-N-KJ-T DC-6GHz Adapter x2,N-BNC-JK DC-4GHz Adapter x2, 2400MHz-2500MHz Antenna x2, 824-960MHz/1710-1990MHz x2

Download

Delivery Content

UT-C01-6GHz

Excl. VAT €29,00

Incl. 19% VAT €34,51

N-SMA-JK adaptor，DC-6GHz VSWR≤1.15:1@6GHz IL≤0.2dB@6GHz

Download

Delivery Content

UT-C02-4GHz

Excl. VAT €29,00

Incl. 19% VAT €34,51

N-BNC-JK adaptor，DC-4GHz VSWR≤1.15:1@4GHz IL≤0.2dB@4GHz

Download

Delivery Content

UT-W01-6GHz

Excl. VAT €55,00

Incl. 19% VAT €65,45

N-N-JJ RF cable, 0.7m, DC-6GHz VSWR≤1.25:1@6GHz IL≤1.8dB@6GHz

Download

Delivery Content

UT-C03-18GHz

Excl. VAT €79,00

Incl. 19% VAT €94,01

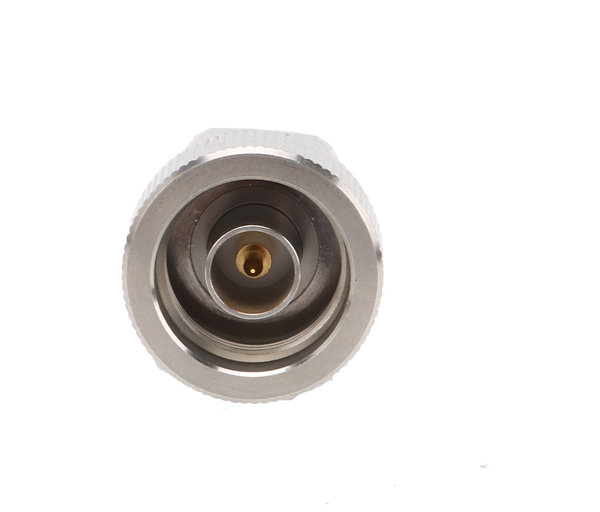

SMA-N-KJG adaptor，DC-18GHz VSWR≤1.15:1@18GHz IL≤0.3dB@18GHz

Download

Delivery Content

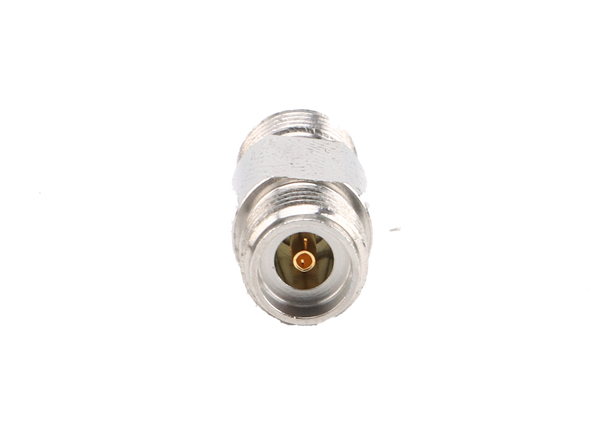

UT-C04-40GHz

Excl. VAT €79,00

Incl. 19% VAT €94,01

2.92-KKG adaptor，DC-40GHz VSWR≤1.20:1@40GHz IL≤0.3dB@40GHz

Download

Delivery Content

UT-W03-6GHz

Excl. VAT €339,00

Incl. 19% VAT €403,41

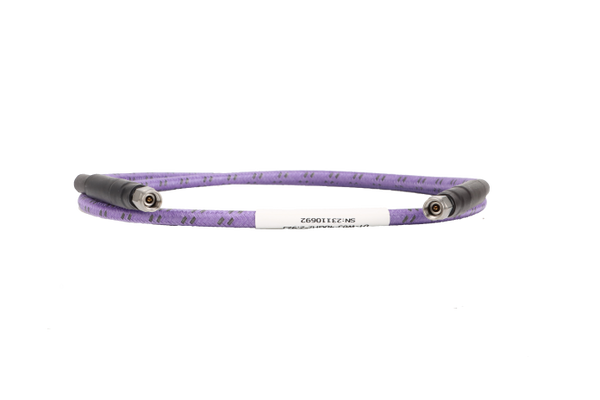

2.92J-2.92J RF cable，DC-40GHz VSWR≤1.25:1@40GHz IL≤3.5dB@40GHz

Download

Delivery Content

UT-W02-6GHz

Excl. VAT €55,00

Incl. 19% VAT €65,45

N-SMA-JJ RF cable, 0.7m, DC-6GHz VSWR≤1.25:1@6GHz IL≤1.8dB@6GHz

Download

Delivery Content

UT-CKO2 Test Kit

Excl. VAT €369,00

Incl. 19% VAT €439,11

Spectrum Utility Kit: include NSMAJ-NJ-0.7M DC-6G Cable x1, NJ-NJ-0.7M DC-6G Cable x1, SMA-N-KJ-T DC-6GHz Adapter x2,N-BNC-JK DC-4GHz Adapter x2, 2400MHz-2500MHz Antenna x2, 824-960MHz/1710-1990MHz x2

Download

Delivery Content
