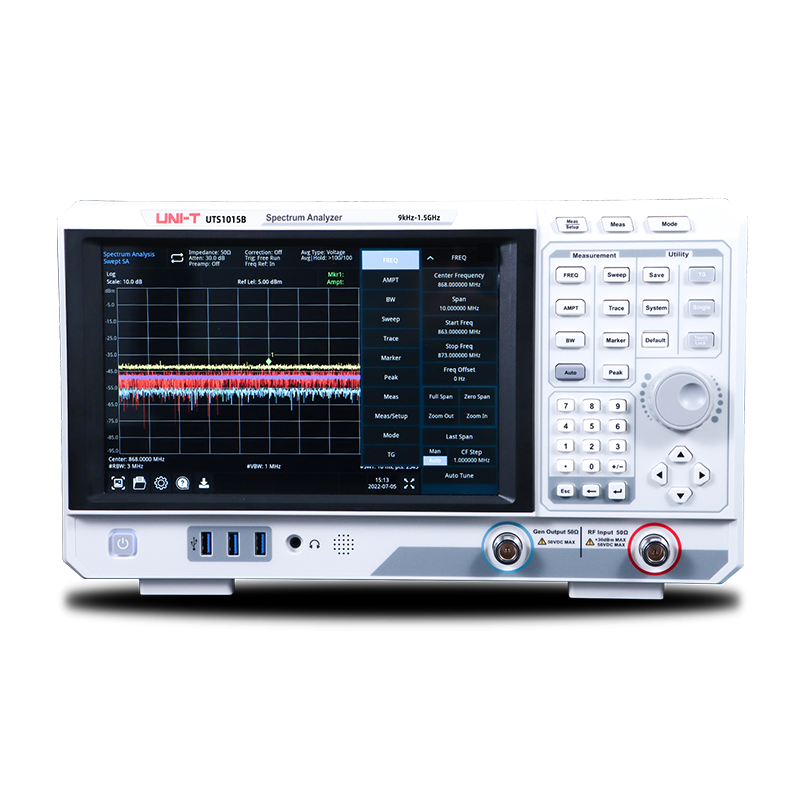

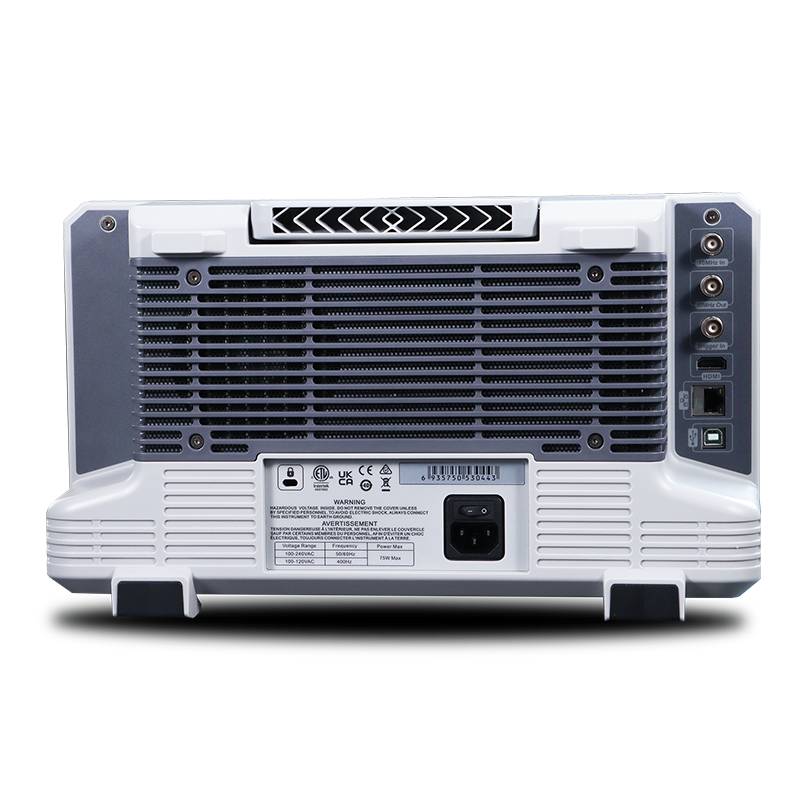

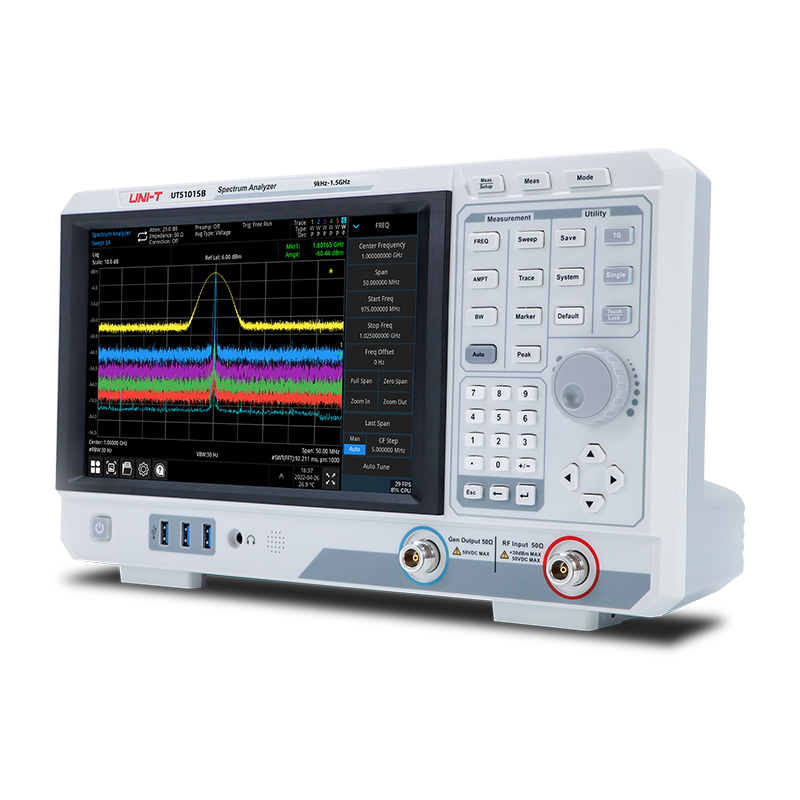

UTS1015T Spectrum Analyzer

  • FREQUENCY RANGE:  9kHz~1.5GHz
  • RBW: 1Hz~1MHz
  • PHASE NOISE : -98dBc/Hz @10kHz
  • DANL: -161dBm
  • TRACE SOURCE: Yes
  • DISPLAY: 10.1 inch TFT LCD(1280x800) touch

5 Years Warranty Included*

Click here for details

Excl. VAT         €1.269,00
€1.510,11 Incl. 19% VAT

Unlock Free Upgrades: Get UTS1000-EMI, UTS1000-AMA and UTS1000-AMK Options for free

UTS1015T Spectrum Analyzer

UTS1015T Spectrum Analyzer

Specification

Feature Specification
Model Number UTS1015T
Frequency Range 9kHz ~ 1.5GHz
RBW 1Hz ~ 1MHz
DANL -161dBm
Tracking Generator Included  YES
Phase Noise -98dBc/Hz @10kHz
Display Size (in) 10.1Inch TFT LCD
Touchscreen true
Warranty 3 years
Shipping Dimmensions (L x W x H) 21 in x 12 in x 16 in
Shipping Weight 4.55 Kg
Documents English download guide, multi-language safety manual, calibration report (COC)

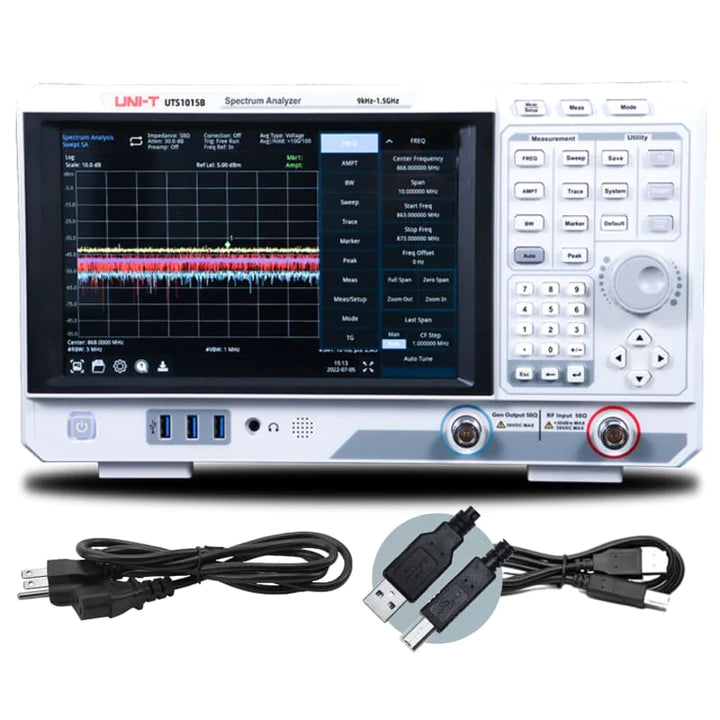

Included Accessories Power cord, USB2.0 printing cable
For additional product specifications, please refer to the attached PDF.



Features

Photo 1

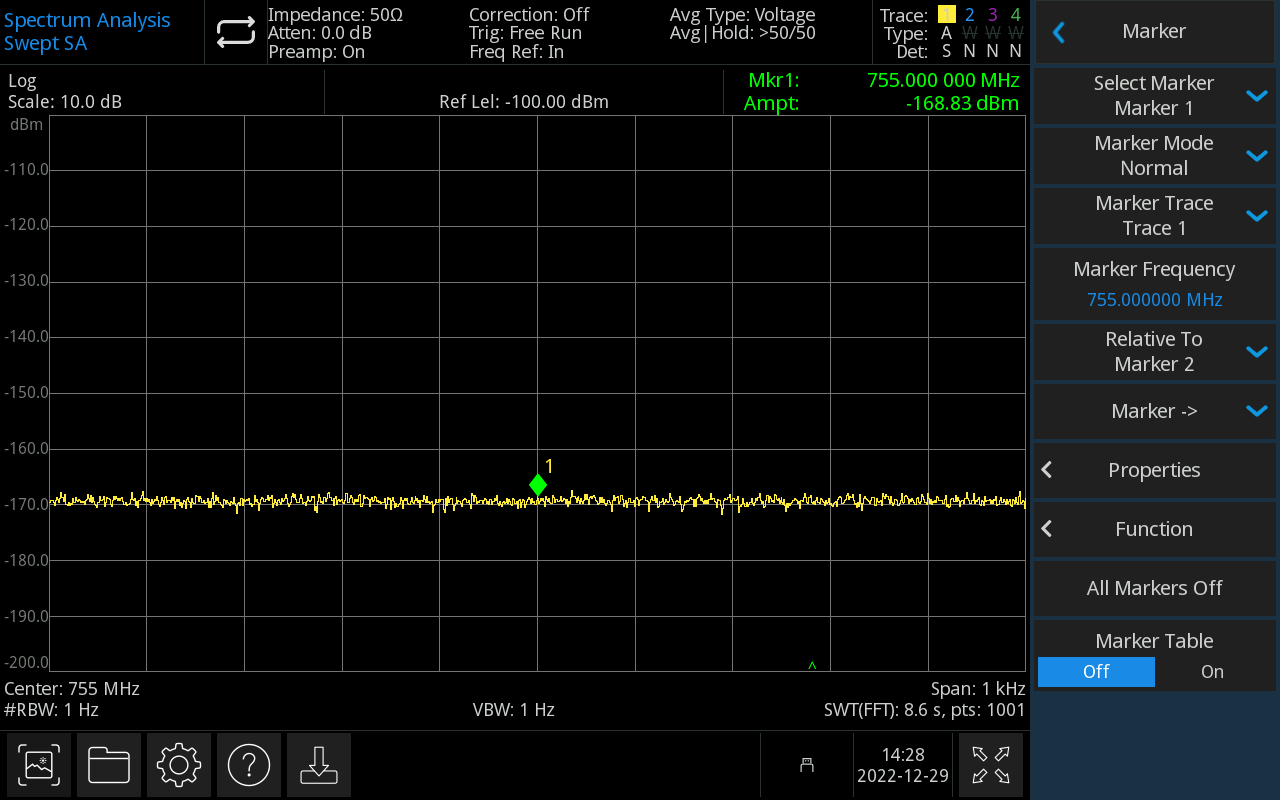

DANL <-161dBm

Photo 1

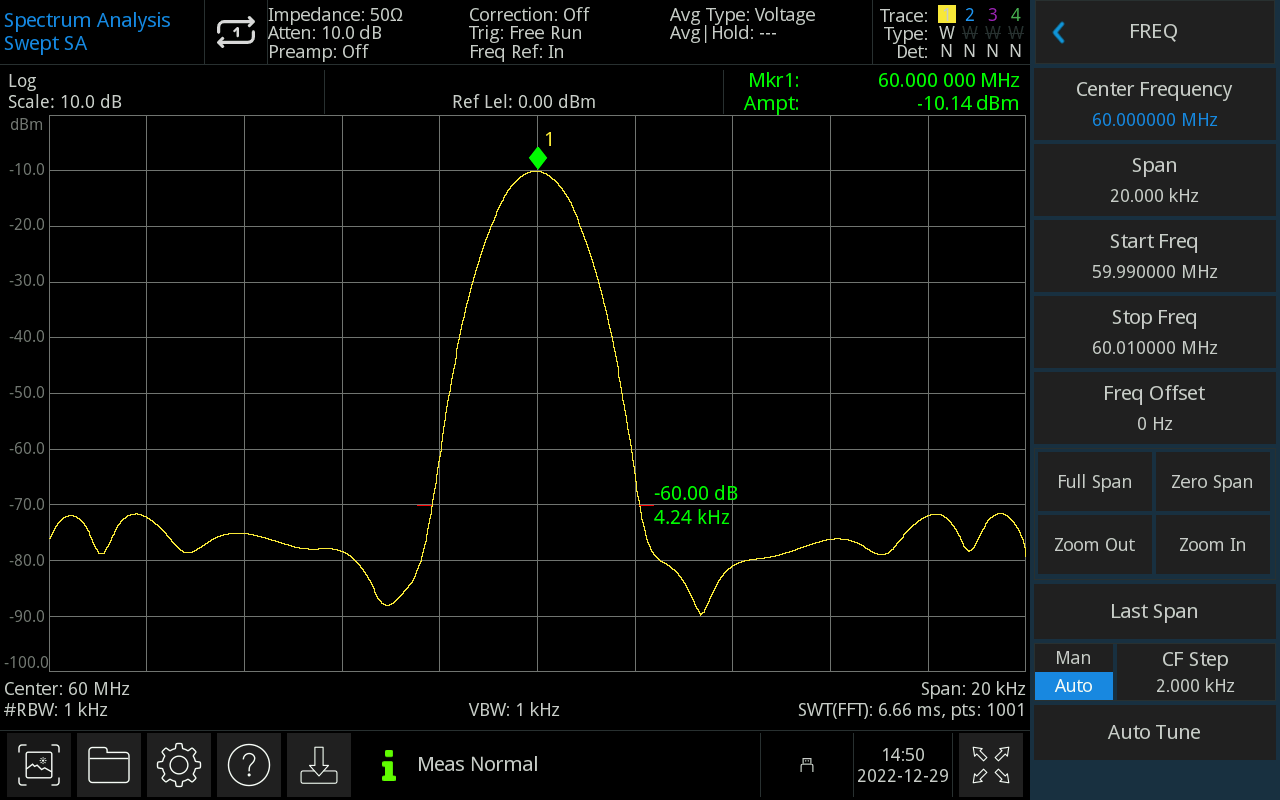

Excellent selectivity

Photo 1

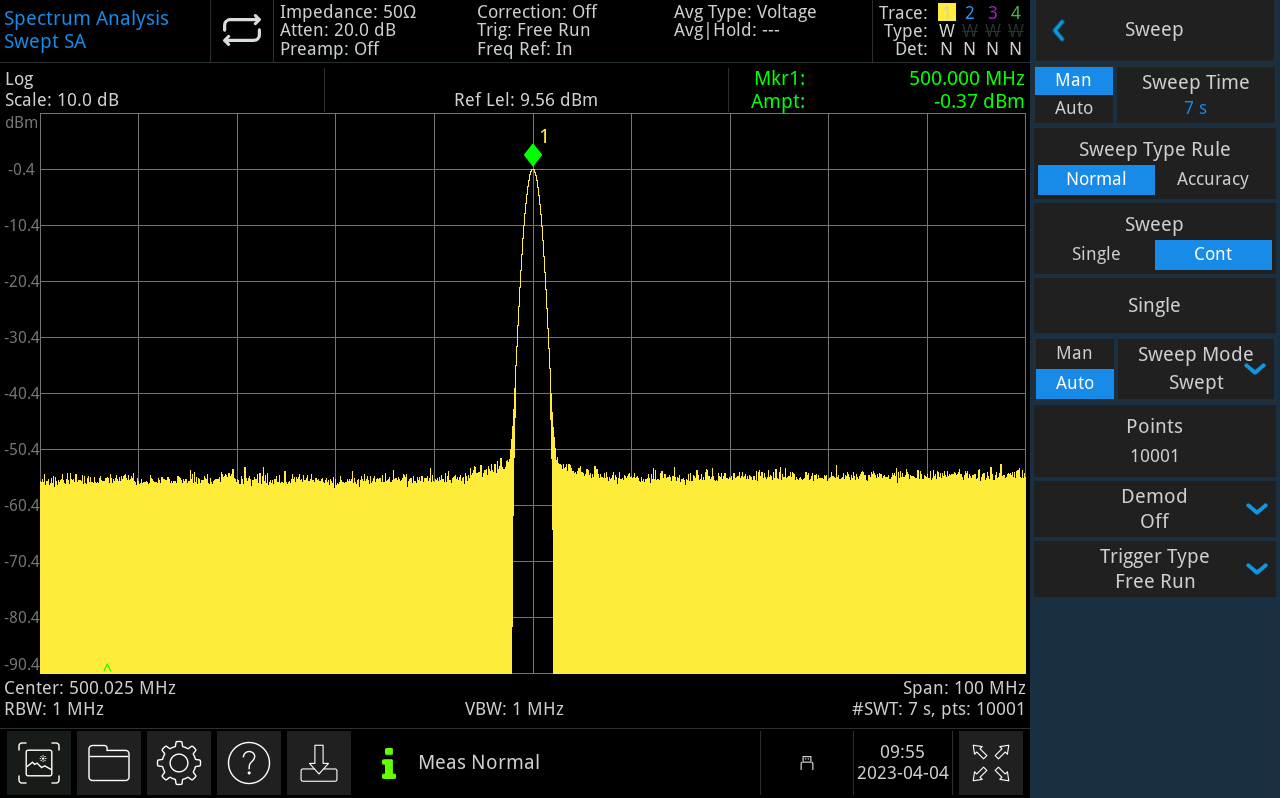

10001 scan points



Photo 1

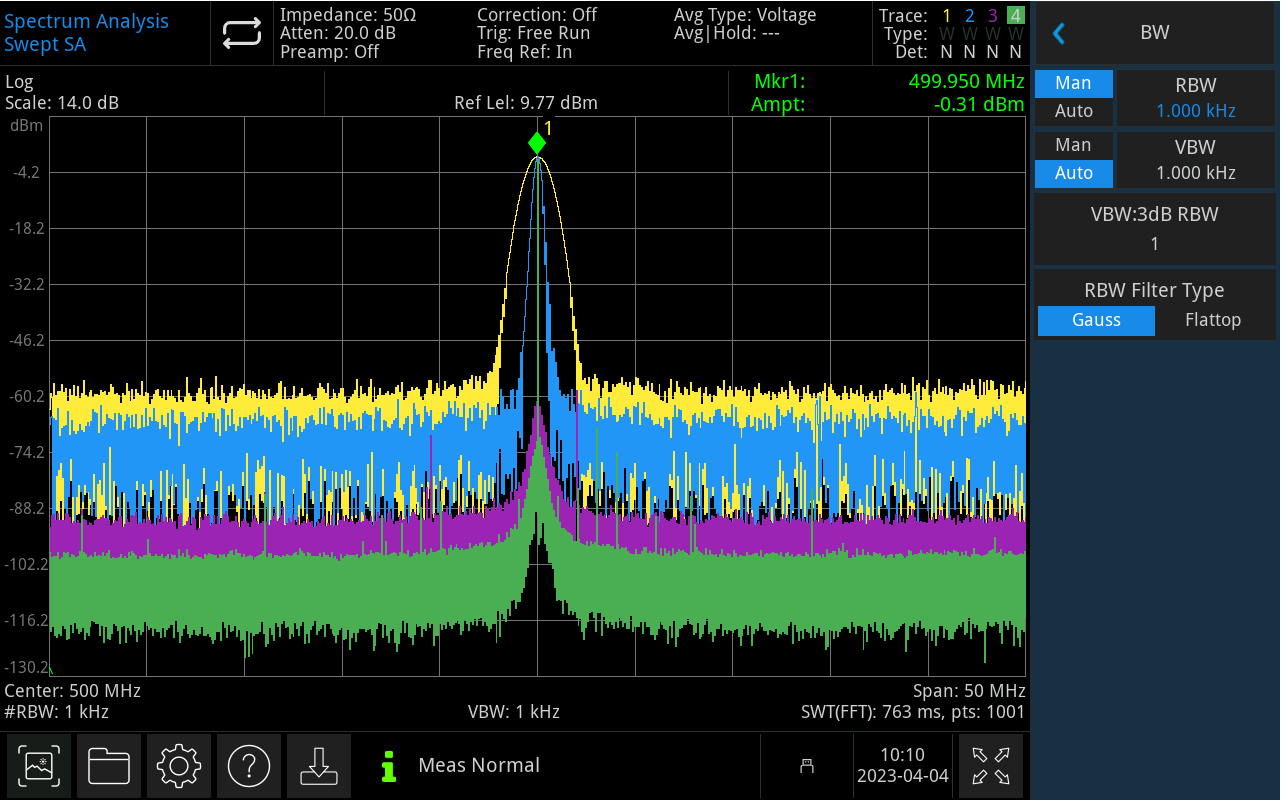

4 traces

Photo 1



Rich detector functions

Photo 1

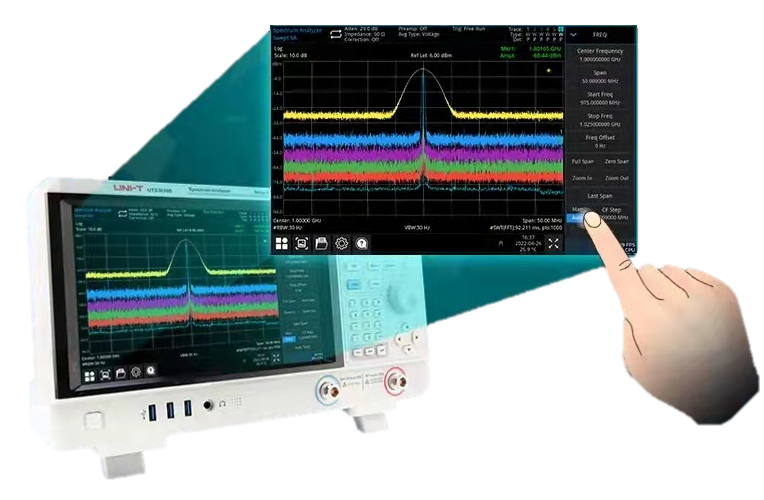

10.1 inch HD capacitive touch screen



Photo 1

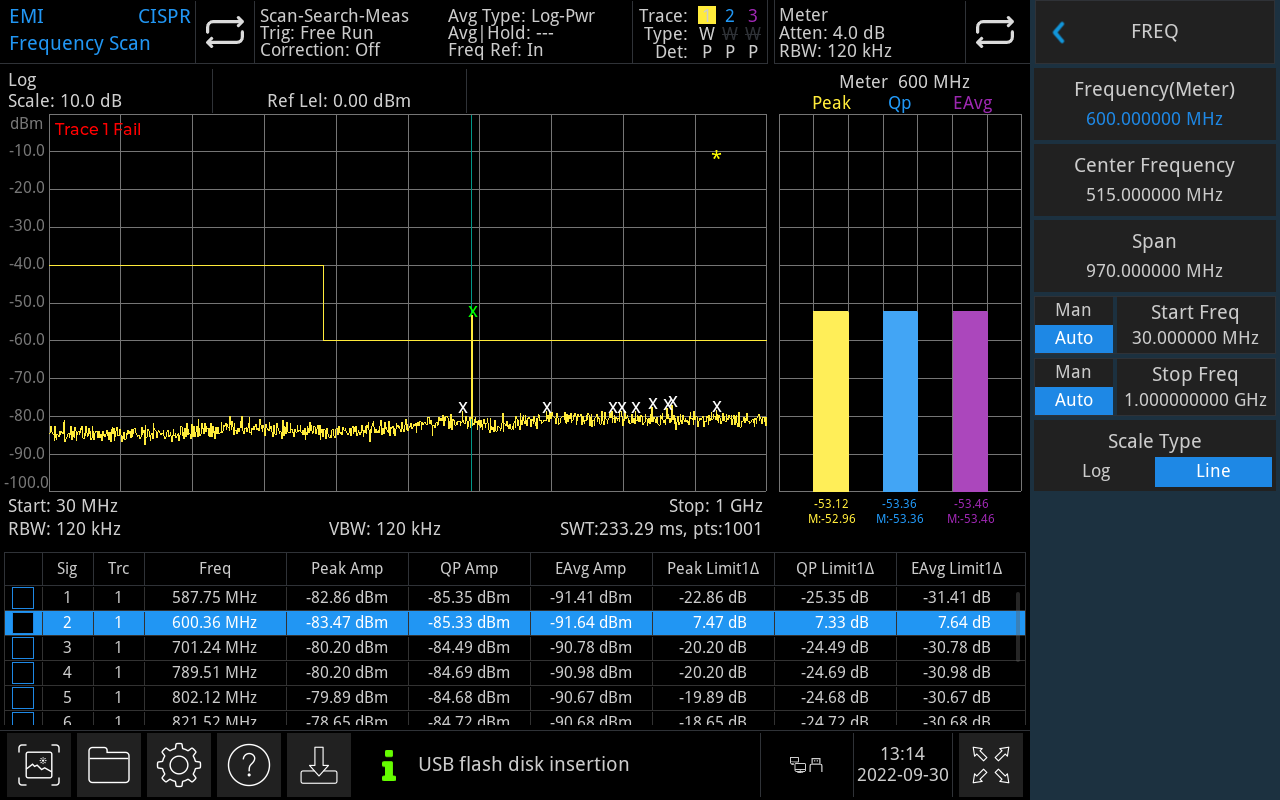

EMI Pre-compliance analysis

Photo 1



Advanced function



Video

Video Gallery

4traces

Comparison

Model UTS1032B UTS1032T UTS1015T UTS1015B
Freqency Range 9kHz~3.2GHz
9kHz~1.5GHz
RBW 1Hz~1MHz
Phase Noise -98dBc/Hz @10kHz
DANL -161dBm
Trace Source NO Yes No
Display 10.1 inch TFT LCD(touch screen)
Price €1499.00 €1699.00 €1099.00 €999.00　

Related Document

User Manual
Datasheet
Quick Start Guide
Programming Manual
Software and Firmware Download

Accessories for UTS1000B/T

  • UTS1000B-AMA
    Excl. VAT €319,00

    Incl. 19% VAT €379,61



    Analog demodulation measurement option
    Download
    Delivery Content

  • UTS1000B-AMK
    Excl. VAT €439,00

    Incl. 19% VAT €522,41



    Advanced measurement kit
    Download
    Delivery Content

  • UTS1000B-EMI
    Excl. VAT €429,00

    Incl. 19% VAT €510,51



    EMI software
    Download
    Delivery Content

Accessories for UTS1000B/T

  • BAG-B3
    Excl. VAT €65,00

    Incl. 19% VAT €77,35



    Soft carrying bag for UTS1000B and UTS3000B Series Spectrum Analyzers

    Download
    Delivery Content

  • UTS-EMI01
    Excl. VAT €429,00

    Incl. 19% VAT €510,51



    Frequency range: 30MHz ~ 3GHz； include 3 Pcs magnetic field near-field probes and 1 Pcs electric field near field probe; 1 Pcs N-SMA cable, 1 Pcs N-BNC

    Download
    Delivery Content

  • UT-CKO1 Test Kit
    Excl. VAT €249,00

    Incl. 19% VAT €296,31



    Spectrum Utility Kit: include NSMAJ-NJ-0.7M DC-6G Cable x1, NJ-NJ-0.7M DC-6G Cable x1, SMA-N-KJ-T DC-6GHz Adapter x2,N-BNC-JK DC-4GHz Adapter x2, 2400MHz-2500MHz Antenna x2, 824-960MHz/1710-1990MHz x2

    Download
    Delivery Content

  • UT-C01-6GHz
    Excl. VAT €29,00

    Incl. 19% VAT €34,51



    N-SMA-JK adaptor，DC-6GHz VSWR≤1.15:1@6GHz IL≤0.2dB@6GHz
    Download
    Delivery Content

  • UT-C02-4GHz
    Excl. VAT €29,00

    Incl. 19% VAT €34,51



    N-BNC-JK adaptor，DC-4GHz VSWR≤1.15:1@4GHz IL≤0.2dB@4GHz
    Download
    Delivery Content

  • UT-W01-6GHz
    Excl. VAT €55,00

    Incl. 19% VAT €65,45



    N-N-JJ RF cable, 0.7m, DC-6GHz VSWR≤1.25:1@6GHz IL≤1.8dB@6GHz
    Download
    Delivery Content

  • UTS-T02
    Excl. VAT €15,00

    Incl. 19% VAT €17,85



    Receiving antenna，working frequency 824MHz-960MHz，Gain<2dBi

    Download
    Delivery Content

  • UTS-T01
    Excl. VAT €15,00

    Incl. 19% VAT €17,85



    Receiving antenna，working frequency 2400MHz-2500MHz，Gain<2dBi
    Download
    Delivery Content
