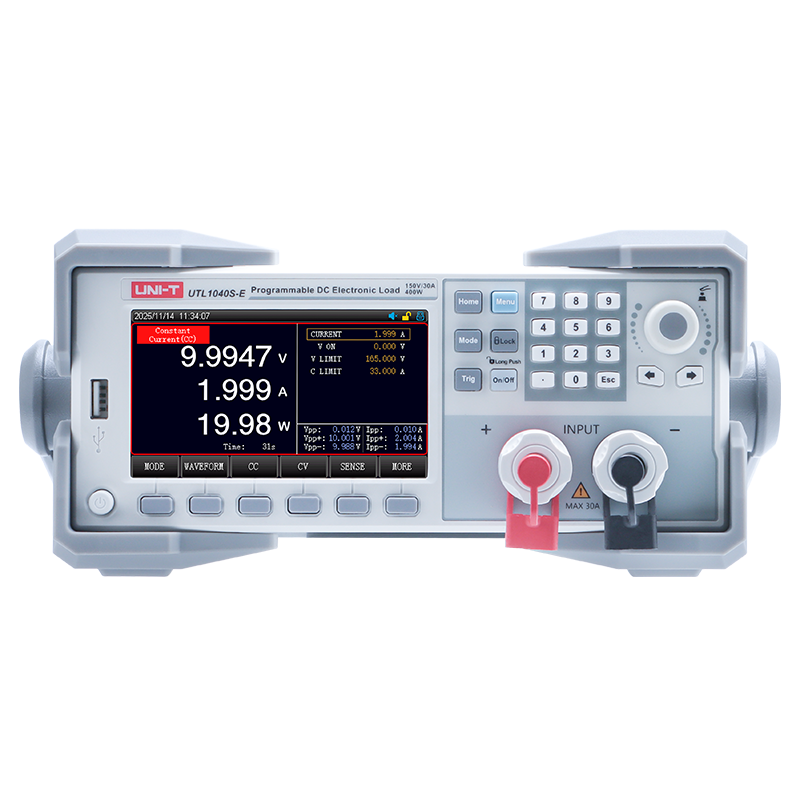

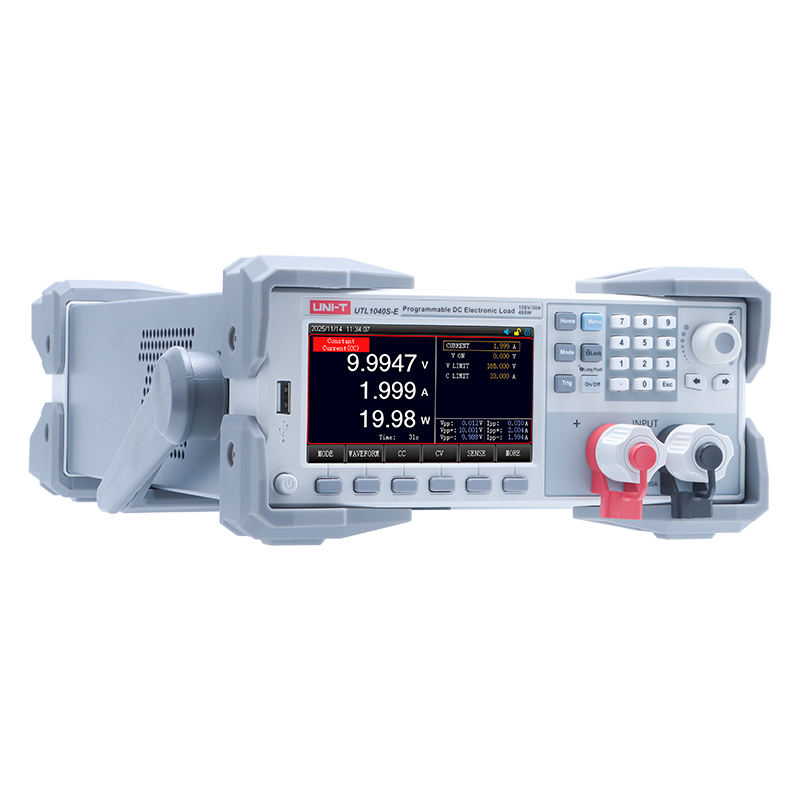

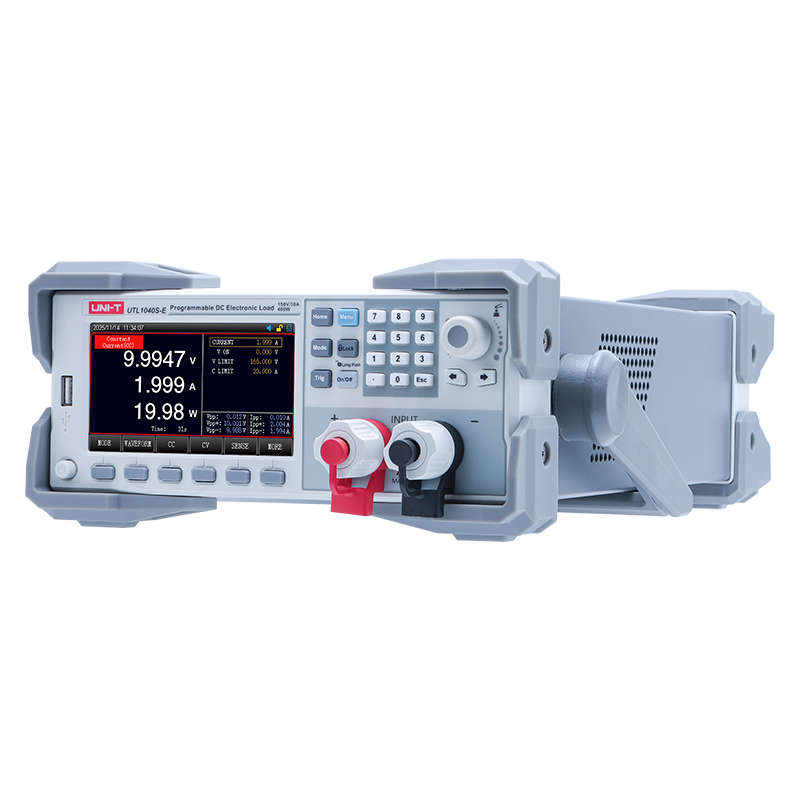

UTL1040S-E DC electronic load

Menge

Specification

Display: 4.3-inch LCD screen for clear, real-time visualization of all test results
Voltage / Current / Power: 150 V, 30 A, 400 W electronic load capacity for high-power testing applications
High-Speed Sampling: Synchronous sampling up to 500 kHz with stable resolution of 0.1 mV / 0.1 mA
Dynamic Mode (DYNA): Up to 50 kHz dynamic load operation with current slew rate from 0.0006 A/μs to 3 A/μs, enabling direct observation of voltage and current peaks (Vpp, Ipp)
Operating Modes: Supports Constant Current (CC), Constant Voltage (CV), Constant Resistance (CR), and Constant Power (CP)
LED Simulation: Realistic LED load simulation for testing LED drivers and power supplies
Protection & Test Functions: Supports Over Current Protection (OCP), Over Voltage Protection (OVP), and maximum power testing
Time Measurement: Integrated TIME function for duration-based testing and performance analysis
Programmable LIST Mode: Intelligent automated test sequences for efficient and repeatable testing workflows
Compact Design: ½ 2U rack-mountable form factor for space-efficient lab and rack integration

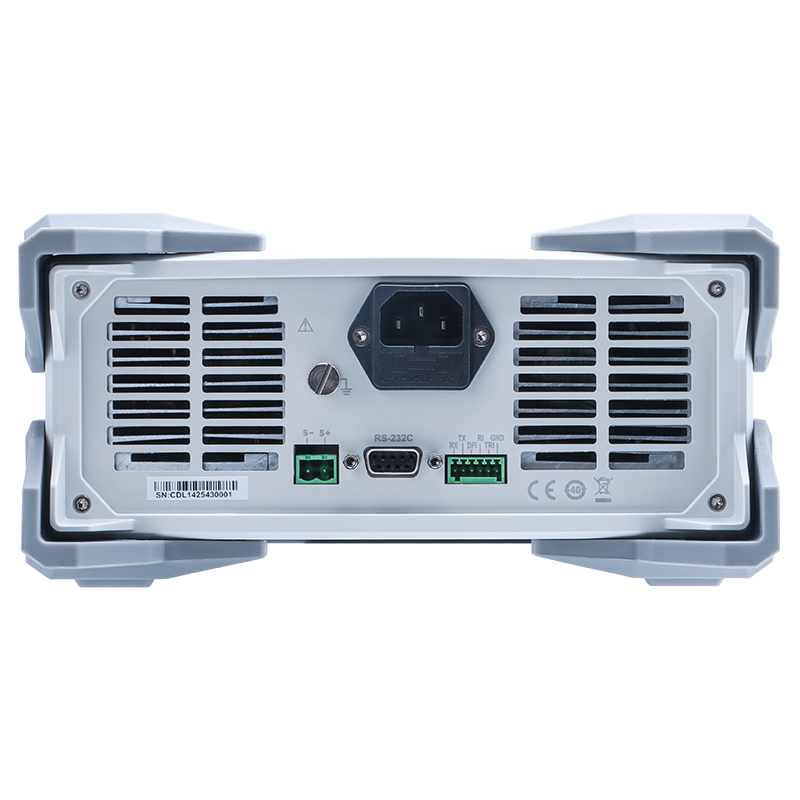

Connectivity: RS232 interface for remote control and automated system integration

15 test modes
15 test modes to adapt to more application scenarios.

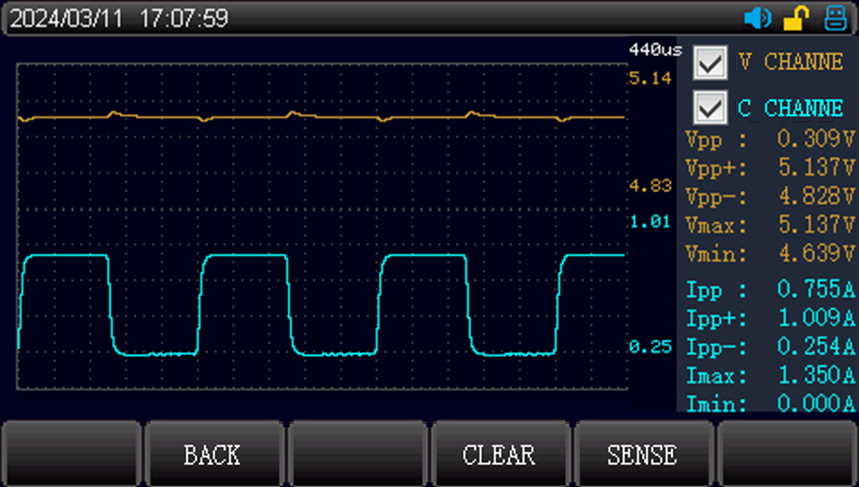

Ripple measurement & waveform display
Ripple measurement provides more thoughtful services for power supply testing
Waveform display for more intuitive observation of the test process
Auto list test
Auto list test, editable multi-mode test list, automated test process
Battery mode
Battery testing not only enables battery measurement, but also records battery discharge and charging curves for you
Load effect test
Load effect test, automatically measure and give test results according to the set value
Protection test
Protection test, OCP, OVP measure the protection function and response time of the product under test
