Spezifikation

Technische Daten

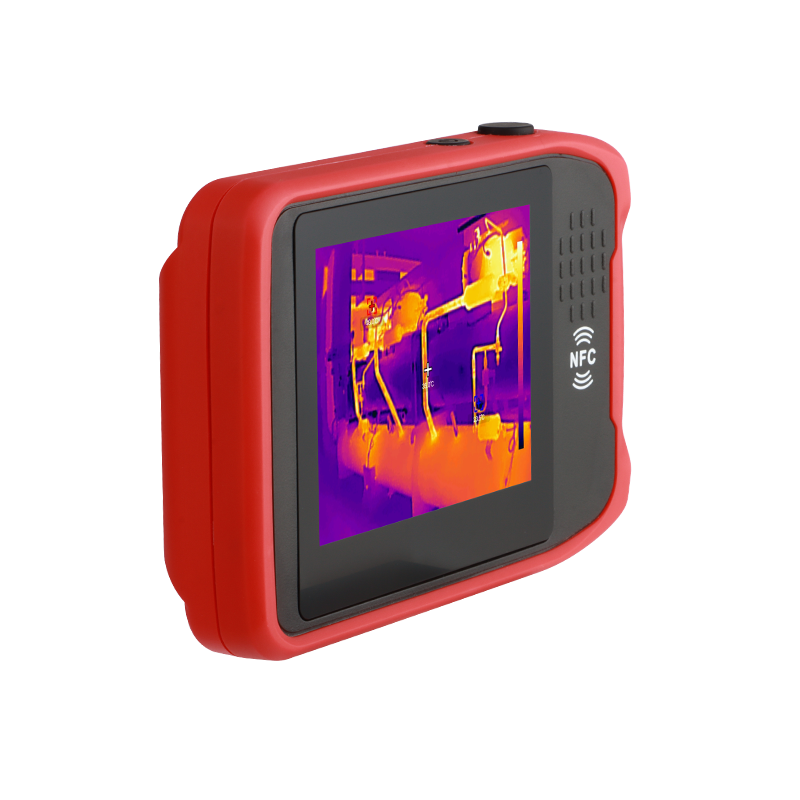

Anzeige 3,5-Zoll-TFT-Touch (640 × 480)
IR-Auflösung (Pixel) 256 × 192
Spektralbereich 8~14µm
Pixelgröße 12 µm
Bildrate ≤25 Hz
Thermische Empfindlichkeit (NETD) ≤50 mK
Fokus Fokusfrei
Sichtfeld (FOV) 56°(H) × 42°(V)
Räumliche Auflösung (IFOV) 7,6 mrad
Temperaturmessbereich -20℃~550℃
Genauigkeit ±2℃ oder ±2%, je nachdem, welcher Wert größer ist

Anwendungen

Application 1

Application 1

Application 2

Application 2

Application 3

Application 3

Zugehöriges Dokument

Bedienungsanleitung
Technisches Datenblatt
Software

Kundenbewertungen

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
A
Anonymous
This camera is really good compared to high cost thermal cameras

This camera is really good compared to high cost thermal cameras.
The only disadvantage is that at short distances, the thermal image and the optical image overlap with quite a big offset. This means, that at the display, a thermal object is not at the same place at the display, as it is shown in the optical image. This means in practice, that the optical image does not help to find the exact position of the thermal object of interest.
This problem could be fixed or compensated with a software function, where you can adjust the overlap manually. I hope that the firmware developers will add this very helpful feature.
