UT8806EG Bench Multimeter
Varianten
- Normaler Preis
- Excl. VAT €790,00
€940,10
Incl. 19% VAT
- Auflösung: 6½
- SCHNELLSTE TESTRATE: 10.000 Rdgs/s
- Frequenzgang: 300kHz
5 Years Warranty Included*
Click here for details
Teilen

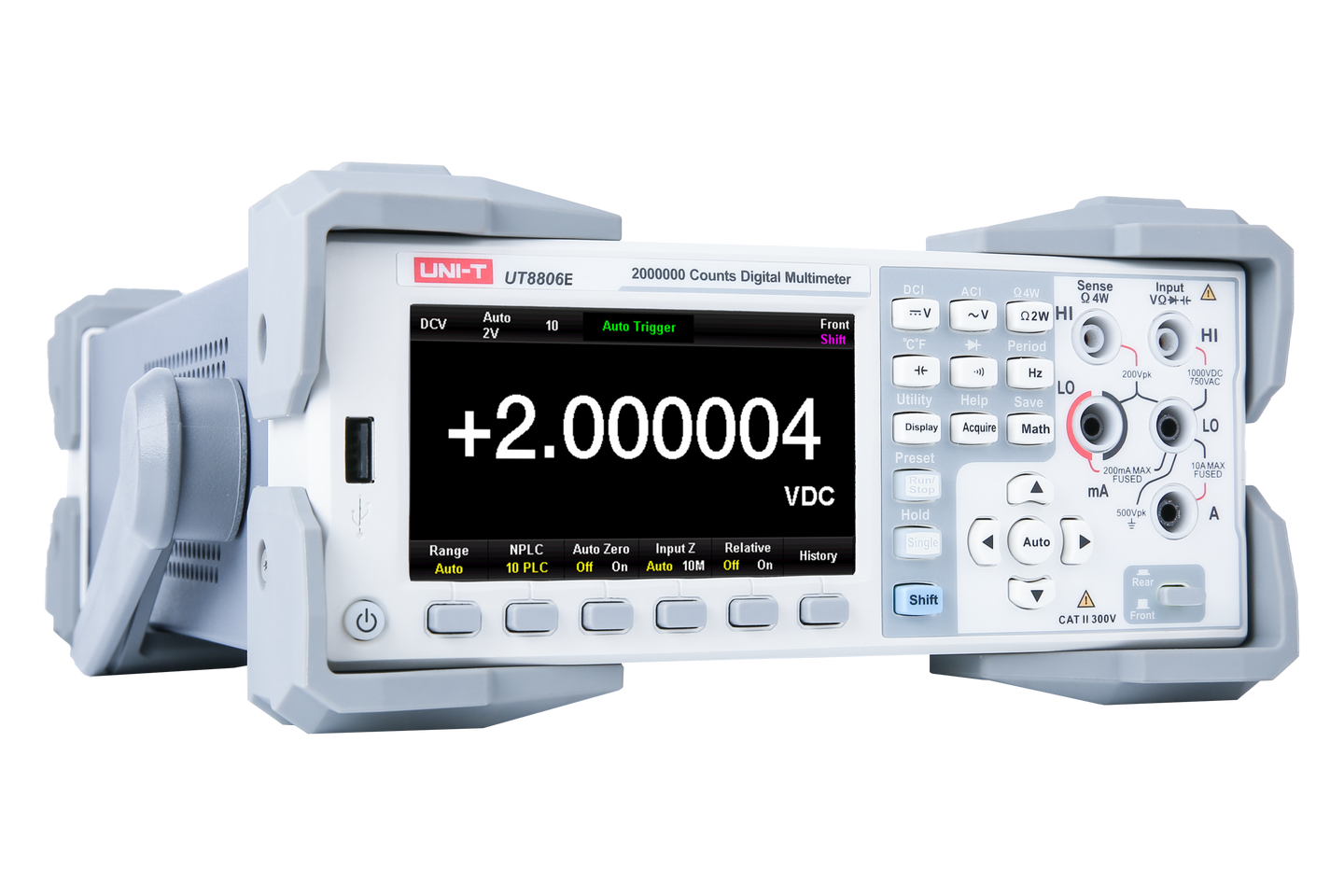

UT8806EG Bench Multimeter
Spezifikation
- Display: 4.3-inch TFT-LCD with 480×272 resolution for clear and intuitive data visualization
- Measurement Resolution: High-precision 6½-digit digital multimeter for laboratory and production environments
- High-Speed Measurement: Achieves up to 10,000 readings per second for fast test throughput
- Frequency Bandwidth: Supports AC measurement bandwidth up to 300 kHz
- Accuracy: Offers outstanding DC voltage accuracy of up to 0.0035%
- TRMS Measurements: True RMS AC voltage and AC current measurement for accurate readings on complex waveforms
- Onboard Storage: Equipped with 32 GB NAND Flash for saving large volumes of test data, settings, and configuration files
- Cold Junction Compensation: Built-in thermocouple cold-end compensator for accurate temperature measurement applications
- SCPI Remote Control: Fully supports SCPI commands and modern multimeter command sets for automated testing
- Dual-Language Support: Simplified Chinese and English display modes with a built-in help system for quick reference

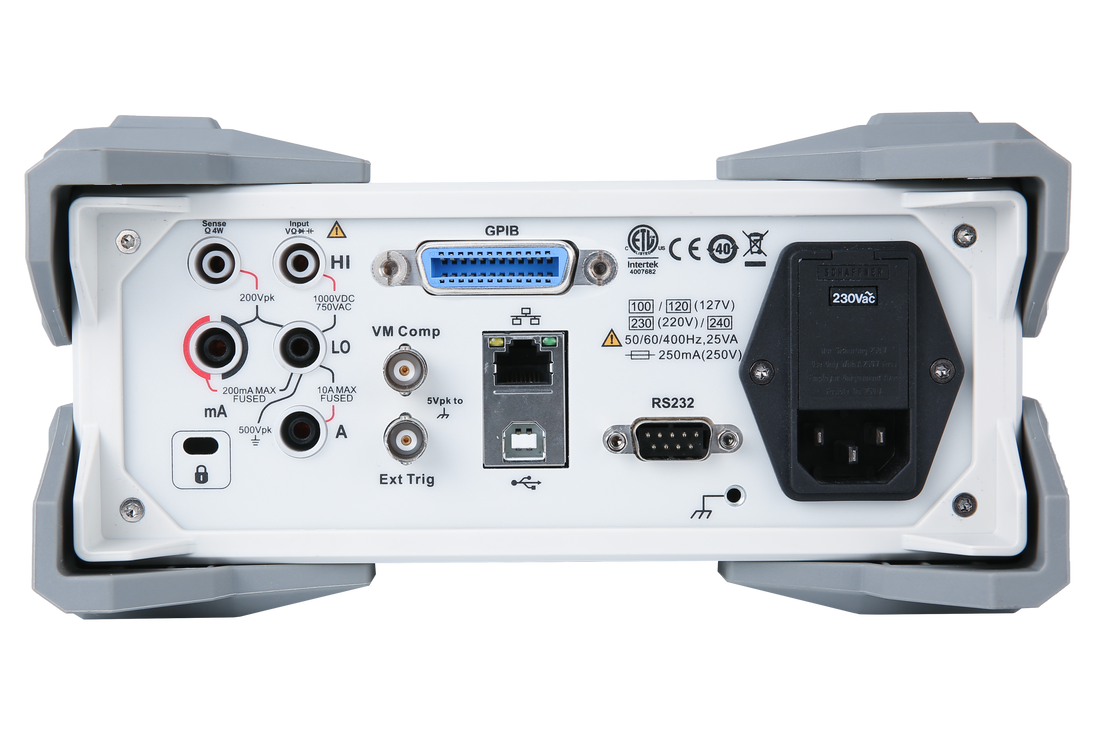

- Connectivity Interfaces: USB Device, USB Host, LAN, RS-232C, and optional GPIB for flexible communication in various setups
- Data Import/Export: Supports VXI-11, USBTMC, and USB transfer for easy data backup, modification, and viewing
- Backup Function: SCPI-based remote backup of measurement settings and stored files
Merkmale
2,000,000 counts
Multiple display styles
Various mathematical operation
Dual display
Powerful help system
Mass storage
Vergleich
| Model | UT8802E | UT8803E | UT8804E | UT8805E | UT8806E |
| Readind Resolution | 4½ | 3⅚ | 4⅚ | 5½ | 6½ |
| Fastest Test Ratae | 3 rdgs/s | 5k rdgs/s |
10k rdgs/s |
||
| frequency Response | 1kHz | 100kHz |
300kHz | ||
| Accuracy | 0.1% | 0.3% | 0.025% | 0.015% | 0.0035% |
| Connectivity | USB Device | USB Device, USBHost,LAN,RS-232 | USB(Device & Host), LAN, RS-232C, GPIB (option) | ||
