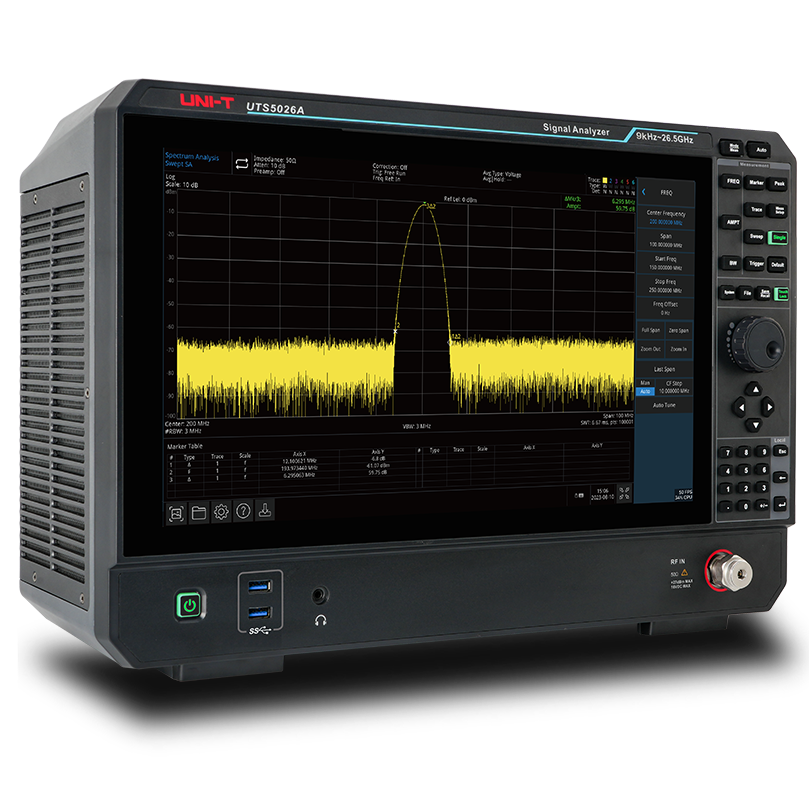

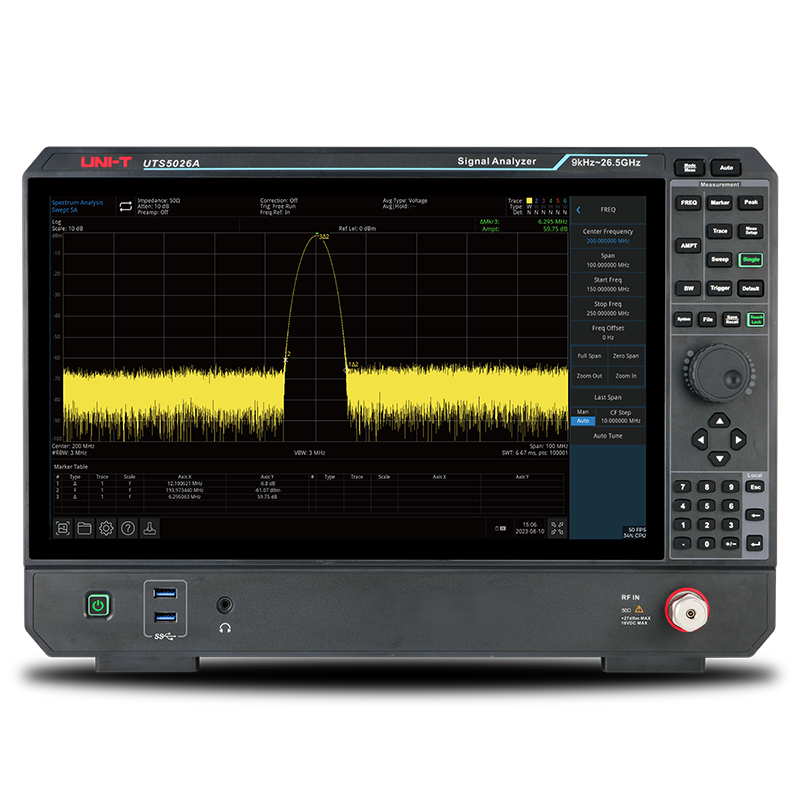

UTS5026A Signalanalysator
FREQUENCY RANGE: 9kHz~26.5GHz RBW: 1Hz~3MHz (10% step), 4, 5, 6, 8MHz PHASE NOISE : -107dBc/Hz @10kHz DANL: -163dBm TRACE SOURCE: 25 MHz/ 40 MHz(option) DISPLAY: 15.6 inch 1920 x 1080 HD thin film transistor LCD display screen
5 Jahre Garantie inklusive*
Klicken Sie hier für Details
- Normaler Preis
- Excl. VAT €29.999,00
Teilen
UTS5026A Signalanalysator
Specification
| Feature | Specification |
|---|---|
| Model Number | UTS5026A |
| Frequency Range | 9kHz ~ 26.5GHz |
| RBW | 1Hz~3MHz (10% step), 4, 5, 6, 8MHz |
| DANL | -163dBm |
| Phase Noise |
-107dBc/Hz @10kHz
|
| Trace Source | 25 MHz/ 40 MHz(option) |
| Display Size (in) | 15.6 inch 1920 x 1080 HD thin film transistor LCD display screen |
| Touchscreen | Yes |
| Warranty | 3 years* |
| Shipping Dimmensions (W x H x L) | 445 mm x 311 mm x 195 mm |
| Shipping Weight | 11 Kg |
| Documents | English download guide, multi-language safety manual, calibration report (COC) |
| Included Accessories | Power cord, USB2.0 printing cable |
| For additional product specifications, please refer to the attached PDF. |
|
Features

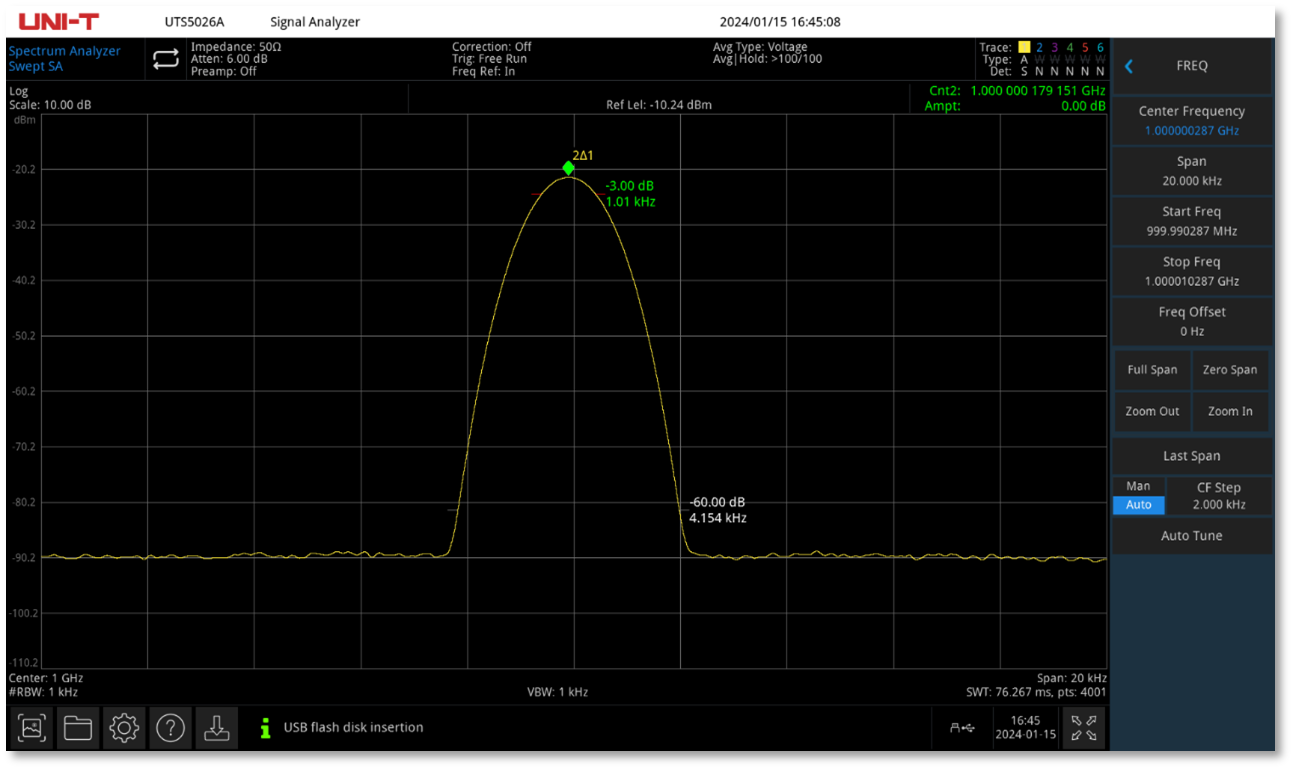

Excellent selectivity

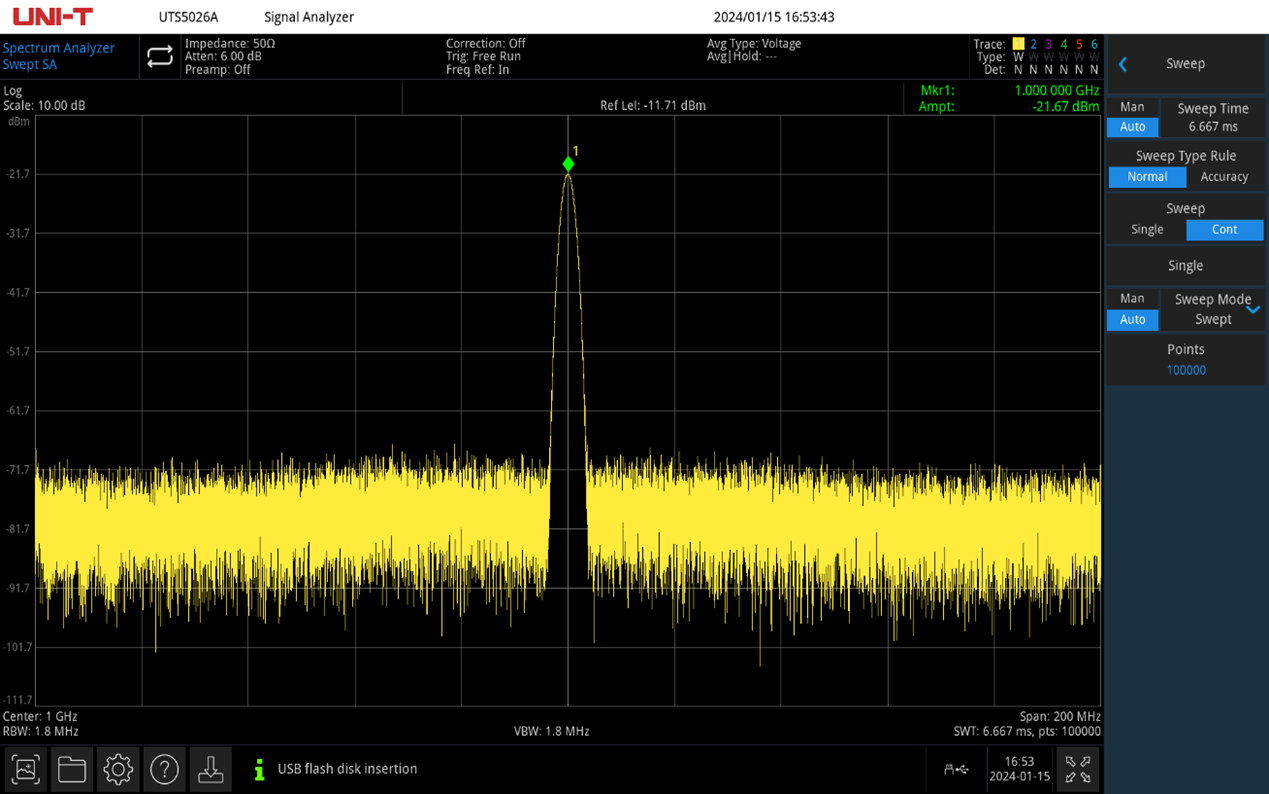

100,001 scan points

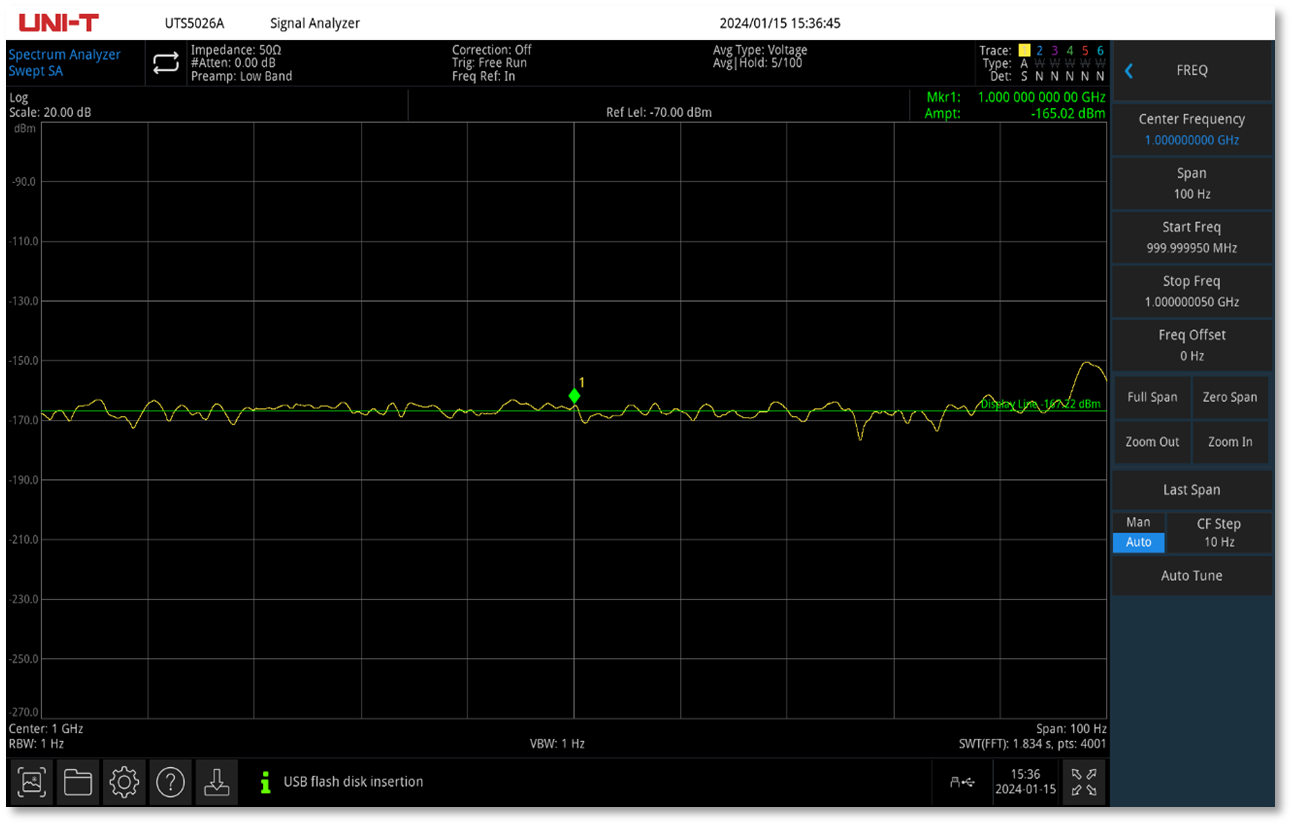

DANL is as low as -163dBm
Excellent phase noise
HD large screen display
Powerful hardware system

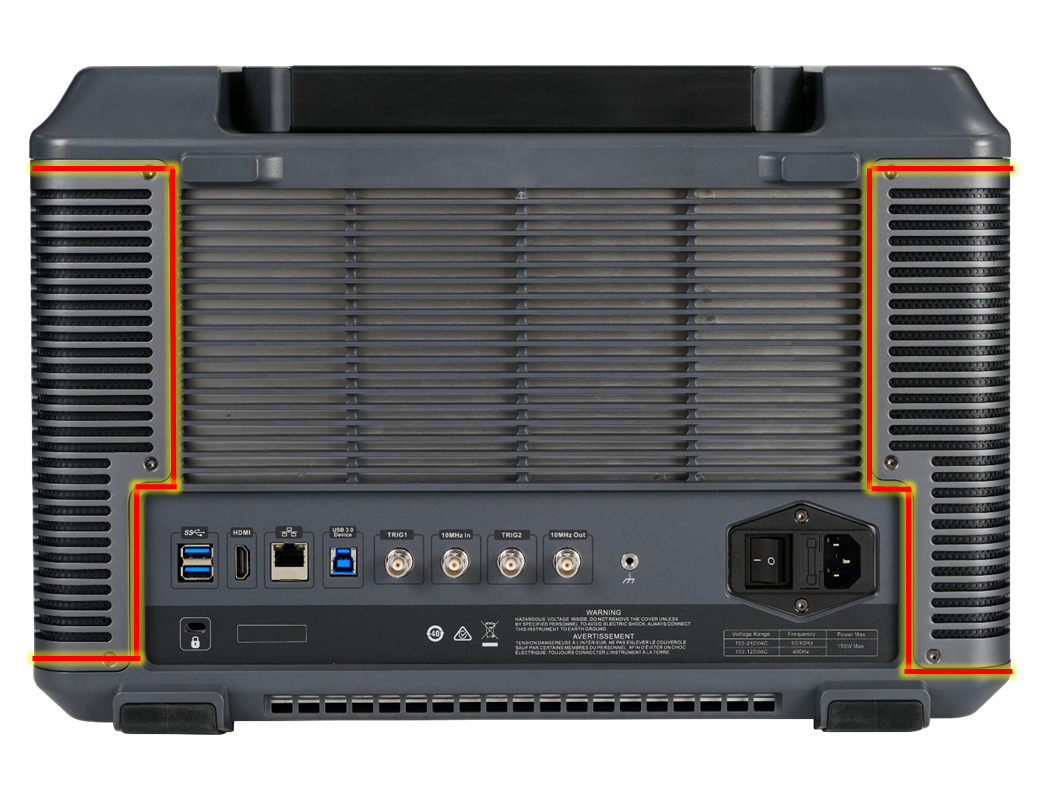

Removable dust mesh

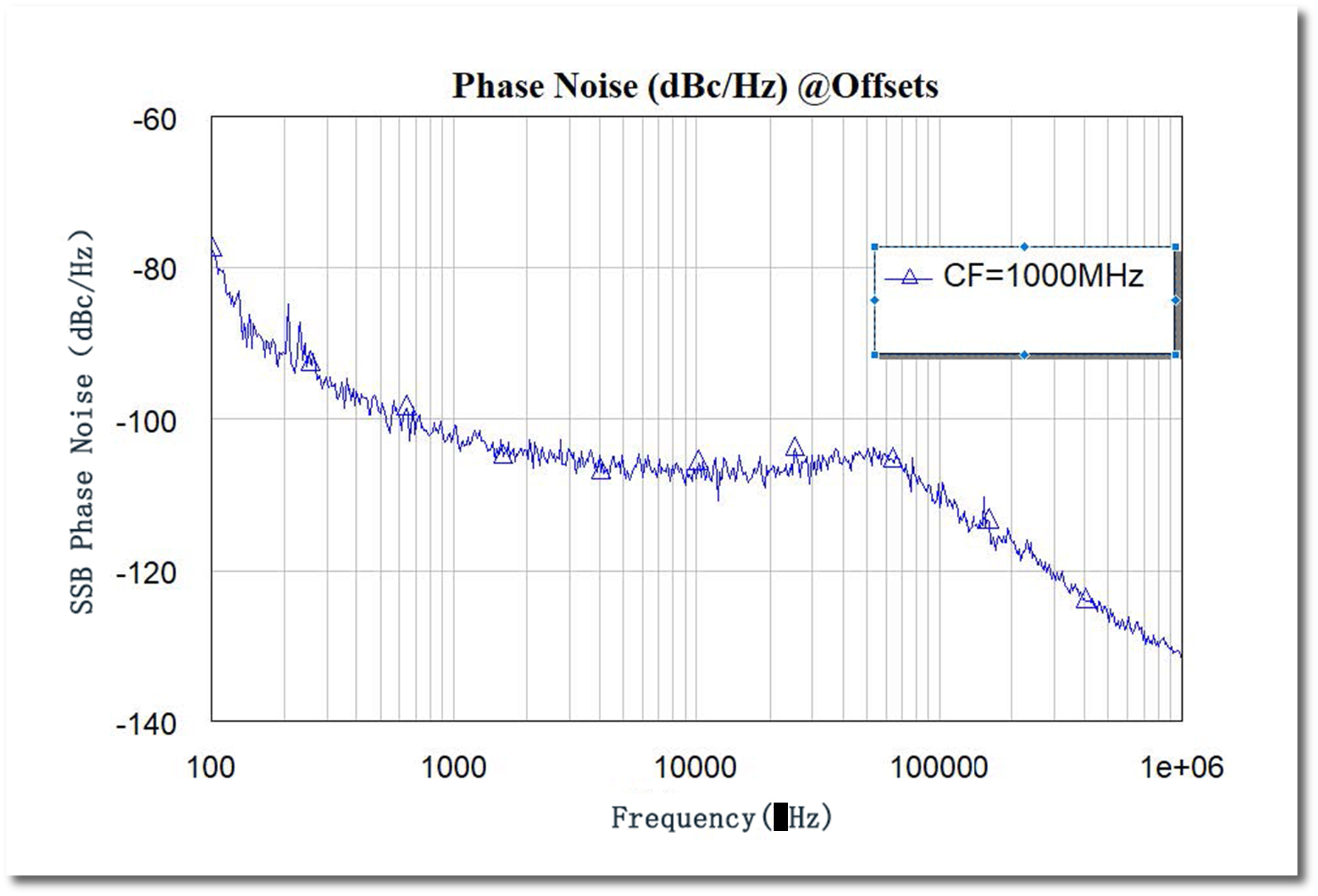

Phase noise as low as -107 dBc/Hz (1 GHz, 10 kHz offset)
Comparison
Related Document
User Manual
UTS5000A Series Signal Analyzers - User Manual
Datasheet
UTS5000A Series Signal Analyzers - Data Sheet
Programming Manual
UTS5000A series Signal Analyzers - Programming Guide
Quick Guide
UTS5000A Series Signal Analyzers - QuickStart Guide
Software
Device Manager
Option For UTS5026A Signalanalysator
-
-
UTS5000A-AMK
Normaler Preis €1.250,00Incl. 19% VAT €1.487,50
Erweitertes Messkit für die UTS5000A-SerieDownload -
-
-
UTS5000A-P26
Normaler Preis €2.315,00Incl. 19% VAT €2.754,85
UTS5026A Vorverstärker, 26,5 GHzDownload -
Accessories for UTS5026A Signalanalysator
-
UTS-EMI01
Normaler Preis €429,00Incl. 19% VAT €510,51
Frequenzbereich: 30 MHz ~ 3 GHz; inklusive 3 Stück Magnetfeld-Nahfeldsonden und 1 Stück elektrisches Feld-Nahfeldsonde; 1 Stück N-SMA-Kabel, 1 Stück N-BNC
Download -
TASCHE-B3
Normaler Preis €65,00Incl. 19% VAT €77,35
Weiche Tragetasche für Spektrumanalysatoren der Serien UTS1000B und UTS3000BDownload -
UT-CKO1 Testkit
Normaler Preis €249,00Incl. 19% VAT €296,31
Spectrum Utility Kit: enthält 1 x NSMAJ-NJ-0,7M DC-6G-Kabel, 1 x NJ-NJ-0,7M DC-6G-Kabel, 2 x SMA-N-KJ-T DC-6GHz-Adapter, 2 x N-BNC-JK DC-4GHz-Adapter, 2 x 2400–2500 MHz-Antennen, 2 x 824–960 MHz/1710–1990 MHz
