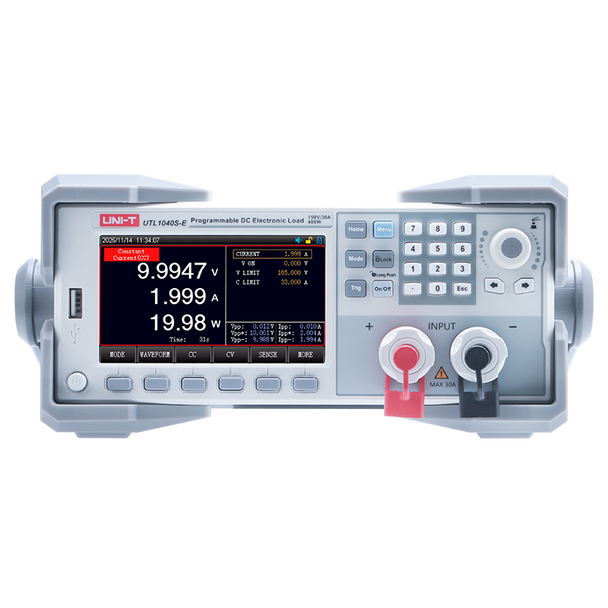

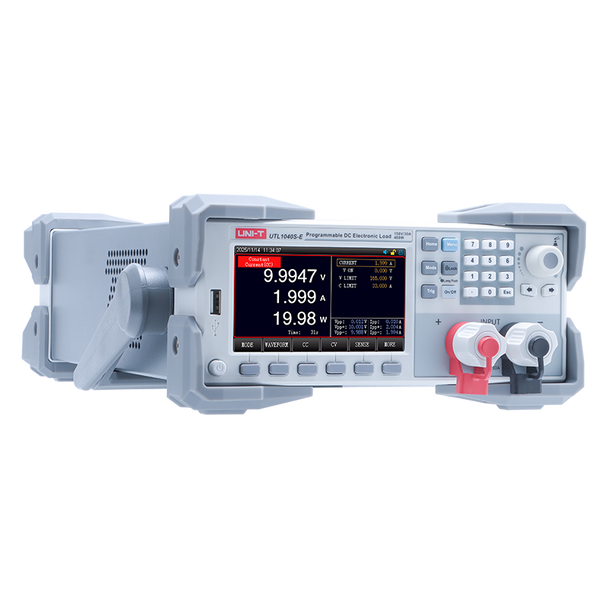

The UTL1040S-E is a compact and cost-effective DC electronic load supporting up to 150 V, 30 A, and 400 W, ideal for power supply testing and general R&D applications.

With 0.1 mV / 0.1 mA resolution, up to 50 kHz dynamic frequency, and an adjustable current slew rate (0.0006 A/μs–3 A/μs), it enables reliable transient testing and load simulation. Its ½ 2U compact design and RS232 connectivity ensure easy integration into laboratory and automated test environments.

The UTL1040S is a compact and high-performance DC electronic load supporting up to 150 V, 30 A, and 400 W, ideal for advanced power supply testing and R&D applications.

With fine 0.01 mV / 0.01 mA resolution, up to 50 kHz dynamic frequency, and an adjustable current slew rate (0.0006 A/μs–3 A/μs), it enables precise transient testing and dynamic load simulation. Its ½ 2U compact design and RS232 connectivity ensure easy integration into laboratory and automated test environments.

The UTL1020S-E is a compact and cost-effective DC electronic load supporting up to 150 V, 30 A, and 200 W, ideal for power supply testing and basic R&D applications.

With 0.1 mV / 0.1 mA resolution, up to 50 kHz dynamic frequency, and an adjustable current slew rate (0.0006 A/μs–3 A/μs), it enables reliable transient testing and load simulation. Its ½ 2U compact design and RS232 connectivity make it suitable for laboratory and automated test environments.

The UTL1020S is a compact and high-performance DC electronic load supporting up to 150 V, 30 A, and 200 W, ideal for power supply testing and R&D applications.

With fine 0.01 mV / 0.01 mA resolution, up to 50 kHz dynamic frequency, and an adjustable current slew rate (0.0006 A/μs–3 A/μs), it enables precise transient testing and dynamic load simulation. Its ½ 2U compact design and RS232 connectivity make it suitable for lab integration and automated test setups.
